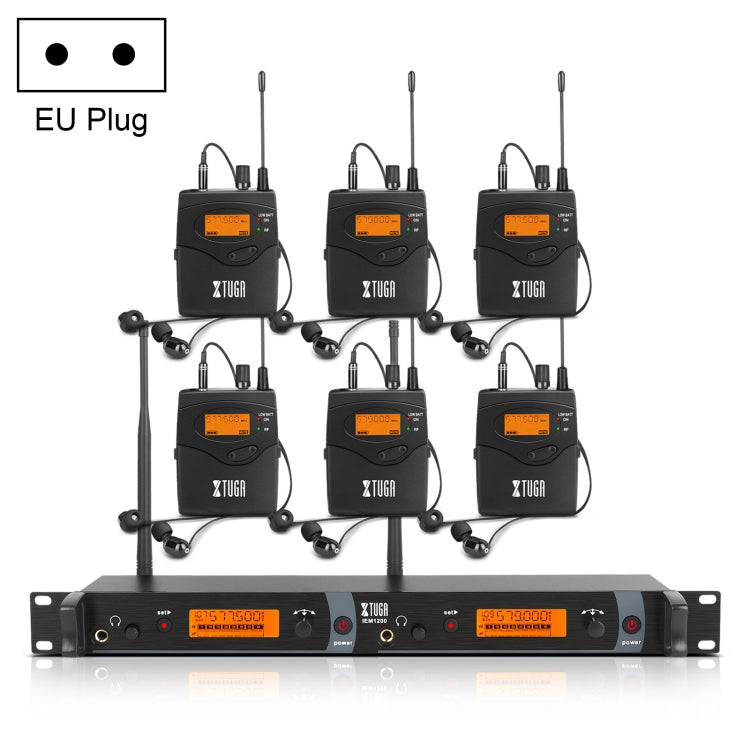

XTUGA IEM1200 Wireless Transmitter 6 Bodypack Stage Singer In-Ear Monitor System(EU Plug)

Wireless in-ear monitoring system designed for stage performances. It features a built-in limiter circuit to eliminate distortion at excessive input levels.

• Type: Wireless Transmitter and Receiver System
• Frequency Range: UHF 550-580MHz
• Wireless Range: 80 to 100m
• Signal-to-Noise Ratio: Improved dynamic range for excellent anti-interference
• Transmitter Case Specification: Standard 1U Case
• Transmitter Material: Metal panel and body housing
• Transmitter Output Power: 100mW (50 ohms)
• Transmitter Audio Input: XLR & 6.3mm duplex outlet
• Transmitter Earphone Output: 6.3mm jack, volume adjustable
• Transmitter Headphone Load Impedance: ≥ 16 ohms
• Transmitter Voltage Current Consumption: DC 12V 250mA
• Transmitter Antenna Interface: TNC jack (50 ohms)
• Transmitter Size: 48 x 10.5 x 4.3cm
• Receiver Frequency Range: UHF 500-830MHz (corresponding transmitter frequency)
• Receiver Frequency Interval: 25MHz
• Receiver Operating Mode: Manual adjust
• Receiver Receiving Mode: Single tuning
• Receiver Comprehensive Frequency Response: 80Hz~15KHz +/-3dB
• Receiver Output Power: 2 x 35mW (30 ohms)
• Receiver Earphone Output: 3.5mm jack
• Receiver Power Supply: 2 x AA batteries (not included)
• Receiver Size: 8.5 x 6cm
