HW-439 DC-DC Step Down Buck Converter Power Supply Module XL4016E1 4-40V to 1.25-36V 8A 200W Voltage Regulator
HW-439 DC-DC Step Down Buck Converter Power Supply Module XL4016E1 4-40V to 1.25-36V 8A 200W Voltage Regulator
In stock
🔥 Buy any 2 items, get 25% off 3rd item 🔥 Save today!
Couldn't load pickup availability
Shipping Guarantee
Shipping Guarantee
FREE SHIPPING on all UK orders. Fully insured.
Handling time: 1 - 3 business days. (Buy2fix has to process your order and put all your items through its strict quality-control tests.)
Transit time is 5 - 10 business days to the UK. Transit times to other countries are displayed at checkout.
Origin: CN
Return Guarantee
Return Guarantee
For whatever reason, if you are unsatisfied with your order within 30 days, you can return it to us in new condition for a refund minus the shipping charges.
The Right Part Guarantee
The Right Part Guarantee
The Right Part, Guaranteed. If we send the wrong part (not as described), our 30-day return policy has you covered. You get a full refund, including the shipping fees.
Hassle-Free Returns
Hassle-Free Returns
Start Your Return in Seconds with Our Easy Online Return Portal.
1. Using XL4016 switch voltage regulator chip, with MBR20100 dual rectifier, the input voltage can reach 40V and output 1.25~36V continuously adjustable
2. 180KHz fixed frequency PWE step-down (step-down) DC/DC converter
3. High efficiency and up to 8A load driving capacity
4. Low ripple and excellent line and load regulation ability
5. Built-in frequency compensation and fixed frequency oscillator
6. Built-in over-current and short-circuit protection functions
7. Built-in thermal shutdown function, output protection function, output overvoltage protection
8. Voltage regulation method: PWM modulation
9. Chip model: XL4016E1
10. Type: DC/DC power supply module
11. Input voltage: DC4-40v
12. Output range: DC1.25-36v
13. Rated current: 8A
14. Rated power: 200w
15. Conversion efficiency: 94%
16. Switching efficiency: 180Khz

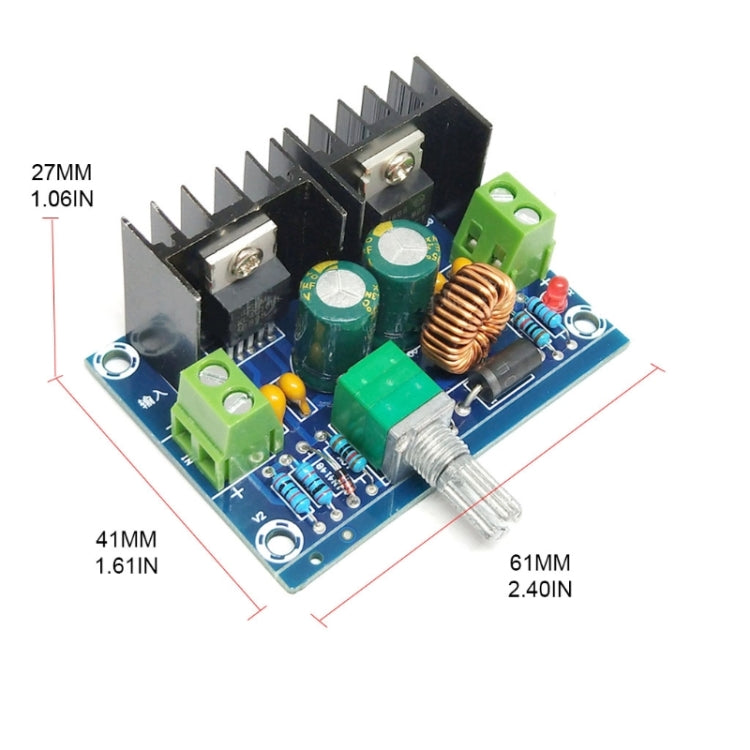

17. Size: 61x41x27mm
