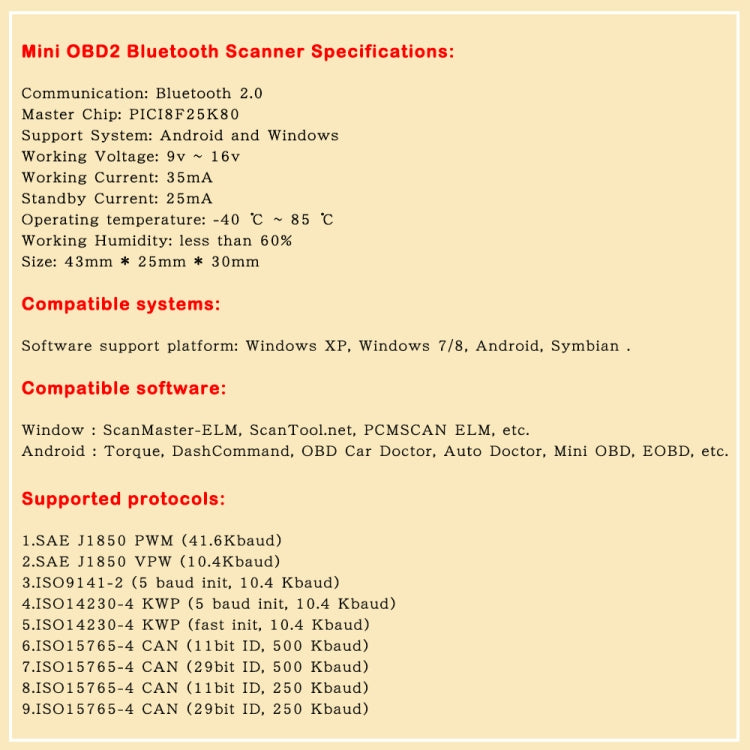

1. ISO9141-2(5 baud init,10.4Kbaud) 2. ISO14230-4 KWP (5 baud init, 10.4 Kbaud) 3. ISO14230-4 KWP (fast init, 10.4 Kbaud) 4. ISO15765-4 CAN (11bit ID, 500 Kbaud) 5. ISO15765-4 CAN (29bit ID, 500 Kbaud) 6. ISO15765-4 CAN (11bit ID, 250 Kbaud) 7. ISO15765-4 CAN (29bit ID, 250 Kbaud) - SAE J1939 CAN (29bit ID, 250*Kbaud) - USER1 CAN (11*bit ID, 125*Kbaud) - USER2 CAN (11*bit ID, 50*kbaud)
**Default settings (user adjustable) 1. Works with all OBD-II compliant vehicles 2. Wireless (Bluetooth) 5~10meters 3. Software included for Palm, PDA, Mobile 4. Software included for Windows PC 5. Software included for Windows Smartphone
**Functions: 1. Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database) 2. Clear trouble codes and turn off the MIL ("Check Engine" light) 3. Display current sensor data, including: 4. Engine RPM 5. Calculated Load Value 6. Coolant Temperature 7. Fuel System Status 8. Vehicle Speed 9. Short Term Fuel Trim 10. Long Term Fuel Trim 11. Intake Manifold Pressure 12. Timing Advance 13. Intake Air Temperature 14. Air Flow Rate 15. Absolute Throttle Position 16. Oxygen sensor voltages/associated short term fuel trims 17. Fuel System status 18. Fuel Pressure
Verified Compatible
Guaranteed fit for your device. Wrong part? Full refund including shipping.
