1. Support HDMI1.4b, DVI1.0, HDCP1.4 2. 100M long-distance transmission 3. Low power consumption, low temperature, high security 4. Support HDMI out Downscaling 5. CAT5e or CAT6 cable between receiver and transmitter: up to 100m 6. HDMI input/output: 4k/1080p/1080i/720p/576p/576i/480p/480i 7. Maximum transmission bandwidth: 340MHz 8. Maximum transmission rate: 3x3.4Gbps 9. Input video signal: 0.5-1.5Volts p-p 10. Output DDC signal: 5Volts p-p (TTL) 11. Input/output HDMI cable length: within 15m AWG26 standard HDMI specification cable 12. Maximum operating current: TX: 350mA; RX: 200mA 13. Power adapter specifications: AC input (50HZ, 60HZ) 100V-240V; DC output 5V/1A 14. Operating temperature range: -15 - 55 degrees Celsius 15. Operating humidity range: 5 - 90%RH (non-condensing) 16. Size: about 8.1 x 4.3 x 2.2cm 17. Weight : about 103g

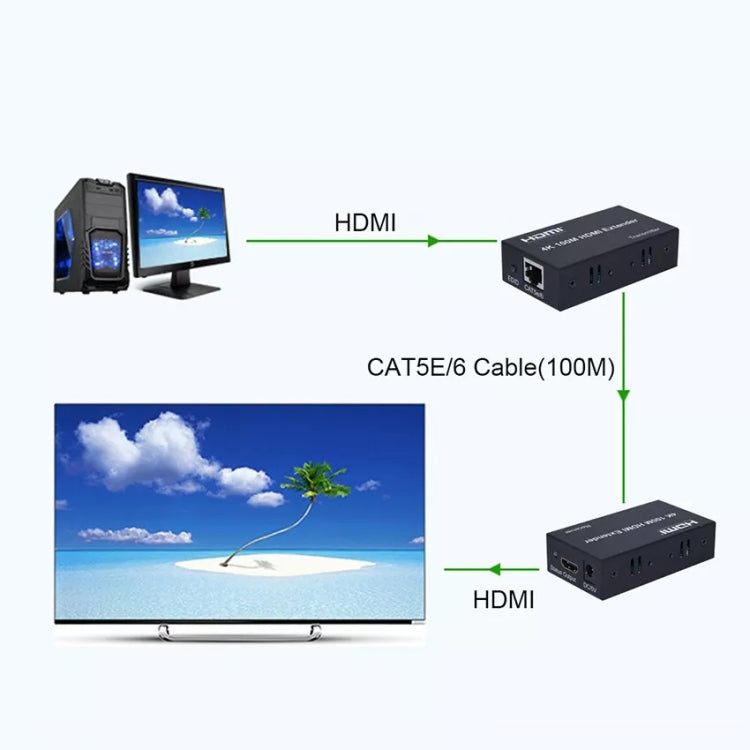

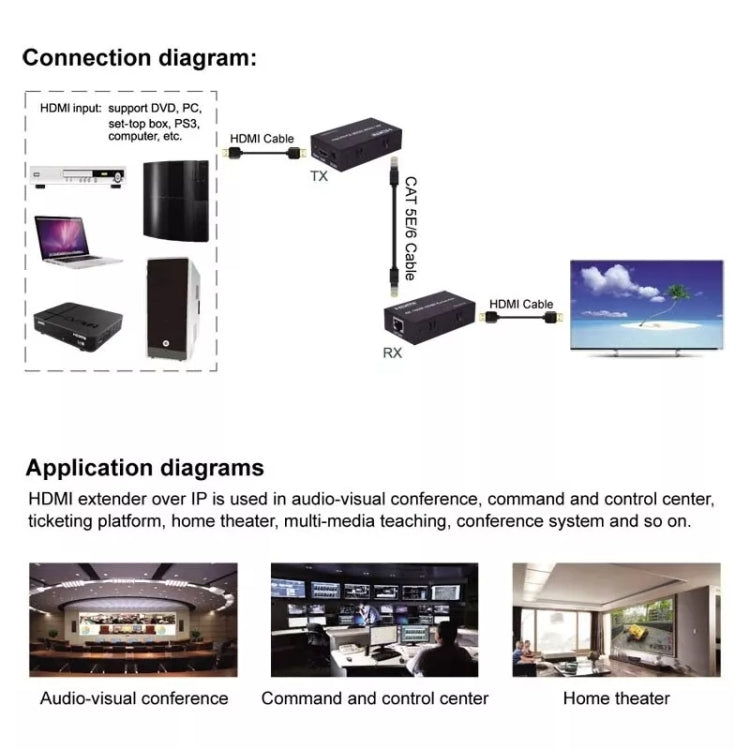

Connection and operation: 1. Connect the signal source to the transmitter of the extender with an HDMI cable up to 10 meters long. 2. Use a HDMI cable to connect the display end to the receiver end of the extender, the cable can be up to 10 meters long 3. Use a cat5e or cat6 cable (recommended) instead of HDMI cable to connect the transmitter and receiver of the extender, the maximum transmission length can be 60 meters 4. Connect the transmitter and receiver to the power supply 5. LED indicator description: when there is no signal input, light blue; when there is a signal input, light red 6. EDID button: the button is used to handle EDID, which can realize the switching of EDID supporting 1080p and 4K (the default on the power on is EDID supporting 4K)
Packing list: - TX transmitter x 1 - RX Receiver x 1 - Power adapter x 2 - User manual x 1
