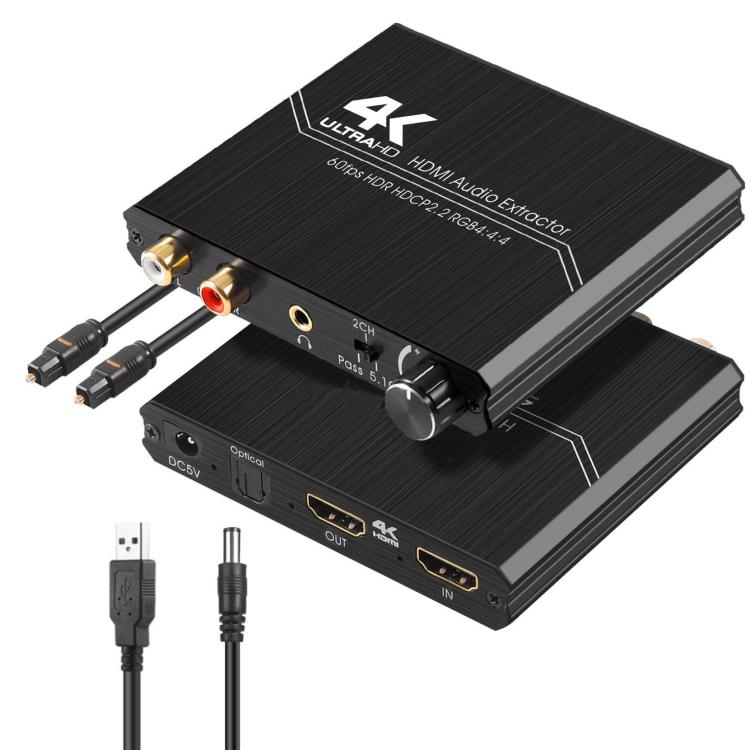

HDMI 2.0 Audio Extractor Support R/L Output And Volume Control 4K/60Hz Audio Splitter EU Plug

• Product type: Splitter
• Compatibility: HDMI devices
• Material: Not specified
• Key feature: Volume control
• Color/Variant: Not specified
• Intended use: Everyday use
• Category: Computer & Networking

1. HDCP version: HDCP 2.2
2. Input/output resolution: 1080p/60fps, 4K/30fps, 4K/60fps
3. Deep color mode: 4K/60fps-YUV444-8 bit, 4K/60fps-YUV422-12 bit 2160p, 10/12 bits, 50/60Hz
4. HDMI maximum bandwidth: 600MHz
5. HDMI maximum baud rate: 18Gbps
6. Input and output TMDS signal: 0.5-1.5Vp-p(TTL)
7. Input and output DDC signal: 5Vp-p(TTL)
8. DAC sampling frequency: 32-192 KHz
9. DAC bit rate: 16-24 bits
10. RCA analog output (1kHz 0dB): 1V RMS
11. 3.5mm audio port maximum output level: 6.5Vp-p
12. 3.5mm audio port maximum output power: 32 ohms 30mW
13. Signal-to-noise ratio 0dB (CC1R/ARM): ≥ 90dB
14. Distortion: ≤ 0.1%
15. Frequency Response: 20Hz-20kHz
16. HDMI input / output cable distance: ≤ 3m AWG26 HDMI standard cable
17. Maximum operating current: 400mA
18. Power adapter specifications: AC 100V-240V 50/60Hz, DC 5V/1A
19. Operating temperature range: -10 to 55 degrees Celsius
20. Storage temperature range: -20 to 60 degrees Celsius
21. Operating humidity range: 10-90% RH (no condensation)
22. Storage humidity range: 5-95% RH (no condensation)
23. Size: about 10 x 9.5 x 2cm
24. Net Weight: about 117g

Packing list:
- HDMI audio extractor x 1
- DC5V/1A power adapter x 1
- USB power cable x 1
- User manual x 1
