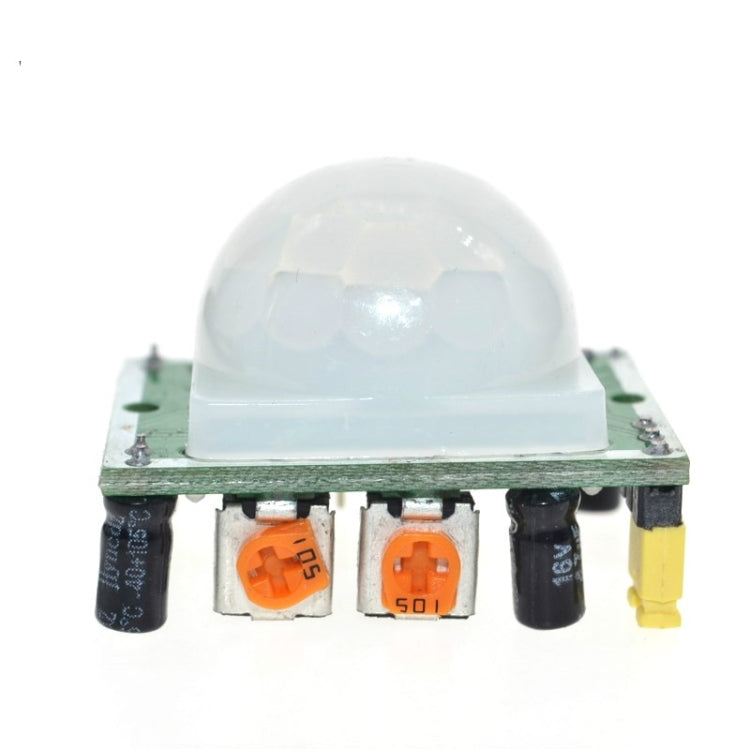

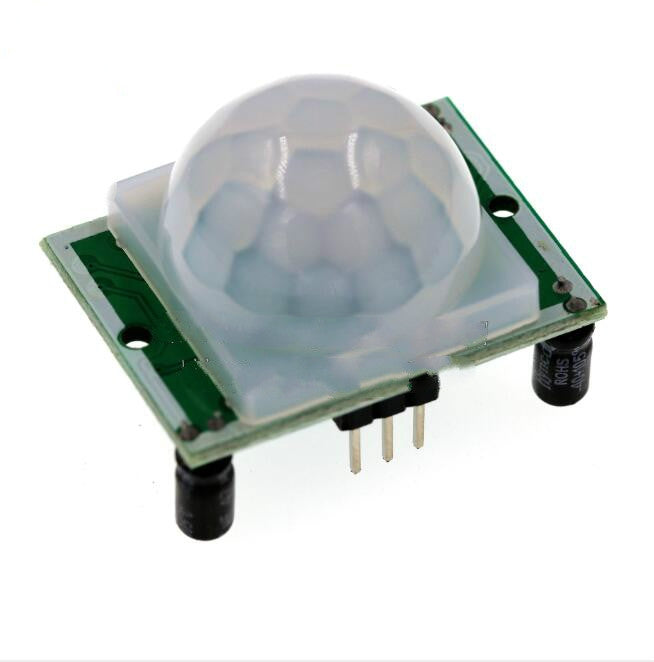

HC-SR501 Module Human Infrared Sensor Module SUNLEPHANT Pyroelectric Infrared Sensor
HC-SR501 Module Human Infrared Sensor Module SUNLEPHANT Pyroelectric Infrared Sensor
In stock
🔥 Buy any 2 items, get 25% off 3rd item 🔥 Save today!
Couldn't load pickup availability
Shipping Guarantee
Shipping Guarantee
FREE SHIPPING on all UK orders. Fully insured.
Handling time: 1 - 3 business days. (Buy2fix has to process your order and put all your items through its strict quality-control tests.)
Transit time is 5 - 10 business days to the UK. Transit times to other countries are displayed at checkout.
Origin: CN
Return Guarantee
Return Guarantee
For whatever reason, if you are unsatisfied with your order within 30 days, you can return it to us in new condition for a refund minus the shipping charges.
The Right Part Guarantee
The Right Part Guarantee
The Right Part, Guaranteed. If we send the wrong part (not as described), our 30-day return policy has you covered. You get a full refund, including the shipping fees.
Hassle-Free Returns
Hassle-Free Returns
Start Your Return in Seconds with Our Easy Online Portal.
1. Operating voltage range: DC voltage 5-20V
2. Static current: <65uA
3. Level output: 3.3 V high / low 0V
4. Trigger mode: L non-repeatable trigger / H repeat trigger (default repeat trigger)
5. Delay time: 0.5-200S (adjustable) can be made in the range of a few seconds - tens of minutes
6. Blocking time: 0.2S can be made in the range of a few seconds - tens of seconds
7. Circuit board dimensions: 32mm*24mm
8. Sensing range: <120 degree cone angle, in 7m
9. Working temperature: -15-+70 degrees
10. Induction lens size: diameter: 23mm
