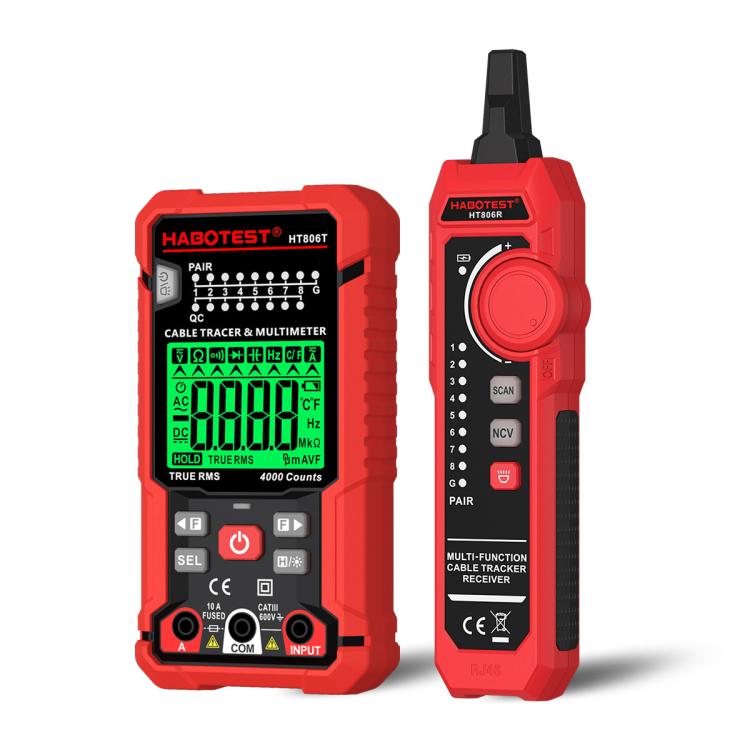

HABOTEST HT806TR 2-In-1 Network Cable Tracer & Multimeter Anti-Interference Wire Tracker(Red)
HABOTEST HT806TR 2-In-1 Network Cable Tracer & Multimeter Anti-Interference Wire Tracker(Red)
SKU: TBD0607135701A
Regular price
$103.00
Regular price
Sale price
$103.00
Duties & Import Tax Information
Duties are only included if shown at checkout. Otherwise, your local government may apply customs fees, which your courier will collect directly from you before delivery.
In Stock
CHN
This item is shipped from China.
Processed in 0–3 days
Quantity
Couldn't load pickup availability
Shipping info
To find all available shipping methods and exact delivery times, add the product to your cart and check using our shipping calculator.
30-day returns
Fast refunds: Once we receive and check your item, we aim to process your refund within 48 hours.
Return postage: Just changed your mind? You'll need to cover the return postage. If the item arrived faulty, we'll cover the cost to get it back to us.
Your details are safe
We treat your data the way we'd want ours treated. Your payment details are locked down with bank-level encryption. We never actually see your credit card numbers, and we will absolutely never sell your personal information.

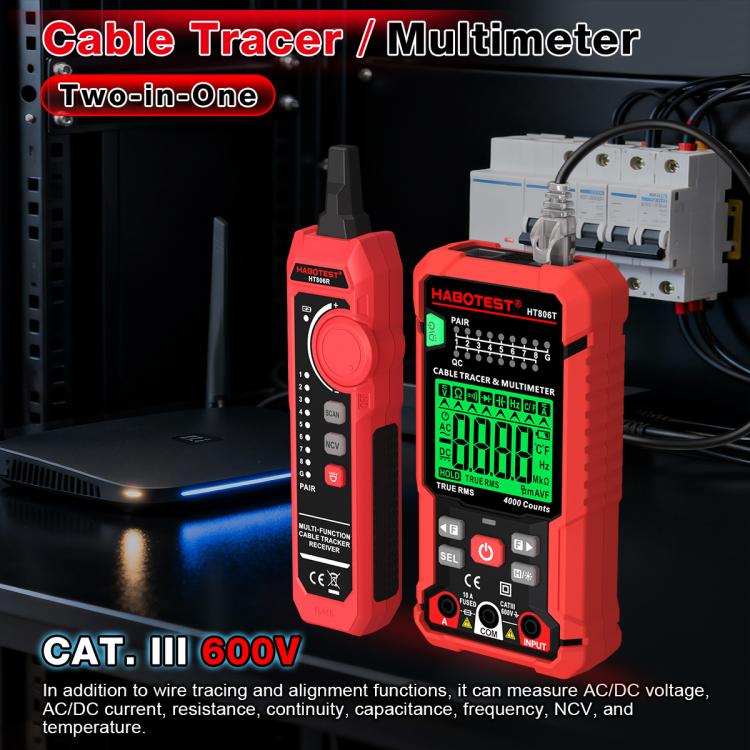

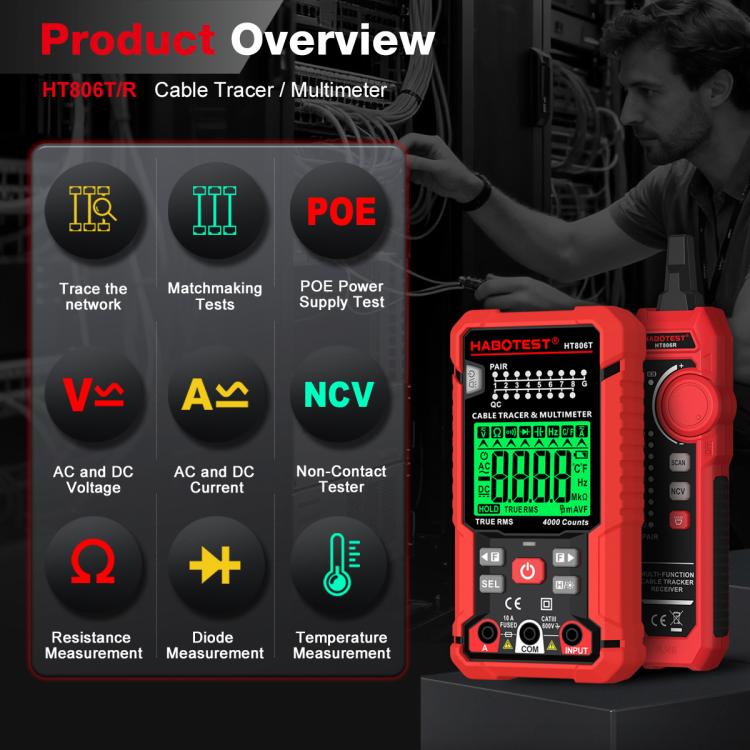

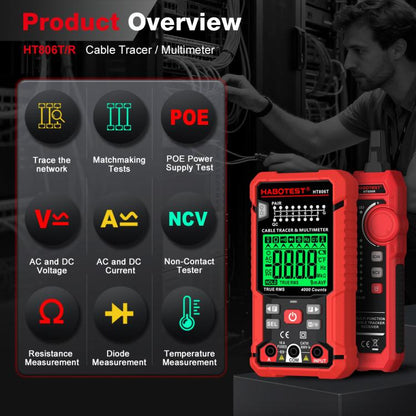

Overview: Innovatively combines an anti-interference network wire tracker with a True RMS 6000 counts digital multimeter. Effortlessly trace RJ45 ethernet cables, RJ11 telephone wires, and measure AC/DC voltage, current, resistance, capacitance, frequency, and temperature without carrying multiple heavy instruments.

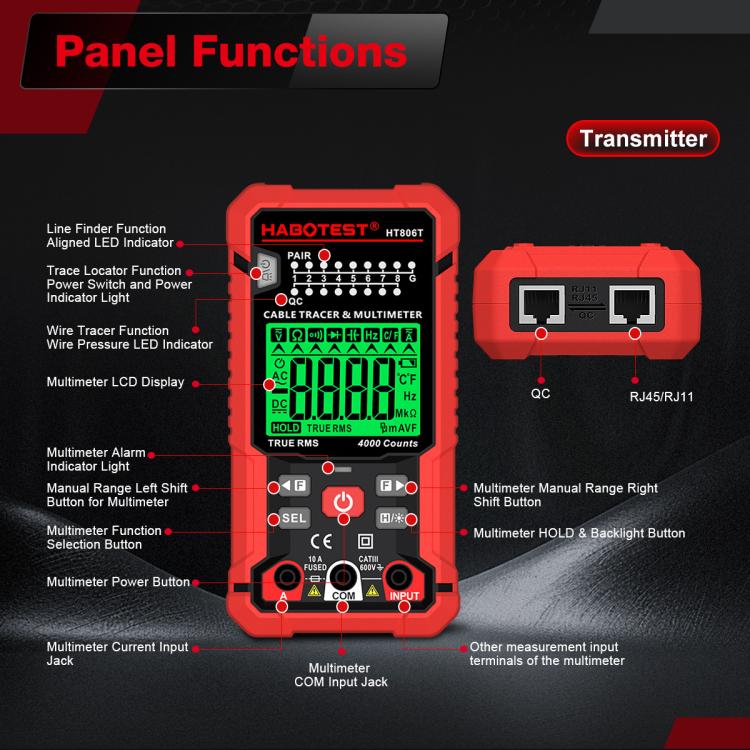

HT806T Transmitter:
1. Cable Types: CAT 5, CAT 6

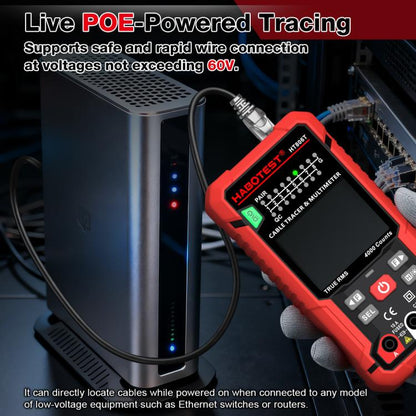

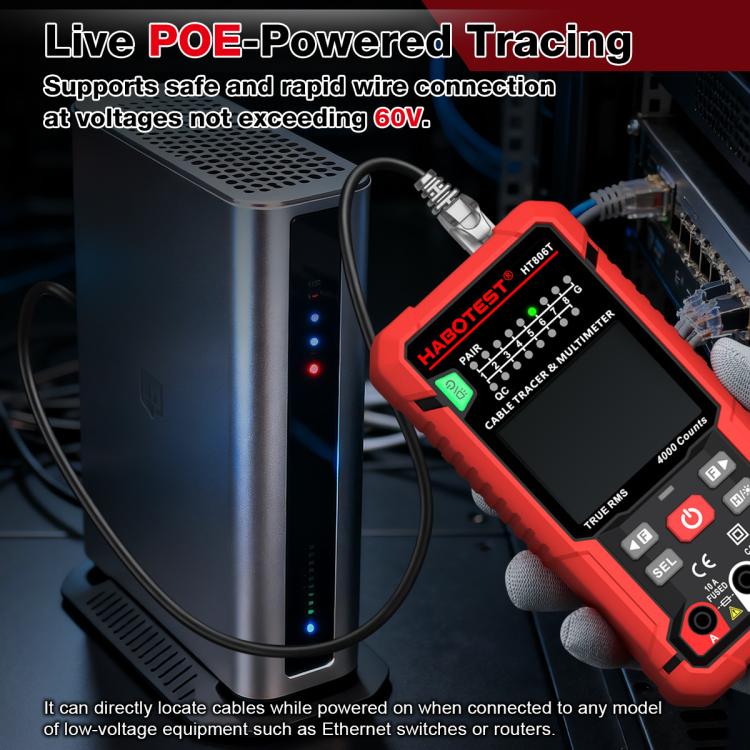

2. Anti-burn Protection: Withstand Voltage 60V

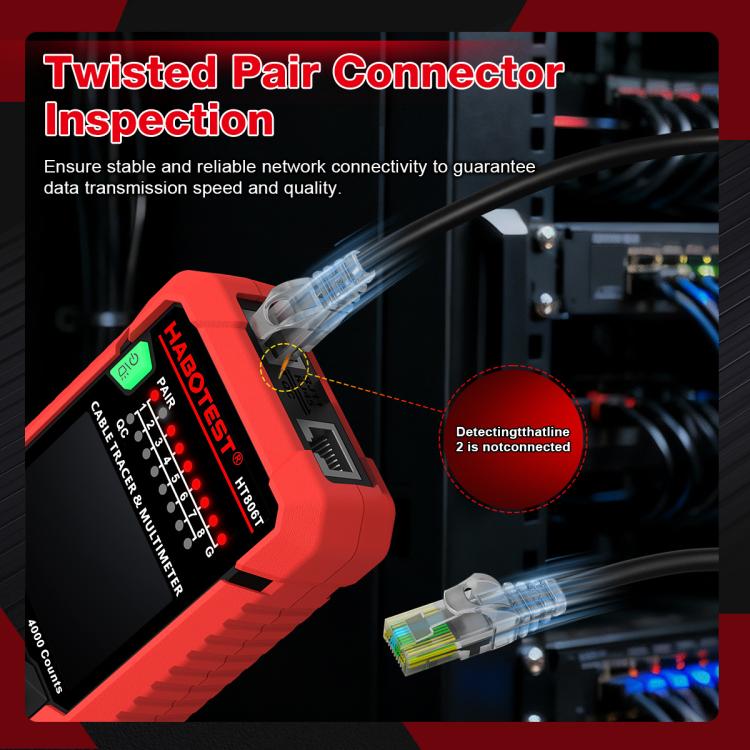

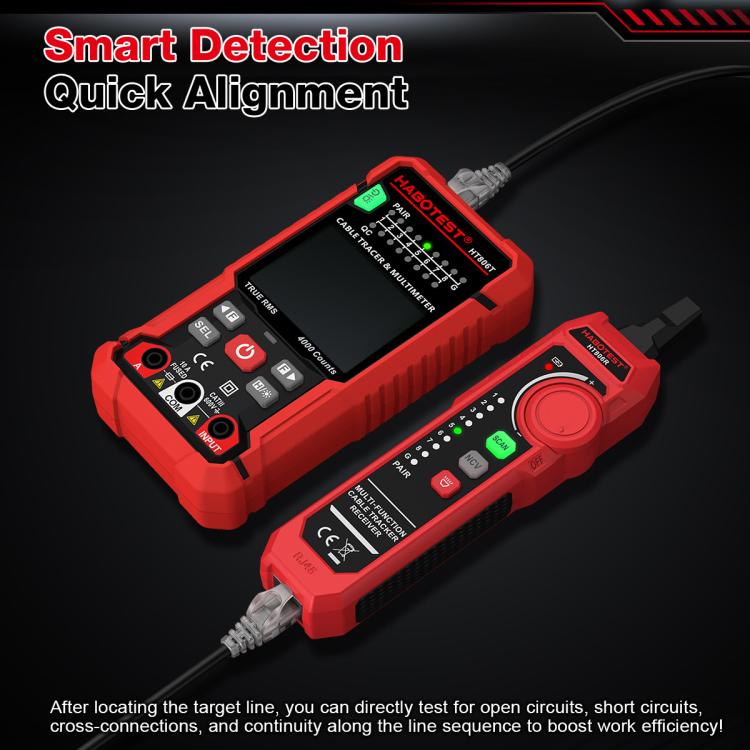

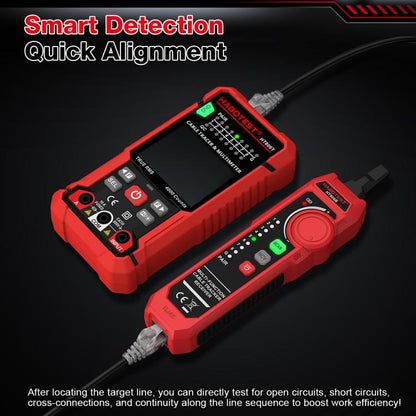

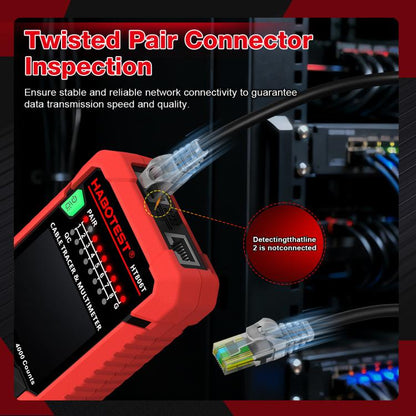

3. Main Functions: Cable Tracing, Wire Alignment, Crimping Test, Telephone Line Status Test
4. Crimping Response Speed: Less than 1 sec

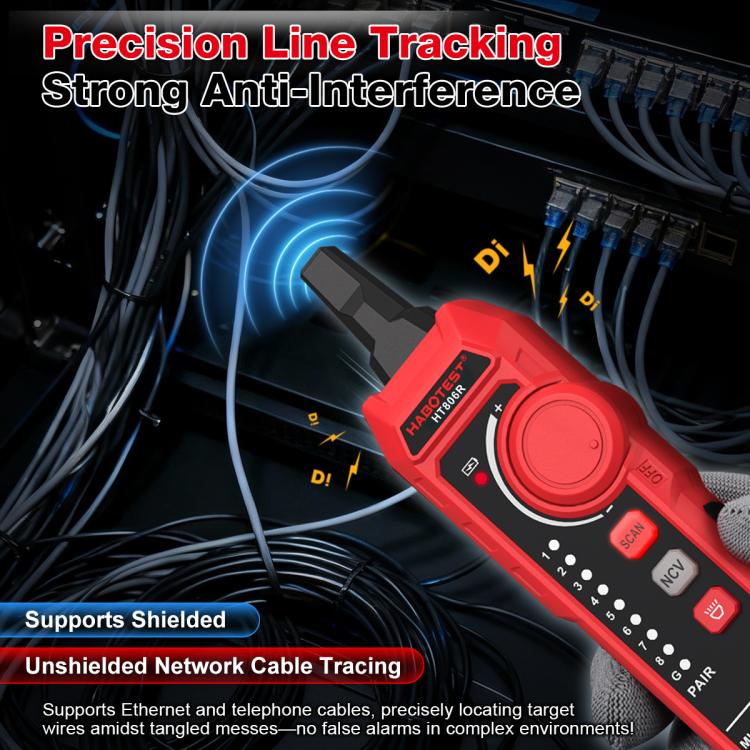

5. Anti-interference Line Tracing: Through technical measures, the receiver only responds to the target cable while ignoring adjacent interference signals
6. Interface Types: RJ11, RJ45
7. Signal Transmission Distance: Greater than 3000m

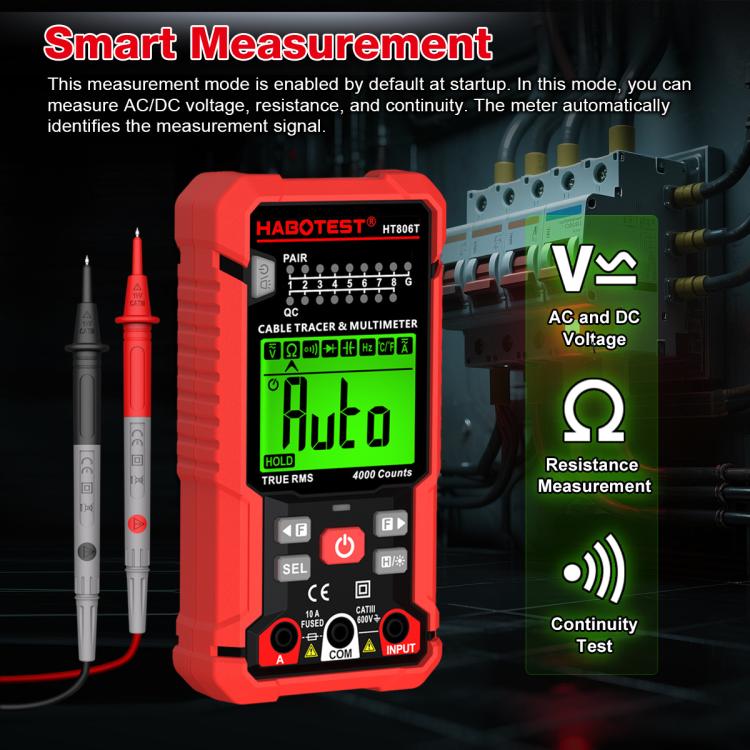

8. AC Voltage: 4V / 40V / 400V / 600V
9. DC Voltage: 400mV / 4V / 40V / 400V / 600V

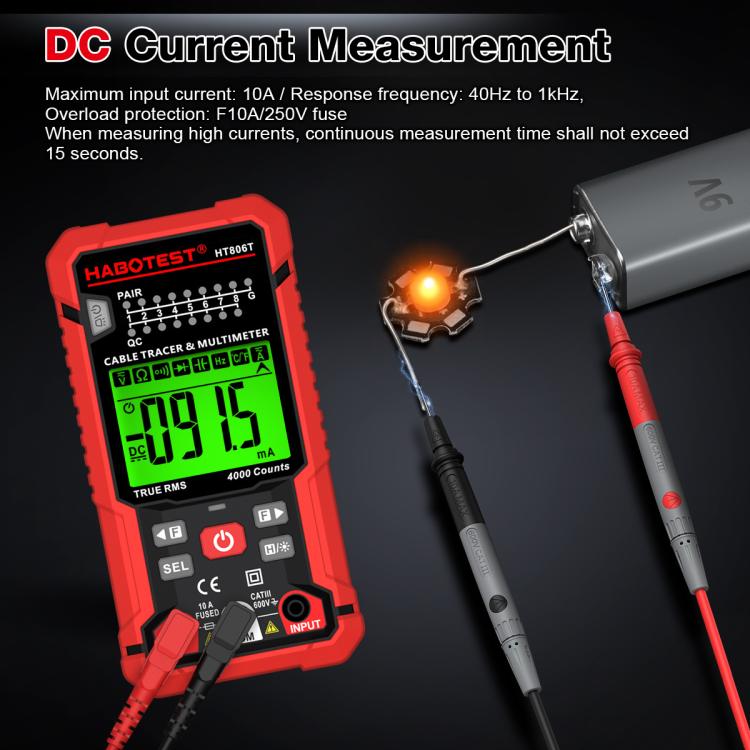

10. AC/DC Current: 400mA / 4A / 10A
11. Frequency: 4Hz / 40Hz / 400Hz / 4kHz / 40kHz / 400kHz / 4MHz
12. Capacitance: 4nF / 40nF / 400nF / 4uF / 40uF / 400uF / 4mF
13. Resistance: 400 ohm / 4k ohm / 40k ohm / 400k ohm / 4M ohm / 40M ohm
14. Continuity Test: Buzzer sounds and indicator light turns on when resistance is less than approx. 50 ohm
15. Diode: Displays diode forward voltage drop, open circuit voltage approx. 3V

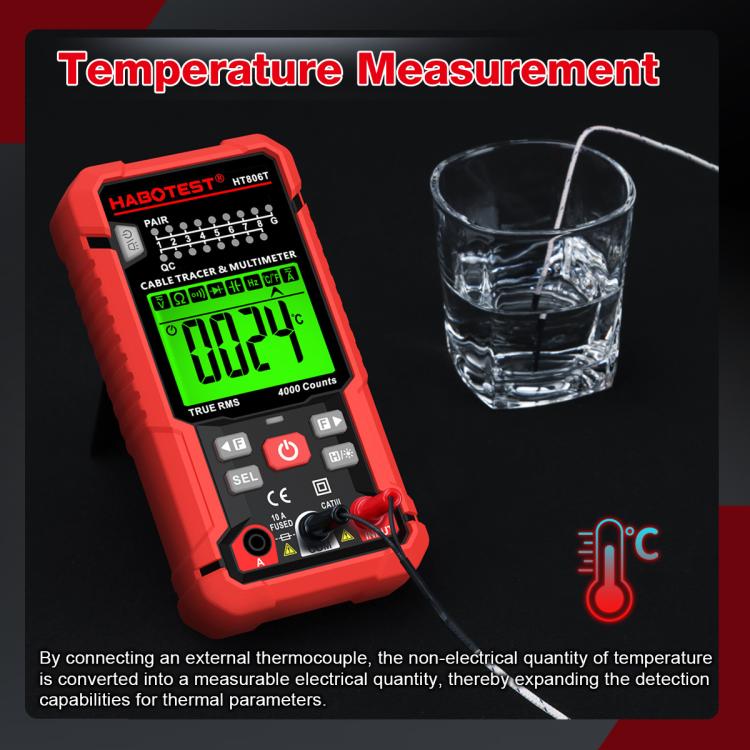

16. Temperature: -40 to 1000 deg C / -40 to 1832 deg F
17. Max Voltage between Terminal and Earth Ground: 600V
18. Display Counts: 6000 counts

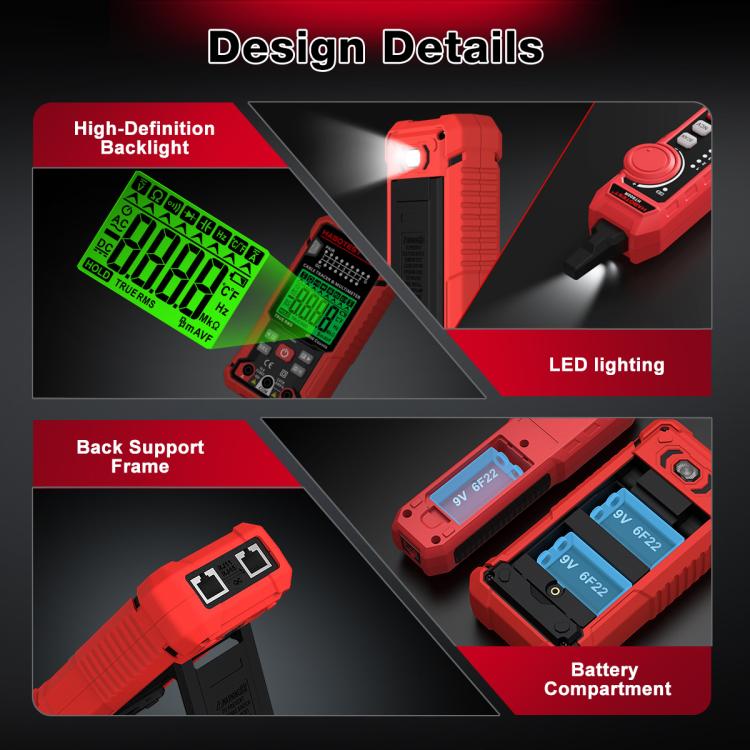

19. Screen: Backlit Display Screen
20. Over-range Indication: Displays "OL"
21. Low Battery Indication: Battery symbol displayed when battery voltage is lower than normal operating voltage
22. Input Polarity Indication: Automatically displays "-" sign
23. Auto Power Off: 30 min
24. Low Battery Alarm: Battery symbol displayed when battery voltage is lower than normal operating voltage

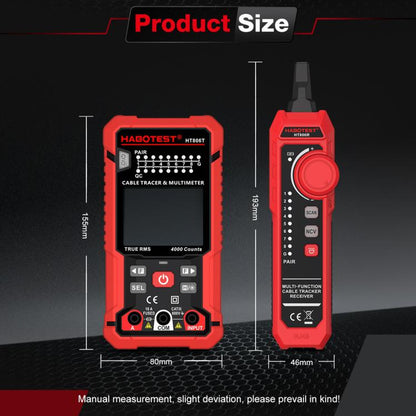

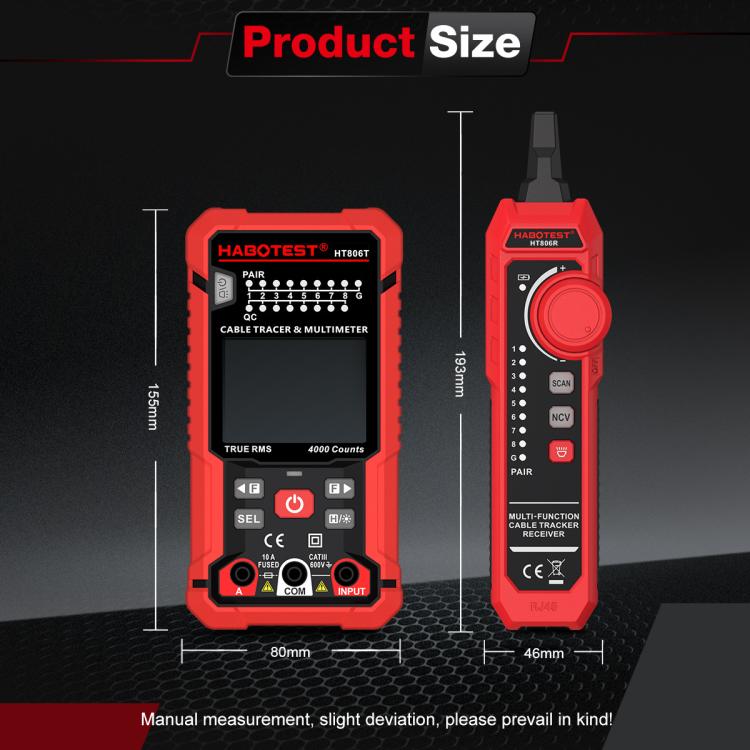

25. Dimensions: 155 mm x 80 mm x 42 mm
26. Product Weight: Approx. 240 g
27. Power Supply: 2 x 9V 6F22 Batteries (Batteries not included)
28. Safety Rating: CAT.III 600V

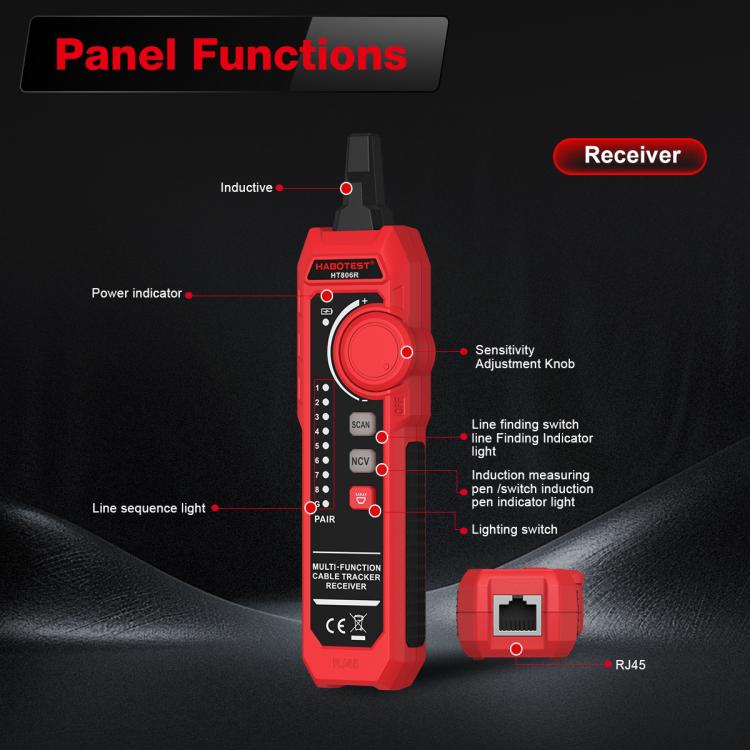

HT806R Receiver:
1. Compatible Network Cables: CAT 5, CAT 6
2. Anti-burn Protection: Withstand Voltage 60V

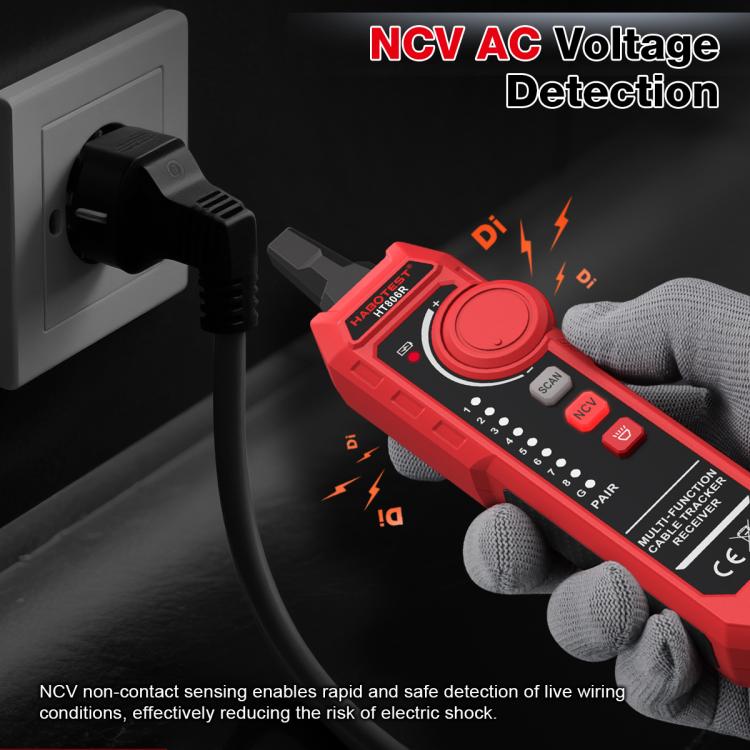

3. Main Functions: Cable Tracing, Wire Alignment, NCV Voltage Detection, Flashlight
4. Sensitivity Adjustment: Knob adjusting sensitivity
5. Interface Type: RJ45
6. Low Battery Alarm: Low battery alert supported
7. Dimensions: 193 mm x 46 mm x 30 mm
8. Product Weight: Approx. 86 g
9. Power Supply: 1 x 9V 6F22 Battery (Battery not included)
