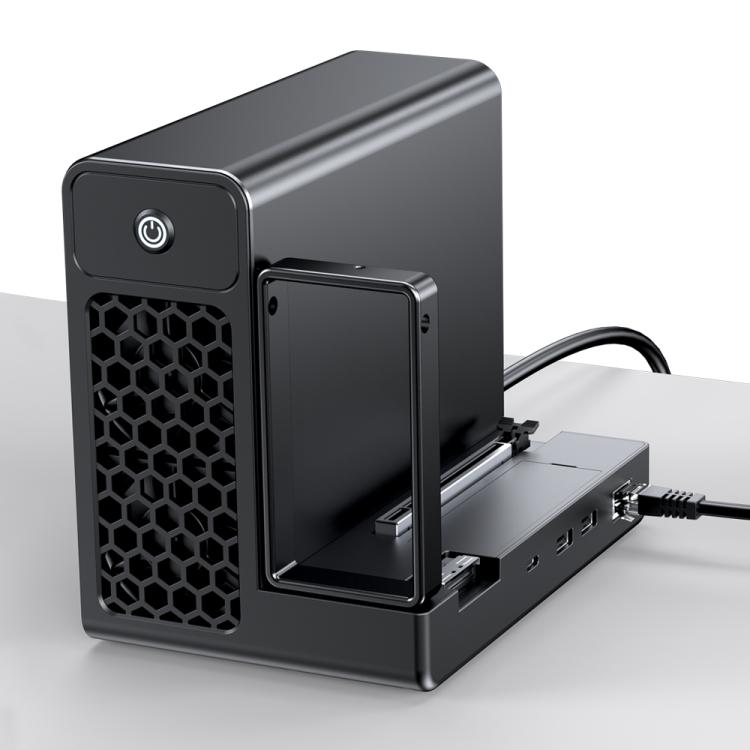

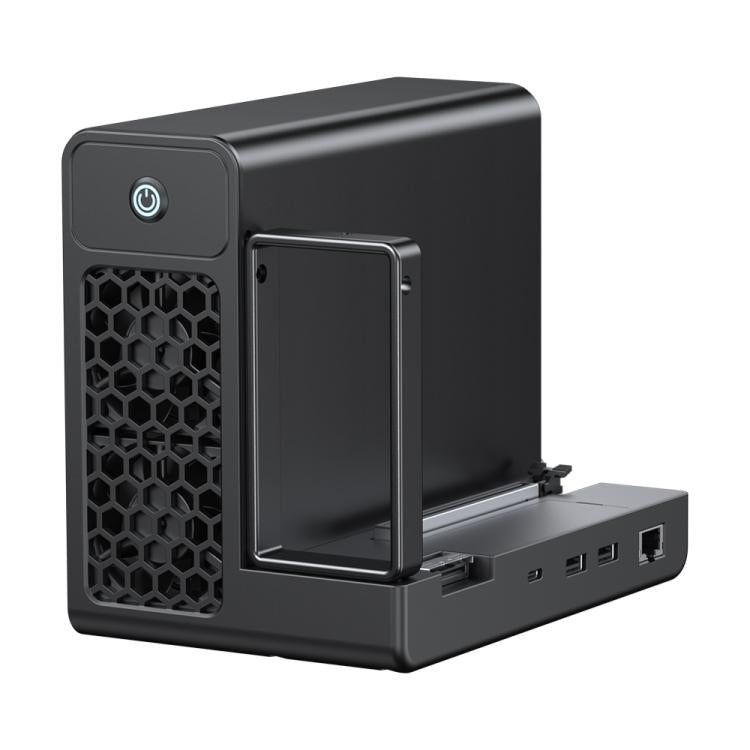

GPD G2 Graphics Expansion Dock 10Gbps High-speed MCIO 8i USB4 Hub Extension Dock, Plug:AU Plug(Black)

Features:
1. High-Speed PCIe Gen 5 Expansion. Equipped with one PCIe Gen 5 x16 slot, providing up to 1024 Gbps theoretical bidirectional bandwidth and approximately 126 GB/s effective data bandwidth.
2. MCIO 8i Expansion Interface. Supports PCIe Gen 4 x8 devices including graphics cards. When connected together with USB4 V2.0, it enables Hub expansion functions.
3. USB4 V2.0 Dual-Mode Connection. Supports up to 80 Gbps symmetrical bandwidth and 120/40 Gbps asymmetric bandwidth with PD 3.0 protocol.
4. 100W Power Delivery Output. Provides external power output through USB4 V2.0 with 5V/9V/12V/15V/20V power profiles.
5. eGPU Support. When connected independently, the USB4 V2.0 port can be used for external GPU connection.
6. High-Speed USB Expansion. Includes two USB Type-A ports supporting USB 3.2 Gen 2 with up to 10 Gbps transfer speed.
7. NVMe M.2 SSD Expansion. Supports M.2 2280 PCIe 3.0 x2 SSD with external boot support and magnetic SSD cover design.
8. Gigabit Network Connection. Equipped with an RJ45 Ethernet port supporting 10/100/1000 Mbps adaptive network speeds.

Specification:
1. Product Name: GPD G2 Graphics Expansion Dock
2. PCIe Slot: 1 x PCIe Gen 5 x16
3. PCIe Bandwidth: 1024 Gbps Theoretical Bidirectional Speed, Approximately 126 GB/s Effective Data Bandwidth
4. MCIO Port: 1 x MCIO 8i, PCIe Gen 4 x8
5. MCIO Support: Supports PCIe Devices Including Graphics Cards
6. USB4 Port: 1 x USB4 V2.0
7. USB4 Bandwidth: 80 Gbps Symmetrical, 120/40 Gbps Asymmetrical
8. Power Delivery: PD 3.0, 100W Output (5V/9V/12V/15V/20V)
9. USB Type-A Port: 2 x USB 3.2 Gen 2, Up to 10 Gbps
10. NVMe M.2 Slot: 1 x M.2 2280, PCIe 3.0 x2
11. SSD Support: External Boot Support, Magnetic SSD Cover Included
12. LAN Port: 1 x RJ45 Ethernet Port
13. Network Speed: 10/100/1000 Mbps Adaptive
