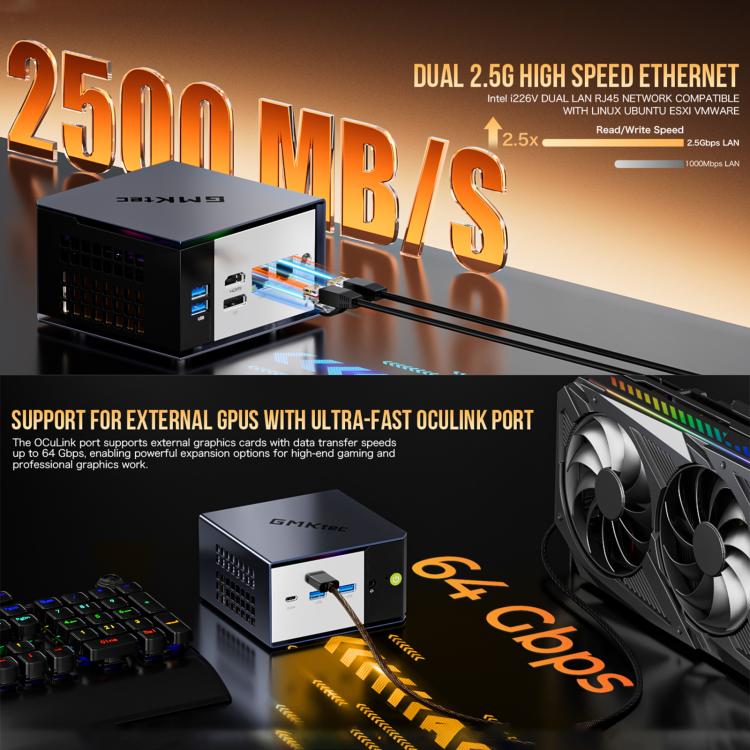

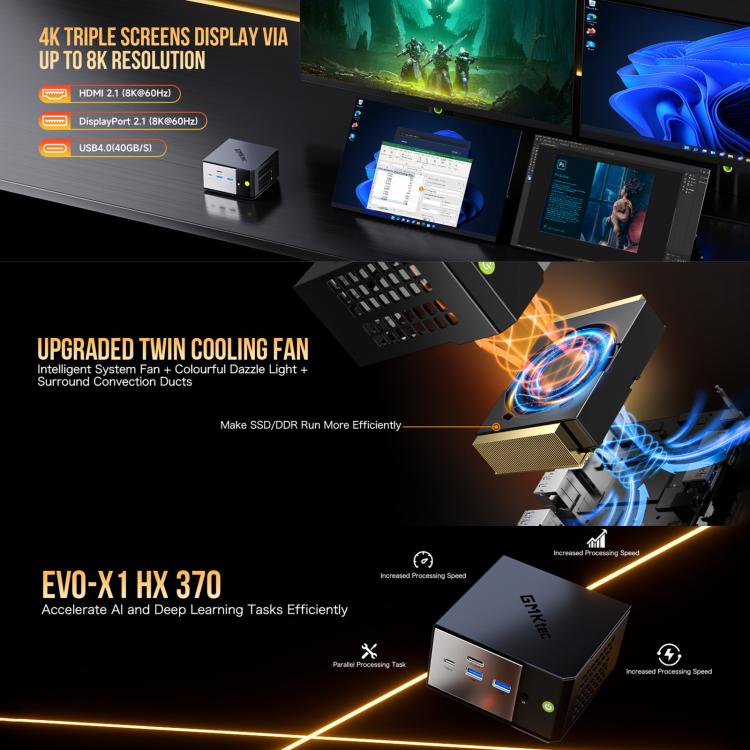

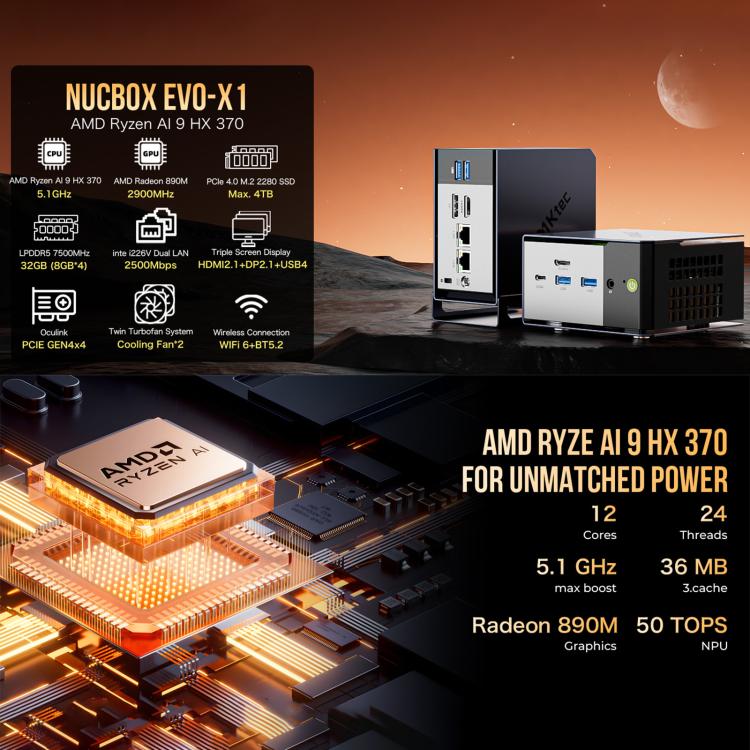

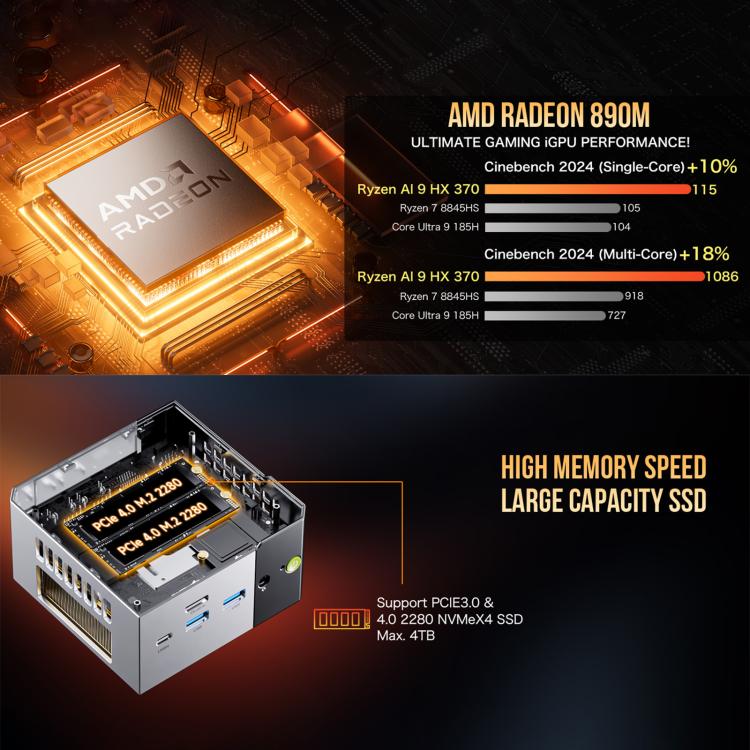

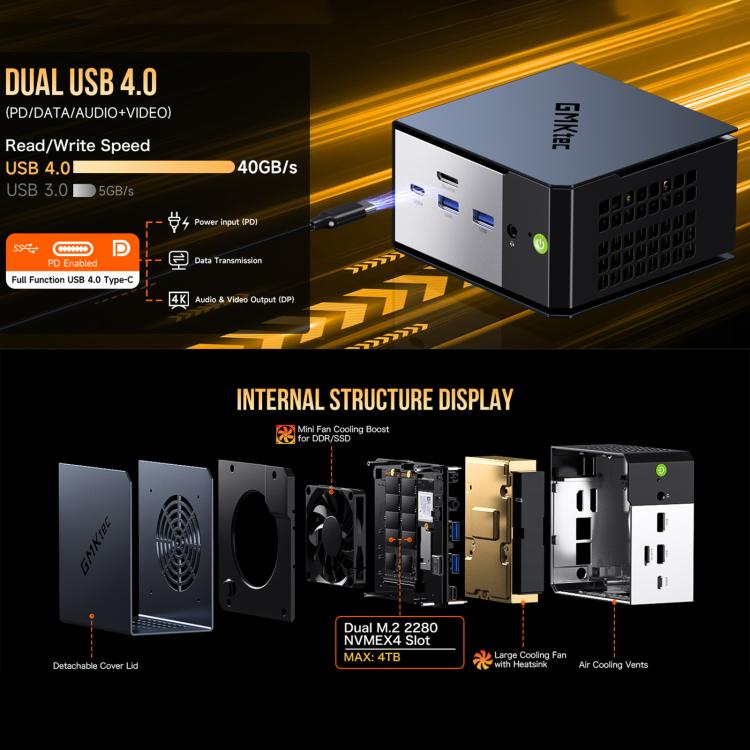

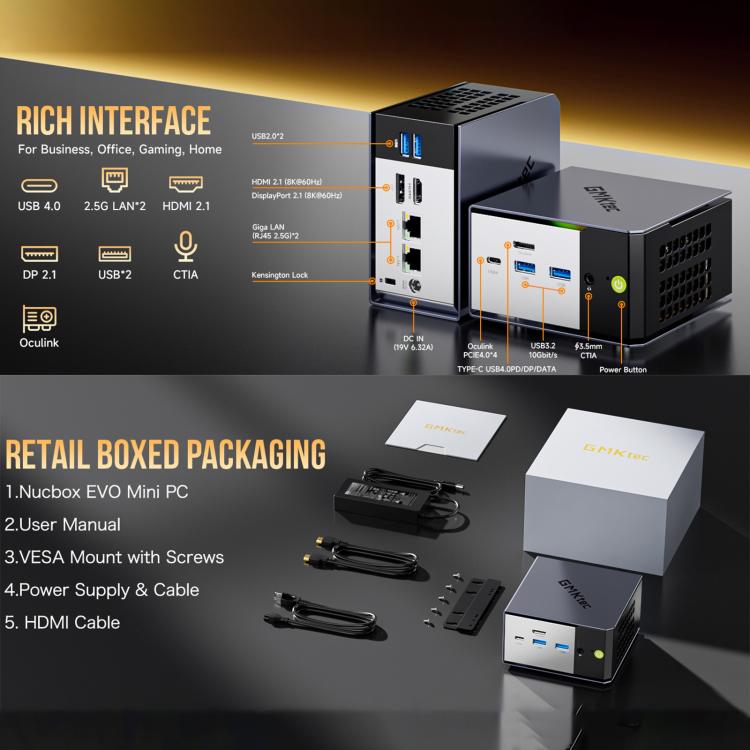

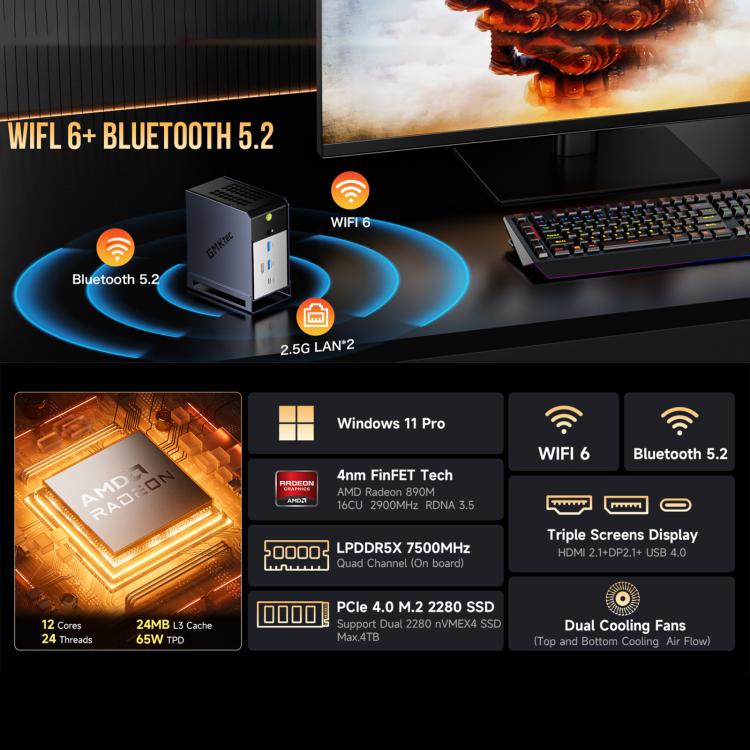

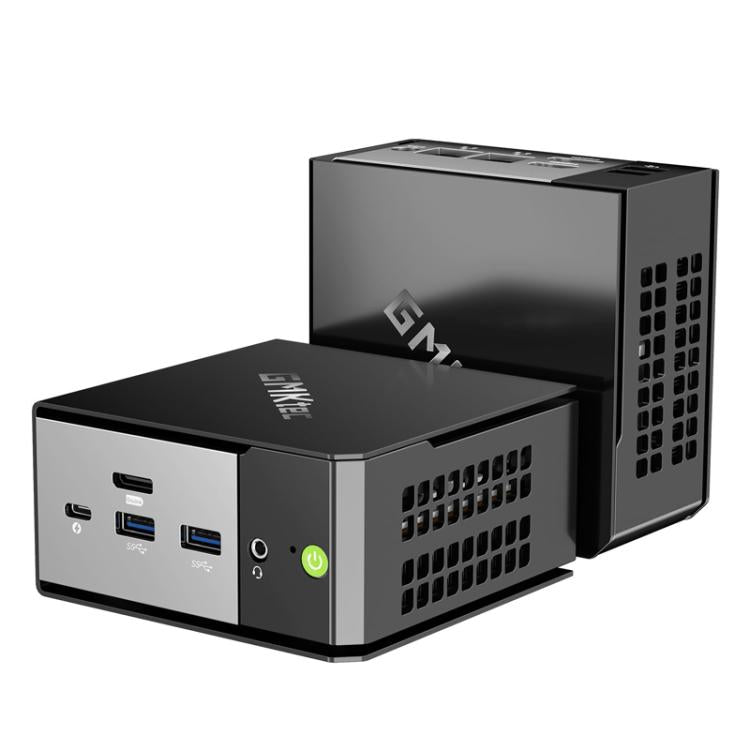

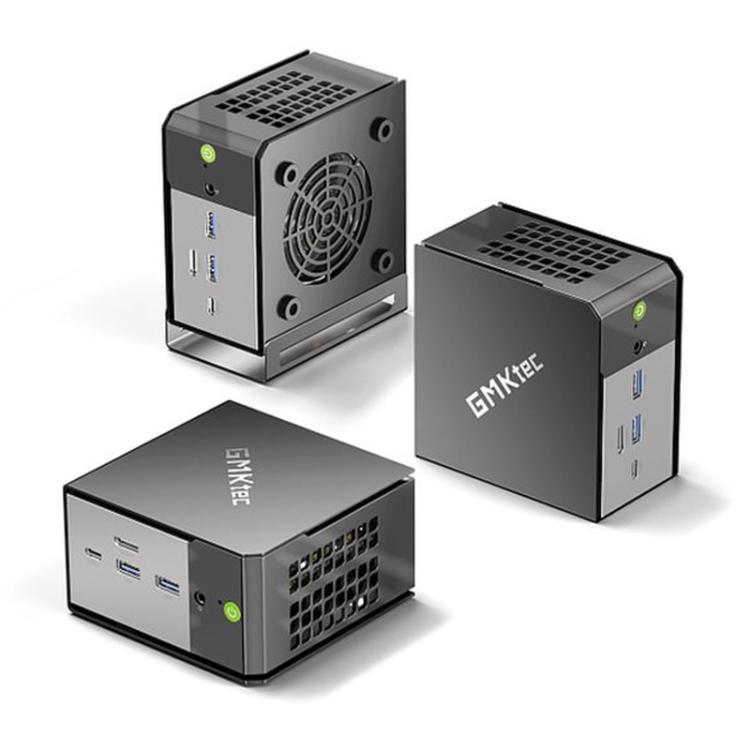

1. Model Number: EVO-X1 2. CPU: AMD Ryzen AI 9 HX 370, Ryzen AI 300 Series, 12C/24T, TSMC 4nm FinFET，MAX5.1G; 12 MB L2 Cache/24 MB L3 Cache; TDP15~54W (TDP Max 65W) 3. GPU: AMD Radeon 890M (16 Cores 2900MH); Memory: Default is auto, can be manually allocated in BIOS. 4. AI NPU: NPU adopts the new XDNA 2 architecture, with a computing power of 50 TOPS 5. RAM+ ROM: LPDDR5X 32GB 7500MHz (8GB x 4) + 1TB PCIe 4.0 M.2 2280 SSD 6. Storage Expansion: MAX 6TB x 3 (Support 2280 x 2 nVMEX4 SSD PCIE GEN4 X4). (Supports 3 M.2 hard drives, The one closest to the outermost part of the shell: SATA 2242, The one closest to the middle and the edge: PCIE 2280) 7. Video Output: HDMI-compatible+DP+USB4 x 1 Output, Max support 7680x4320 60Hz 8. Internet: WiFi 6: AX200 Wifi Speed: Max 2.4Gbps BT: BT5.2 9. Power Supply: Battery: Internal Button Battery Adapter: DC IN 19V 6.32A 120W 10. Interface: USB-A: USB3.2 (Gen2) x 2; (Front 2, speed 10Gbit/s) USB-A: USB3.2 x 2; (Rear 2, speed 10Gbit/s) Video Output: HDMI-compatible 2.1 (4K 60Hz) x 1 (8K: HDMI-compatible supports up to 60Hz(monitor refresh rate set to 240); 8K 120Hz (Monitor set to 120 refresh rate); 4K: HDMI-compatible/DP supports up to 60Hz, 120 refresh rate; 2K: HDMI-compatible supports up to 144Hz)) DP Output: DisplayPort 2.0 (4K 60Hz) x 1 (Maximum support 7680x4320, 60HZ, 240Hz refresh rate) TYPE-C: USB4 x 1, support USB4=40GB/S support PD3.0/DP1.4/USB 3.2 10GB/S (Full Function) Audio: 3.5mm, CTIA Charging port: DC IN 5525 Ethernet port: Giga LAN(RJ45) x 2, 2.5G Oculink: PCIE GEN4 x 4 (The Oculink port does not support hot plugging, so please plug and unplug when the power is off. Plugging and unplugging when the power is on may damage the motherboard.) DMIC: Onboard DMIC digital microphone chip TF: Not support 11. Keyboard : Support external connection 12. Indicator Light: Power indicator White 13. Interaction Mode: Keyboard and mouse input 14. Operating System: Support WINDOWS 11 pro/linux 15. Support Language: Default English (Simplified Chinese, Traditional Chinese, English, French, Thai, Spanish, Kor., Japanese, German, Hebrew, Russian, Portuguese, Arabic) 16. Battery Life: External power source 17. System Setting: Press power button to power on 18. Situational Application: Personal home/small and medium-sized enterprises/intelligent manufacturing/creative design/smart retail/medical/education/live broadcast, etc 19. Standard: User Manual, Warranty card, Power adapter, VASA bracket, HDM-compatible cable
