• Product type: Modules Expansions Accessories • Brand: WAVESHARE • Compatibility: Jetson Orin • Material: Not specified • Key feature: Supports 5G NSA and SA networking • Color/Variant: Not specified • Intended use: Everyday use • Category: Electronics Module

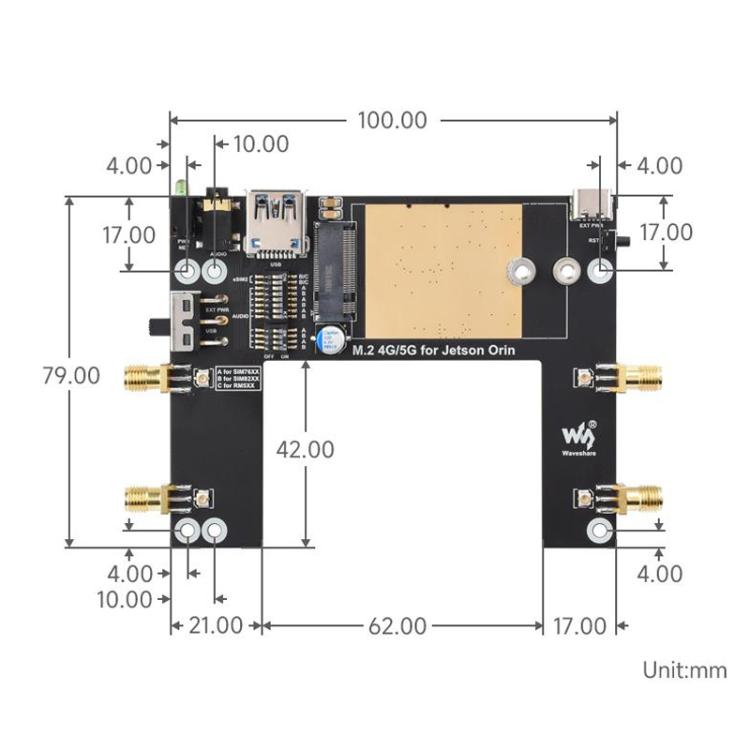

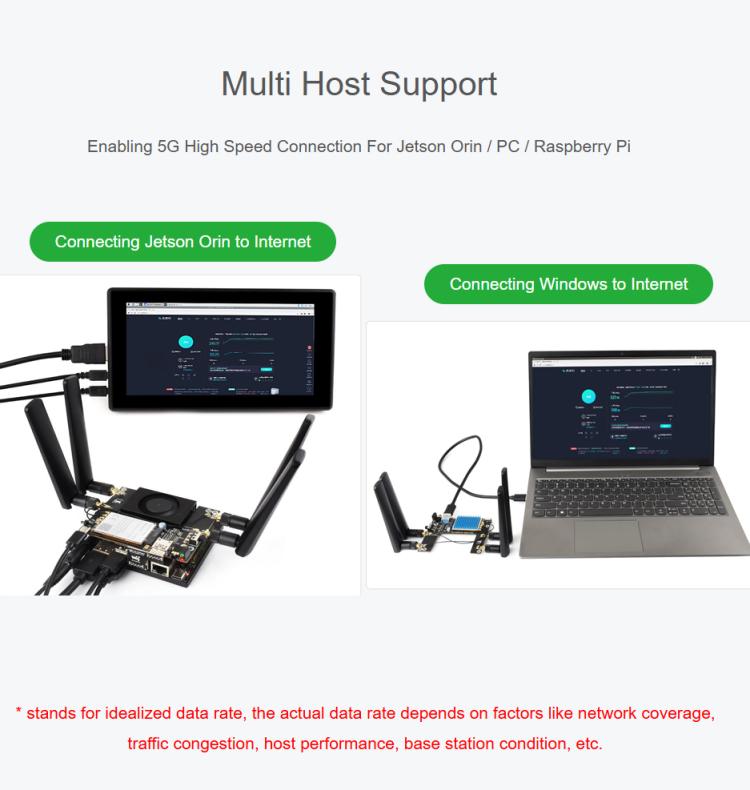

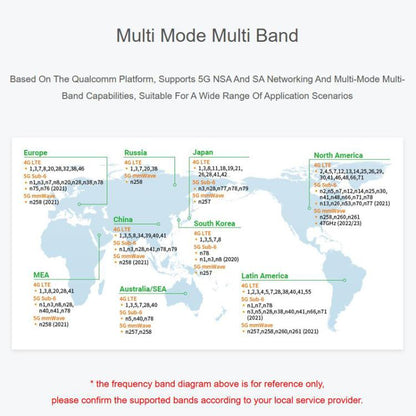

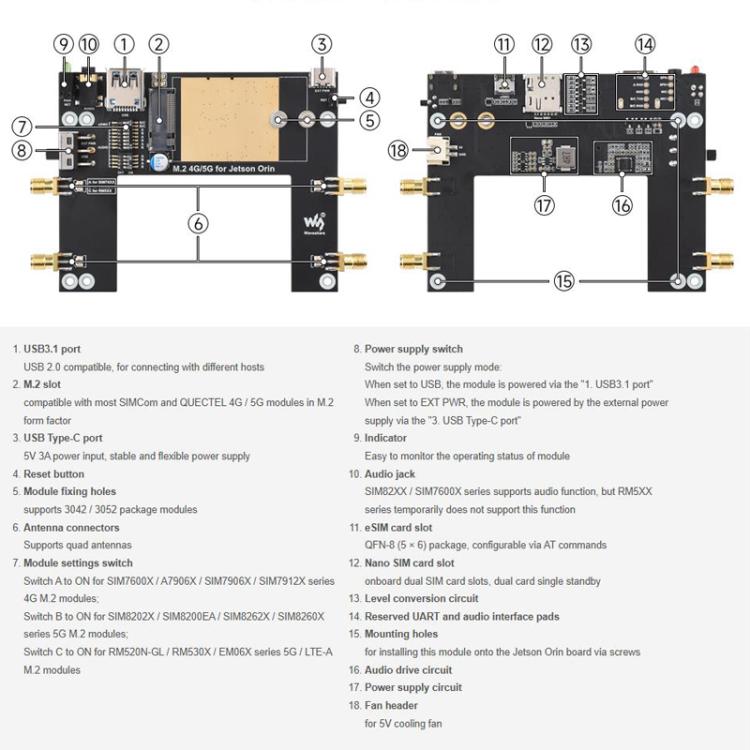

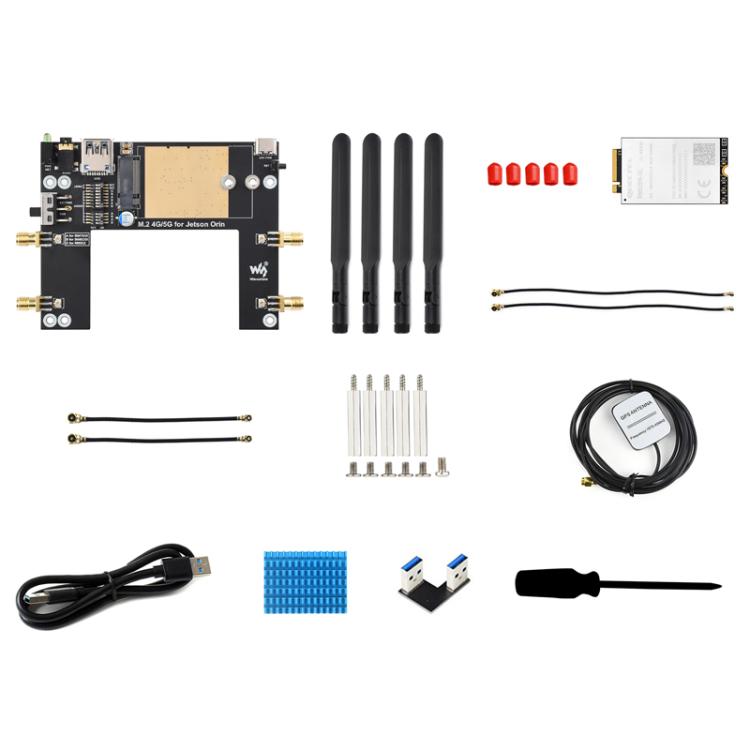

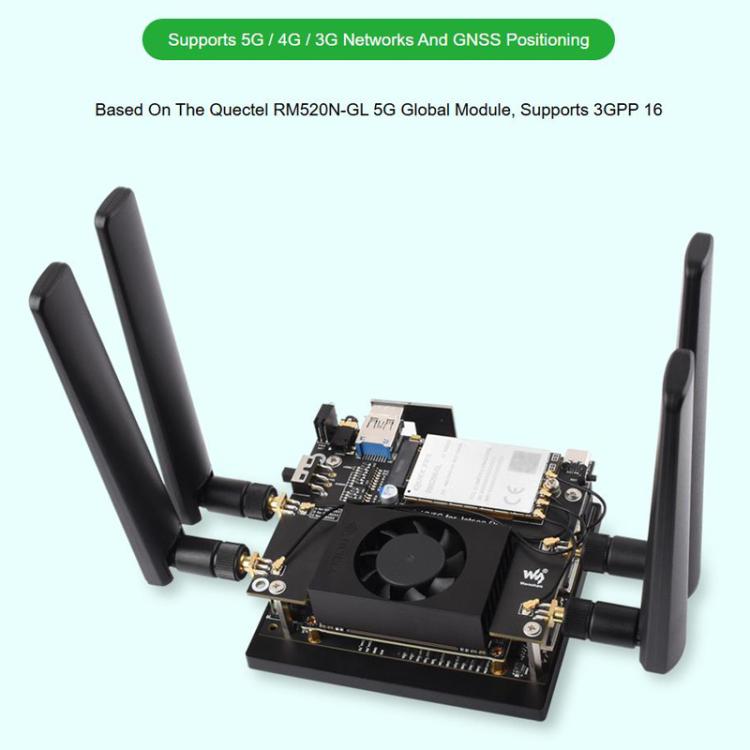

1. 5G standard: 3GPP Release 162. Chipset solution: Qualcomm Snapdragon X623. LTE: 1.6Gbps (DL) / 200Mbps (UL)4. HSPA+: 42Mbps (DL) / 5.76Mbps (UL)5. Size: about 10 x 7.9cmFeatures:1. Based on Qualcomm platform, supports 5G NSA and SA networking, with multi-mode and multi-band capabilities2. Integrated dual-frequency positioning across multiple satellite constellations: GPS, GLONASS, BeiDou, Galileo, and QZSS3. Onboard USB 3.1 interface, backward compatible with USB 2.0, enabling high-speed 5G connectivity when connected to Jetson Orin motherboards, computers, or Raspberry Pi4. Onboard M.2 B KEY standard interface with pin configuration switch5. Onboard 4x SMA-to-IPEX antenna conversion ports for simplified antenna installation6. Reserved UART solder pad interface for data transmission with select modules7. Onboard 1 Nano SIM card slot and 1 eSIM slot packaged as QFN-8 (5 x 6), supporting dual-SIM single-standby with AT command switching8. Onboard power switch, reset button, and LED indicator for module power control and status monitoring9. Onboard high-efficiency power circuit capable of delivering up to 3A currentPackage list:- Expansion board x 1- Module x 1- 5G antennas x 4- SMA dust caps x 5- 13cm IPEX1 to IPEX4 cables x 2- 5cm IPEX1 to IPEX4 cables x 2- Screw set x 1- GPS antenna x 1- Dual-ended USB cable x 1- Heat sink x 1- USB 3.0 adapter x 1- Screwdriver x 1
