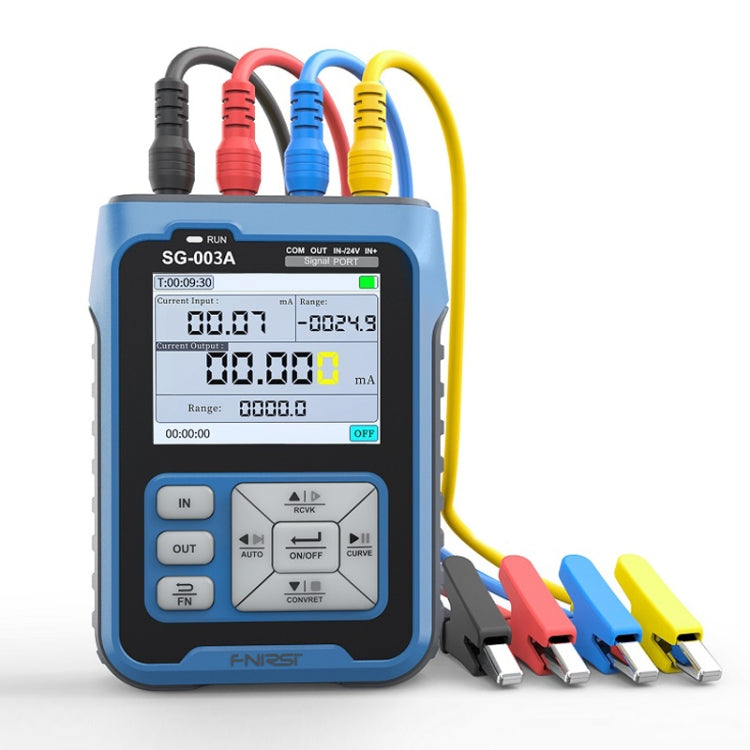

FNIRSI SG-003A Multifunctional PWM Signal Generator 4-20ma Voltage Current Calibrator, EU Plug(Blue)
FNIRSI SG-003A Multifunctional PWM Signal Generator 4-20ma Voltage Current Calibrator, EU Plug(Blue)
No reviews
Regular price
$92.00
Regular price
Sale price
$92.00
Unit price
/
per
FREE DELIVERY on all orders.
In stock
🔥 Buy any 2 items, get 25% off 3rd item 🔥 Ends today!
Couldn't load pickup availability
Shipping Guarantee
Shipping Guarantee
FRRE SHIPPING on all UK orders. Fully Insured.
Handling time 1 - 3 working days. (Buy2fix has to process your order and put all your items through its strict quality-control tests.)
Transit time 5 - 10 working days.
Return Guarantee
Return Guarantee
For whatever reason, if you are unsatisfied with your order within 30 days, you can return it to us in new condition for a refund minus the shipping charges.
The Right Part Guarantee
The Right Part Guarantee
The Right Part, Guaranteed. If not, our 30-day return policy has you covered.
Hassle-Free Returns
Hassle-Free Returns
Start Your Return in Seconds with Our Easy Online Portal.
1. It is mainly used for debugging of industrial site PLC, process instrument, electric valve, etc.
2. Friendly operation interface is easy to use
3. Small size, light weight, long standby time, high precision, easy to carry when going out to work
4. Adjustable button backlight and high-definition TFT color LCD screen make it more convenient for users to operate at night and during the day
5. With conventional signal input and output functions
6. Voltage and current have automatic output function, and three modes of single rise, single fall and cycle can be selected
7. With input and output conversion, voltage conversion active current mode, passive mode and current conversion voltage mode
8. The output has a custom function, and the upper and lower limits of the output can be set arbitrarily
9. Voltage input diagram, current input diagram, frame rate is 10 frames
10. PWM output can set frequency and duty cycle separately
11. Real-time curve: real-time observation of voltage and current changes
12. Powered by large-capacity lithium battery, charged by Type-c interface (5V)
13. Lithium battery capacity 3000mah, super long working time
14. High-definition TFT color LCD screen, more eye-catching reading, with a resolution of 240x320
15. Power consumption (MAX): 0.32W
16. Standby time: 26 hours The use time varies according to the usage (20mA continuous output can be 8-10 hours)
17. Internal reverse and overcurrent protection, protection voltage 30V
18. Dimensions: 92x72x30mm
19. Weight: 165 grams
Active current output:
1. Range: 0~24mA
2. Resolution: 0.01 mA
3. Load (MAX): 750 ohms
Passive current output:
1. Range: 0-24mA
2. Resolution: 0.01 mA
3. The external power supply can reach 30V
Voltage output:
1. Range: 0-24V
2. Resolution: 0.01v
3. Current (MAX): 30mA
24V voltage output:
1. Drive current: 24mA
2. Resolution: 0.01mA
Current input measurement:
1. Range: 0-24mA
2. Resolution: 0.01 mA
3. Input impedance: 100 ohms
Voltage input measurement:
1. Range: 0-30V
2. Resolution: 0.01V
3. Input impedance: 2 milliohms
PWM output (frequency):
1. Range: 0-9999Hz
