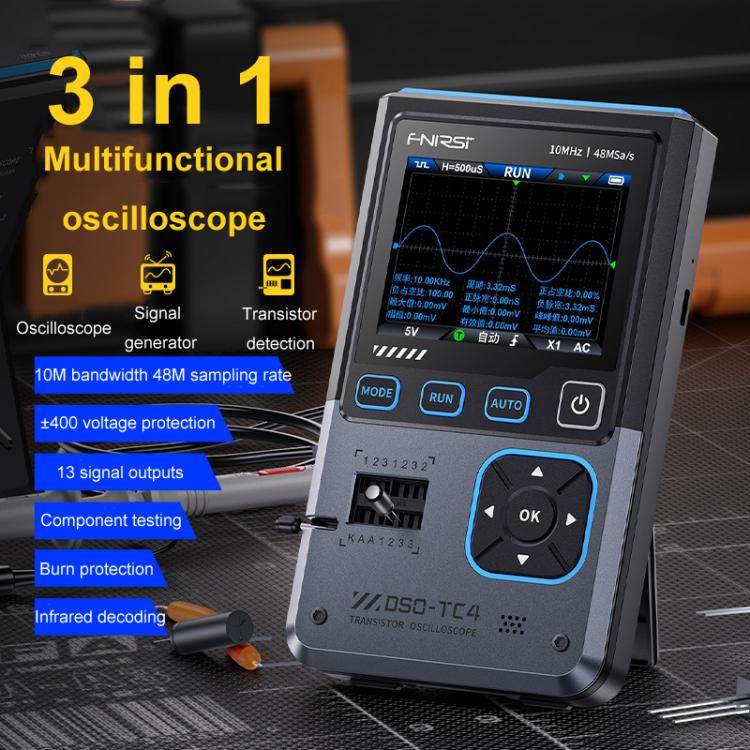

FNIRSI DSO-TC4 3 In 1 Oscilloscope Transistor Tester Signal Generator 10M Bandwidth Burn-In Proof

FNIRSI DSO-TC4 3 In 1 Oscilloscope Transistor Tester Signal Generator 10M Bandwidth Burn-In Proof

Regular price $98.00
Regular price Sale price $98.00
Sale Sold out
FREE DELIVERY on all orders.

In stock

Quantity

🔥 Buy any 2 items, get 25% off 3rd item 🔥 Save today!

Shipping Guarantee

FREE SHIPPING on all UK orders. Fully insured.

Handling time: 1 - 3 business days. (Buy2fix has to process your order and put all your items through its strict quality-control tests.)

Transit time is 5 - 10 business days to the UK. Transit times to other countries are displayed at checkout.

Origin: CN

Return Guarantee

For whatever reason, if you are unsatisfied with your order within 30 days, you can return it to us in new condition for a refund minus the shipping charges.

The Right Part Guarantee

The Right Part, Guaranteed. If we send the wrong part (not as described), our 30-day return policy has you covered. You get a full refund, including the shipping fees.

Hassle-Free Returns

Start Your Return in Seconds with Our Easy Online Return Portal.

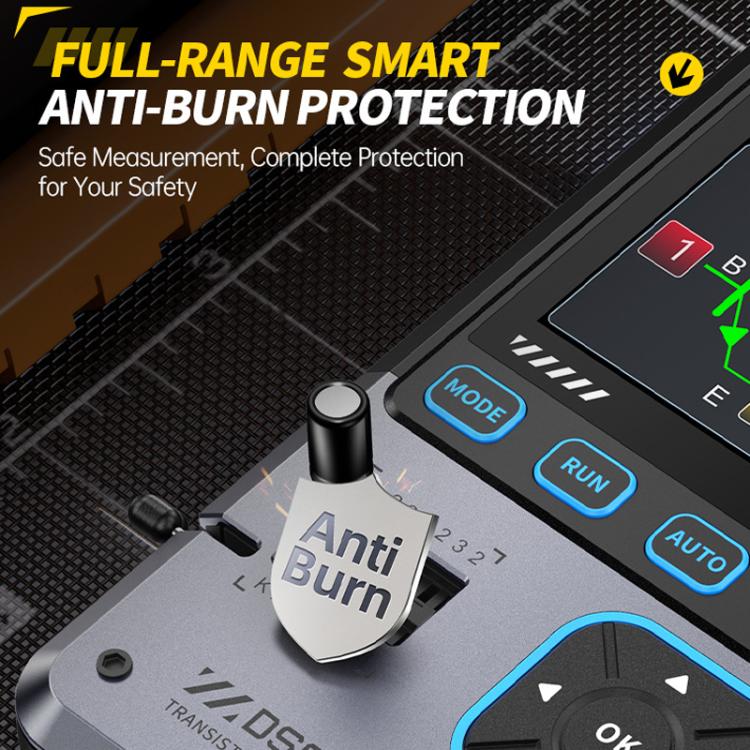

1. All-round intelligent anti-burn protection, safe measurement, comprehensive protection for your safety

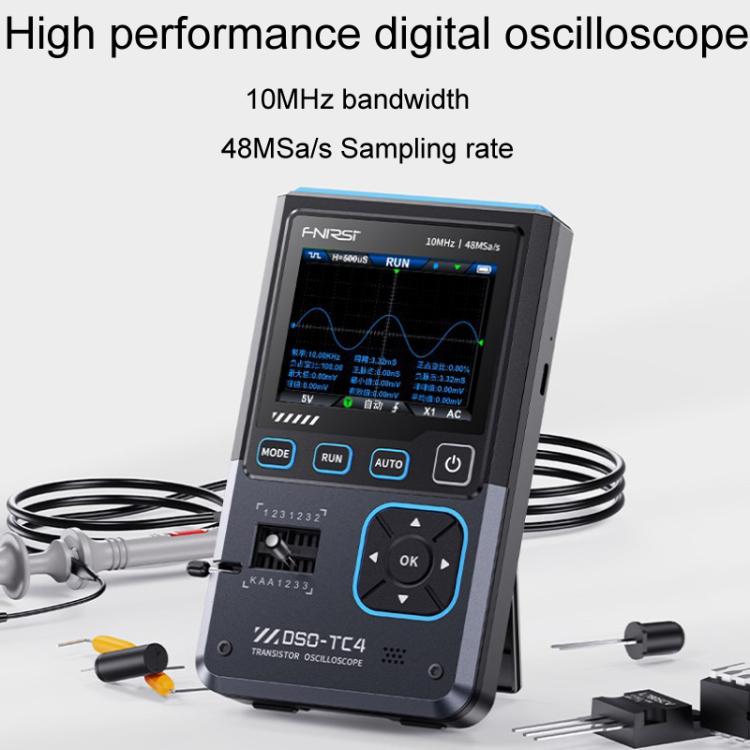

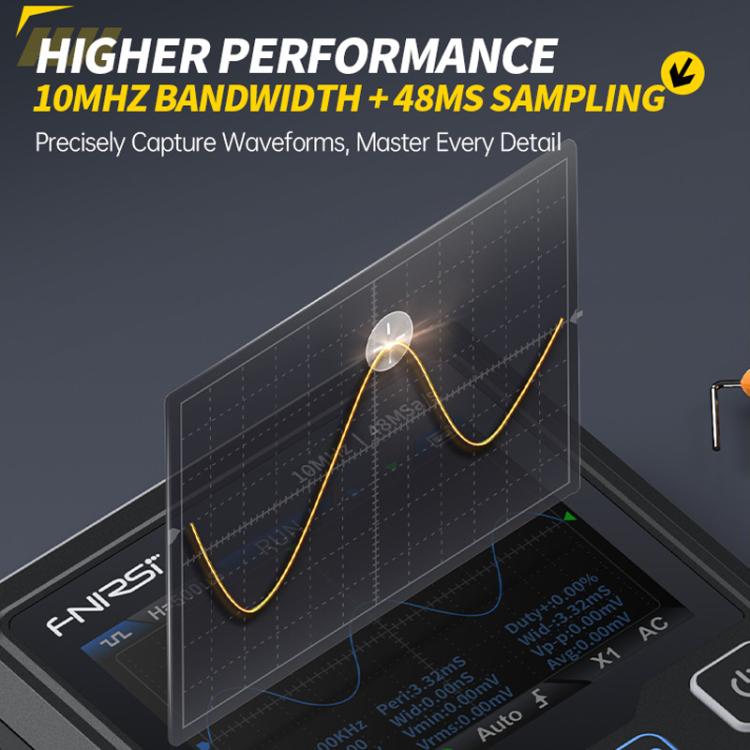

2. Higher performance 10mhz bandwidth +48MS sampling, accurate capture of the waveform, master every detail

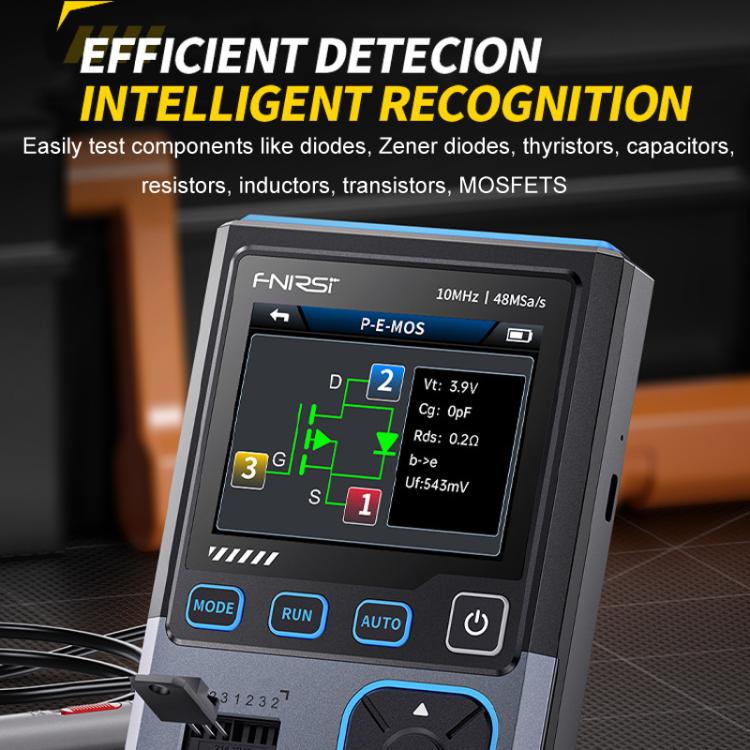

3. Efficient detection and intelligent identification of easy to test devices, such as diodes, zener diodes, thyristors, capacitors, resistors, inductors, transistors, mosfet

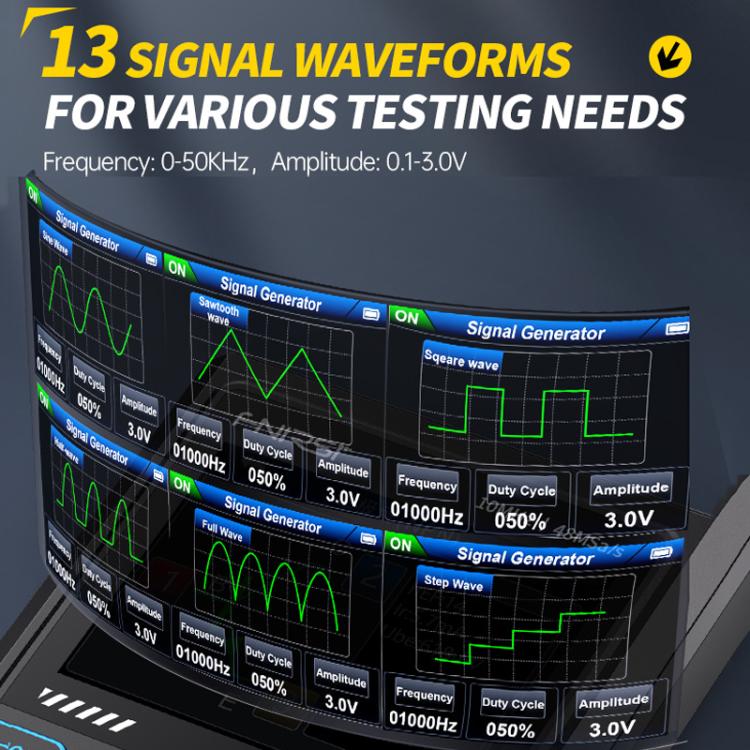

4. 13 kinds of signal waveforms, can meet a variety of test needs
5. Built-in 1500mAh lithium-ion battery, Type-C charging, automatic sleep mode, suitable for long-time work

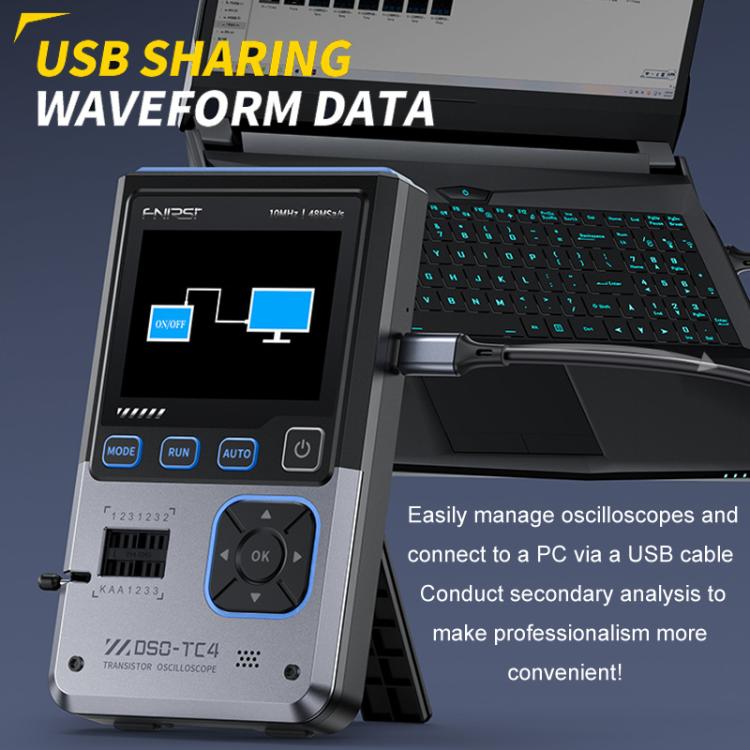

6. USB share waveform data, easy to manage the oscilloscope, and connected to the PC via USB cable for secondary analysis

Functional parameters:

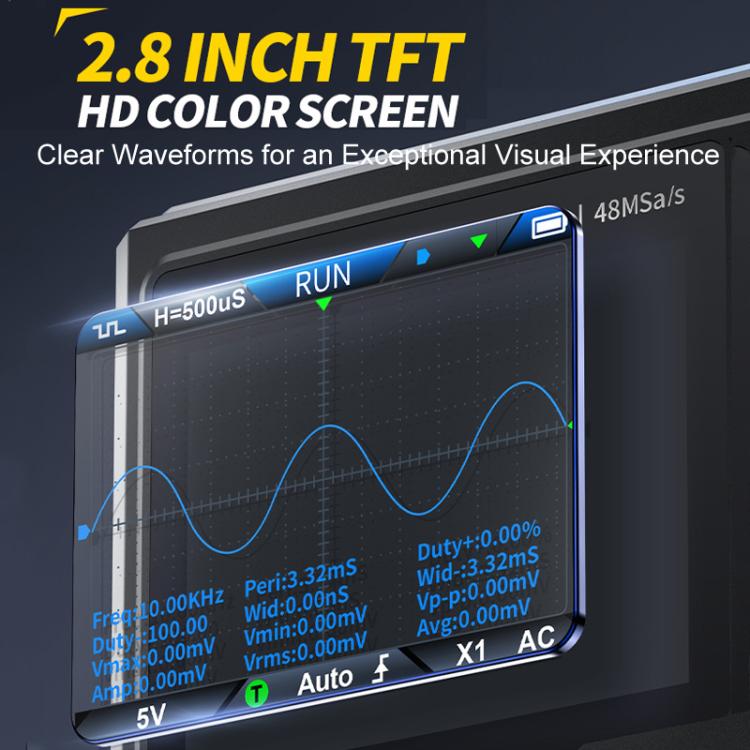

1. Screen: 2.8-inch TFT color screen
2. Backlight: adjustable backlight brightness
3. Power supply: TYPE-C (5V/1A)
4. Battery: 3.7V/1500mAh

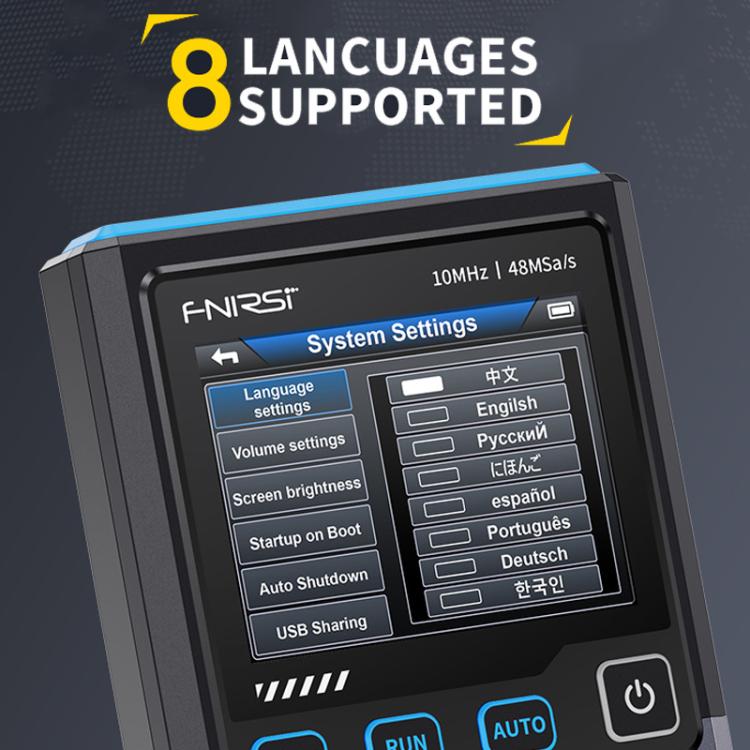

5. Language: Chinese, English, German, Portuguese, Spanish, Japanese, Russian, Korean
6. Size: about 90 x 142 x 27.5mm
7. Weight: about 186g

Oscilloscope parameters:
1. Real-time sampling rate: 48MSa / s
2. Analog bandwidth: 10MHz
3. Input impedance: 1 megohm
4. Coupling method: AC/DC
5. Test voltage range: 1:1 probe: 80Vpp (+40V); 10:1 probe: 800Vpp (+400V)
6. Vertical sensitivity: 10mV/div-10V/div (X1 gear)
7. Vertical displacement: adjustable with indication level
8. Horizontal time base range: 50ns-20s
9. Trigger mode: automatic, regular and single (Auto/Normal/Single)
10. Trigger type: rising edge, falling edge
11. Trigger level: adjustable, with instructions
12. Waveform freeze: Yes (HOLD function)

Transistor parameters:
1. Diode: forward voltage drop less than 5V
2. Voltage regulator diode: 0-32V
3. Field Effect Tube: JFET, IGBT, MIOSTET
4. Unidirectional thyristor: turn-on voltage less than 5V, gate level
5. Bidirectional thyristor: trigger current 6 less than mA
6. Capacitance: 25pF-1000uF
7. Resistance: 0.01 ohm-50 megohm
8. Inductance: 10uH-1000uH

Signal generator parameters:
1. Output waveform: support 13 kinds of waveform output
2. Waveform frequency: 0-50KHz
3. Square wave duty cycle: 0-100 percent
4. Waveform amplitude: 0.1V-3.0V

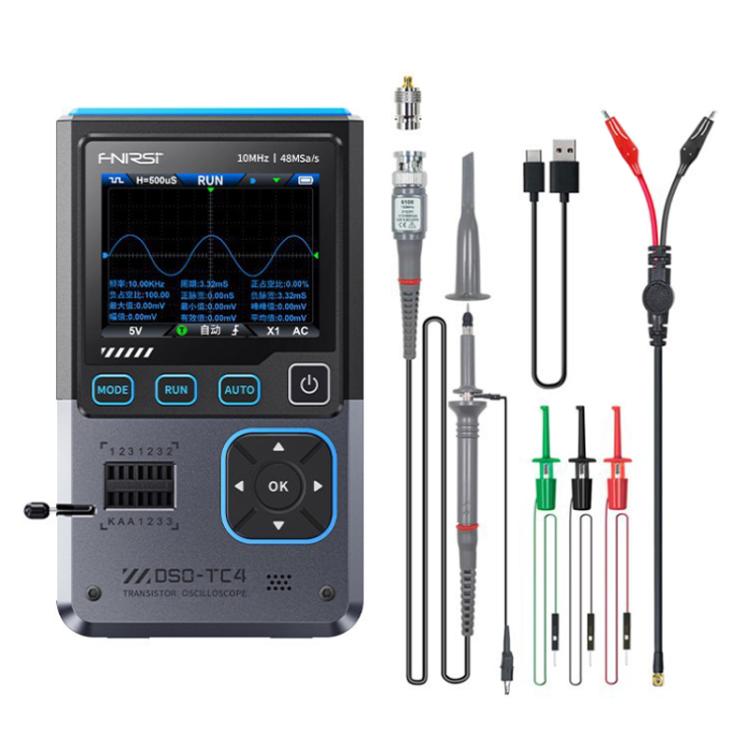

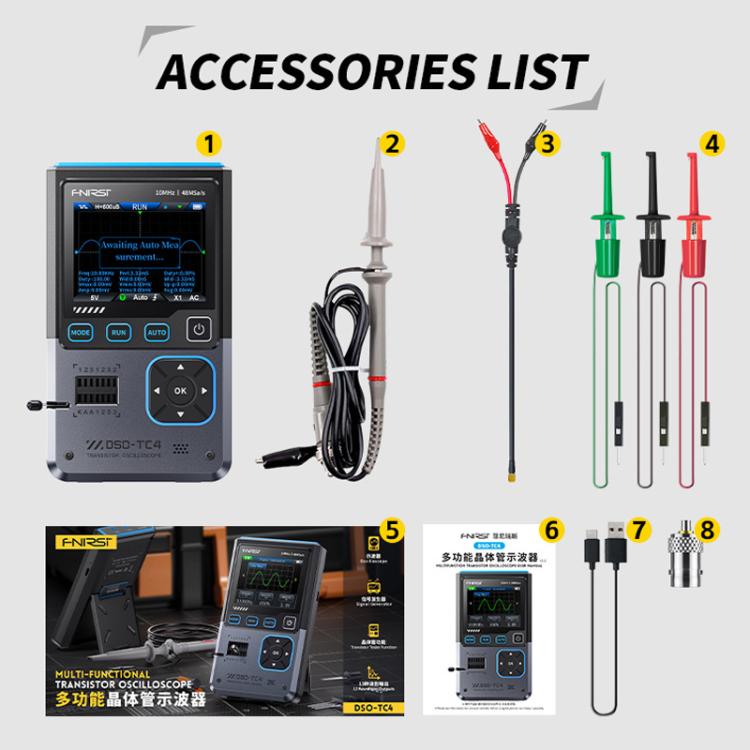

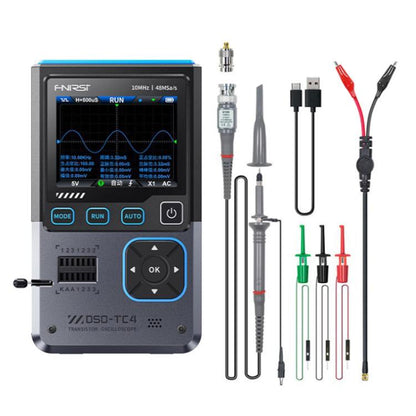

Packing list:
DSO-TC4 tester x 1
P1600 oscilloscope probe x 1
Adaptor x 1
TYPE-C charging cable x 1
Normal probe x 1
Test hook x 3
