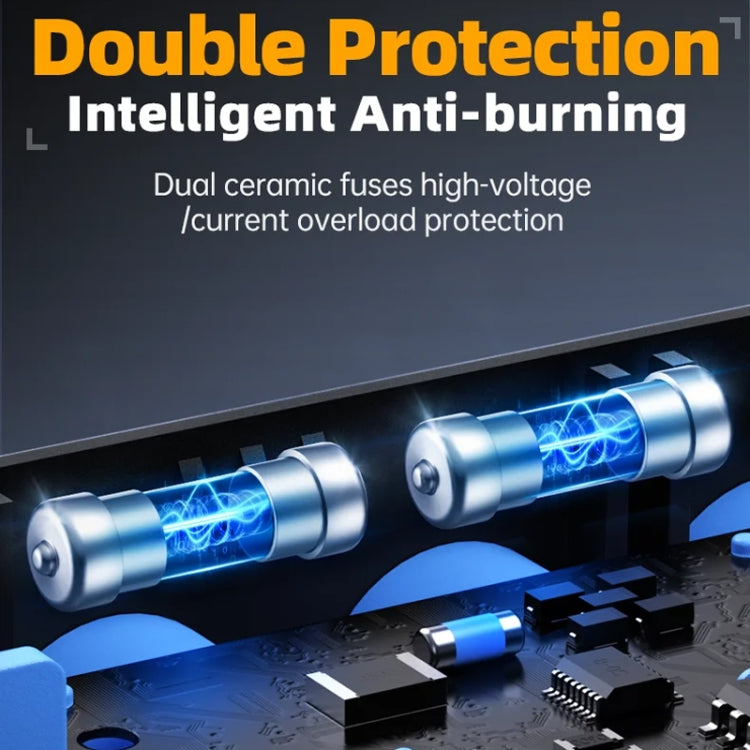

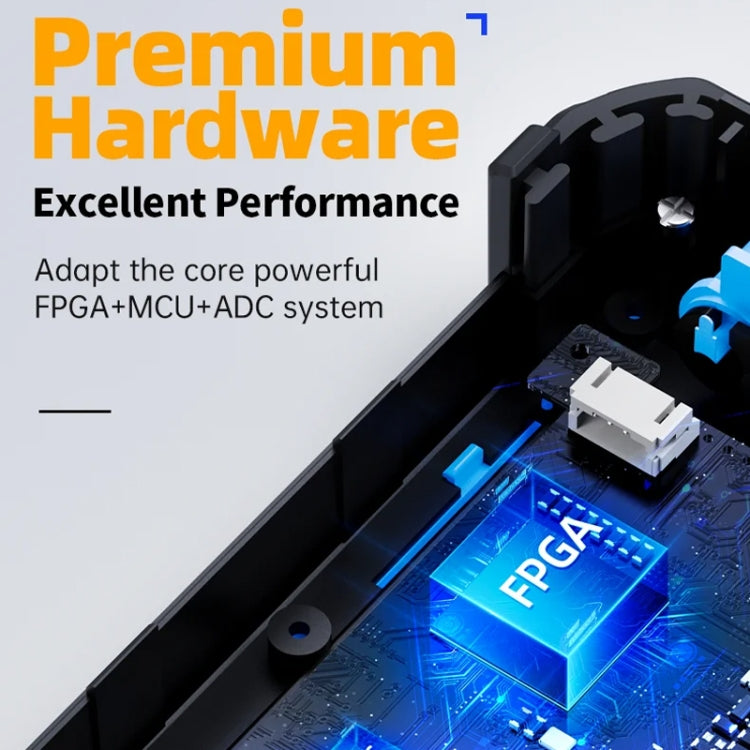

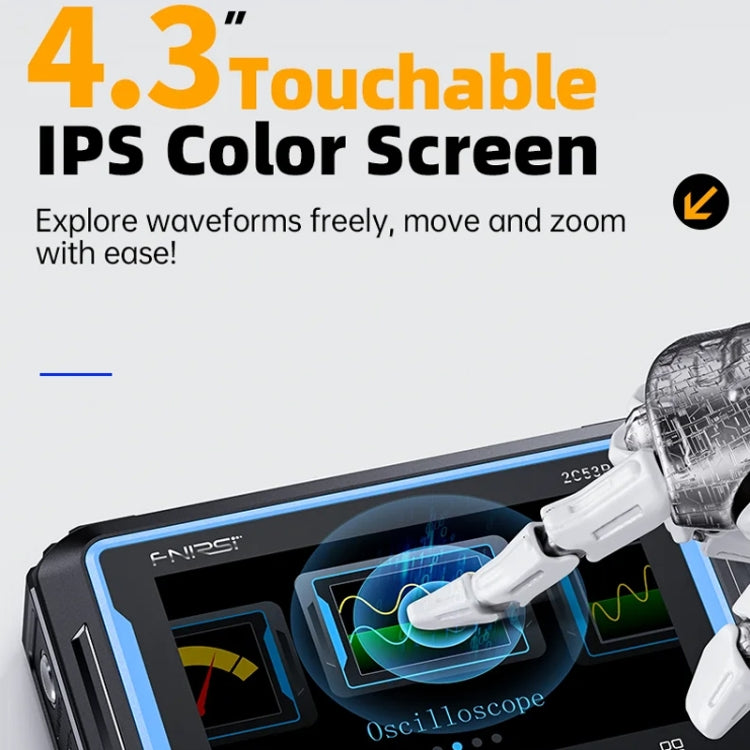

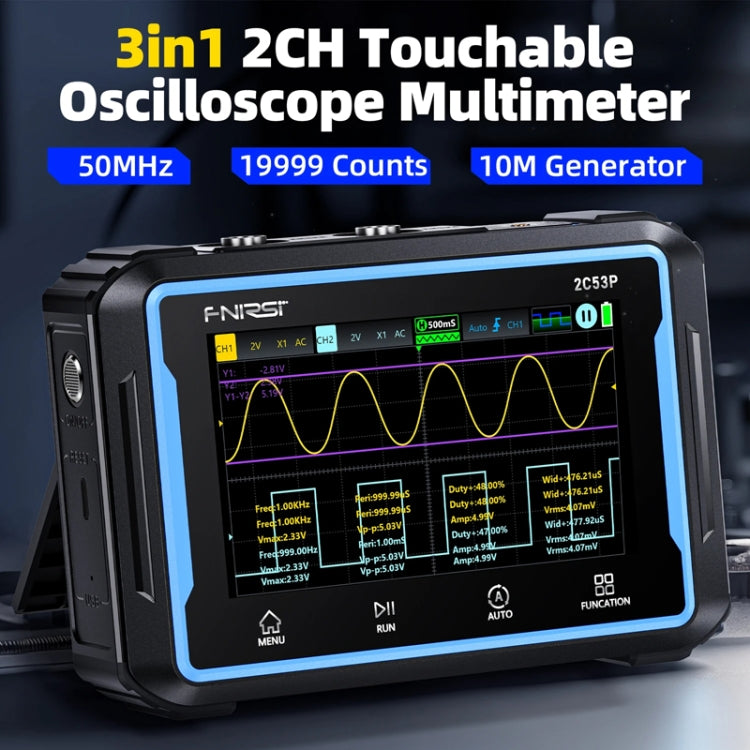

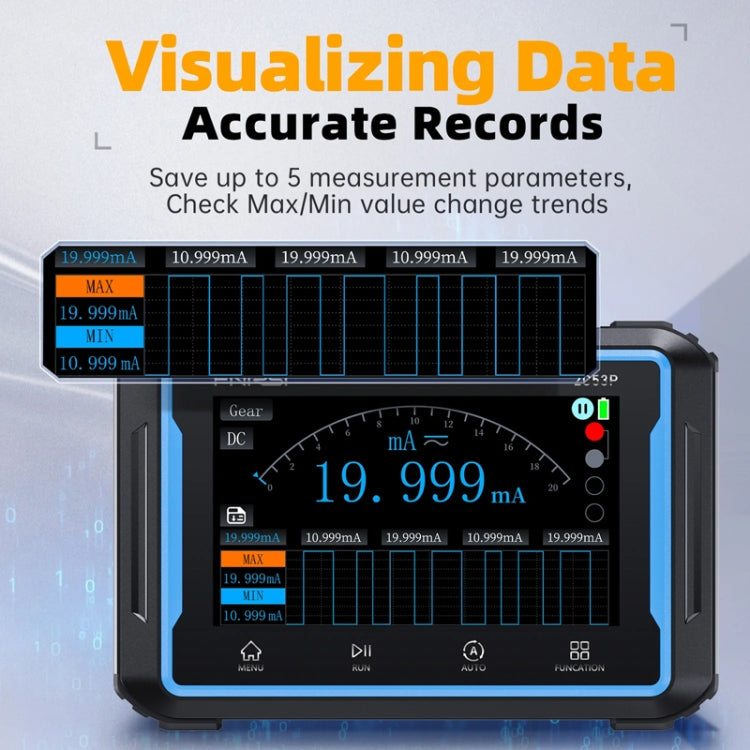

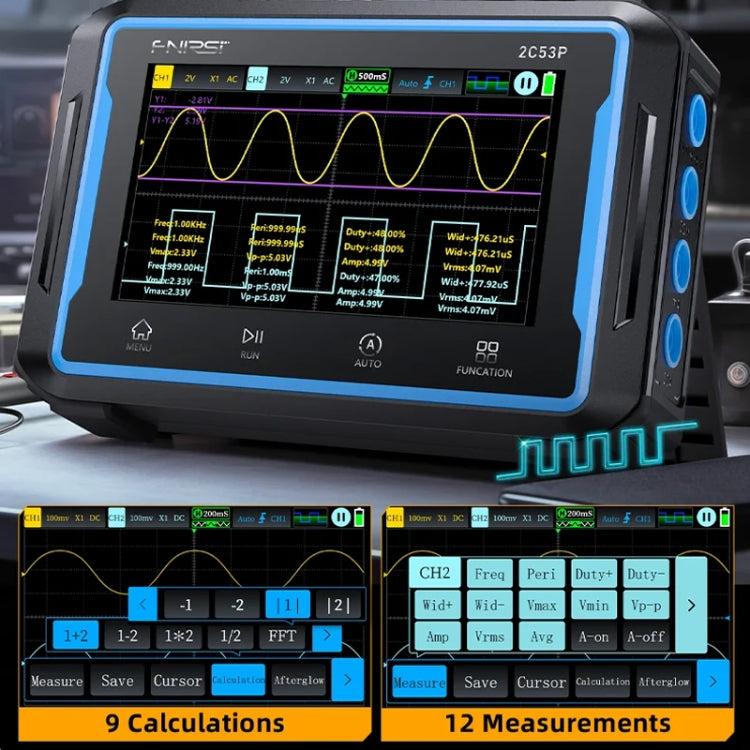

1. 4.3-inch IPS ultra-high definition screen, easy to use 2. Built-in high-capacity lithium battery, long battery life 3. Using the core of a powerful FPGA + MCU + high-speed ADC hardware architecture system waveforms smooth and clear 4. Measurement of millivolt level of weak signals, support for 20M bandwidth limits 5. Powerful waveform computing capabilities, real-time addition, subtraction, multiplication and division operations, in-depth analysis and processing of complex signals 6. Real-time capture and display the changes in a variety of measurement parameters, forming a clear and concise data trend graph, but also has the ability to retain up to 5 groups of measurement data, at a glance 7. Double current fuse, to prevent burning the meter more safely 8. Easy to manage oscillometric images, can be connected to a computer via USB cable for secondary analysis 9. Lightweight, one-handed, easy to put into a pocket or toolkit, convenient to carry

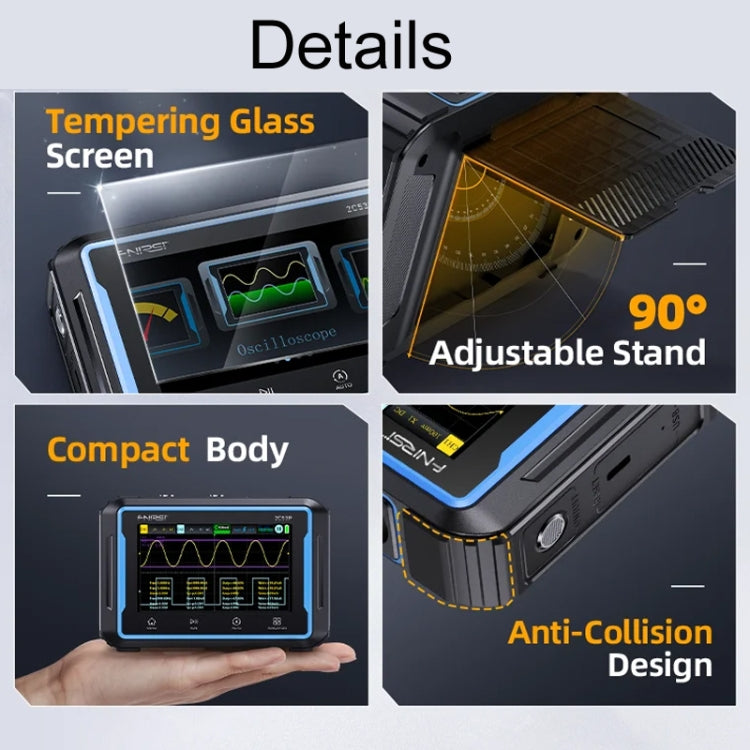

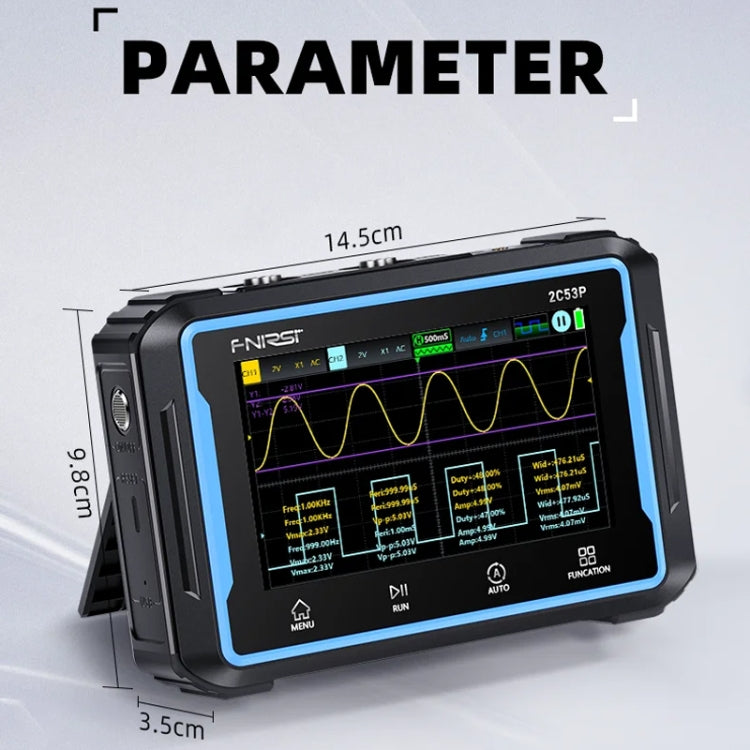

Basic parameters: 1. Screen material: surface tempered glass + glass GLASS material touch screen + IPS color screen 2. Backlight: backlight brightness can be set 3. Power supply: Type-C (5V/2A) 4. Battery: 4000mAh li-ion battery 5. Size: 145 x 98 x 35mm 6. Weight: 360g

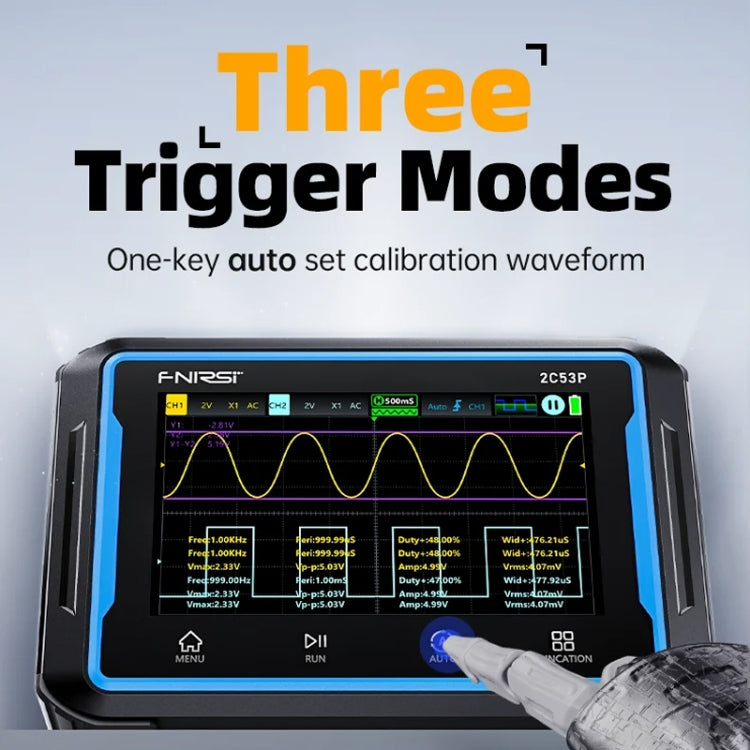

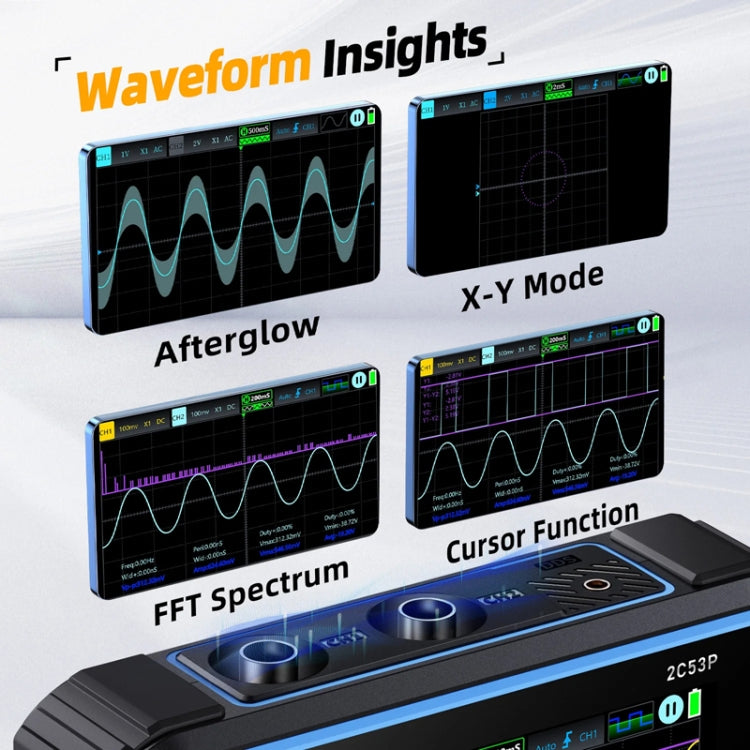

Oscilloscope parameters: 1. Channel: dual-channel 2. Bandwidth: 50MHz 3. Real-time sampling rate: 250MSa / s 4. Memory depth: up to 64kByte 5. Time base range: 10ns/div-10s/div 6. Vertical sensitivity: 10mv/div-10v/div 7. Waveform display mode: YT / XY / scrolling 8. Vertical resolution: 8 bits 9. Input impedance: ΙΜΩ 10. Bandwidth limitation: support 20MHz limitation 11. Probe attenuation factor: 1x/10x 12. Input coupling: AC/DC 13. Trigger type: rising edge/falling edge 14. Maximum voltage: +/-400V 15. Trigger level range: 8 cells (positive and negative) 16. Trigger mode: automatic / normal / single 17. Memory space: 13M 18. Measurement data: period, frequency, peak-to-peak value, maximum value, minimum value, average value, RMS value, amplitude, duty cycle and pulse width
Signal generator parameters: 1. Different waveform output frequency: sine wave: 10MHz, other waveforms: 5MHz 2. Waveform frequency: 0-10ΜΗz 3. Waveform amplitude: 0.1V-3.0V 4. Duty cycle of square wave: 0-100 percent

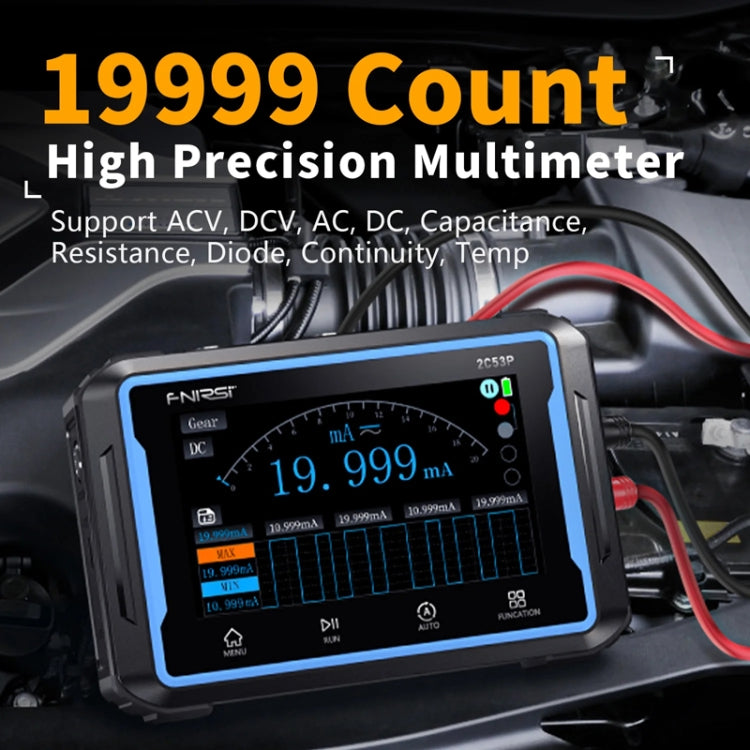

Multimeter parameters: 1. DC voltage: 1.9999V/19.999V/199.99V/1000.0V 2. AC voltage: 1.9999V/19.999V/199.99V/760.0V 3. DC current: 19.999mA/199.99mA/1.9999A/9.999A 4. AC current: 19.999mA/199.99mA/1.9999A/9.999A 5. Resistance: 19.999ΜΩ/1.9999ΜΩ/199.99ΚΩ/19.999ΚΩ/1.9999ΚΩ/199.99Ω 6. Capacitance: 999.9uF/99.99uF/9.999uF/999.9nF/99.99nF/9.999nF9.999mF/99.99mF 7. Temperature: -55-1300 degrees celsius/-67-2372 degrees fahrenheit
