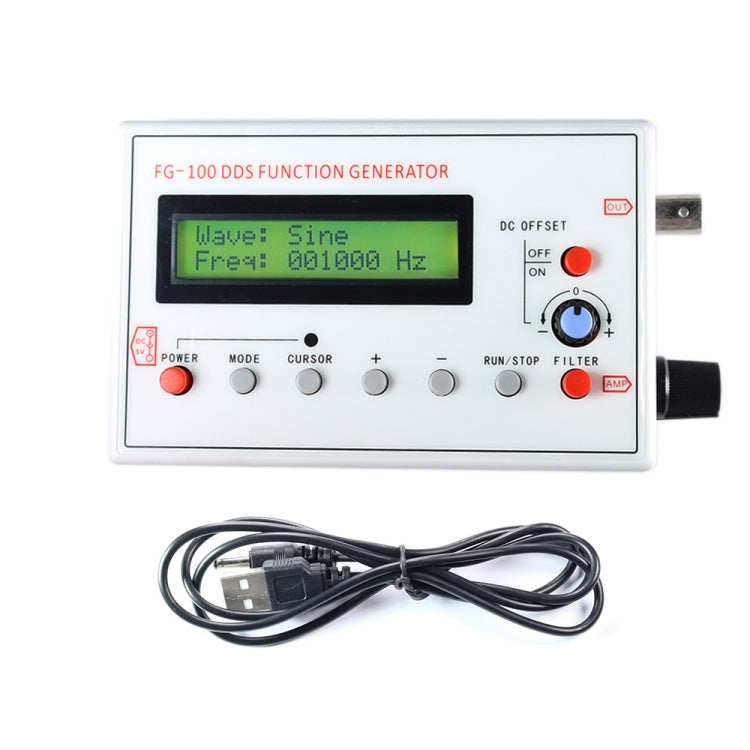

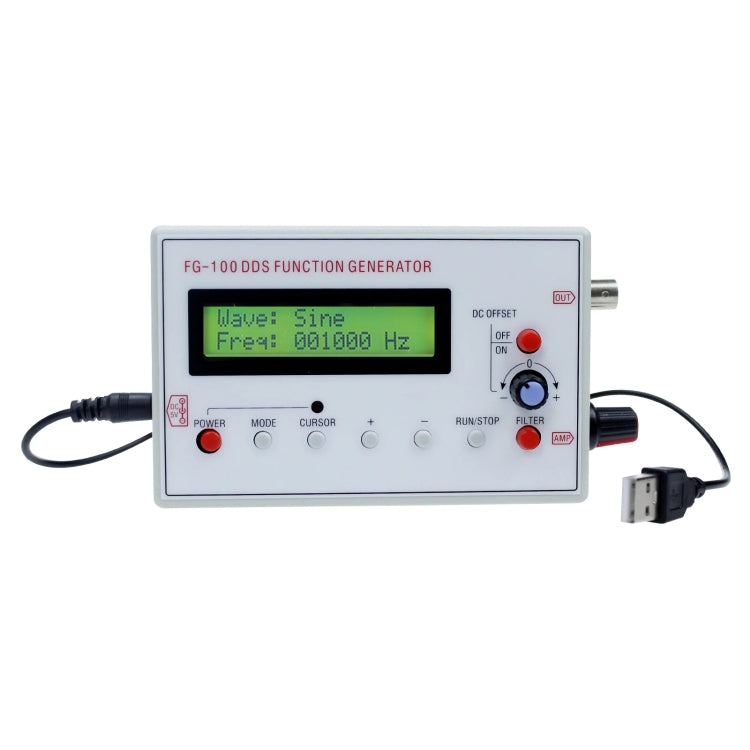

FG-100 1Hz-500kHz DDS Function Signal Generator Frequency Counter(White)
FG-100 1Hz-500kHz DDS Function Signal Generator Frequency Counter(White)
In stock
🔥 Buy any 2 items, get 25% off 3rd item 🔥 Save today!
Couldn't load pickup availability
Shipping Guarantee
Shipping Guarantee
FREE SHIPPING on all UK orders. Fully insured.
Handling time: 1 - 3 business days. (Buy2fix has to process your order and put all your items through its strict quality-control tests.)
Transit time is 5 - 10 business days to the UK. Transit times to other countries are displayed at checkout.
Origin: CN
Return Guarantee
Return Guarantee
For whatever reason, if you are unsatisfied with your order within 30 days, you can return it to us in new condition for a refund minus the shipping charges.
The Right Part Guarantee
The Right Part Guarantee
The Right Part, Guaranteed. If we send the wrong part (not as described), our 30-day return policy has you covered. You get a full refund, including the shipping fees.
Hassle-Free Returns
Hassle-Free Returns
Start Your Return in Seconds with Our Easy Online Return Portal.

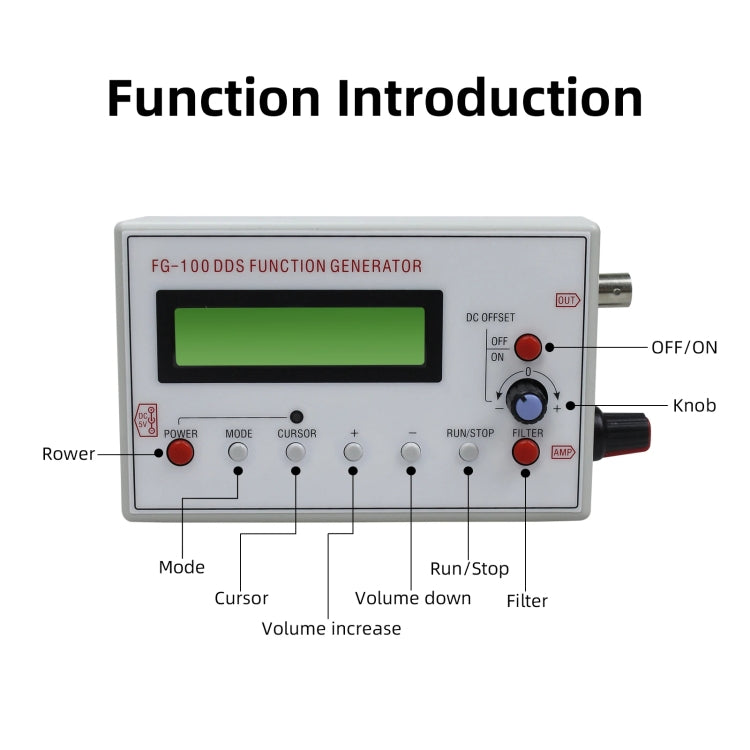

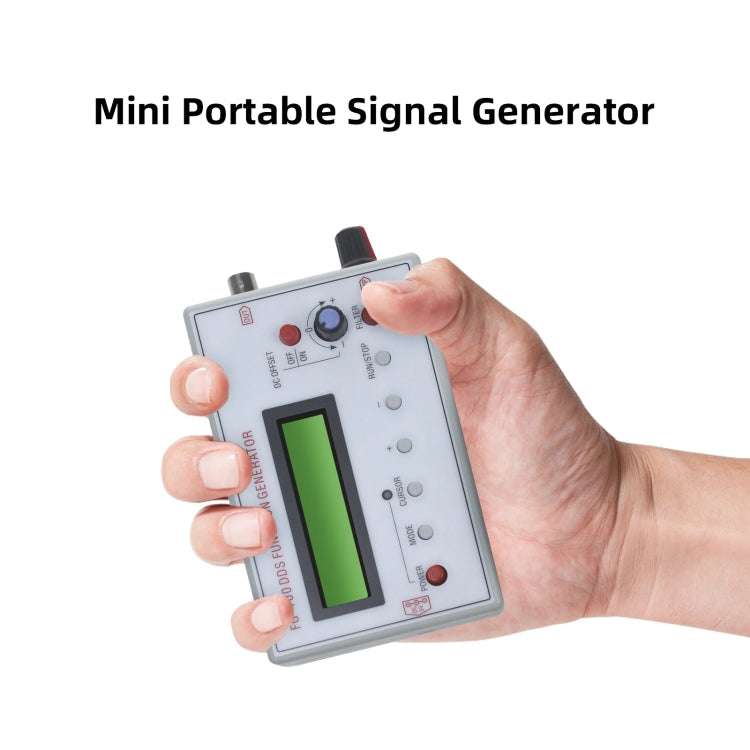

1. Small size, complete functions, simple operation and easy to carry.
2. It can be powered by an adapter or a lithium battery (not included)
3. Together with an oscilloscope, it can be used for testing and debugging electronic circuits, testing and measuring the frequency characteristics and impulse response of audio amplifiers. Due to its good accuracy and frequency stability, DDS is also very suitable for oscilloscope scan time factor calibration. Square wave output is suitable for oscilloscope attenuator and probe pulse characteristic adjustment, etc.
Technical indicators:
1. Frequency range: sine wave 1Hz-500kHz (the frequency with flat output amplitude reaches 200 kHz, and the output amplitude will decrease as the frequency further increases), other waveforms 1Hz-20kHz (but the upper limit of the adjustable frequency is not limited, if The requirements for distortion and shaking are not high, and the frequency of use can be further increased).
2. Resolution: 1Hz.
3. Output waveform: sine wave, square wave, triangle wave, forward sawtooth wave, reverse sawtooth wave, noise wave, electrocardiogram.
4. Sine wave distortion: less than 1% below 1kHz, less than 0.5% at 1kHz and above.
5. Output amplitude: maximum +/-10V (P-P).
6. Output impedance: 50 ohms
7.. DC offset: maximum +/-10V, with shutdown function.
8. There is a filter that can be turned on and off, which can be well adapted to sine and pulse waveform output.

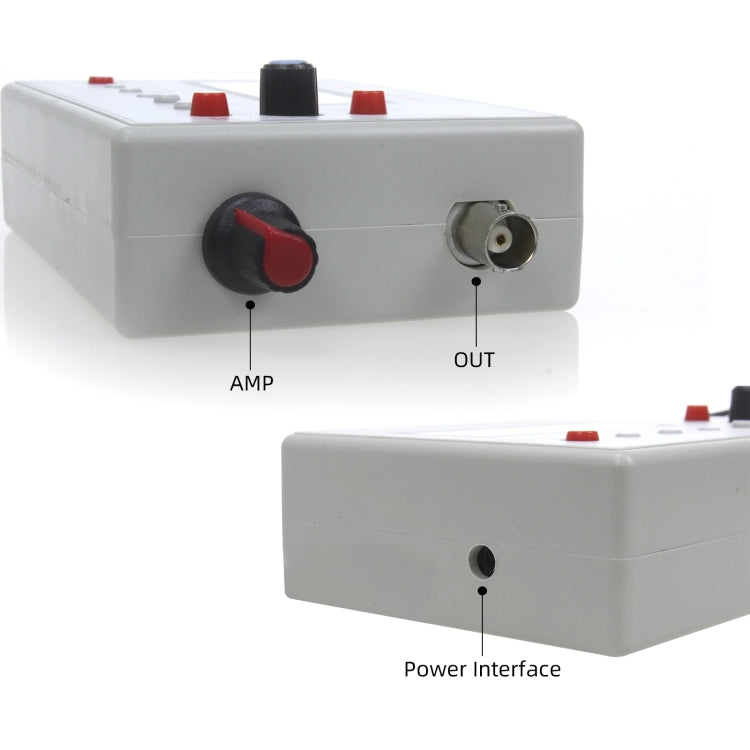

9. Power supply: DC3.5-10V. It is recommended to use DC5V when using an adapter and 3.7V lithium battery when using battery power.
10. Overall dimensions: 125x80x32.
11. Weight (including accessories): about 0.2kg
