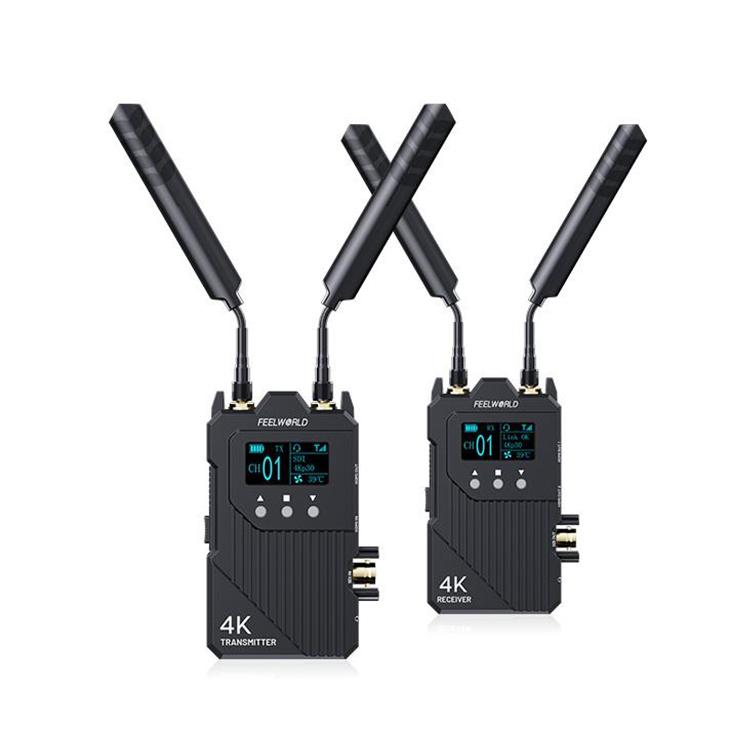

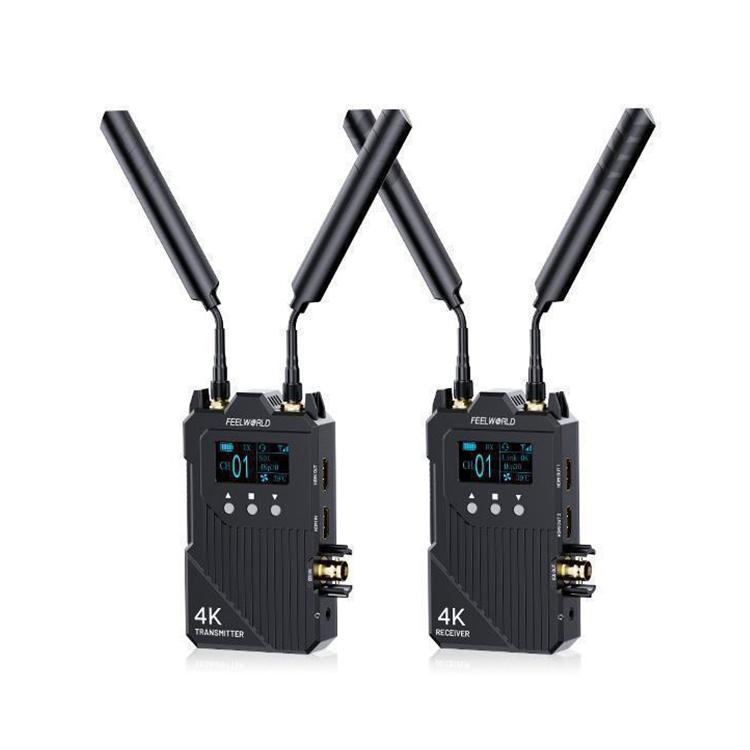

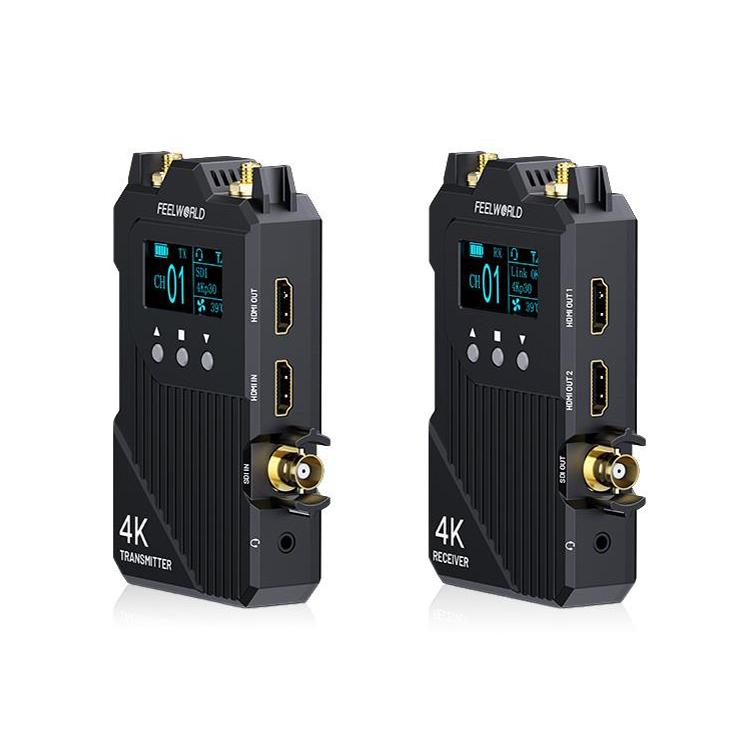

FEELWORLD WT1S 4K Wireless Video Transmission System SDI + Dual HDMI-compatible Full Duplex Intercom Live Streaming(Black)
FEELWORLD WT1S 4K Wireless Video Transmission System SDI + Dual HDMI-compatible Full Duplex Intercom Live Streaming(Black)
In stock
🔥 Buy any 2 items, get 25% off 3rd item 🔥 Save today!
Couldn't load pickup availability
Shipping Guarantee
Shipping Guarantee
FREE SHIPPING on all UK orders. Fully insured.
Handling time: 1 - 3 business days. (Buy2fix has to process your order and put all your items through its strict quality-control tests.)
Transit time is 5 - 10 business days to the UK. Transit times to other countries are displayed at checkout.
Origin: CN
Return Guarantee
Return Guarantee
For whatever reason, if you are unsatisfied with your order within 30 days, you can return it to us in new condition for a refund minus the shipping charges.
The Right Part Guarantee
The Right Part Guarantee
The Right Part, Guaranteed. If we send the wrong part (not as described), our 30-day return policy has you covered. You get a full refund, including the shipping fees.
Hassle-Free Returns
Hassle-Free Returns
Start Your Return in Seconds with Our Easy Online Return Portal.
1. Dual HDMI-compatiable + SDI signal interfaces, meet your different needs

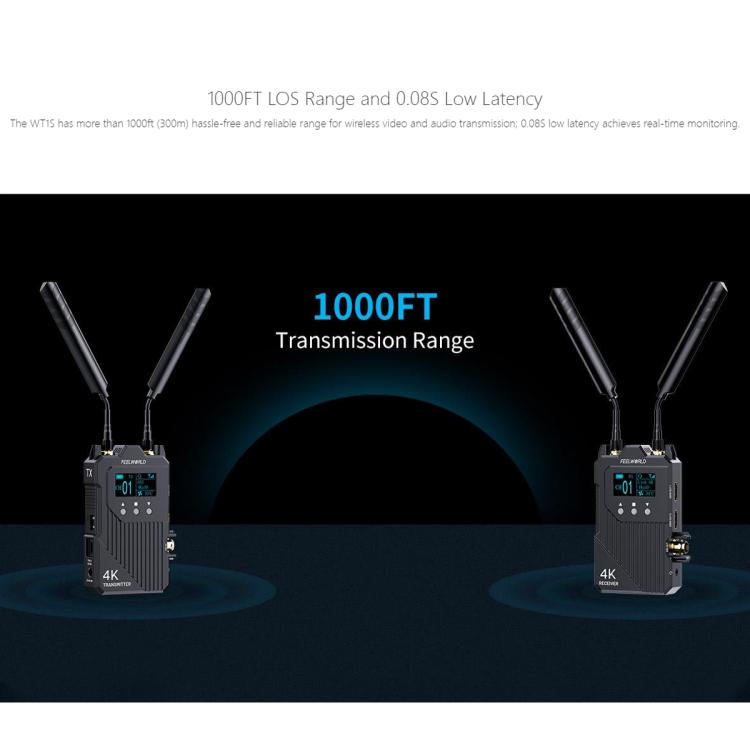

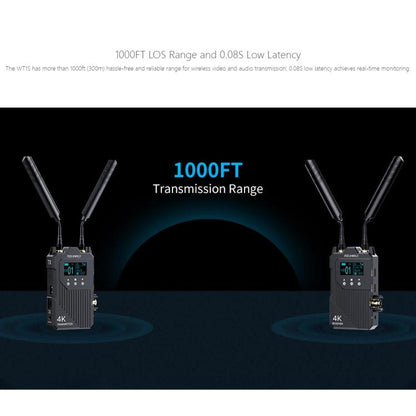

2. More than 1000ft transmission range with 0.08S ultra-low latency

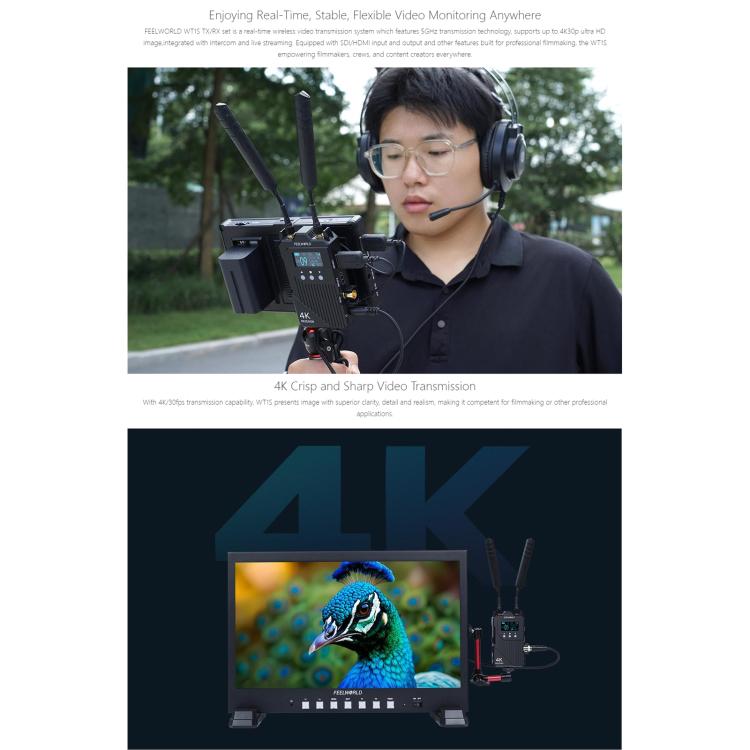

3. Up to 4K 30Hz, present image with superior clarity, detail and realism

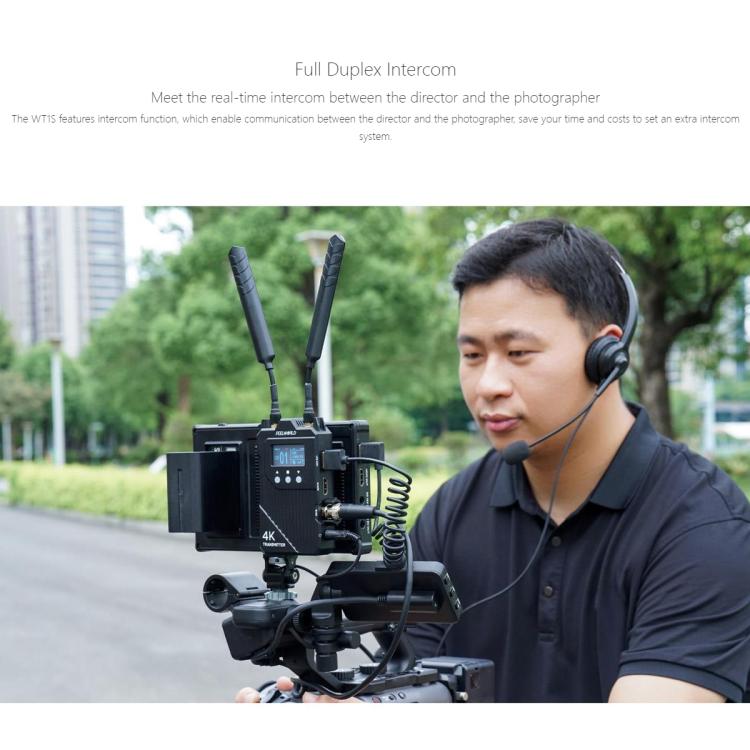

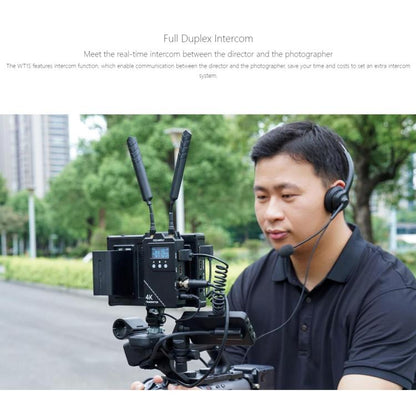

4. Wireless full-duplex talkback, real-time intercom between the director and the photographer

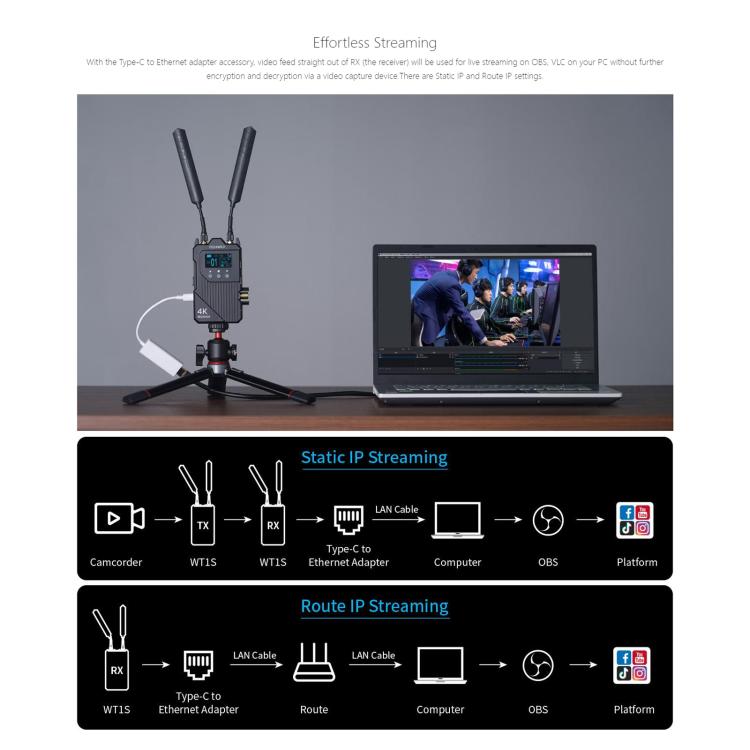

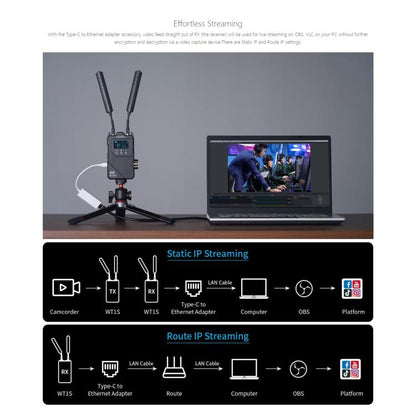

5. With type-C to Ethernet adapter accessory, achieve live streaming

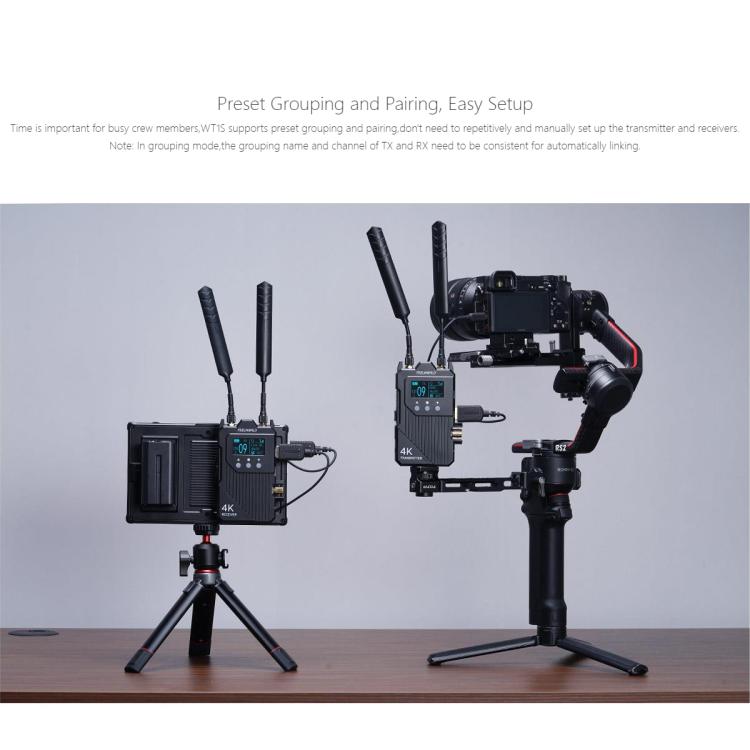

6. Under Grouping mode, TX and RX can be paired easily and quickly

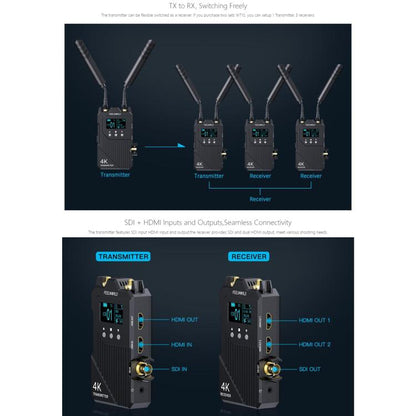

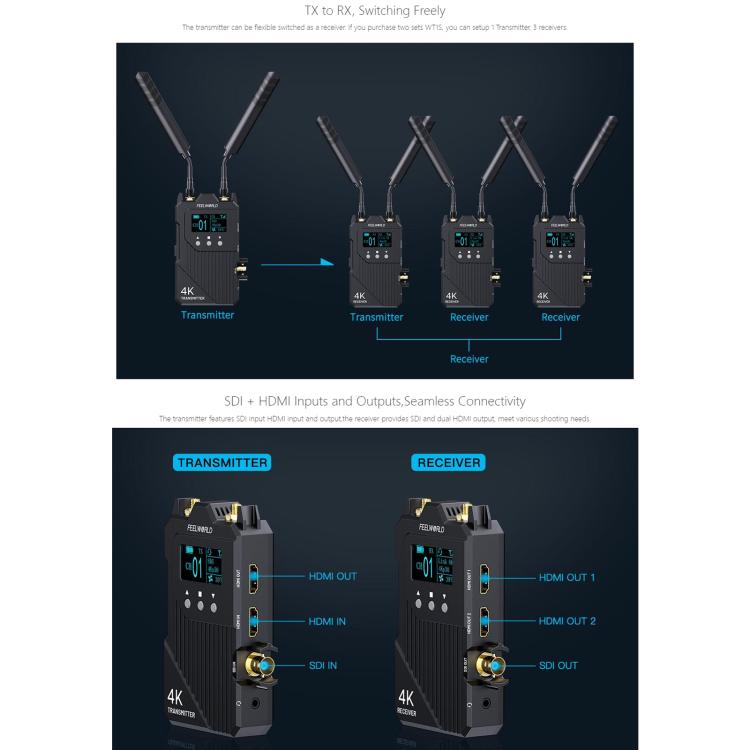

7. The transmitter can be switched as a receiver at will

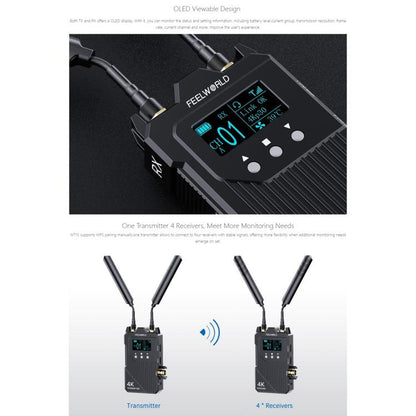

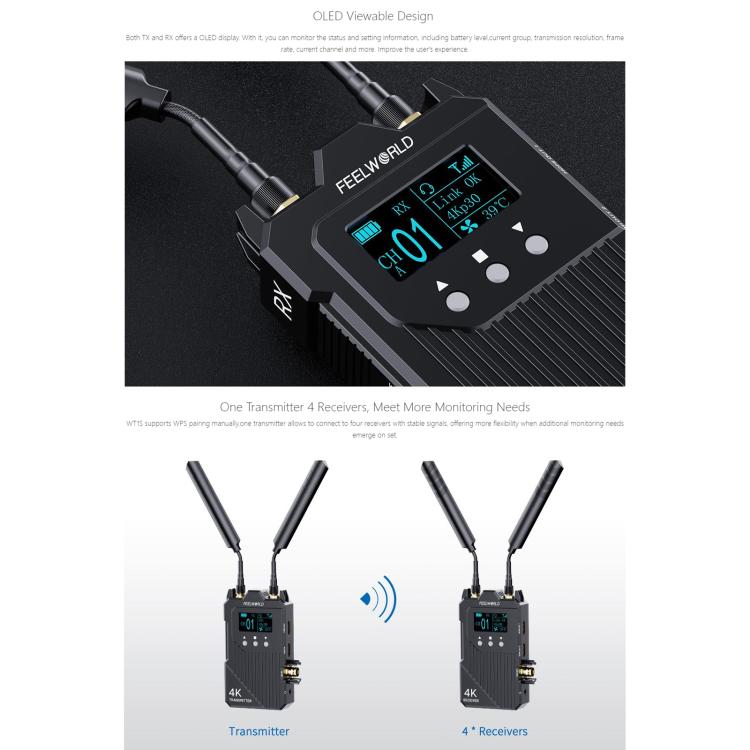

8. One TX to 4 RX, monitoring for everyone on set

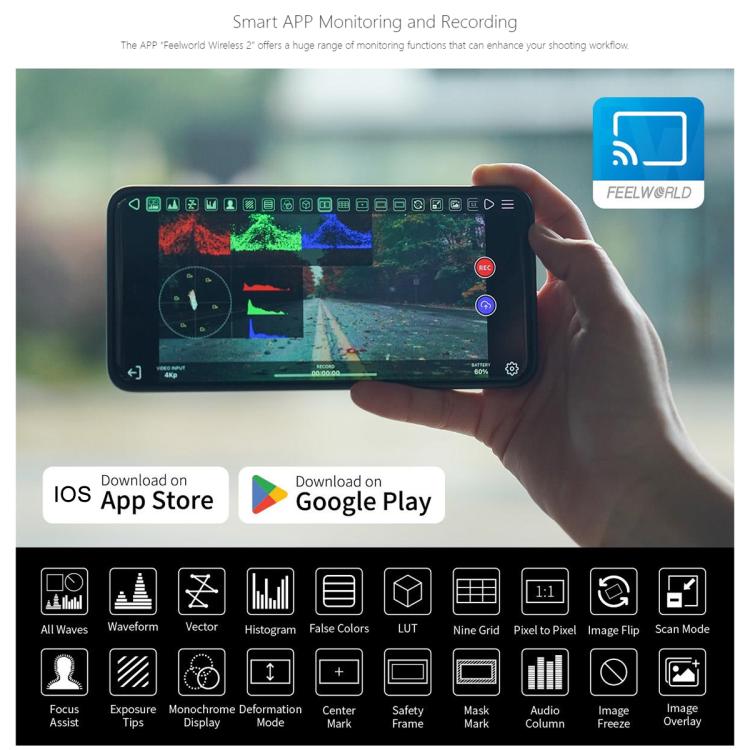

9. Real-time APP monitoring and recording for Android/iOS system

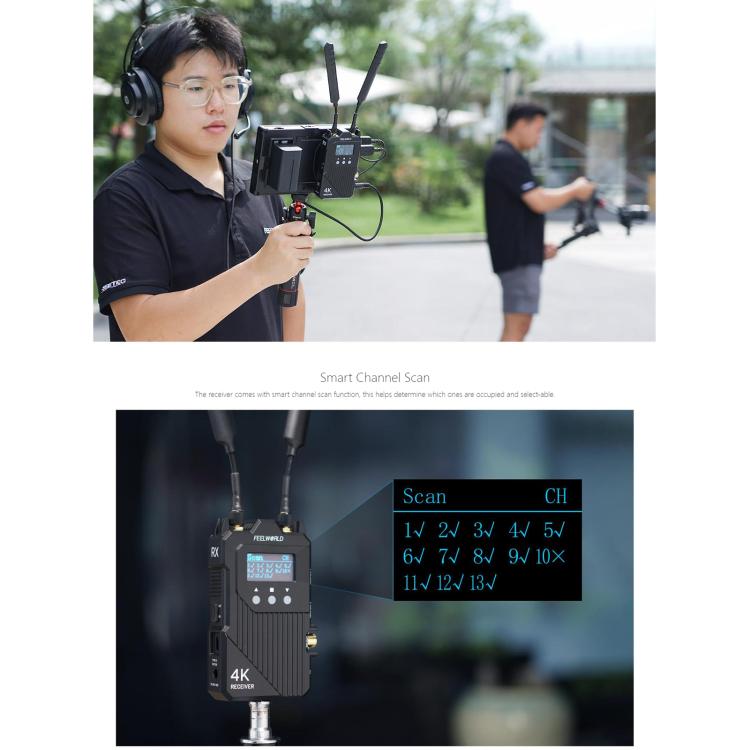

10. 13 frequency channels, AUTO channel scan
Specification:
Transmitter
1. Screen: OLED
2. Interface:
1 x SDI input
1 x HDMI-compatible input
1 x HDMI-compatible output
2 x Antenna port (RP-SMA Male)
DC power input
3.5mm headphone jack
Type-C

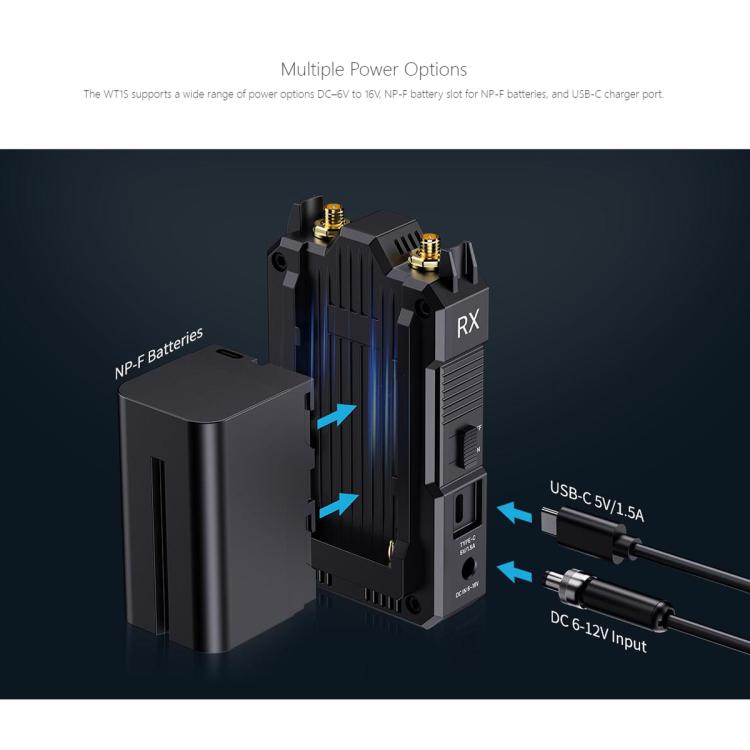

3. Power Supply Way/Voltage:
NP-F battery slot
Type-C: 5V/1.5A
DC adapter: 6-16V
4. Power Consumption: Less than 5.5W
5. HDMI-compatible Format:
480P60, 576P60
720P60/59.94/50
1080P60/59.94/50/30/29.97/25/24/23.98
1080I60/59.94/50
2160P30/25/24
HDMI Type A
6. SDI Format:
480P60, 576P60
720P60/59.94/50
1080P60/59.94/50/30/29.97/25/24/23.98
1080I60/59.94/50
BNC x 1
7. Frequency: 5.1-5.9GHz
8. Modulation Mode: OFDM
9. Transmission Power: 22dBm
10 Bandwidth: 20/40MHz
11. Latency: Min 0.08S
12. Intercom Frequency Response Range: 20Hz~20KHz
13. Operating Temperature: 0 degree C ~ 40 degree C
14. Storage Temperature: -20 degree C ~ 60 degree C
15. Unit Size(mm): 77.1Lx30Wx118.6H (excluding antenna）
16. Unit Weight: 138.8g
Receiver
1. Screen: OLED
2. Interface:
1 x SDI input
2 x HDMI-compatible output
2 x Antenna port （RP-SMA Male）
DC power input
3.5mm headphone jack
Type-C
3. Power Supply Way/Voltage:
NP-F battery slot
Type-C: 5V/1.5A
DC adapter: 6-16V
4. Power Consumption: Less than 6W
5. HDMI-compatible Format:
480P60, 576P60
720P60/59.94/50
1080P60/59.94/50/30/29.97/25/24/23.98
1080I60/59.94/50
2160P30/25/24
HDMI-compatible Type A
6. SDI Format:
480P60, 576P60
720P60/59.94/50
1080P60/59.94/50/30/29.97/25/24/23.98
1080I60/59.94/50
BNC x 1
7. Frequency: 5.1-5.9GHz
8. Modulation Mode: OFDM
9. Receiving Sensitivity: -87dBm
10. Bandwidth: 20/40MHz
11. Latency: Min 0.08S
12. Intercom Frequency Response Range: 20Hz~20KHz
13. Operating Temperature: 0 degree C ~ 40 degree C
14. Storage Temperature: -20 degree C ~ 60 degree C
15. Unit Size(mm): 77.1Lx30Wx118.6H (excluding antenna）
16. Unit Weight: 138.8g
Packaging List:
1. Transmitter x 1
2. Receiver x 1
3. Antenna x 5
4. Cold Shoe x 1
5. USB-A to USB-C Adapter x 1
6. USB-C to Ethernet Adapter x 1
7. User Manual x 1
