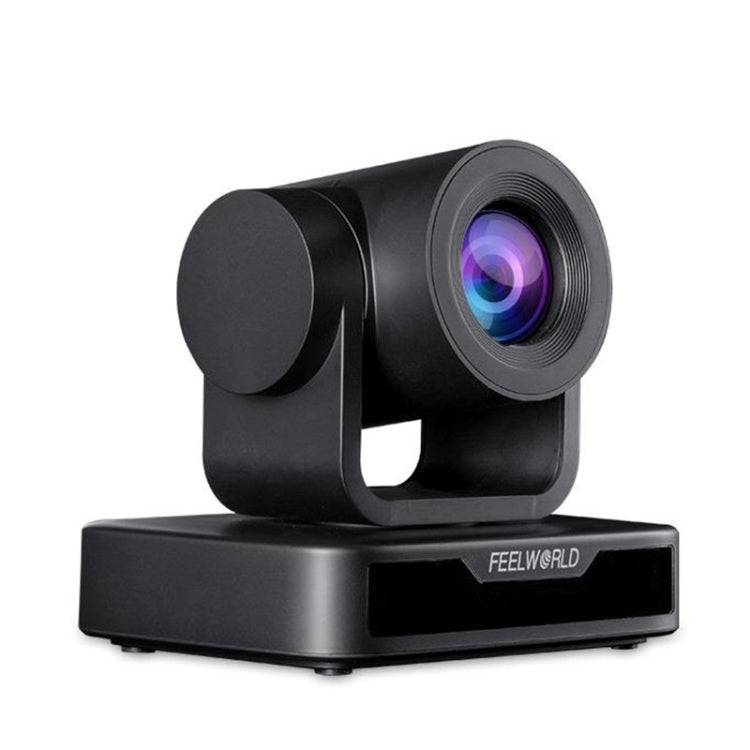

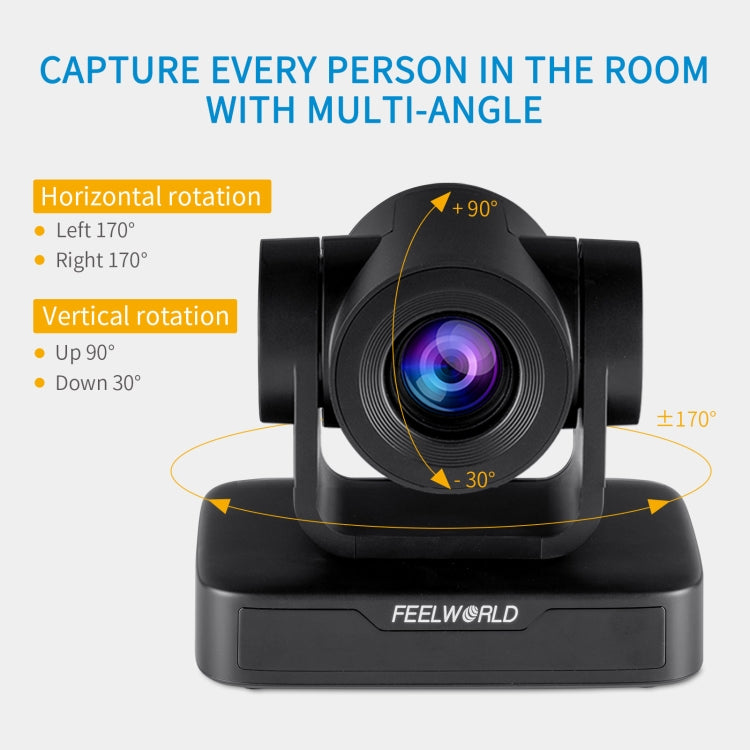

Features 1. 10X optical zoom professional conferencing camera for business meetings, you will feel like you are face-to-face in the same room. 2. USB2.0 video out, plug and play, anyone can easily setup and control 3. Support 1080p@30fps, realize a life-like video experience 4. Auto focus, smart frame capture everyone 5. 70 degree wide viewing angle, ideal for various meetings 6. Advanced 2D/3D noise reduction technology further reduces the noise while ensuring high image clarity 7. High speed and silent pan/tilt, capture all the actions 8. Support up to 255 presets (10 presets for IR remote control) 9. Multiple control protocol and interfaces 10. Low-power sleep function 11. Ideal for video conference, live streaming, medical seminar, online education, ect.
Specifications Camera Parameters 1. Model: USB10X 2. Sensor: 1/2.9 inch high quality CMOS sensor 3. Effective Pixels: 2.07 megapixel, 16:9 4. Video Format: 1920 x 1080P 30 fps/25fps,1280 x 720P 30fps/25fps, 1024 x 576P 30fps/25fps, 960 x 540P 30fps/25fps, 800 x 448P 30fps/25fps, 640 x 360P 30fps/25fps, 320 x 176P 30fps/25fps, etc. 5. View Angle: 8.8 degrees - 70 degrees 6. Focus Length: F=4.34mm - 41.66mm 7. AV: F1.85 - F2.43 8. Optical Zoom: 10X 9. Illumination: 0.5 lux F1.8, AGC ON 10. DNR: 2D & 3D 11. White Balance: Auto / Manual / One Push/ 3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K 12. Focus: Auto / Manual/ One Push Focus 13. Exposure: Auto / Manual 14. BLC: On/Off 15. Video Adjustment: Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve 16. SNR: Greater than 55dB
Input/output Interface 1. Video Output: USB2.0, A Type Interface 2. Video Compression Format: MJPG, H.264, H.265 3. Control Interface: RS232 (IN/OUT), RS485 4. Control Protocol: VISCA/Pelco-D/Pelco-P 5. Power Interface: HEC3800 outlet (DC12V)
USB Feature 1. Operation Systems: Windows 7, Windows8, Windows10, Mac osx, Linux, etc 2. Video Compression Format: MJPG, H.264, H.265 3. USB Communication Protocol: UVC
Other Parameters 1. Input Voltage: 12V/0.5A 2. Power Consumption: 2.5W 3. Stored Temperature: -40 degree C - +70 degree C 4. Storage Humidity: 20% - 90% 5. Working Temperature: -10 degree C - +50 degree C 6. Working Humidity: 20% - 80% 7. Dimension: 156.8mm x 112.6mm x 139.5mm 8. Unit Weight: 1kg

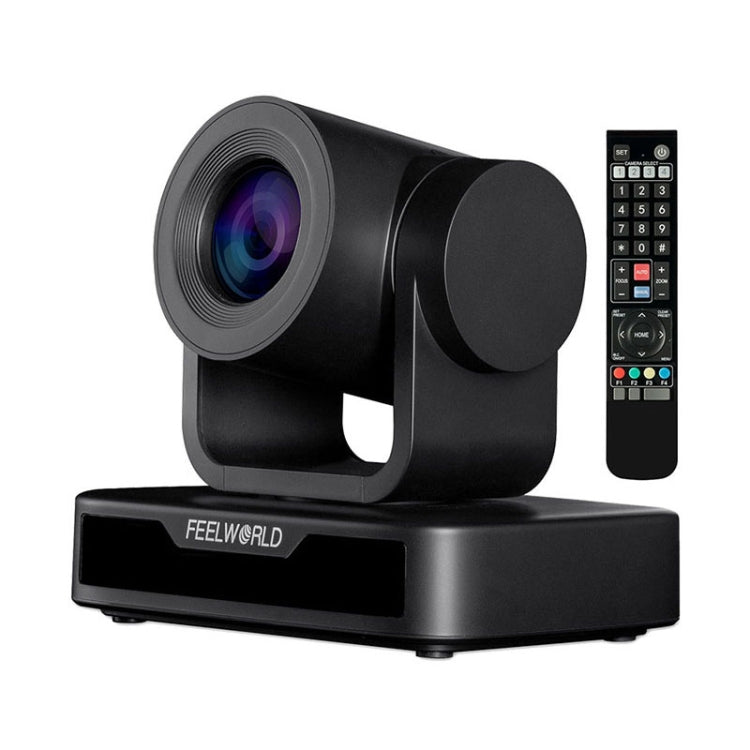

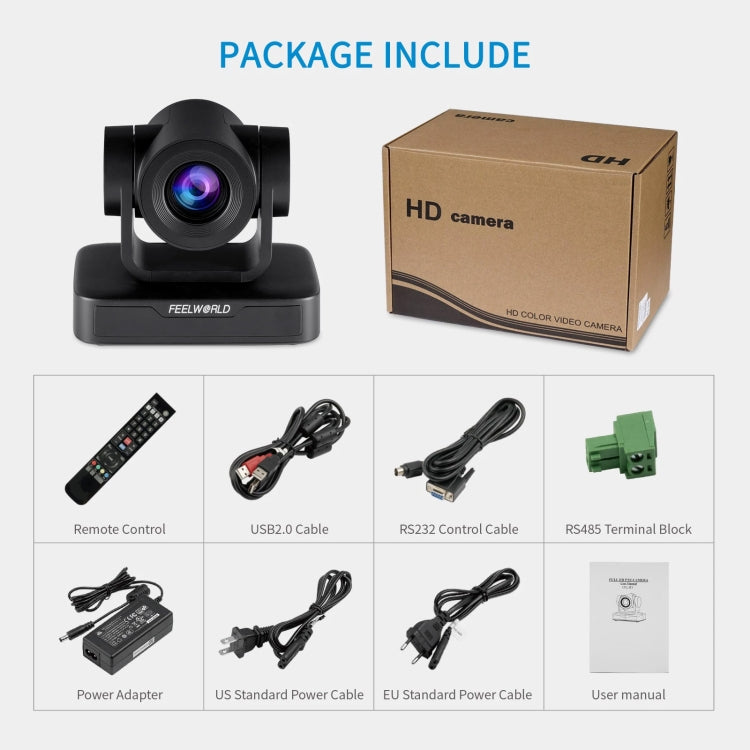

Package List 1. Video Camera x 1 2. Remote Control x 1 3. USB 2.0 Cable x 1 4. RS232 Control Cable x 1 5. RS485 Terminal Block x 1 6. Power Adapter x 1 7. EU Standard Power Cable x 1 8. US Standard Power Cable x 1 9. Manual x 1
