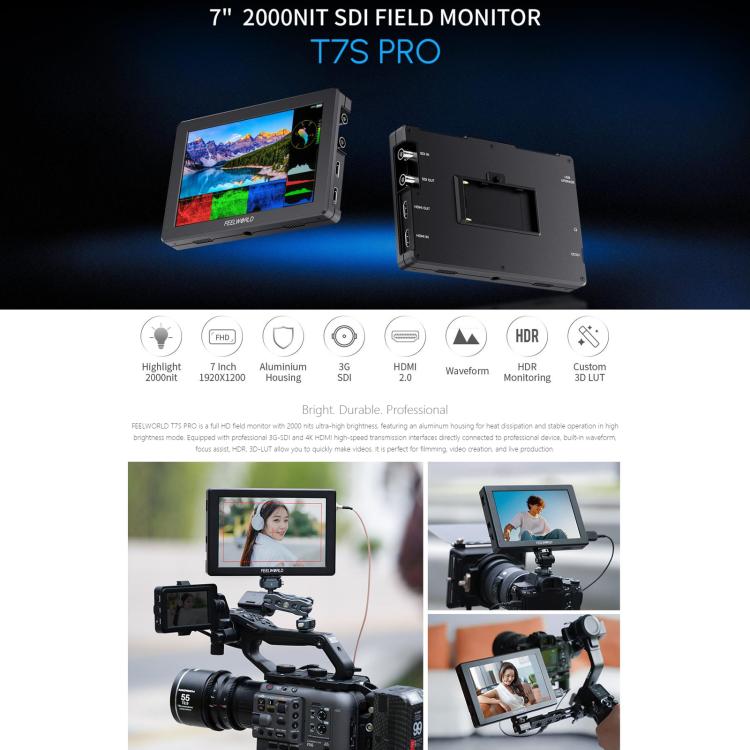

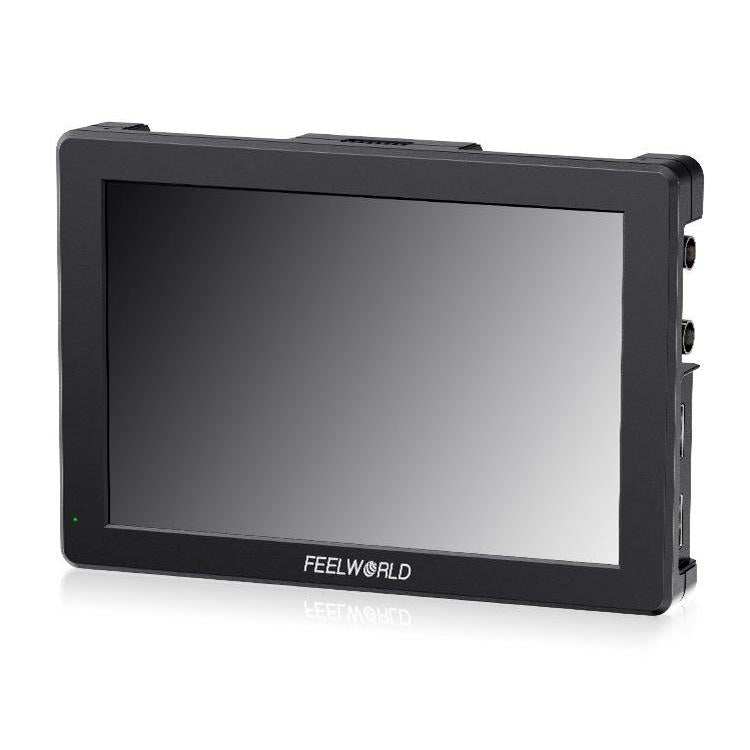

FEELWORLD T7S Pro 7-inch 2000nit High Brightness Filed Camera Video Monitor 3G SDI 4K 60Hz HDMI-compatible 1920 x 1200 IPS Screen(Black)
FEELWORLD T7S Pro 7-inch 2000nit High Brightness Filed Camera Video Monitor 3G SDI 4K 60Hz HDMI-compatible 1920 x 1200 IPS Screen(Black)
No reviews
Regular price
$374.00
Regular price
Sale price
$374.00
FREE DELIVERY on all orders.
In stock
Quantity
🔥 Buy any 2 items, get 25% off 3rd item 🔥 Save today!
Couldn't load pickup availability
Shipping Guarantee
Shipping Guarantee
FREE SHIPPING on all UK orders. Fully insured.
Handling time: 1 - 3 business days. (Buy2fix has to process your order and put all your items through its strict quality-control tests.)
Transit time is 5 - 10 business days to the UK. Transit times to other countries are displayed at checkout.
Origin: CN
Return Guarantee
Return Guarantee
For whatever reason, if you are unsatisfied with your order within 30 days, you can return it to us in new condition for a refund minus the shipping charges.
The Right Part Guarantee
The Right Part Guarantee
The Right Part, Guaranteed. If we send the wrong part (not as described), our 30-day return policy has you covered. You get a full refund, including the shipping fees.
Hassle-Free Returns
Hassle-Free Returns
Start Your Return in Seconds with Our Easy Online Return Portal.
Display Spec.
1. Model: T7S PRO
2. Screen Size: 7 inch IPS
3. Resolution: 1920x1200 pixels
4. Pixel Pitch: 0.07875(W) x 0.07875 (H) (mm)
5. Color Depth: 8bit
6. Aspect Ratio: 16:10
7. Brightness: 2000cd/m2
8. Contrast Ratio: 1200:1
9. Backlight: LED
10. Viewing Angle: 80 degree / 80 degree (L/R) / 80 degree /80 degree (U/D)

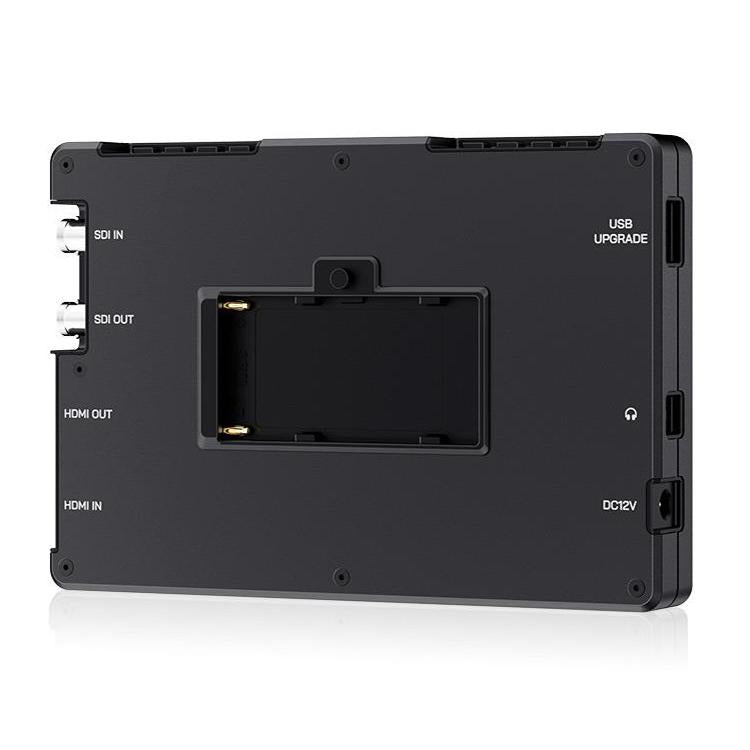

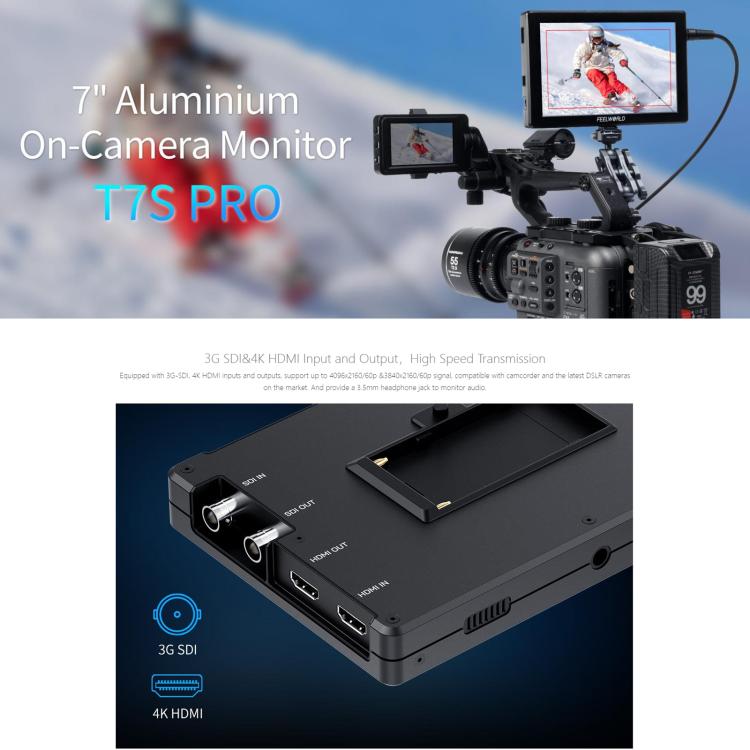

Input
1. 1 x SDI: 3G-SDI
2. 1 x HDMI-compatible: HDMI-compatible 2.0
3. 1 x USB: Mini USB (LUT file import and Firmware update)
Output
4. 1 x SDI: 3G-SDI
5. 1 x HDMI-compatible: HDMI-compatible 2.0
Audio
Audio: 3.5mm Stereo Headphone
3G-SDI Input and Output Support Format
1. 720p (60/59.94/50/30/29.97/25/24/23.98)
2. 1080i (60/59.94/50)
3. 1080p (60/59.94/50/30/29.97/25/24/23.98)
HDMI-compatible Input and Output Support Format
1. 720p (60/59.94/50/30/29.97/25/24/23.98)
2. 1080i (60/59.94/50)
3. 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)
4. 4K 3840 x 2160p (60/50/30/29.97/25/24/23.98)
5. 4K 4096 x 2160p(60/50/30/29.97/25/24/23.98)
General

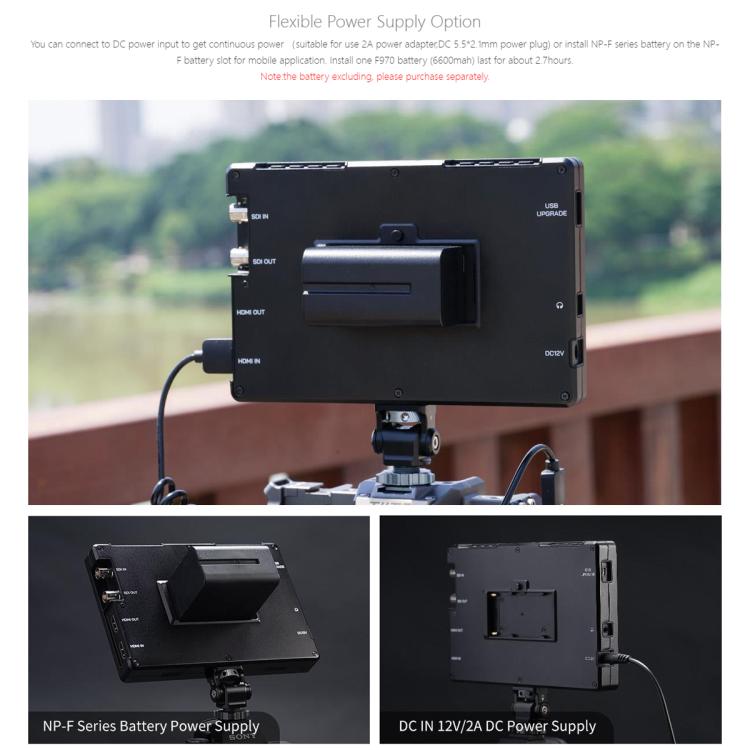

1. Power Connector: DC IN
2. Input Voltage: DC7～24V
3. Power Consumption: Less than or equal to 18W
4. Working Temperature: -20 degree C~55 degree C
5. Storage Temperature: -30 degree C~65 degree C
6. Install Way: 1/4-20 Thread Point (bottom)
7. Unit Size: 182.8x122.8x24 (mm)
8. Unit Weight: 370g

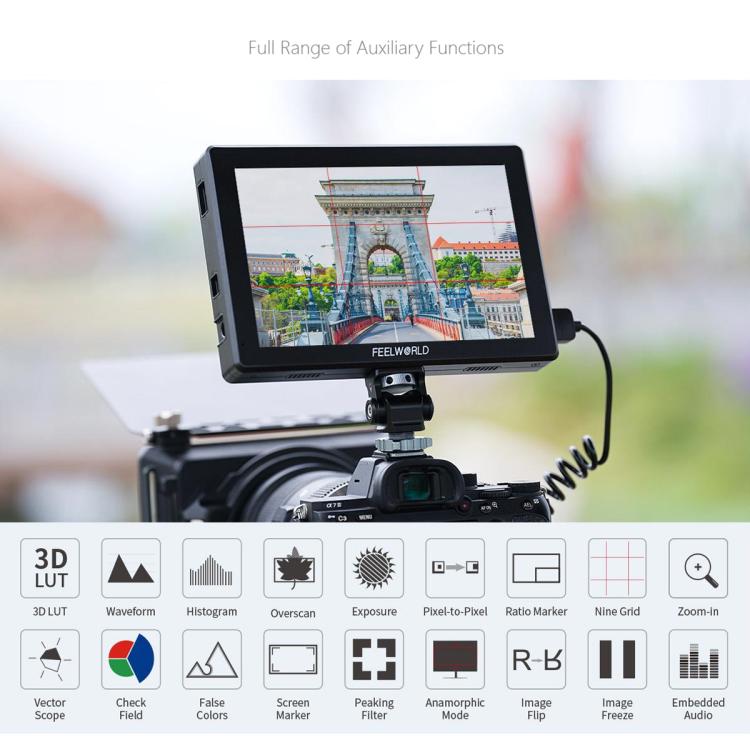

Advanced Features

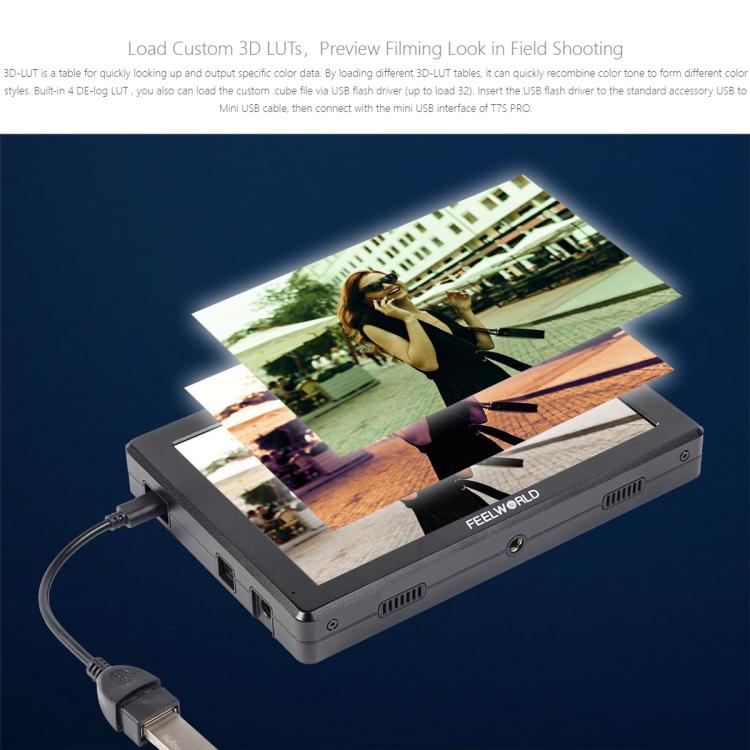

1. Support 3D LUT Log to Rec.709, user 3D LUT Upload (up to 32)

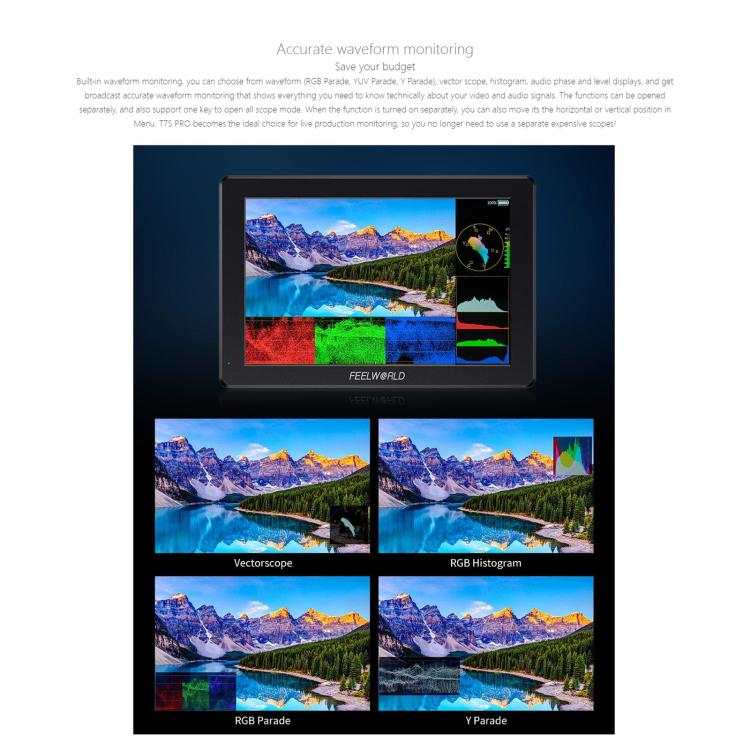

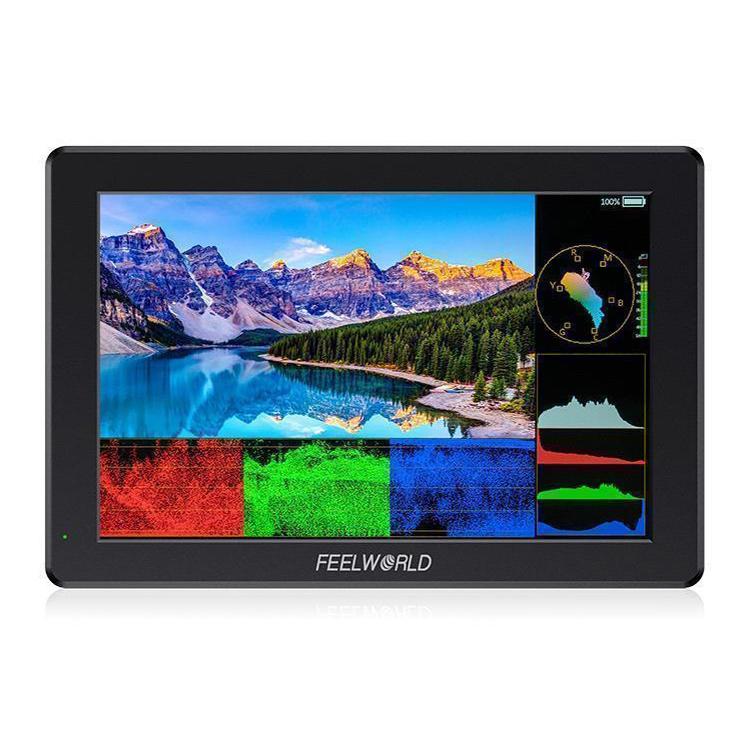

2. Waveform (RGB, YUV, Y)

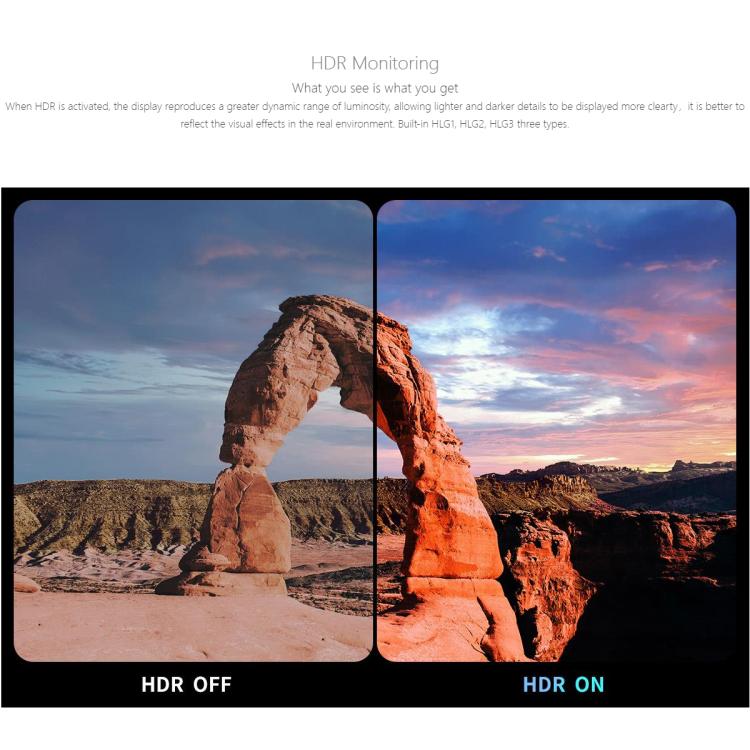

3. HDR
4. Vector
5. Histogram (RGB,Y )
6. Embedded Audio

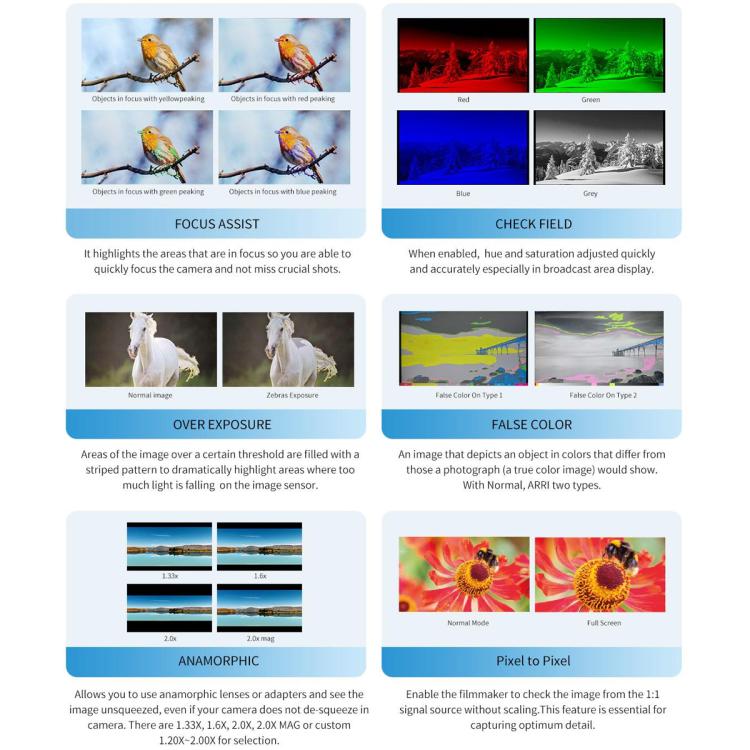

7. Focus Assist(Red, Green, Blue three focus colors optional; 1~10 focus level adjustable)
8. False Colors (Normal, ARRI)
9. Over Exposure (10IRE～100IRE adjustable)
10. Check Field (Red, Green, Blue, Mono)
11. Scan Mode (Under Scan, Over Scan)
12. Anamorphic Mode (1.33x, 1.6x, 2.0x, 2.0x mag, User. Under User, you can custom adjust nx 1.20x~2.00x)
13. Image Flip (H Flip, V Flip, H_V Flip )
14. Image Freeze
15. Center Marker
16. Safety Frames (80%, 85%, 90%, 93%, 96%, 2.35:1, 9:16)
17. Aspect Ratio (Auto, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1, Full Screen)

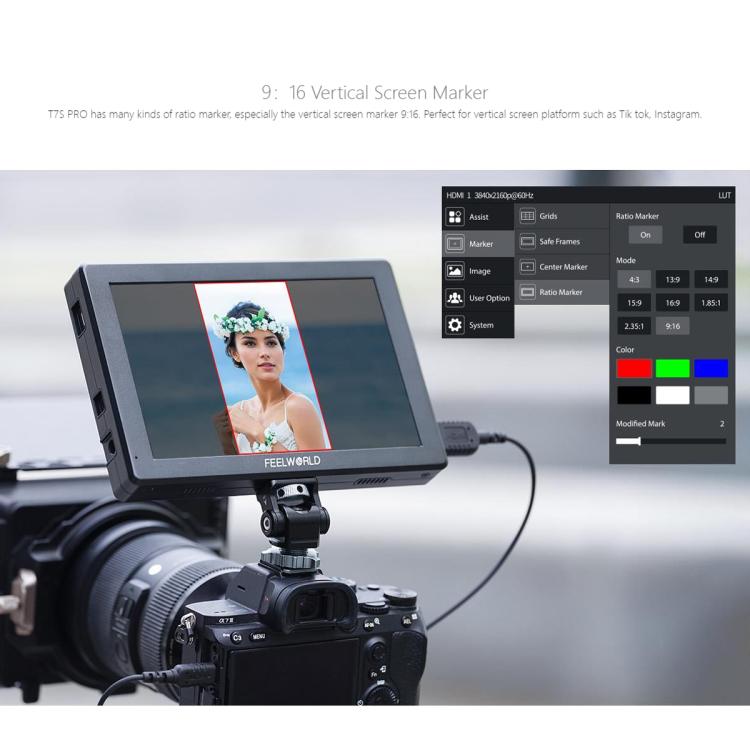

18. Ratio Marker(4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1, 9:16)
19. Marker Color (Red, Green, Blue, Black, White, Gray)
20. Grid (2x2, 3x3, 4x4, 5x5, 6x6, 7x7, 8x8, 9x9, Custom. When selecting Custom, you can custom the rows and columns from2~9)
21. Zoom Mode (2X, 4X, 9X, 16X, User. Under User, you can adjust 100%~200%)
22. Pixel to Pixel
23. SDI Time Code(LTC, VITC)
24. Display Range( Auto, Limit, Full)
25. EDID Settings(2.0,1.4)

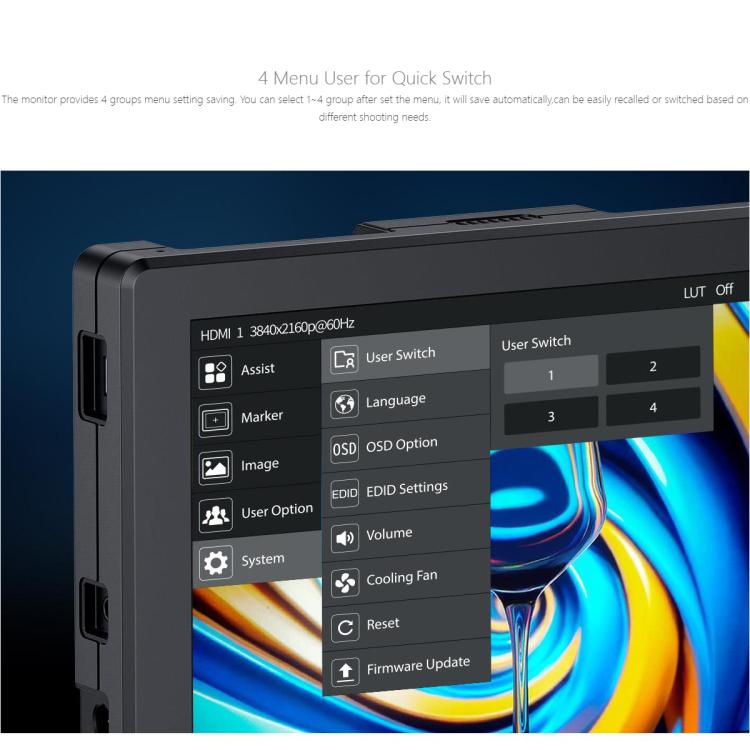

26. User Switch (1~4)
27. OSD Time(Off, 15Sec, 30Sec, 45Sec)
28. OSD Transparency (Off, 25%, 50%, 75%)
29. The background color of screen when no signal (Red, Green, Blue, Black, White, Gray)
30. Power Settings (Auto, Manual)
31. Color Temp.(5600K, 6500K, 9300K, User. Under User, the red, green, and blue values of the image can be adjusted 0~255)
Packaging List:
1. Monitor x 1
2. Micro HDMI-compatible Cable x 1
3. HDMI-compatible Cable x 1

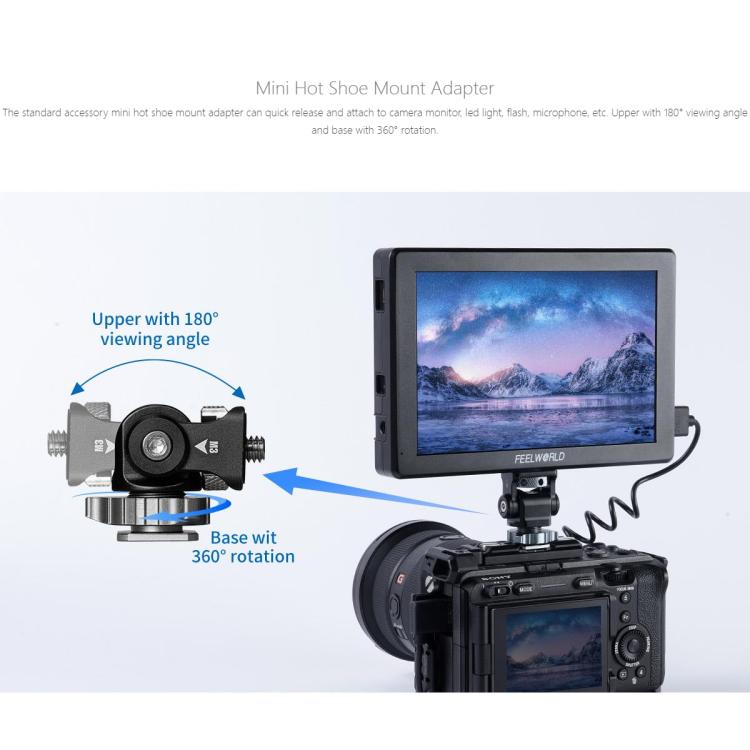

4. Mini Hot shoe mount + Hex Wrench x 1
5. USB to Mini USB Cable x 1

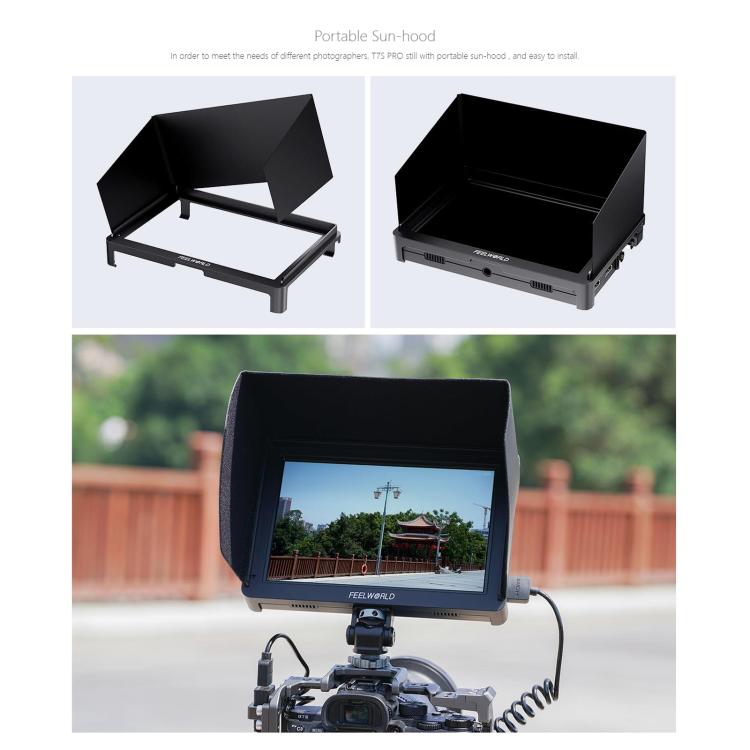

6. Sun Shade + Frame x 1
7. Cable Management Tie x 1
8. Manual x 1
