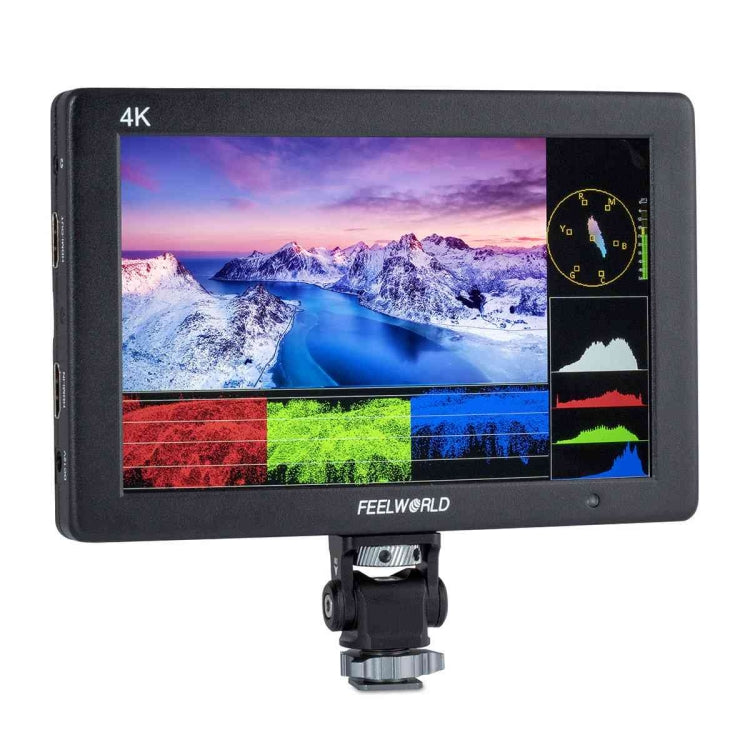

FEELWORLD T7 PLUS 7 inch 3D LUT DSLR Camera Field Monitor with Waveform 4K HDMI Aluminum Housing (Black)
FEELWORLD T7 PLUS 7 inch 3D LUT DSLR Camera Field Monitor with Waveform 4K HDMI Aluminum Housing (Black)
SKU: DCA2504B
Regular price
$290.00
Regular price
Sale price
$290.00
Duties & Import Tax Information
Duties are only included if shown at checkout. Otherwise, your local government may apply customs fees, which your courier will collect directly from you before delivery.
In Stock
CHN
This item is shipped from China.
Processed in 0–3 days
Quantity
Couldn't load pickup availability
Shipping info
To find all available shipping methods and exact delivery times, add the product to your cart and check using our shipping calculator.
30-day returns
Fast refunds: Once we receive and check your item, we aim to process your refund within 48 hours.
Return postage: Just changed your mind? You'll need to cover the return postage. If the item arrived faulty, we'll cover the cost to get it back to us.
Your details are safe
We treat your data the way we'd want ours treated. Your payment details are locked down with bank-level encryption. We never actually see your credit card numbers, and we will absolutely never sell your personal information.
Features
1. High Resolution: Full HD 1920x1200
2. High Contrast: 1200:1
3. High Brightness: 450cd/m2
4. 160 degrees wide viewing angles IPS Panel
5. Ultra thin design 18mm thickness
6. Custom 3D LUT import (up to 32)
7. All waves
8. Waveform (RGB, Y, YUV)
9. Histogram (RGB1, Y, RGB2)
10. Peaking Focus Assist (Red, Green, Blue three colors optional highlight over parts of the image in focus)
11. False Colors
12. Zebra Exposure
13. Nine Grid
14. Embedded Audio
15. Scan Mode (Under Scan, Over Scan)
16. Zoom (4x,9x,16x)
17. Anamorphic Mode (1.3x, 2.0x, 2.0x mag, User-defined adjustment: 1.20X~2.00X)
18. Pixel to Pixel
19. Center Marker
20. Safe Area (80%, 85%, 90%, 93%, 96%, 2.35:1)
21. Ratio Marker (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1)
22. Marker Color (Red, Green, Blue, White, Black???
23. Check Field (Red, Green, Blue, Mono)
24. Image Flip (H, V, H/V)
25. Image Freeze
26. Zoom All (0~500 adjustable)
27. U/D & L/R Zoom (0~500 adjustable)
28. Color Temperature Adjustment
Specifications
Display Spec.:
1. Model: T7 PLUS
2. Screen Size: 7 inch IPS
3. Resolution: 1920x1200 pixels
4. Pixel Pitch: 0.07875 (H) x 0.07875 (W) (mm)
5. Aspect Ratio: 16:10
6. Brightness: 450cd/m2
7. Contrast Ratio: 1200:1
8. Backlight: LED
9. Viewing Angle: 80 degees / 80 degees (L/R) 80 degees /80 degees (U/D)
Input:
1 X HDMI: HDMI
Output:
1 X HDMI: HDMI
Media:
1. Audio: Stereo Headphone, Speaker
2. HDMI Input/ Output Support Format: 480i/576i/480p/576p, 1080i (60/59.94/50), 720p (60/59.94/50/30/29/25/24/23.98), 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF), 4K UHD 3840x2160p (30/29.97/25/24/23.98Hz), 4096x2160p (24Hz)
General:
1. Input Voltage: DC7~24V
2. Power Consumption: Less than or equal to 8W
3. Install Way: 1/4 -20 Thread Socket (top, bottom)
4. Battery Plate: F970 (Standard)

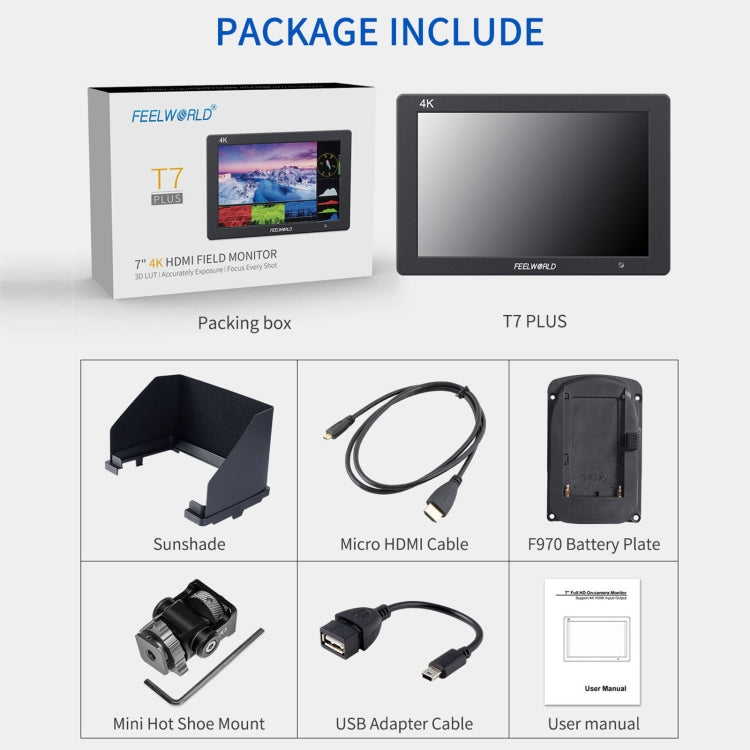

Package List
1. Monitor x 1
2. Mini HDMI Cable x 1
3. USB Adapter Cable x 1
4. Sunshade x 1
5. Mini Hot Shoe Mount+Hex Wrench x 1
6. F970 Battery Plate x 1
7. Operation Manual x 1
1. High Resolution: Full HD 1920x1200
2. High Contrast: 1200:1
3. High Brightness: 450cd/m2
4. 160 degrees wide viewing angles IPS Panel
5. Ultra thin design 18mm thickness
6. Custom 3D LUT import (up to 32)
7. All waves
8. Waveform (RGB, Y, YUV)
9. Histogram (RGB1, Y, RGB2)
10. Peaking Focus Assist (Red, Green, Blue three colors optional highlight over parts of the image in focus)
11. False Colors
12. Zebra Exposure
13. Nine Grid
14. Embedded Audio
15. Scan Mode (Under Scan, Over Scan)
16. Zoom (4x,9x,16x)
17. Anamorphic Mode (1.3x, 2.0x, 2.0x mag, User-defined adjustment: 1.20X~2.00X)
18. Pixel to Pixel
19. Center Marker
20. Safe Area (80%, 85%, 90%, 93%, 96%, 2.35:1)
21. Ratio Marker (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1)
22. Marker Color (Red, Green, Blue, White, Black???
23. Check Field (Red, Green, Blue, Mono)
24. Image Flip (H, V, H/V)
25. Image Freeze
26. Zoom All (0~500 adjustable)
27. U/D & L/R Zoom (0~500 adjustable)
28. Color Temperature Adjustment
Specifications
Display Spec.:
1. Model: T7 PLUS
2. Screen Size: 7 inch IPS
3. Resolution: 1920x1200 pixels
4. Pixel Pitch: 0.07875 (H) x 0.07875 (W) (mm)
5. Aspect Ratio: 16:10
6. Brightness: 450cd/m2
7. Contrast Ratio: 1200:1
8. Backlight: LED
9. Viewing Angle: 80 degees / 80 degees (L/R) 80 degees /80 degees (U/D)
Input:
1 X HDMI: HDMI
Output:
1 X HDMI: HDMI
Media:
1. Audio: Stereo Headphone, Speaker
2. HDMI Input/ Output Support Format: 480i/576i/480p/576p, 1080i (60/59.94/50), 720p (60/59.94/50/30/29/25/24/23.98), 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF), 4K UHD 3840x2160p (30/29.97/25/24/23.98Hz), 4096x2160p (24Hz)
General:
1. Input Voltage: DC7~24V
2. Power Consumption: Less than or equal to 8W
3. Install Way: 1/4 -20 Thread Socket (top, bottom)
4. Battery Plate: F970 (Standard)
Package List
1. Monitor x 1
2. Mini HDMI Cable x 1
3. USB Adapter Cable x 1
4. Sunshade x 1
5. Mini Hot Shoe Mount+Hex Wrench x 1
6. F970 Battery Plate x 1
7. Operation Manual x 1
Verified Compatible
Guaranteed fit for device in the title. Wrong part? Full refund including shipping.
