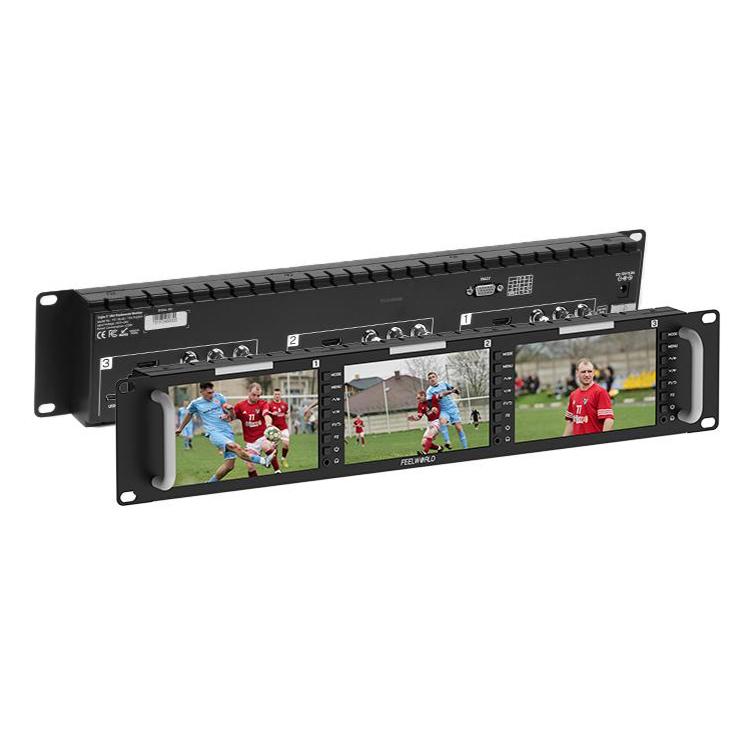

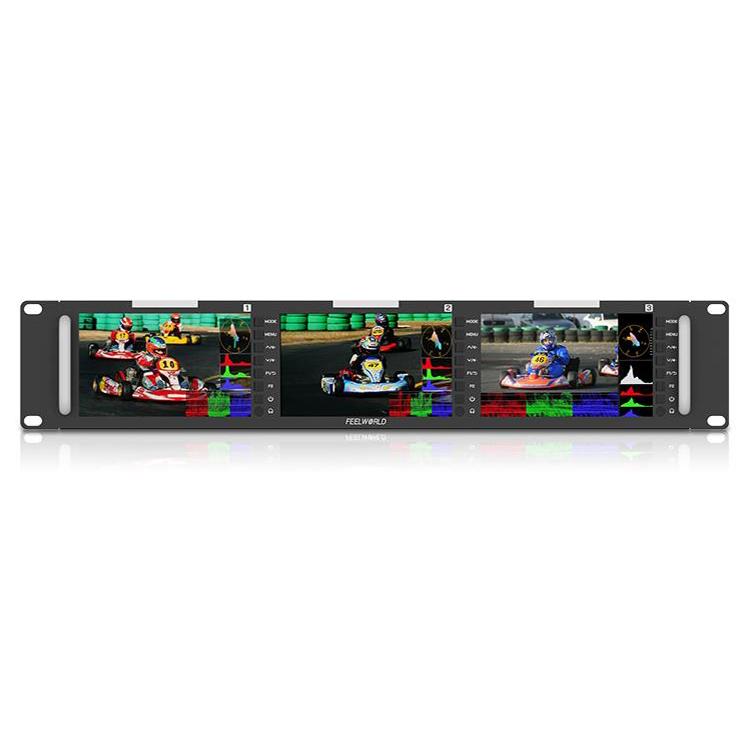

FEELWORLD T51 PLUS Triple 5.5 inch 2RU Rackmount Monitor Full HD 3G-SDI 4KHDMI AV Monitor (UK Plug)
FEELWORLD T51 PLUS Triple 5.5 inch 2RU Rackmount Monitor Full HD 3G-SDI 4KHDMI AV Monitor (UK Plug)
No reviews
Regular price
$1,076.00
Regular price
Sale price
$1,076.00
FREE DELIVERY on all orders.
In stock
Quantity
🔥 Buy any 2 items, get 25% off 3rd item 🔥 Save today!
Couldn't load pickup availability
Shipping Guarantee
Shipping Guarantee
FREE SHIPPING on all UK orders. Fully insured.
Handling time: 1 - 3 business days. (Buy2fix has to process your order and put all your items through its strict quality-control tests.)
Transit time is 5 - 10 business days to the UK. Transit times to other countries are displayed at checkout.
Origin: CN
Return Guarantee
Return Guarantee
For whatever reason, if you are unsatisfied with your order within 30 days, you can return it to us in new condition for a refund minus the shipping charges.
The Right Part Guarantee
The Right Part Guarantee
The Right Part, Guaranteed. If we send the wrong part (not as described), our 30-day return policy has you covered. You get a full refund, including the shipping fees.
Hassle-Free Returns
Hassle-Free Returns
Start Your Return in Seconds with Our Easy Online Return Portal.
Features
1. FHD1920x1080 IPS, view details with confidence

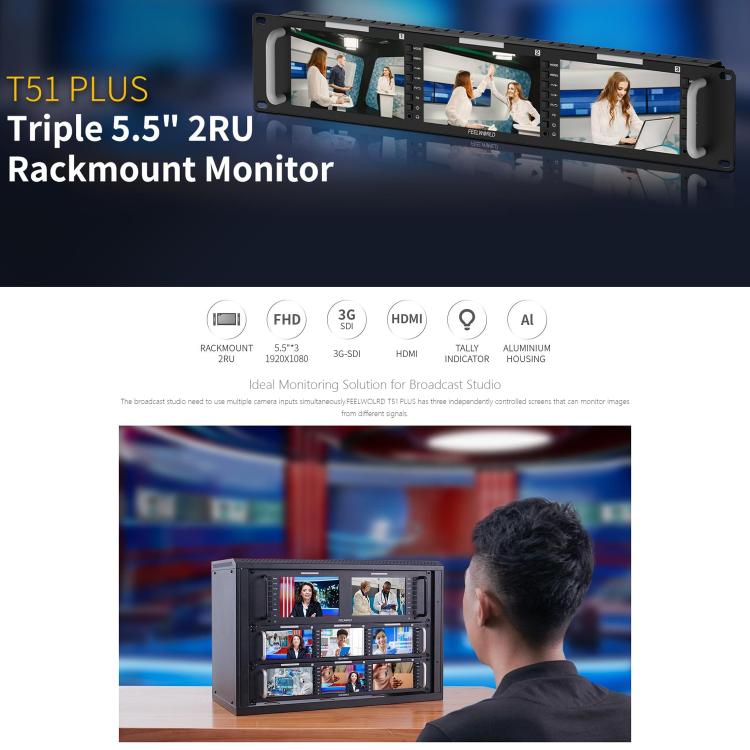

2. Triple 2RU rackmount design, compact thin and lightweight design, which make it suitable for installing where the space is limited and also could be installed in the standard 19-inch rack.

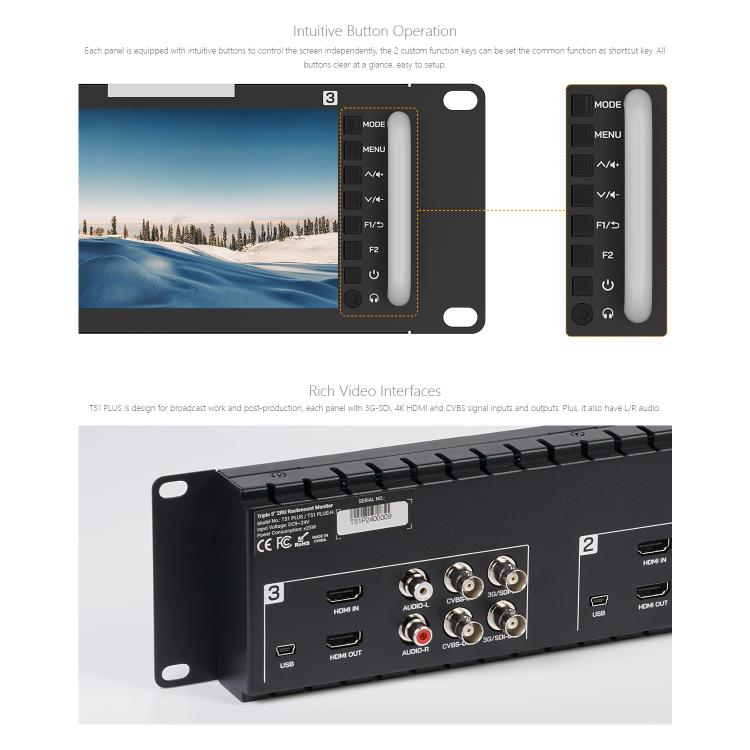

3. Intuitive button operation, easy to setup.

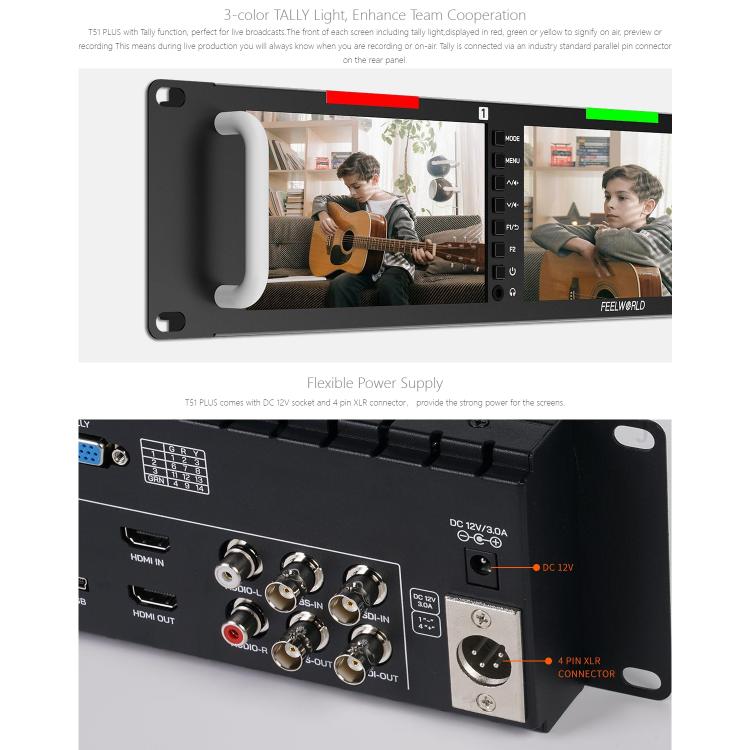

4. Three-color Tally indicator, enhance team cooperation
5. 3G-SDI, HDMI, Video, Audio(L/R) and 3G-SDI, HDMI, Video loop-through output
6. 3.5mm headphone jack output
Special Features:

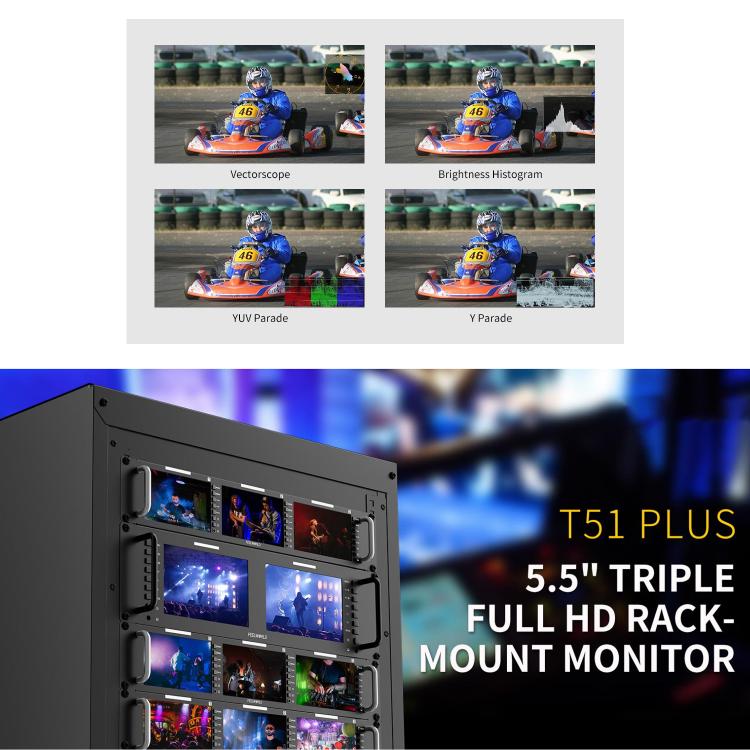

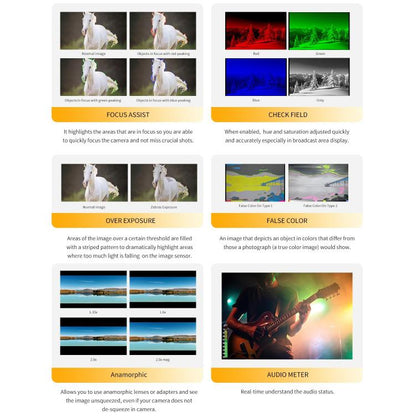

1. Wavefrom (RGB, YUV, Y)
2. Vector scope
3. Histogram (RGB1, RGB2, Y)

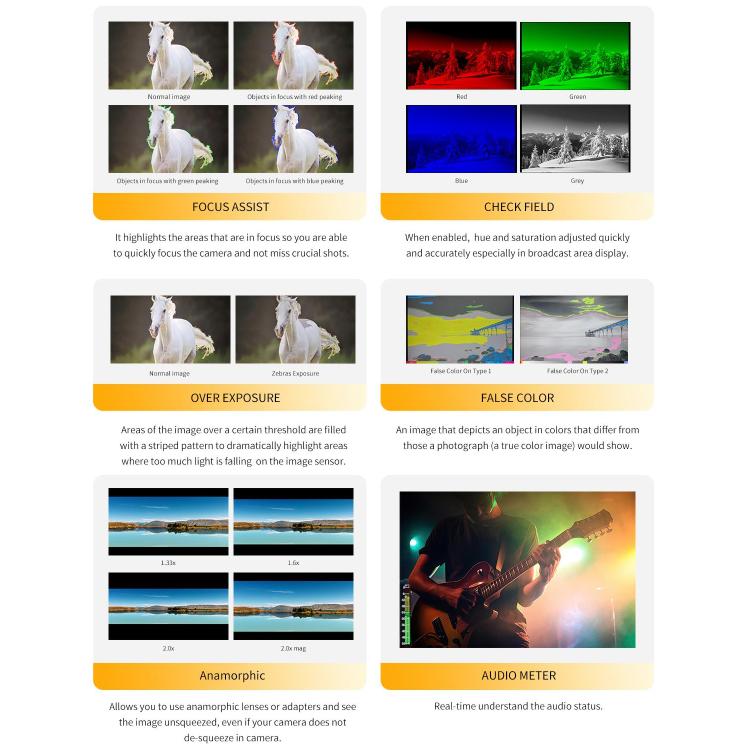

4. Focus Assist(Red, Green, Blue), you can adjust the peaking level after turning on 1-10
5. Embedded Audio
6. Over Exposure (you can adjust the exposure level after turning on 10~100???
7. Check Field (Red, Green, Blue, Mono)
8. False Colors
9. Time Code (only under SDI signal with LTC, VITC modes)
10. Nine Grid
11. Safe Frames (80%, 85%, 90%, 93%, 96%, 2.35:1)
12. Center Marker
13. Safe Marker (80%, 85%, 90%, 93%, 96%, 2.35:1)
14. Ratio Marker (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1)
15. Scan Mode (Under Scan, Over Scan)
16. Aspect Ratio (Auto, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1, Full Screen)
17. Anamorphic (1.33X, 1.6X, 2.0X, 2.0X MAG, User 1.20x~2.00x)
18. Image Flip (Horizontal, Vertical, Hor&Ver)
19. Image Freeze
20. Zoom Mode (2X, 4X, 9X, 16X, User 100%~200%)
21. Pixel to Pixel

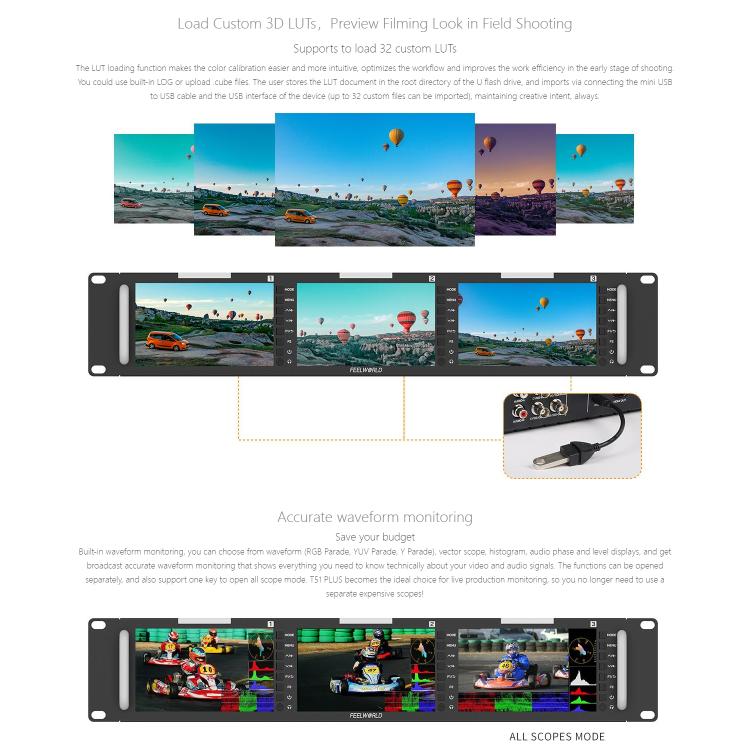

22. 3D-LUT (built-in SLOG2, SLOG3, LOGC, VLOG; can be upload 32 custom LUT)
23. Color Temp. (5600K, 6500K, 9300K, User)
Specifications
Display Spec.

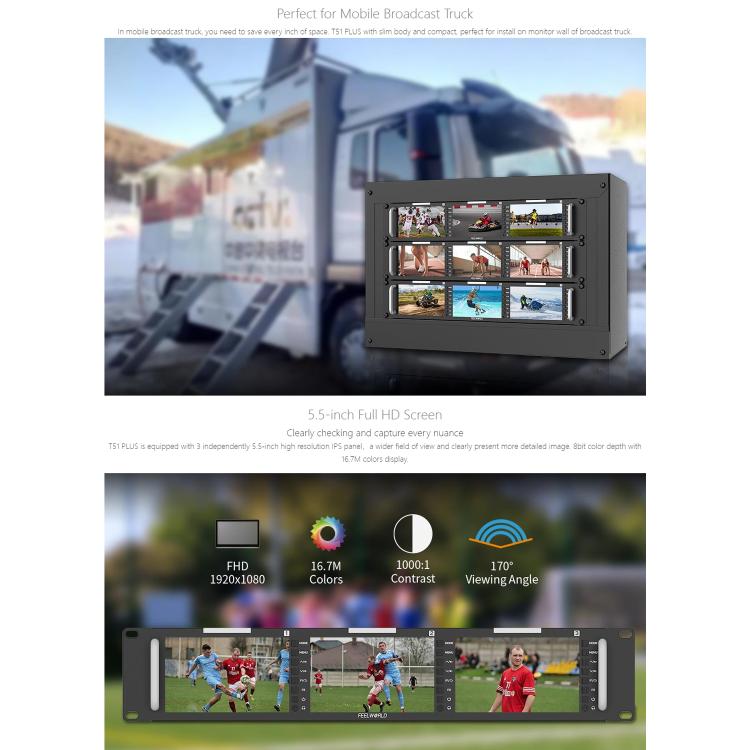

1. Model: T51 PLUS
2. Screen Size: 5.5 inch x 3 IPS
3. Resolution: 1920 x 1200 pixels
4. Pixel Pitch: 0.0639(H) x 0.0213(W) mm
5. Aspect Ratio: 16:10
6. Brightness: 400cd/m2
7. Contrast Ratio: 1000:1
8. Backlight: LED
9. Viewing Angle: 80 degree /80 degree (L/R) 80 degree /80 degree (U/D)
Input (Each LCD)
1. 1 x BNC: 3G-SDI (optional)
2. 1 x HDMI: HDMI
3. 1 x BNC: Video
4. 2 x RCA: Audio(L/R)
Output (Each LCD)
1. 1 x BNC: 3G-SDI (optional)
2. 1 x HDMI: HDMI
3. 1 x BNC: Video
Audio (Each LCD)
Audio Out: Stereo Headphone x 1
SDI Support Format
1. 720p(60/59.94/50/30/29/25/24/23.98)
2. 1080i(60/59.94/50)
3. 1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)
HDMI Support Format
1. 480i/576i/480p/576p
2. 1080i (60/59.94/50)
3. 720p (60/59.94/50/30/29/25/24/23.98)
4. 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)
5. 3840 x 2160p (30/29.97/25/24/23.98 Hz)
6. 4096 x 2160p (24Hz)
General:
1. Input Voltage: DC 9-24V
2. Power Consumption: Less than or equal to 25W
3. Working Temperature: -20 degree C~55 degree C
4. Storage Temperature: -30 degree C~65 degree C
5. Install Way: Rack Mount

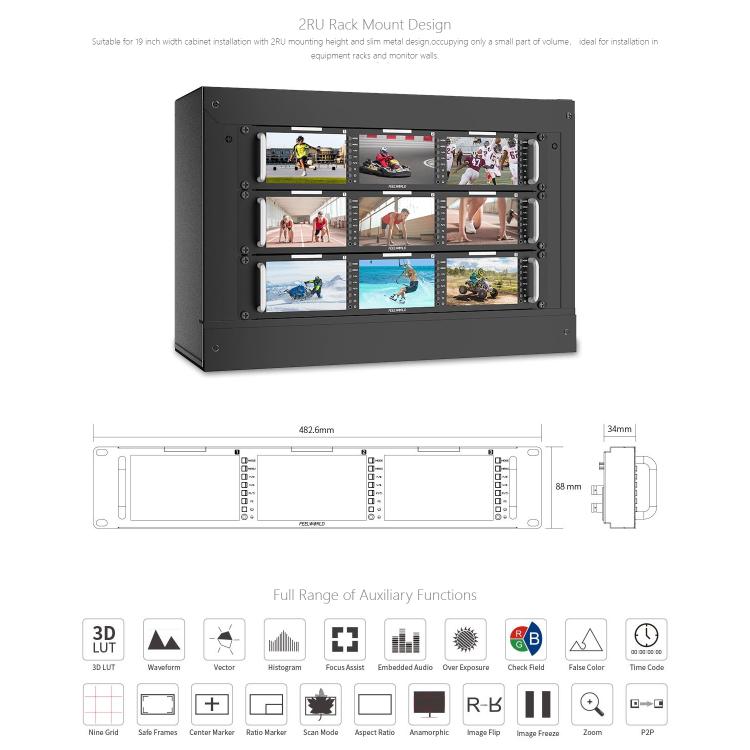

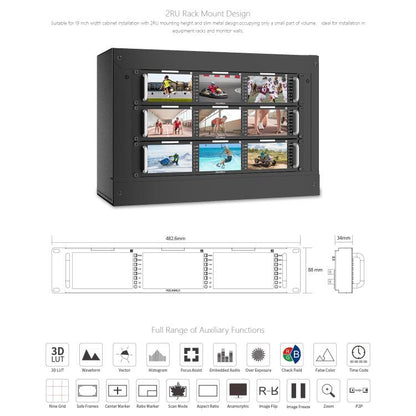

6. Unit Size: 482.6Lx88Hx34D mm
7. Unit Weight: 1418g
Package List
1. Monitor x 1
2. Tally adapter kit x 1
3. Mini USB to USB cable x 1
4. 3A power adapter x 1
5. Manual x 1
