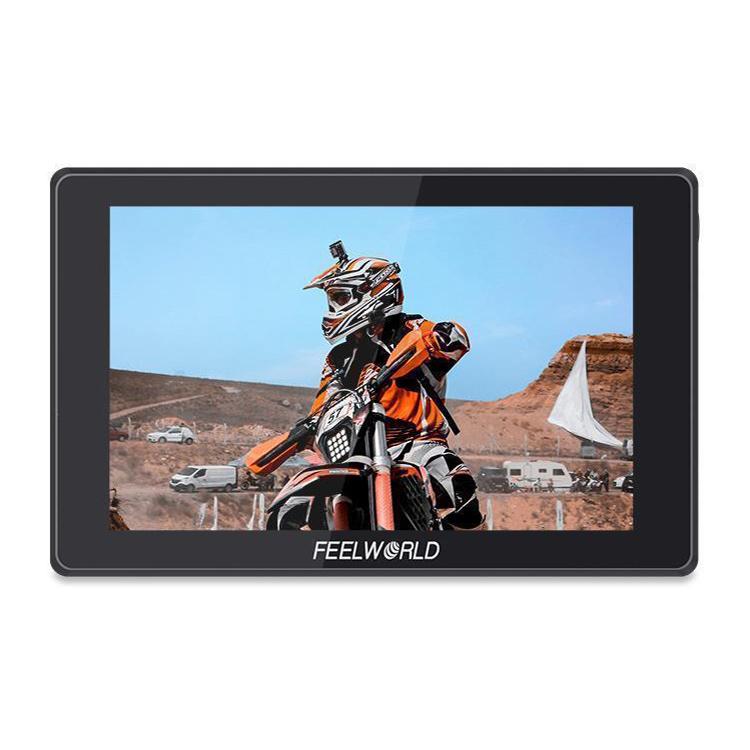

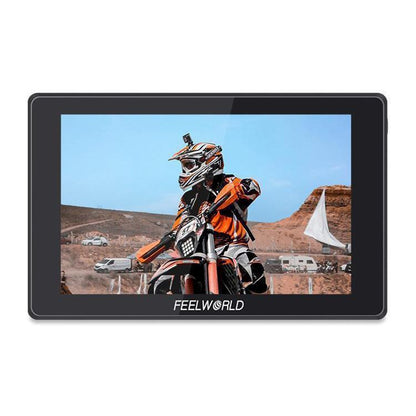

FEELWORLD SH7 7 inch Ultra Bright 2200nit On-camera Monitor SDI HDMI Cross Conversion Monitor (Black)

Name: FEELWORLD SH7 7 inch Ultra Bright 2200nit On-camera Monitor SDI HDMI Cross Conversion Monitor (Black)
Brand: FEELWORLD
SKU: DCA3130B
Price: 513.00 USD
Availability: InStock

$513.00

Sale Sold out

FREE DELIVERY on all orders.

In stock

🔥 Buy any 2 items, get 25% off 3rd item 🔥 Save today!

Shipping Guarantee

FREE SHIPPING on all UK orders. Fully insured.

Handling time: 1 - 3 business days. (Buy2fix has to process your order and put all your items through its strict quality-control tests.)

Transit time is 5 - 10 business days to the UK. Transit times to other countries are displayed at checkout.

Origin: CN

Return Guarantee

For whatever reason, if you are unsatisfied with your order within 30 days, you can return it to us in new condition for a refund minus the shipping charges.

The Right Part Guarantee

The Right Part, Guaranteed. If we send the wrong part (not as described), our 30-day return policy has you covered. You get a full refund, including the shipping fees.

Hassle-Free Returns

Start Your Return in Seconds with Our Easy Online Return Portal.

Features

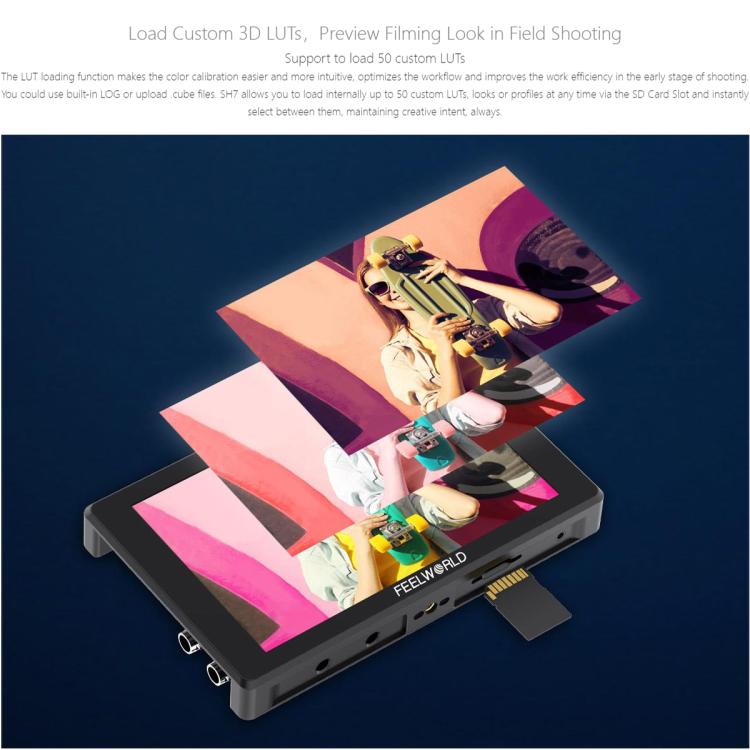

1. Support 3D LUT Log to Rec.709, user 3D LUT Upload (up to 50)
2. SDI/HDMI support LUT out

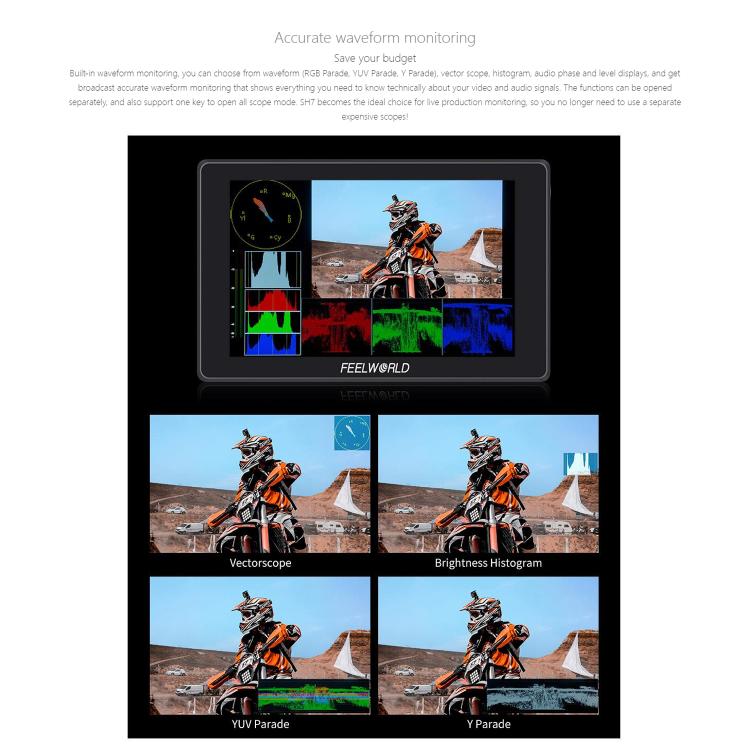

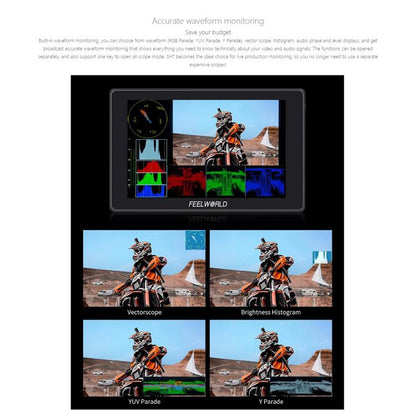

3. Waveform (RGB, YUV, Y)

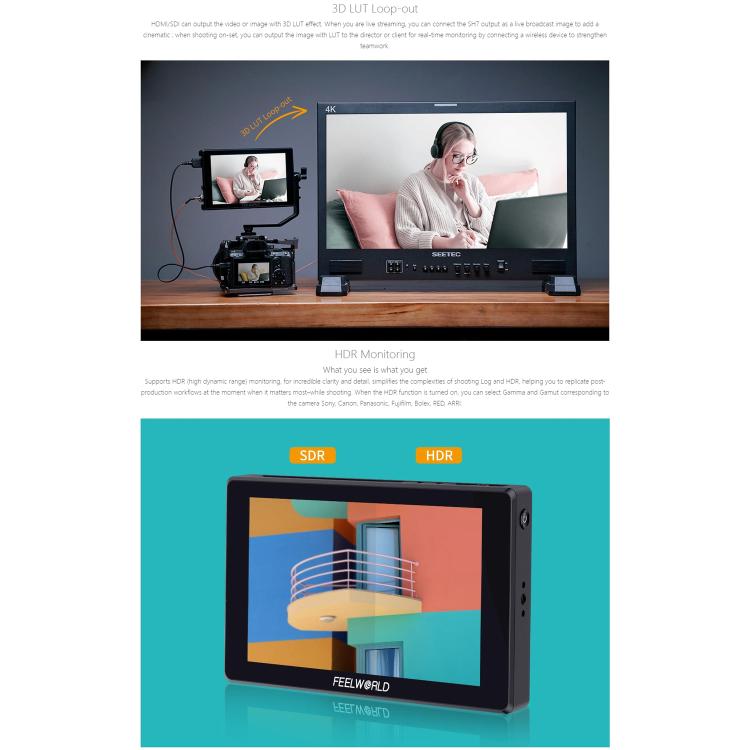

4. HDR
5. Vector
6. Histogram (RGB,Y )
7. Embedded Audio

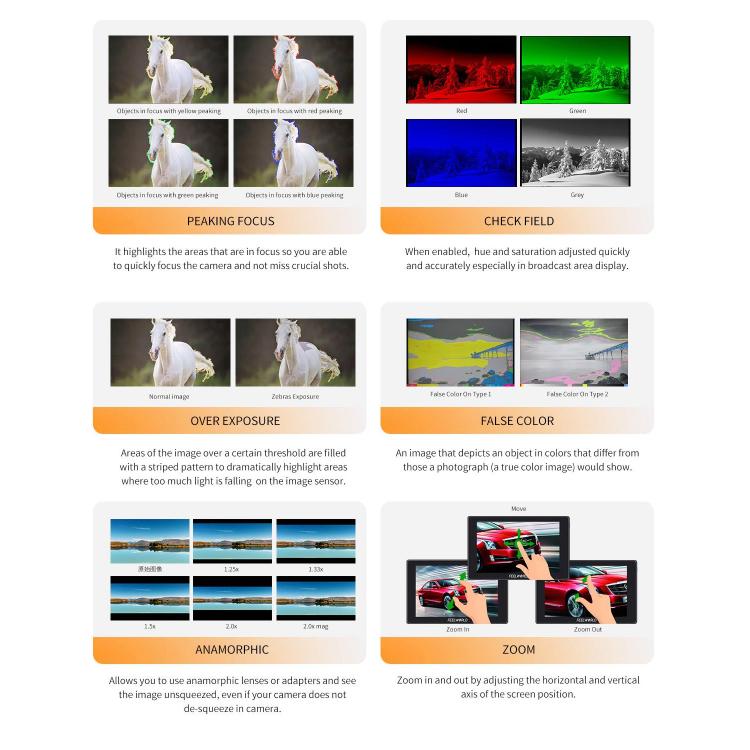

8. Focus Assist (Yellow, Magenta, Cyan, Red, Green, Blue, White seven focus colors optional; 1~8 focus level adjustable)
9. False Colors (Spectrum, ARRI)
10. Zebra Exposure (0IRE~100IRE adjustable)
11. Check Field (Red, Green, Blue, Mono)
12. Scan Mode (Under Scan, Over Scan)
13. Anamorphic Mode (1.25x, 1.33x, 1.5x, 2.0x, 2.0x mag)
14. Mirror (Auto, Flip H, FlipV )
15. Image Freeze
16. Center Marker

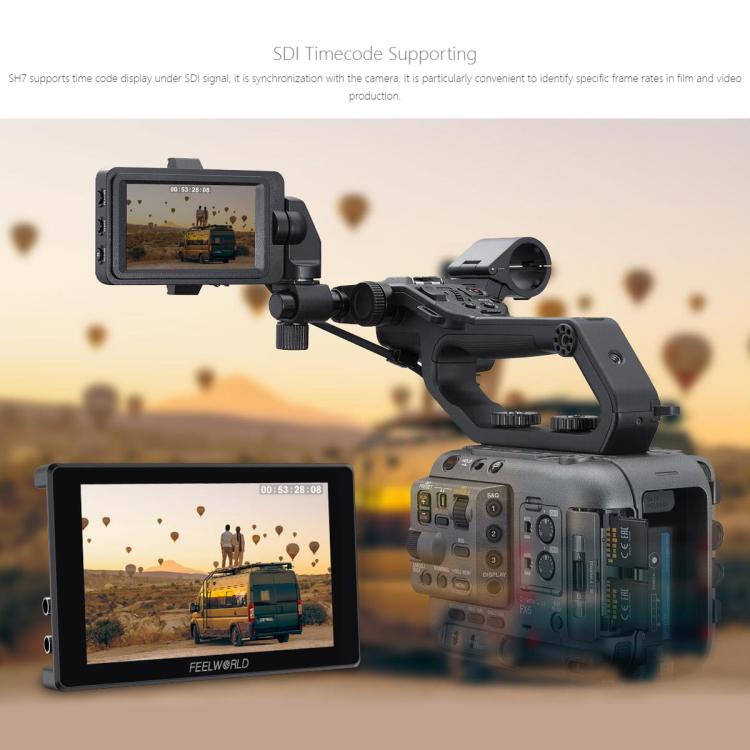

17. Time code (for SDI signal)
18. Safety Marker (70%, 80%, 90%, 16:9, 16:10, 4:3, 5:4, 1:1, 1.91:1, 4:5, 9:16: 1.85:1, 2.35:1)
19. Aspect Ratio (Auto, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1,user.Under the "user", you can customize the Video Width and Video Height 100 ~ 300 percent)
20. Cinema Guides(16:9, 16:10, 4:3, 1.85:1, 2.35:1, 2.41:1, 1.91:1, 5:4, 1:1.9)
21. Marker Color (Yellow, Magenta, Cyan, Red, Green, Blue, White)

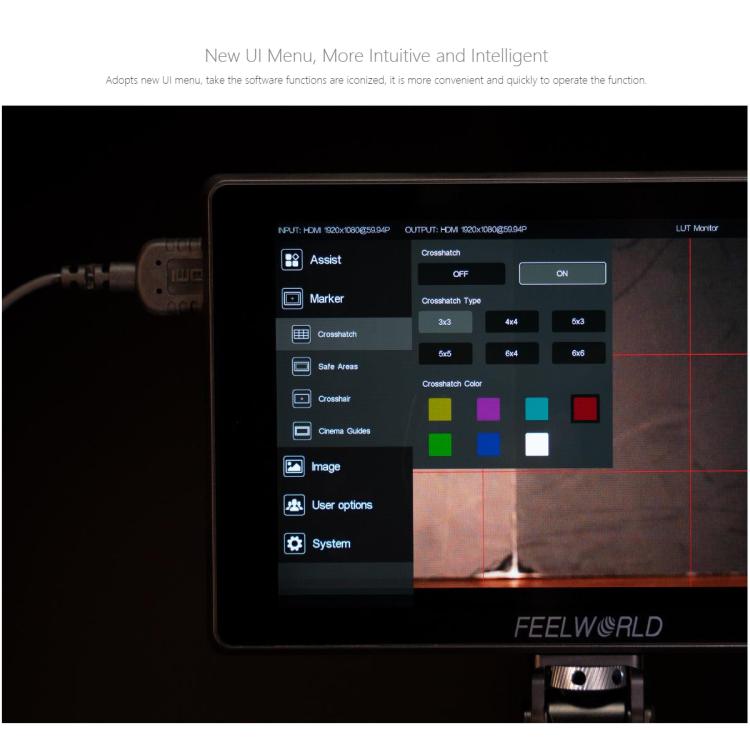

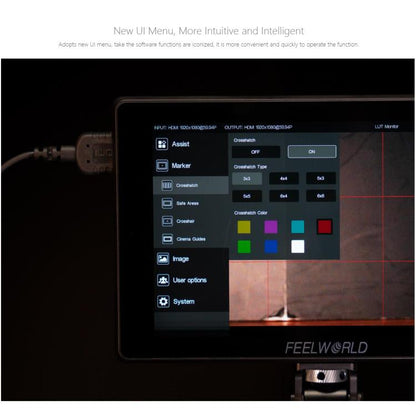

22. Crosshatch (3x3, 4x4, 5x3, 5x5, 6x4, 6x6)
23. Zoom (1.0x???5.0x)
24. Pixel to Pixel
25. Display Setup (can be adjust the image Brightness, Saturation, Hue, Sharpness 0~100)
26. Color Space (REC709, DCIP3, BT2020)
27. Color Temp. (5600K, 6500K, 9300K, User.Under the "user", the red, green, and blue values of the image can be adjusted 0~255)

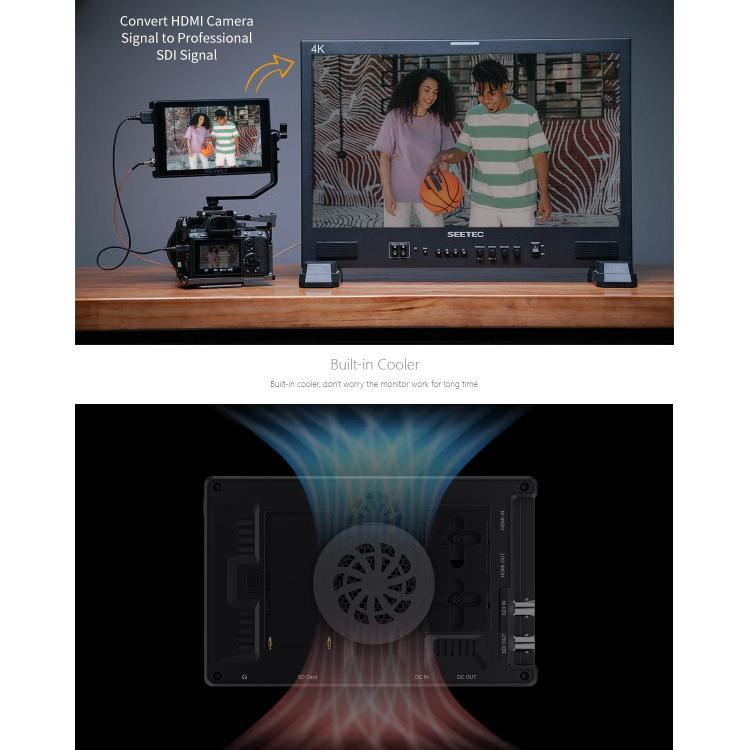

28. Built-in fan (Low, Middle, High)
29. Battery Power Display

Specifications

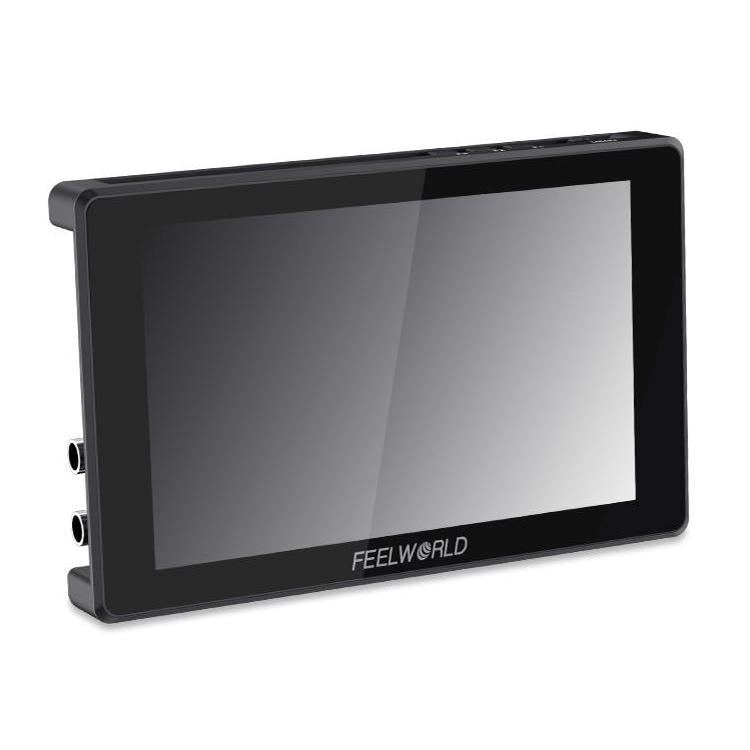

Display Spec.:
1. Model: SH7

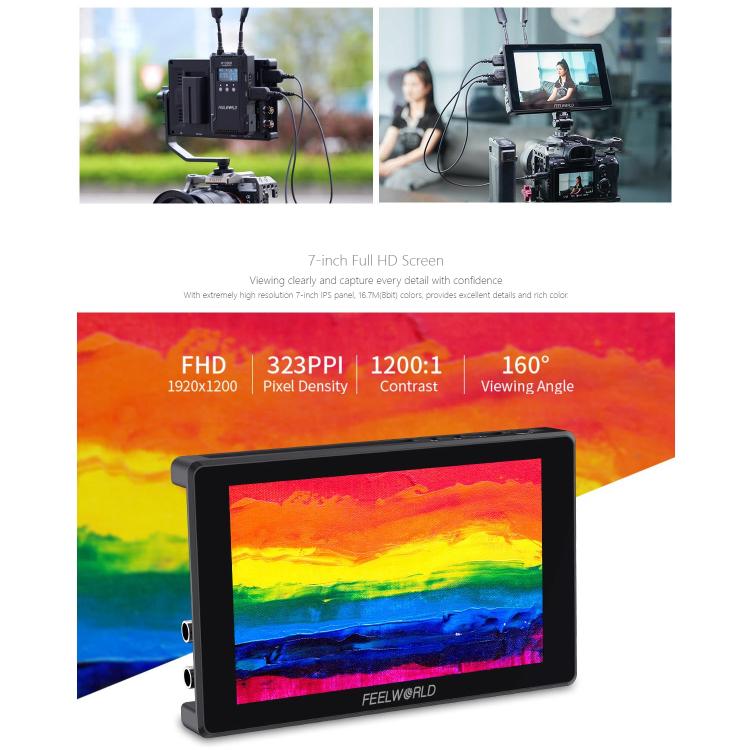

2. Screen Size: 7.0 inch IPS
3. Resolution: 1920x1200 pixels
4. Pixel Pitch: 0.07875 (H) x 0.07875(V) (mm)
5. Aspect Ratio: 16:10
6. Brightness: 2200cd/m2
7. Contrast Ratio: 1200:1
8. Backlight: LED
9. Viewing Angle: 80 degree /80 degree (L/R) 80 degree / 80 degree (U/D)

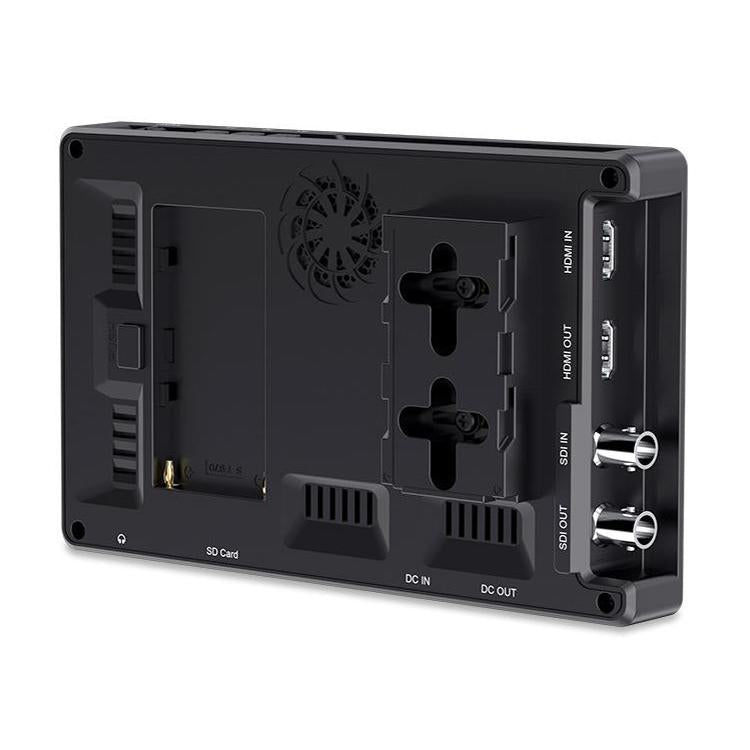

Input:
1. 1 x SDI: 12G-SDI
2. 1 x HDMI: HDMI 1.3
3. 1 x SD Card: SD Card Slot (LUT files and firmware update file import)

Output:
1. 1 x SDI: 3G-SDI
2. 1 x HDMI: HDMI 1.3

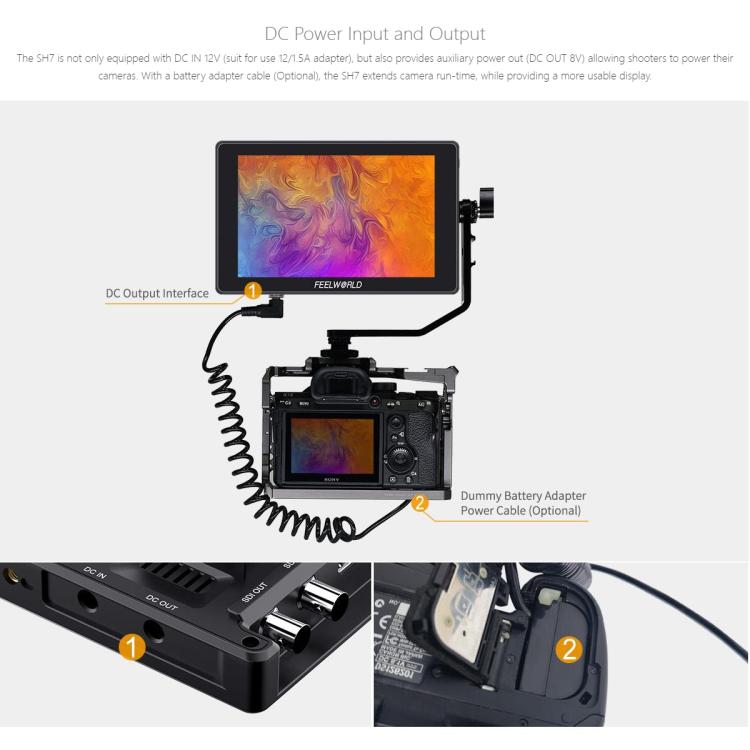

3. 1 x DC: Barrel (5.5mm outer, 2.1mm inner) barrel output for powering cameras via camera specific adaptor.

Audio:
Audio: 3.5mm Stereo Headphone

SDI Support Format:
1. 720p (60/59.94/50/30/29.97/25/24/23.98)
2. 1080i (60/59.94/50)
3. 1080p (60/59.94/50/30/29.97/25/24/23.98)

HDMI Support Format:
1. 720p (60/59.94/50/30/29.97/25/24/23.98)
2. 1080i (60/59.94/50)
3. 1080p (60/59.94/50)

General:
1. Input Voltage: DC7-24V
2. Power Consumption: Less than or equal to 15W
3. Working Temperature: -20 degree C~50 degree C
4. Storage Temperature: -30 degree C~60 degree C

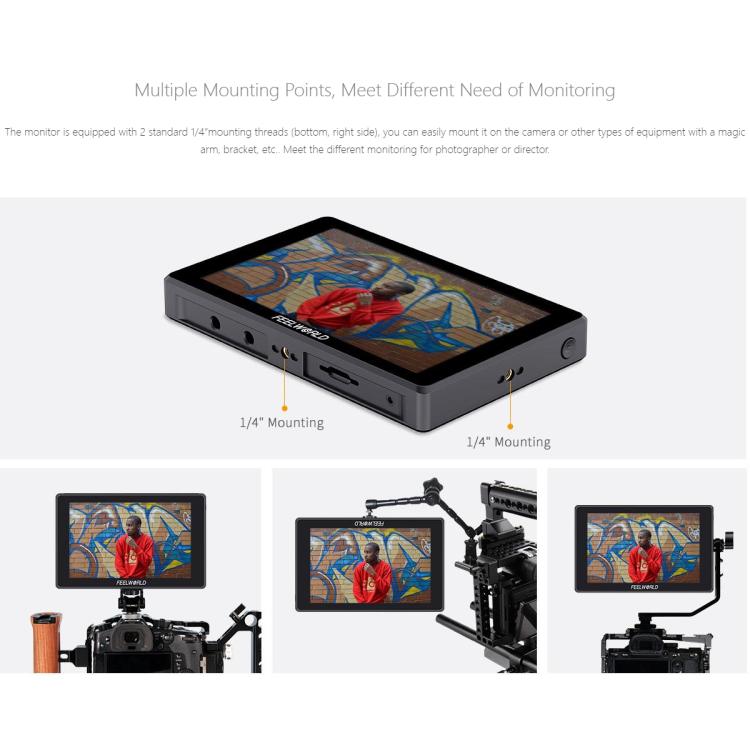

5. Install Way: 1/4 inch -20 Thread (Left,Right,Bottom)
6. Unit Size: 186.8L x 118H x 23D(mm)
7. Unit Weight: 420g

Package List
1. Monitor x 1
2. Mini/Micro HDMI to HDMI Cable x 1
3. Tilt Arm x 1
4. Disassembly Wrench x 1
5. Manual x 1
