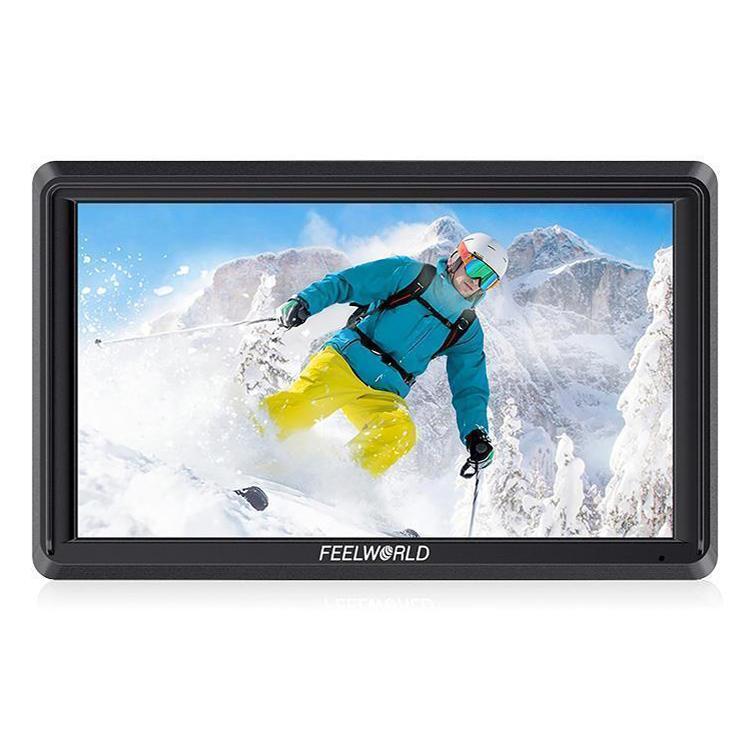

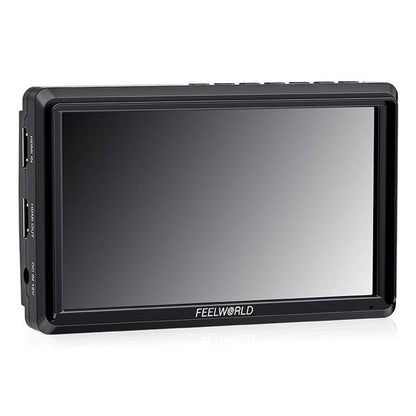

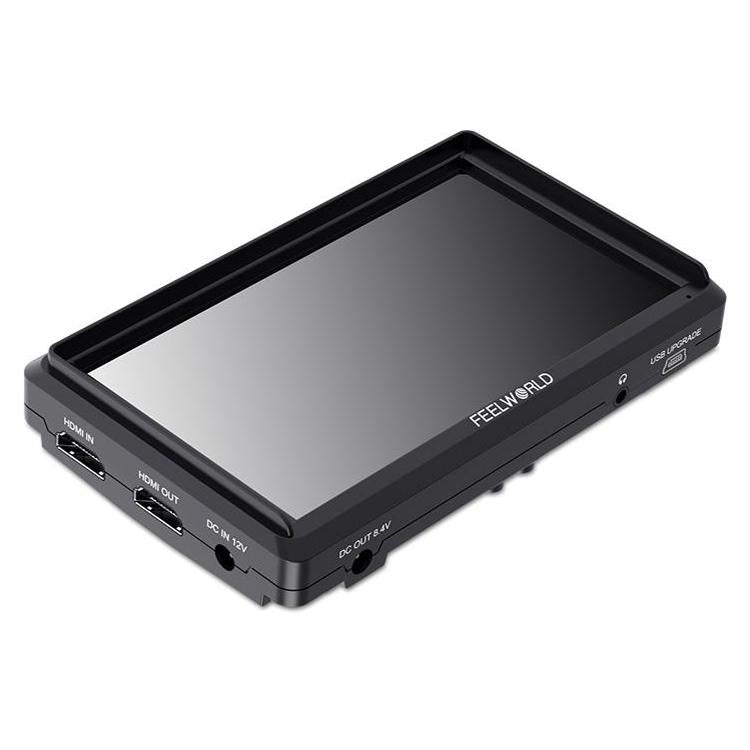

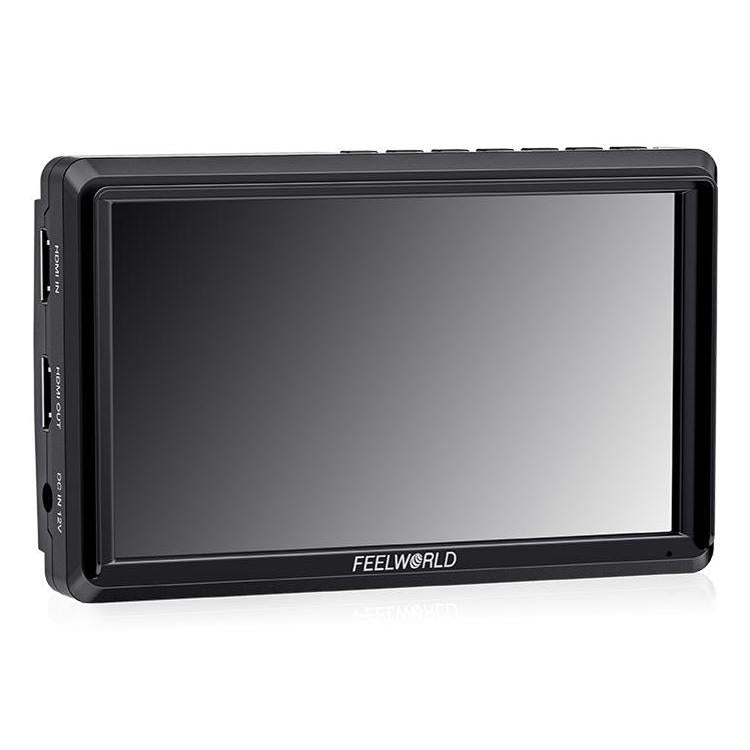

FEELWORLD S55E 5.5 Inch DSLR Camera Field Video Monitor FHD IPS Support 4K HDMI Input Output Tilt Arm Power Output(Black)

Display Spec.
1. Model: S55E
2. Screen Size: 5.5 inch IPS
3. Resolution: 1920x1152 pixels
4. Pixel Pitch: 0.0639 x 0.0213mm
5. Aspect Ratio: 16:9
6. Brightness: 500cd/m2
7. Contrast Ratio: 1000:1
8. Backlight: LED
9. Viewing Angle: 80 degrees / 80 degrees (L/R) 80 degrees /80 degrees (U/D)

Input

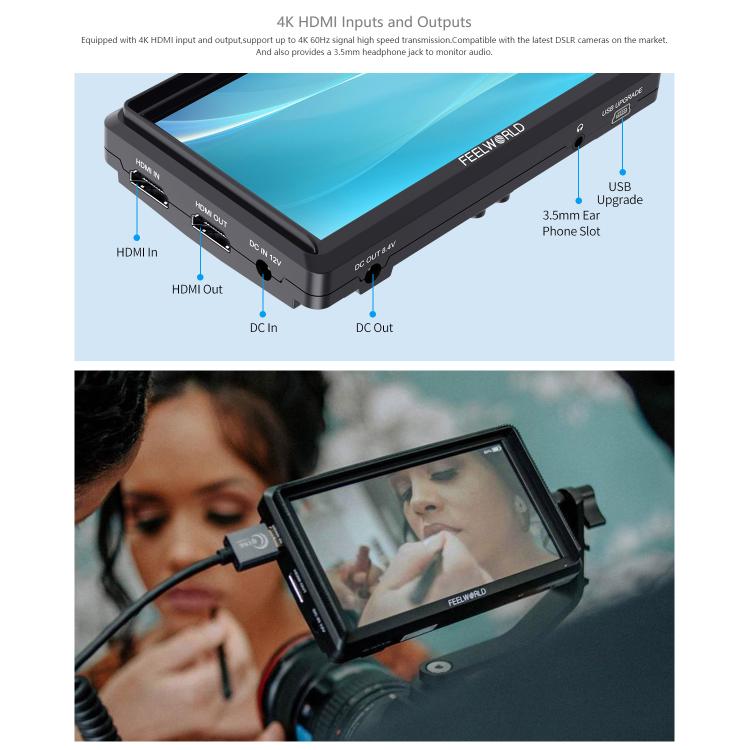

1 x HDMI-compatible: HDMI-compatible
1 x USB: Mini USB(Import LUT/Firmware Update)

Output
1 x HDMI-compatible: HDMI-compatible
1 x DC Output: DC Output

Audio
Audio: Stereo Headphone

HDMI-compatible Input / Output Support Format
480i/576i/480p/576p
1080i (60/59.94/50)
720p (60/59.94/50/30/29/25/24/23.98)
1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)
3840 x 2160p (60/50/30/29.97/25/24/23.98)
4096 x 2160p (60/50/30/29.97/25/24/23.98)

General

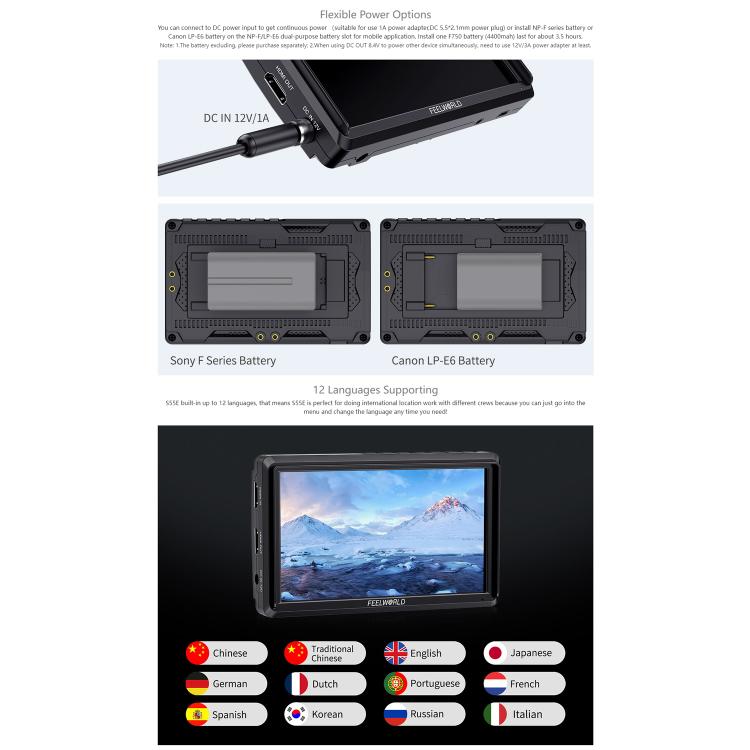

1. Input Voltage: DC7-24V
2. Power Consumption: Less than or equal to 9W
3. Power Connector: DC
4. Working Temperature: -20 degrees C~55 degrees C
5. Storage Temperature: -30 degrees C~65 degrees C

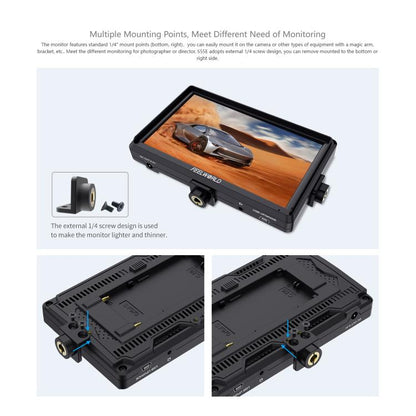

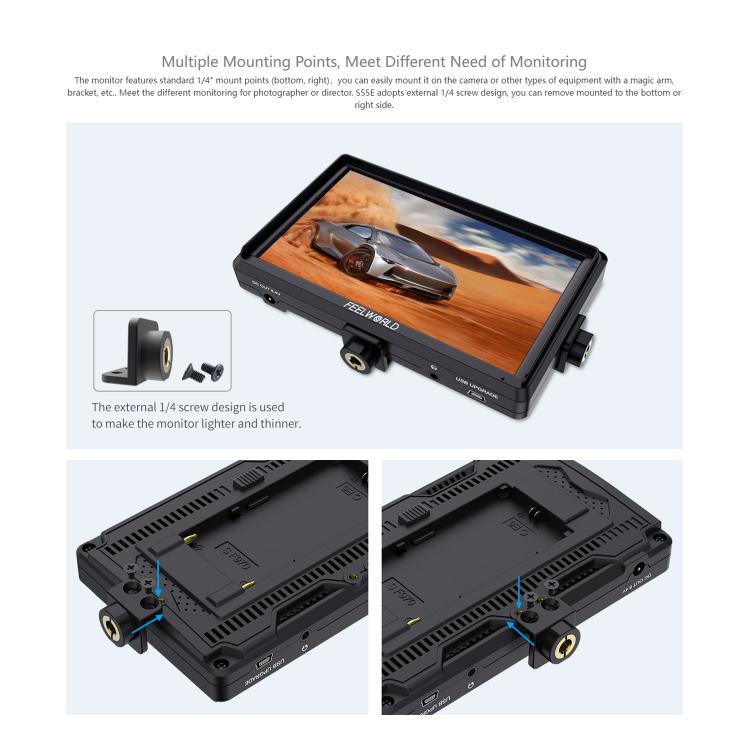

6. Install Way: 1/4-20 thread points

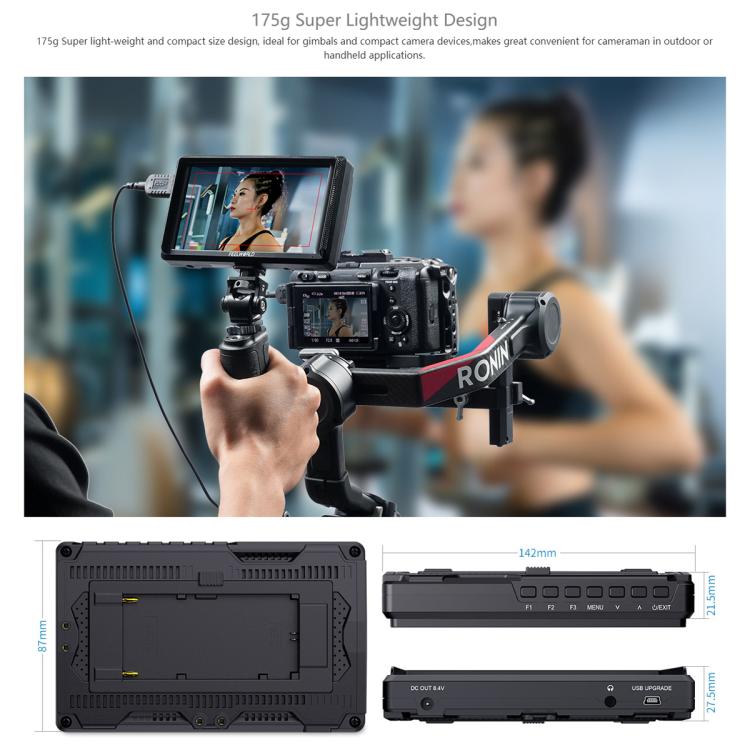

7. Unit Size: 142Lx87.2Hx27.5D mm
8. Unit Weight: 175g

Features:
1. High Resolution: Full HD 1920x1080
2. High Contrast: 1000:1
3. High Brightness: 500cd/m2
4. 160 degree wide viewing angles IPS Panel

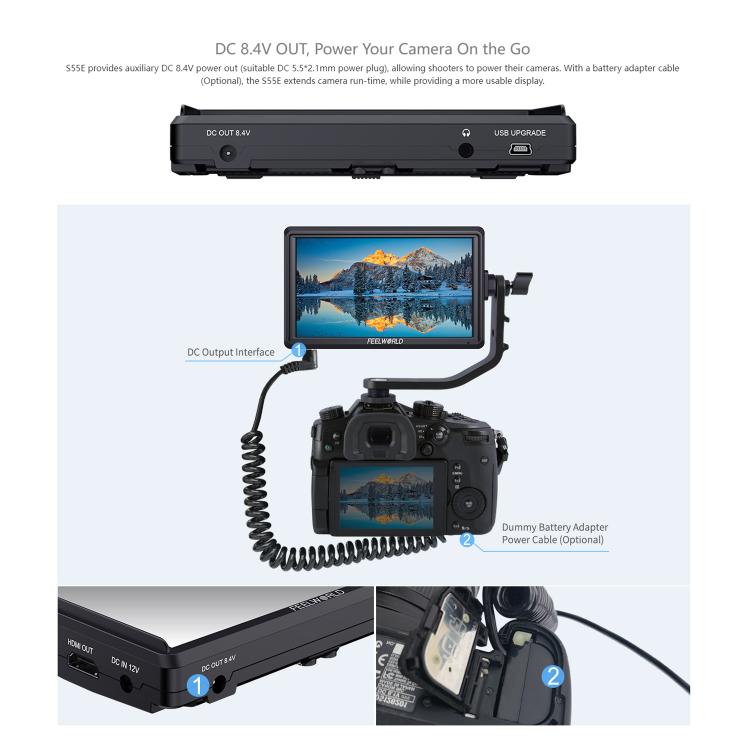

5. Provides auxiliary power out; allowing shooters to power their cameras

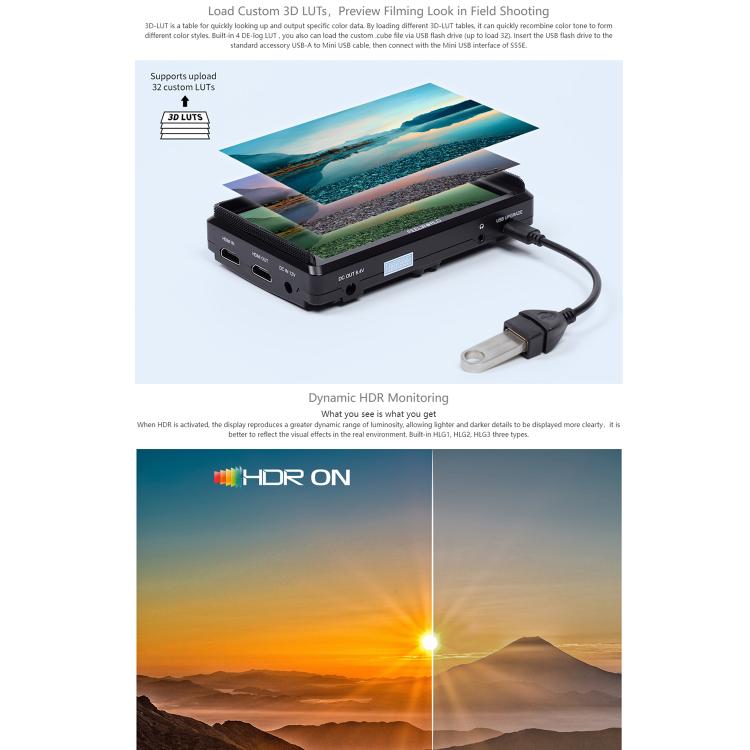

6. Custom 3D LUT import (up to 32)

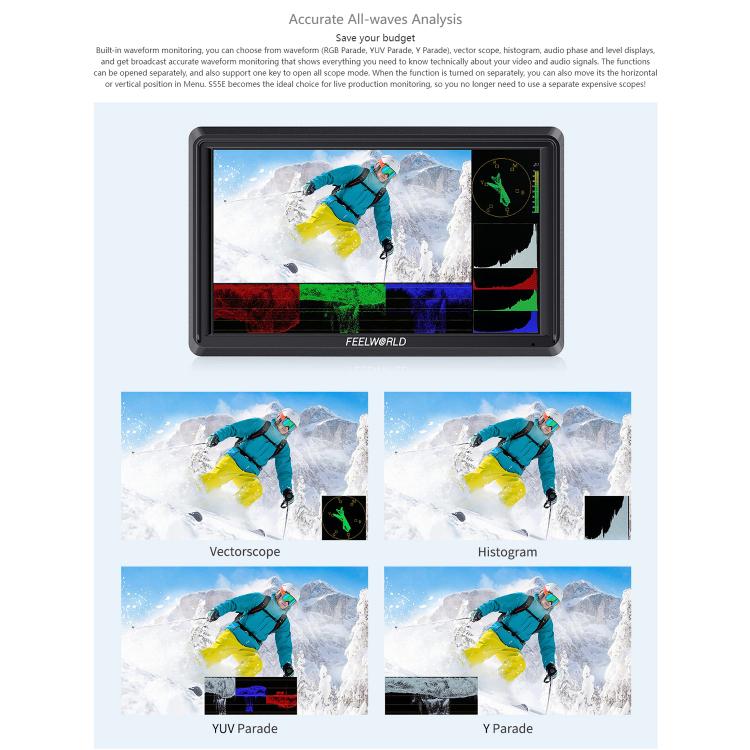

7. All waves
8. Waveform (RGB, Y, YUV)
9. Histogram (RGB1, Y, RGB2)

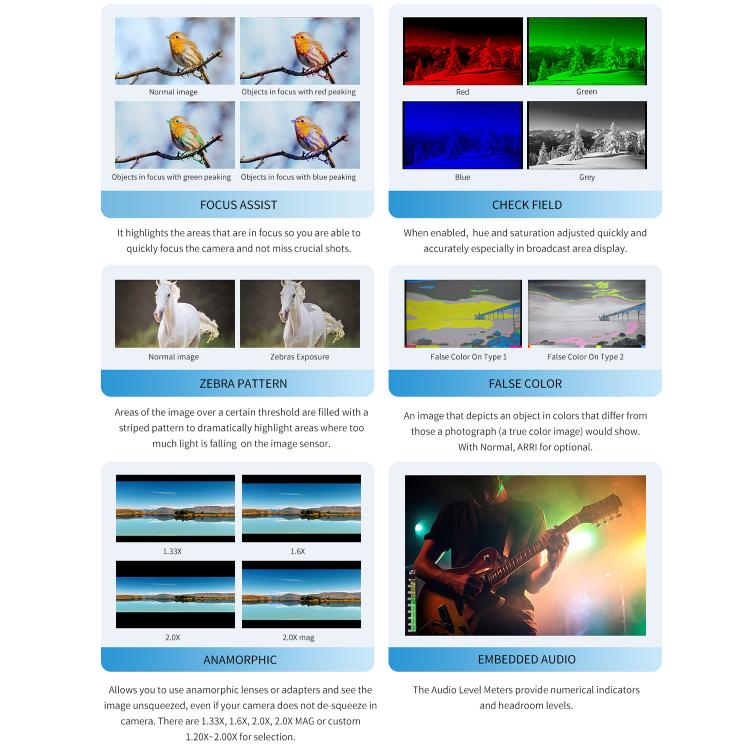

10. Peaking Focus Assist (Red, Green, Blue three colors optional highlight over parts of the image in focus)
11. False Colors(Normal, ARRI)
12. Embedded Audio
13. Over Exposure
14. Grid (2x2, 3x3, 4x4, 5x5, 6x6, 7x7, 8x8, 9x9, Custom)
15. Scan Mode (Under Scan, Over Scan)
16. Zoom Mode(2x, 4x, 9x, 16x, User)
17. Anamorphic Mode (1.3x, 1.6x, 2.0x, 2.0x mag, User-defined adjustment: 1.20X~2.00X)
18. Pixel to Pixel
19. Center Marker
20. Safe Area (80%, 85%, 90%, 93%, 96%, 2.35:1, 9:16)

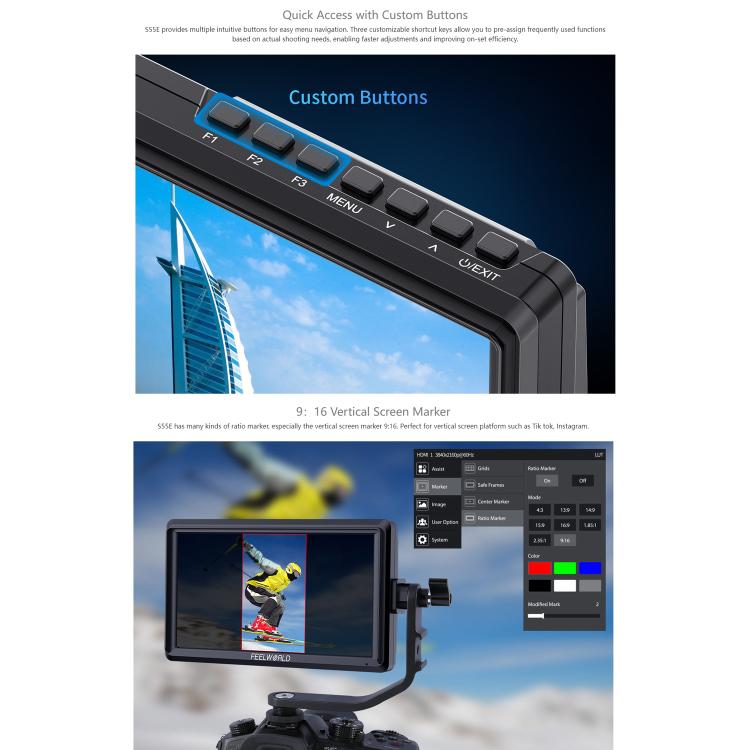

21. Ratio marker (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1, 9:16)
22. Marker Color (Red,Green,Blue,White,Black）
23. Check Field (Red/Green/Blue/Mono)
24. Image Flip (H, V, H/V)
25. Image Freeze
26. Pixel to Pixel
27.HDR (HLG1, HLG2, HLG3)
28. Display Adjustment (Backlight, Brightness, Contrast,Saturation ,Tin 0~100)
29. Display Range (Auto, Limit, Full)
30. Color Temperature Adjustment (5600K, 6500K, 9300K, User)
31. Left Right Key Set (Volume, Backlight)
32. User Switch (1~4)
33. EDID Settings (2.0, 1.4)
34. Power Settings (Auto, Manual)

Packaging List:
1. Monitor x 1
2. Micro HDMI Cable x 1

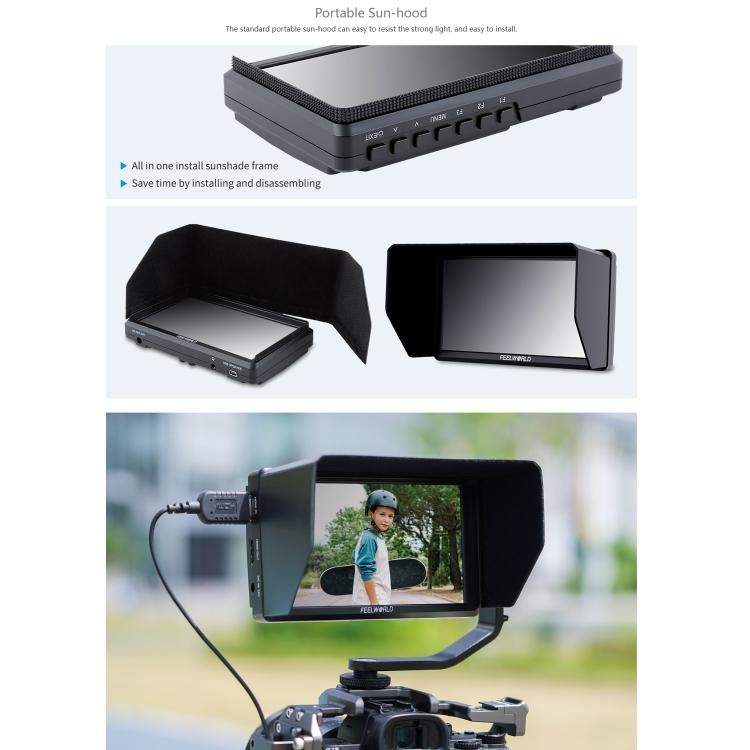

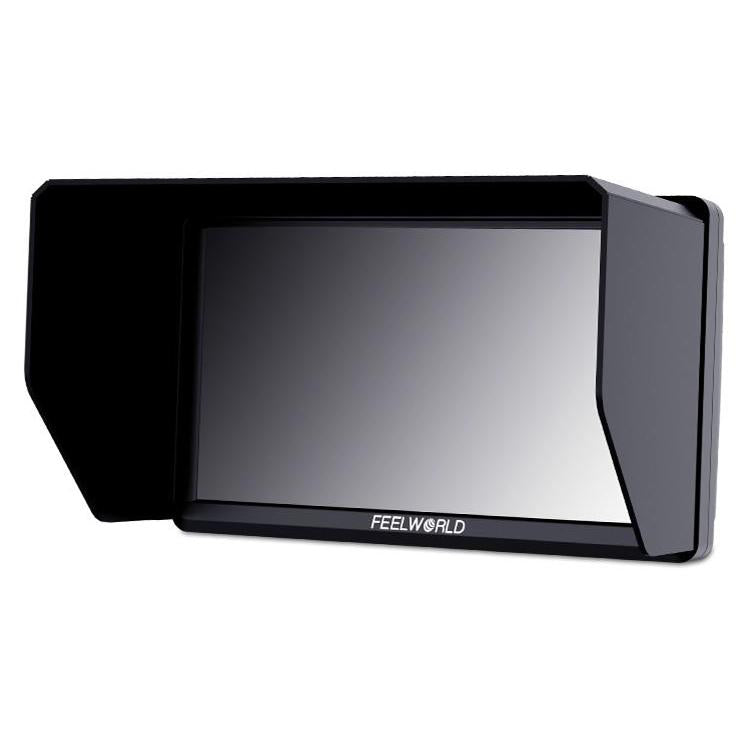

3. Sunshade x 1

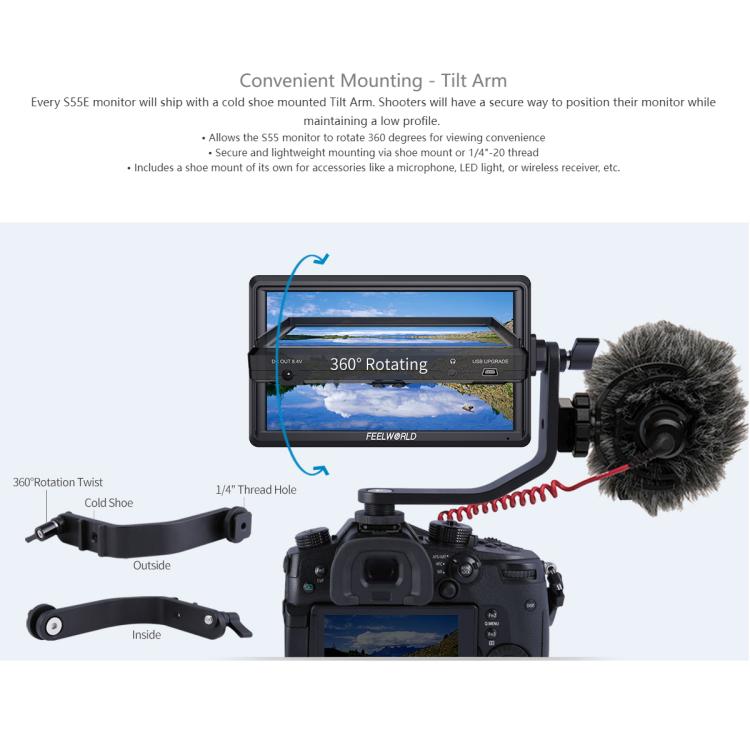

4. Tilt Stand x 1
5. Mini USB to USB Cable x 1
6. User Manual x 1
