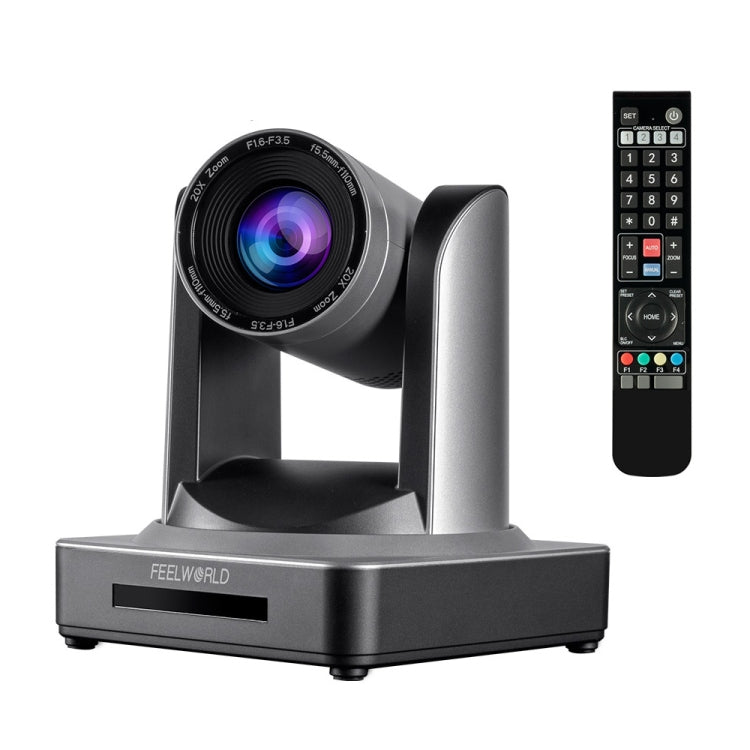

Features 1. 20X optical zoom professional full HD camera , suitable for larger occasion 2. Up to 1080p 60fps, higher quality image 3. Simultaneous 3G-SDI, HDMI, IP Streaming video out, easily for professional video production 4. PoE(Power over Ethernet) supported 5. Double track 3.5mm linear input for audio 6. Auto focus, smart frame capture everyone 7. Support H.265/H.264 encoding which makes motion video fluent and clear even with less than ideal bandwidth conditions. 8. Advanced 2D/3D noise reduction technology further reduces the noise while ensuring high image clarity 9. High speed and silent pan/tilt, capture all the actions 10. Multiple control protocol and network protocol 11. Low-power sleep function 12. Ideal for church live streaming, video confrence, sports events, online education, ect.
Specifications 1. Model: POE20X 2. Sensor: 1/2.9 inch high quality CMOS sensor 3. Effective Pixels: 2.07 megapixel, 16:9 4. Output Resolutions: 720P 25/29.97/30/50/59.94/60fps, 1080p 25/30/29.97/30/50/59.94/60fps 5. View Angle: 3.3 degrees ~ 54.7 degrees 6. Focus Length: F=5.5 ~ 110mm 7. AV: F1.6 ~ F3.5 8. Optical Zoom: 20X 9. Illumination: 0.5 lux F1.8, AGC ON 10. DNR: 2D & 3D 11. White Balance: Auto / Manual / One Push /3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K 12. Focus: Auto / Manual/ One Push Focus 13. Exposure: Auto / Manual 14. BLC: On/Off 15. WDR: OFF/Dynamic level adjustment 16. Video Adjustment: Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve 17. SNR: Greater than 55dB
Input/output Interface 1. Video Interface: HDMI, 3G-SDI, LAN(support PoE) 2. Image Code Stream: Double stream outputs simultaneously 3. Video Compression Format: H.264, H.265 4. Audio Interface: Double track 3.5mm linear input 5. Audio Compression Format: AAC, MP3, G.711A 6. Control Interface: RS232 (IN/OUT), RS485 7. Control Protocol: VISCA/Pelco-D/Pelco-P 8. HD IP Interface: 100M IP port (10/100BASE-TX) 9. Network Protocol: RTSP, RTMP, ONVIF, GB/T28181, VSICA 10. Power Interface: HEC3800 outlet (DC12V)
Other Parameters 1. Input Voltage: 12V/1.5A 2. Power Consumption: 12W 3. Stored Temperature: -40 degree C ~ +70 degree C 4. Storage Humidity: 20%~90% 5. Working Temperature: -10 degree C~ +50 degree C 6. Working Humidity: 20%~80% 7. Dimension (W*H*D): 150mm x 150mm x 167.5mm 8. Unit Weight: 1.4kg

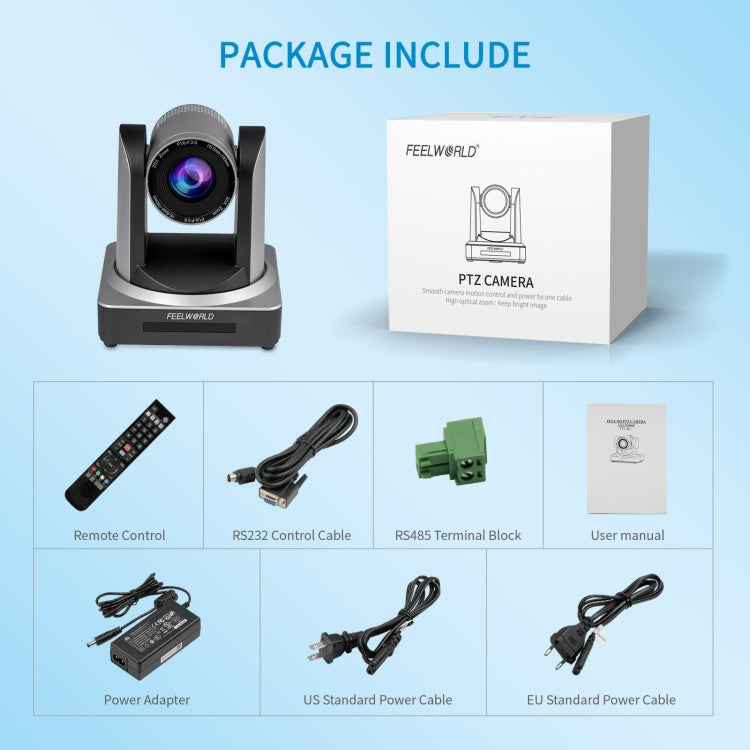

Package List 1. Video Camera x 1 2. Remote Control x 1 3. RS232 Control Cable x 1 4. RS485 Terminal Block x 1 5. Power Adapter x 1 6. EU Standard Power Cable x 1 7. US Standard Power Cable x 1 8. Manual x 1
