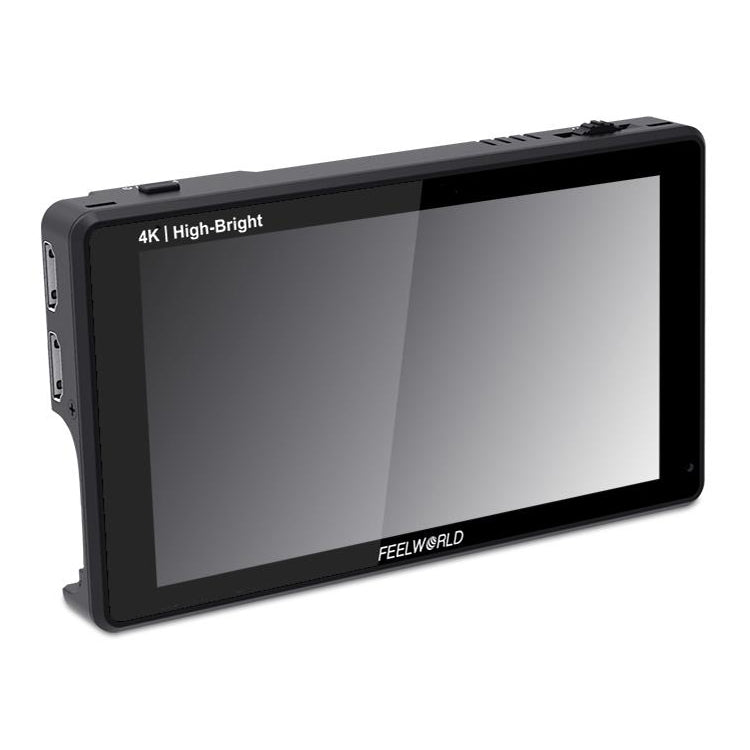

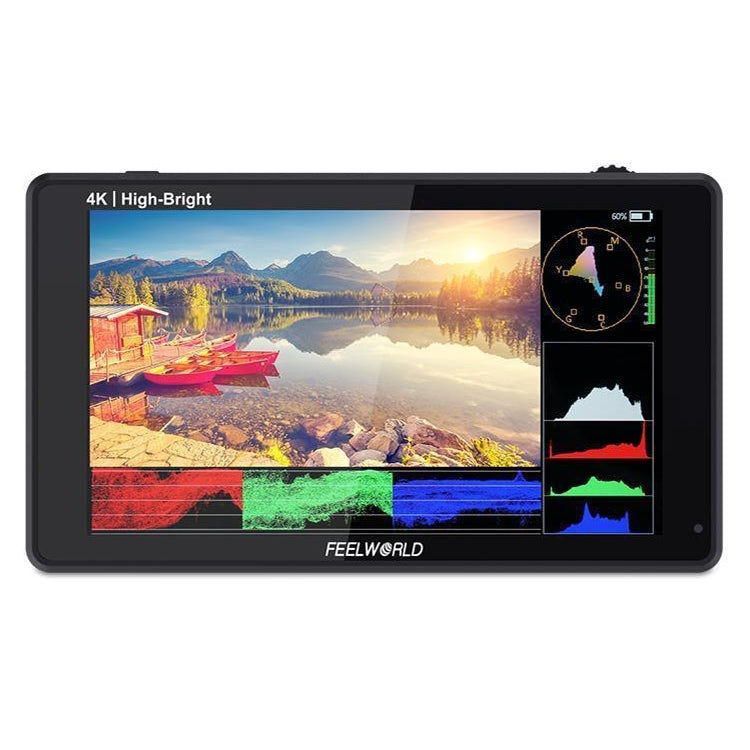

FEELWORLD LUT6E 6 inch 1600nits Touch Screen DSLR Camera Field Monitor Full HD1920x1080 IPS(Black)
FEELWORLD LUT6E 6 inch 1600nits Touch Screen DSLR Camera Field Monitor Full HD1920x1080 IPS(Black)
SKU: EDA005658201A
Regular price
$414.00
Regular price
Sale price
$414.00
Duties & Import Tax Information
Duties are only included if shown at checkout. Otherwise, your local government may apply customs fees, which your courier will collect directly from you before delivery.
In Stock
CHN
This item is shipped from China.
Processed in 0–3 days
Quantity
Couldn't load pickup availability
Shipping info
To find all available shipping methods and exact delivery times, add the product to your cart and check using our shipping calculator.
30-day returns
Fast refunds: Once we receive and check your item, we aim to process your refund within 48 hours.
Return postage: Just changed your mind? You'll need to cover the return postage. If the item arrived faulty, we'll cover the cost to get it back to us.
Your details are safe
We treat your data the way we'd want ours treated. Your payment details are locked down with bank-level encryption. We never actually see your credit card numbers, and we will absolutely never sell your personal information.
Display Spec.
1. Model: LUT6E

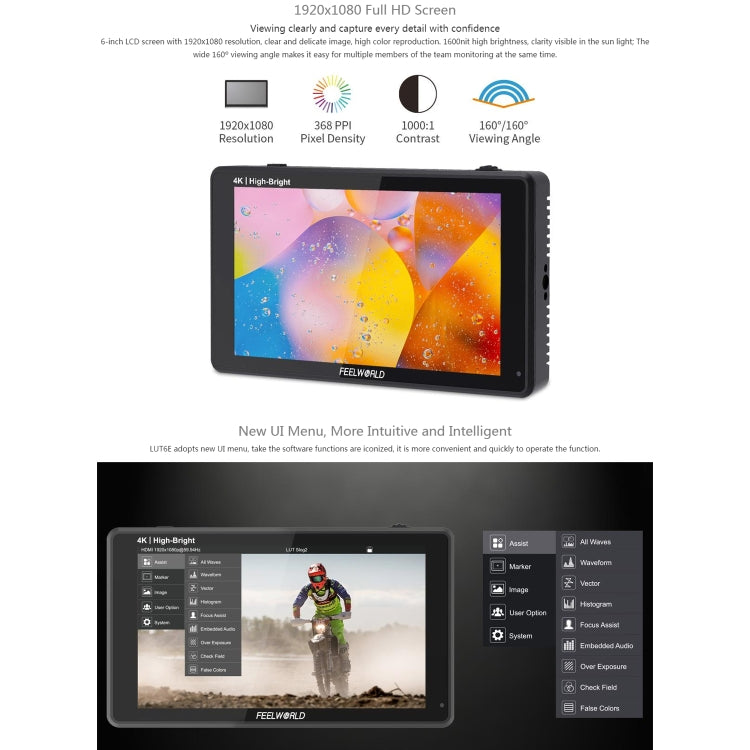

2. Screen Size: 6 inch IPS
3. Resolution: 1920x1080 pixels
4. Pixel Pitch: 0.069 (L) x 0.069 (W) (mm)
5. Aspect Ratio: 16:9
6. Brightness: 1600cd/m2
7. Contrast Ratio: 1000:1
8. Backlight: LED
9. Viewing Angle: 80 degree / 80 degree (L/R) 80 degree / 80 degree (U/D)
Input

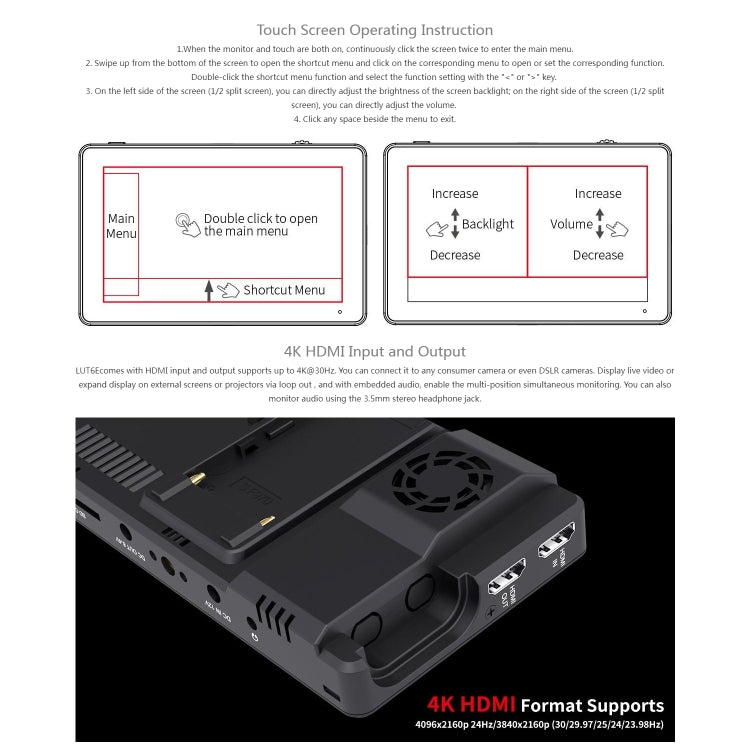

- 1 X HDMI: HDMI
Output
- 1 X HDMI: HDMI

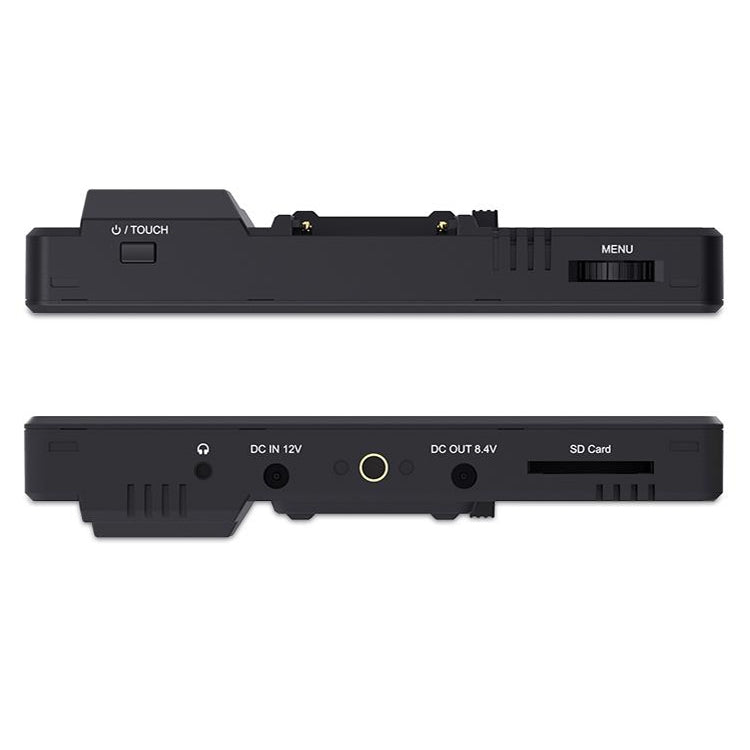

- 1 X DC: Barrel (5.5mm outer, 2.1mm inner) barrel output for powering cameras via camera specific adaptor.
Audio
- Audio: 3.5mm Stereo Headphone
HDMI Input/ Output Support Format
1. 480i/576i/480p/576p
2.1080i (60/59.94/50)
3. 720p (60/59.94/50/30/29.97/25/24/23.98)
4. 1080p (60/59.94/50/30/29.97/25/24/23.98)
5. 3840x2160p (30/29.97/25/24/23.98)
6. 4096x2160p (30/29.97/25/24/23.98)
General
1. Input Voltage: DC7~24V
2. Power Consumption: Less than or equal to 10W
3. Working Temperature: -20 degree C~50 degree C
4. Storage Temperature: -30 degree C~60 degree C

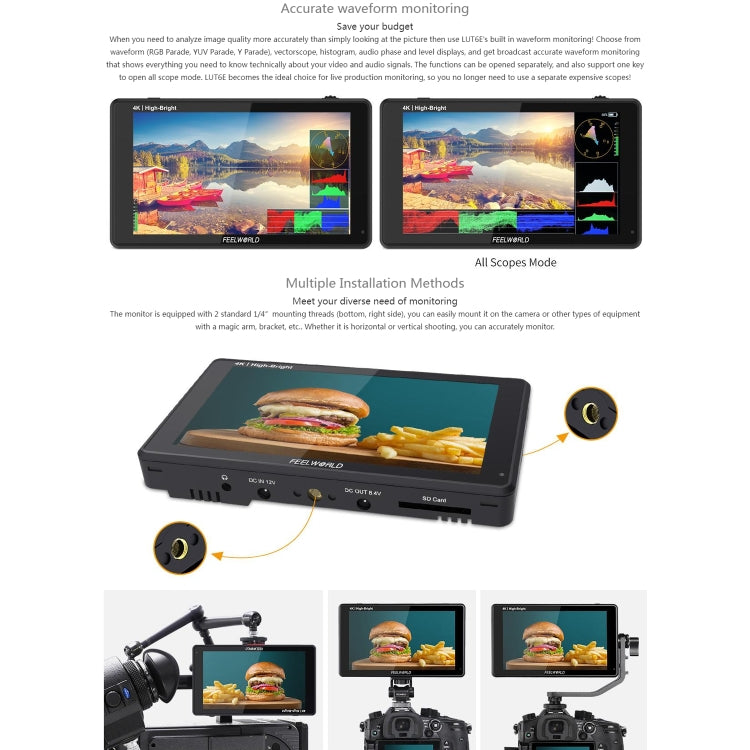

5. Install Way: 1/4-20 Thread Socket (Right, Bottom)

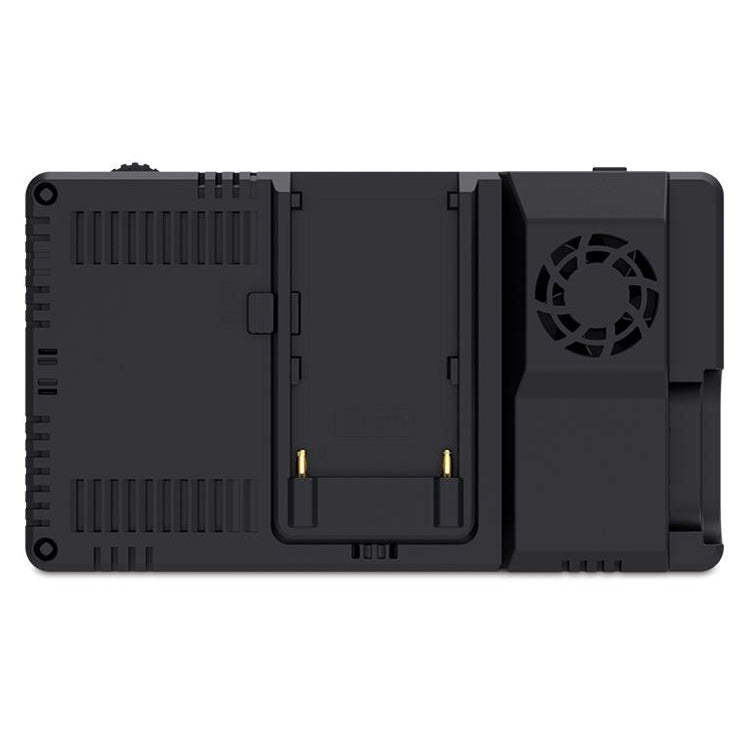

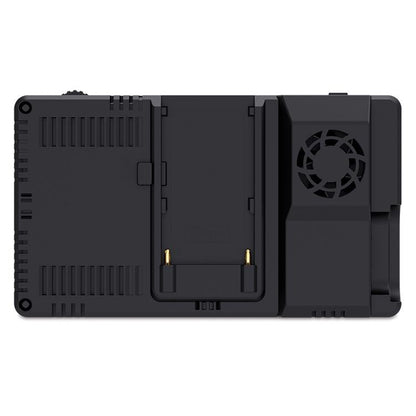

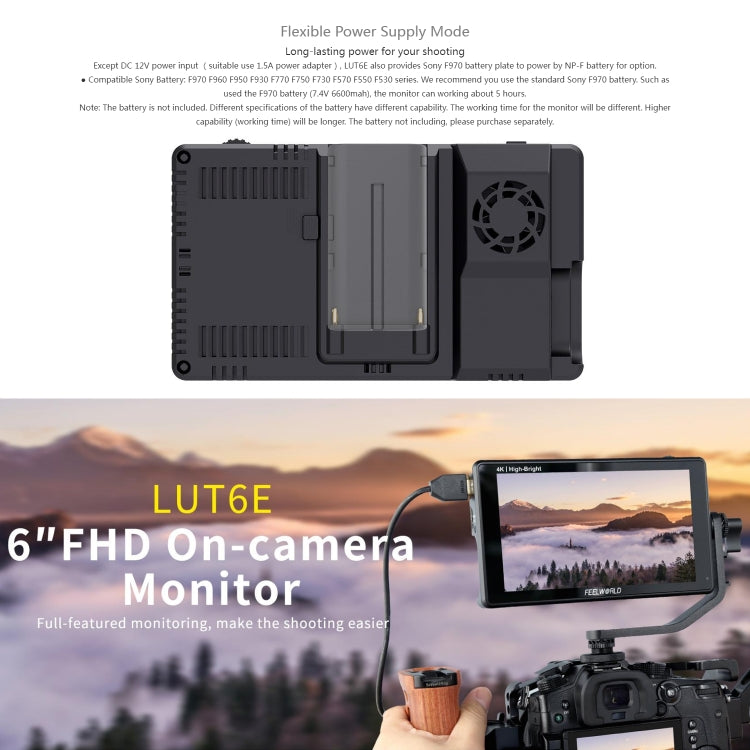

6. Battery Plate: F970 Battery Plate
7. Unit Size: 162Lx93.2Hx29D(mm)
8. Unit Weight: 300g
Note: When you turn off the monitor, you need to press the power button, and you can not pull out the power cable directly.

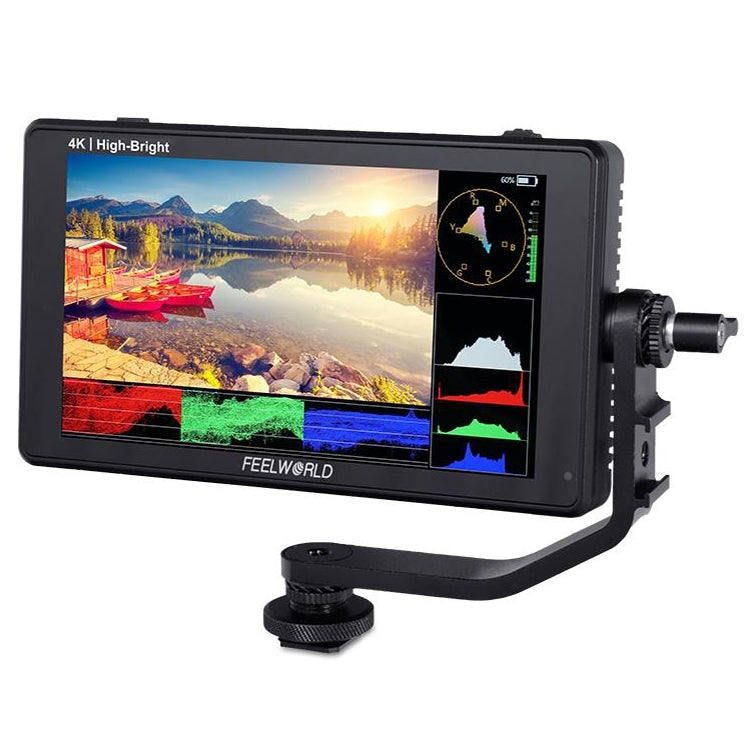

Advanced Features

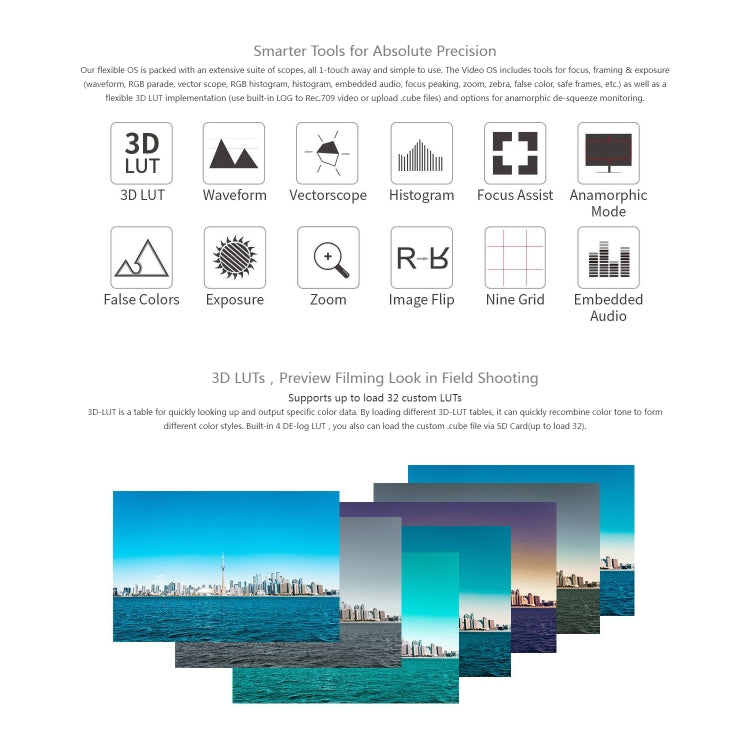

1. Support 3D LUT Log to Rec.709, user 3D LUT Upload

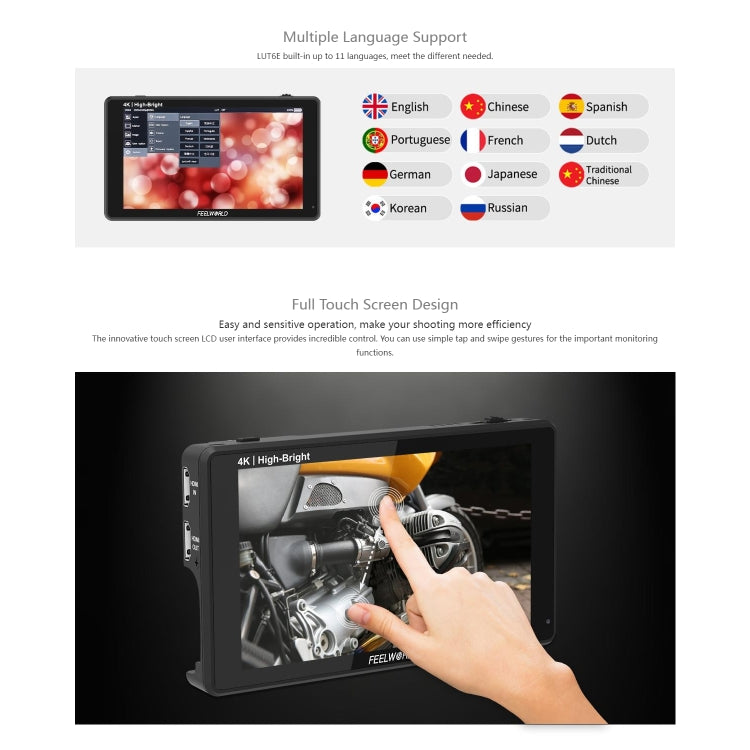

2. Support Touch Menu
3. Parade (RGB, YUV, Y)
4. All Waves
5. Vector
6. RGB Histogram
7. Brightness Histogram
8. Embedded Audio
9. Peaking Focus (red, green, blue, white, yellow five peaking colors optional; 1~10 peaking level adjustable)
10. False Colors
11. Zebra Exposure (10%~100% adjustable)
12. Check Field (Red, Green, Blue, Gray)
13. Scan Mode (Under Scan, Over Scan)
14. Anamorphic Mode (1.33X, 1.6X, 2.0X, 2.0X MAG)
15. Image Flip (H, V, H/V)
16. Image Freeze
17. Center Marker
18. Safety Marker (80%, 85%, 90%, 93%, 96%, 2.35:1)
19. Ratio Marker (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1)
20. Marker Color (red, green, blue, white, black, gray)
21. Color Temperature Adjustment (5600K,6500K,9300K)
22. Nine Grid
23. Zoom Mode (2X,4X,9X,16X)
24. Aspect Ratio
25. Pixel to Pixel
Package List:
1. Monitor x 1
2. Mini/ Micro HDMI to HDMI Cable x 1
3. Tilt Arm x 1
4. Manual x 1
