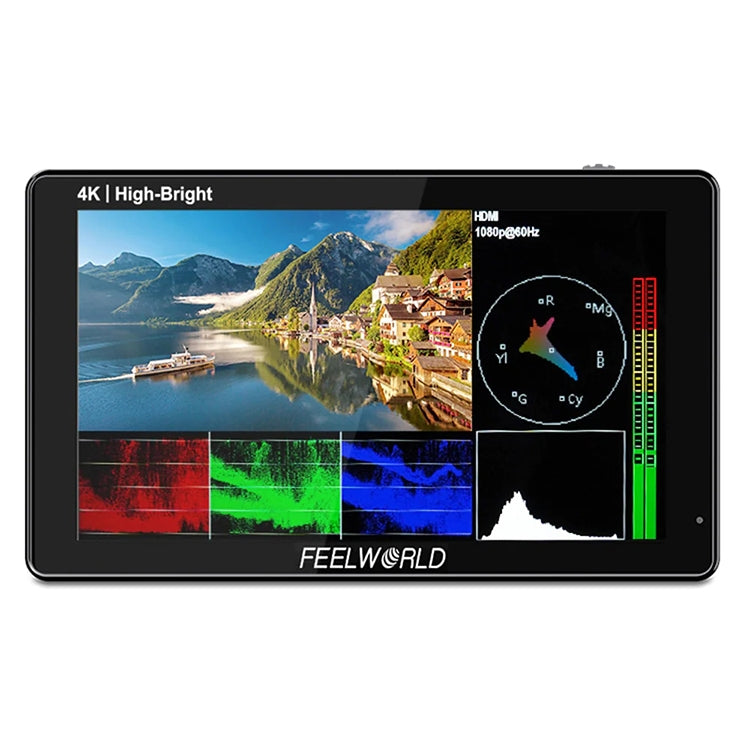

FEELWORLD LUT5E 5.5 inch High Bright 1600nit Touch Screen DSLR Camera Field Monitor F970 External Power and Install Kit 4K HDMI 1920X1080 IPS Panel(Black)

Name: FEELWORLD LUT5E 5.5 inch High Bright 1600nit Touch Screen DSLR Camera Field Monitor F970 External Power and Install Kit 4K HDMI 1920X1080 IPS Panel(Black)
Brand: FEELWORLD
SKU: EDA005658001A
Availability: InStock

$357.00

Sale Sold out

In Stock - Ships in 1-3 Days

Estimated delivery:

Free Shipping

30-Day Returns

1-Year Warranty

Shipping Information

FREE SHIPPING to UK & 40+ countries. Fully insured.

Delivery: Estimated times shown at checkout based on your location (typically 6-13 days total including 1-3 days handling)

No hidden fees on orders under £135 (orders over £135 may have import duties)

Ships from China via tracked DDP service. Order by 12 AM London time for next-day dispatch.

Full shipping policy →

30-Day Money-Back Guarantee

Return unused items within 30 days (you pay return shipping). Faulty items covered at no cost to you.

Full policy →

Right Part Guarantee

Get exactly what you ordered or your money back, including shipping. 30 days, no questions asked.

Hassle-Free Returns

Start your return online in seconds. No forms, no hassle.

Return portal →.

Trusted by 80,000+ DIY & repair professionals

Display Spec.
1. Model: LUT5E
2. Screen Size: 5.5 inch IPS
3. Resolution: 1920x1080 pixels
4. Pixel Pitch: 0.069 (L) x 0.069(W) (mm)
5. Aspect Ratio: 16:9
6. Brightness: 1600cd/m2
7. Contrast Ratio: 1000:1
8. Backlight: LED
9. Viewing Angle: 80 degree /80 degree (L/R) 80 degree /80 degree (U/D)

Input
- 1 x HDMI: HDMI

Output
1. 1 x HDMI: HDMI
2. 1 x DC: Barrel (5.5mm outer, 2.1mm inner) barrel output for powering cameras via camera specific adaptor.

Audio
- Audio: 3.5mm Stereo Headphone

HDMI Input / Output Support Format
1. 480i/576i/480p/576p
2. 1080i (60/59.94/50)
3. 720p (60/59.94/50/30/29.97/25/24/23.98)
4. 1080p (60/59.94/50/30/29.97/25/24/23.98)
5. 4K UHD 3840x2160p (30/29.97/25/24/23.98Hz), 4096x2160p (24Hz)

General
1. Input Voltage: DC7~24V
2. Power Consumption: Less than or equal to 9W
3. Install Way: 1/4-20 Thread Socket ( Right, Bottom)
4. Unit Size: 142Lx86Hx28D(mm)
5. Unit Weight: 270g

Note: When you turn off the monitor, you need to press the power button, and you cant pull out the power cable directly.

Advanced Features
1. Support 3D LUT Log to Rec.709, user 3D LUT Upload
2. Support Touch Menu
3. Parade (RGB, YUV, Y)
4. All Waves
5. Vector
6. RGB Histogram
7. Brightness Histogram
8. Embedded Audio
9. Peaking Focus (red, green, blue, white, yellow five peaking colors optional; 1~10 peaking level adjustable)
10. False Colors
11. Zebra Exposure (1%~100% adjustable)
12. Check Field (Red, Green, Blue, Gray)
13. Scan Mode (Under Scan, Over Scan)
14. Anamorphic Mode (1.25x, 1.33x, 1.5x, 1.6x, 1.8x, 2.0x, 2.0x mag)
15. Image Flip (H, V, H/V)
16. Image Freeze
17. Center Marker
18. Safety Marker (70%, 80%, 90%, 16:9, 16:10, 4:3, 5:4, 1:1, 1.91:1.1, 4:5, 9:16, 1.85:1, 2.35:1)
19. Ratio Marker (16:9, 16:10, 4:3, 1.85:1, 2.35:1)
20. Marker Color (red, green, blue, white, black, yellow)
21. Color Temperature Adjustment (5600K, 6500K, 9300K, user)
22. Nine Grid
23. Zoom (100%~500%)
24. Aspect Ratio

Package List:
1. Monitor x 1
2. Micro HDMI Cable x 1

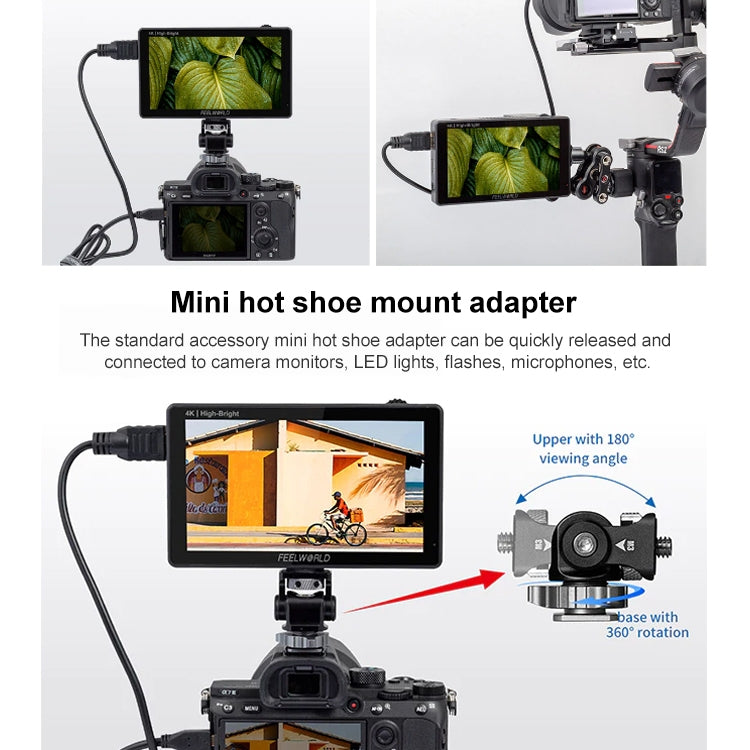

3. Mini hot shoe mount+Hex wrench x 1
4. Manual x 1
