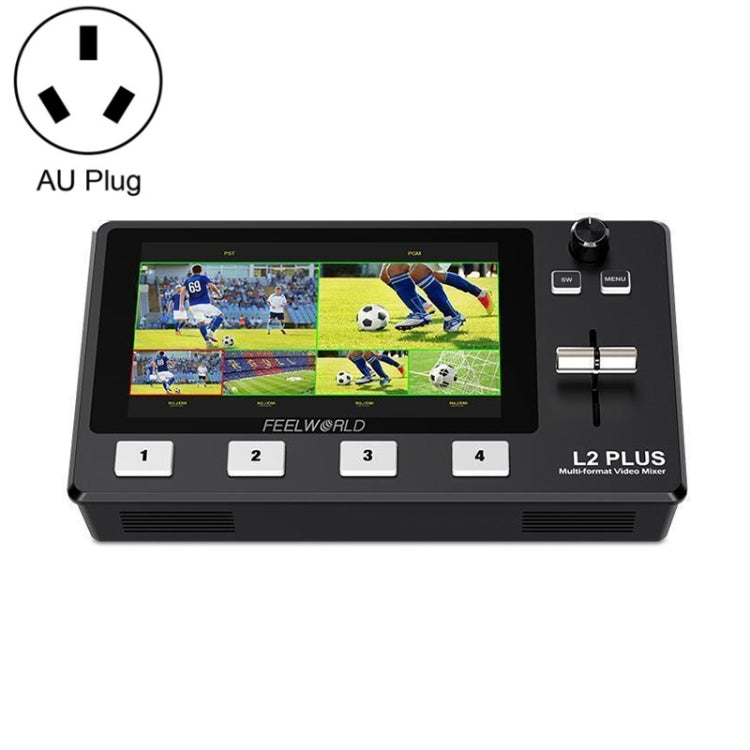

Features 1. 5.5-inch full HD IPS screen, provides real picture 2. Touch screen operation, easy to use 3. Real-time 6-picture preview ( 4 inputs sources + PST preview + PGM output picture) 4. USB 3.0 fast to live streaming 5. PTZ camera control (Up to 8 cameras) 6. Chroma key, LOGO overlay 7. T-Bar easily switch the transition effects and signal sources 8. 15 transition effects and 9 PIP modes, the live picture more vivid 9. Audio offers AFV or Line In mode 10. Remote control via PC/smartphone APP
Specifications 1. Model: L2 PLUS 2. Screen Size: 5.5 Touch screen 3. Backlight: LED 4. Input: 4 x HDMI-A 5. Output: 1 x HDMI-A, 1 x USB Type-A USB 3.0 6. Audio In: 1 x 3.5mm (can be connect to microphone) 7. Audio Out: 1 x 3.5mm Stereo Jack 8. Input Voltage: DC 12V / 2A 9. Power: 21W 10. Working Temperature: 0 degree C to 50 degree C 11. Humidity: 5%~85% 12. Unit Size: 191(L) x 110(W) x 43(H)mm 13. Unit Weight: 610g 14. Input Solution: HDMI - SMPTE 720p 50/60 | 1080i 50/60, 1080p 23/24/30/50/60, VESA 1024X768 60 , 1280X720 60, 1280X768 60, 1280X800 60, 280X1024 60 | 1360X768 60, 1366X768 60, 1440X900 60, 1600X1200 60, 1680X1050 60, 1920X1080 60, 1920X1200 60 15. Output Solution: HDMI - SMPTE 720p 50/60, 1080p 24/25/30/50/60, VESA 1024X768 60, 1280X720 60, 1280X768 60, 1280X1024 60, 1360X768 60 16. USB Streaming: 1280X720 50/60, 1280X1024 60, 1360X768 60, 1920X1080 24/25/30/50/60
Note: Please refer connected computer for applicable resolution support

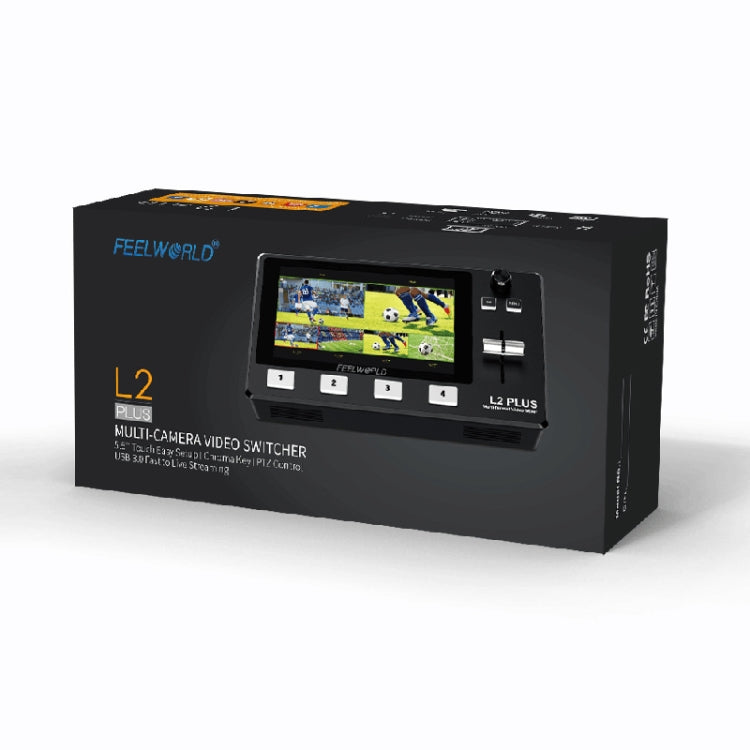

Package List 1. Switcher x 1 2. 2A Adapter x 1 3. USB Cable x 1 4. Manual x 1
