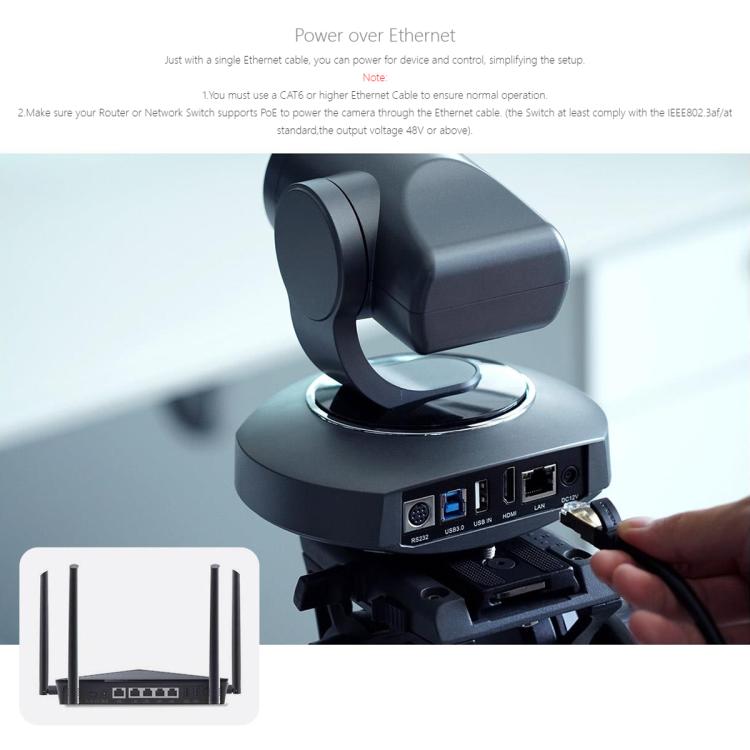

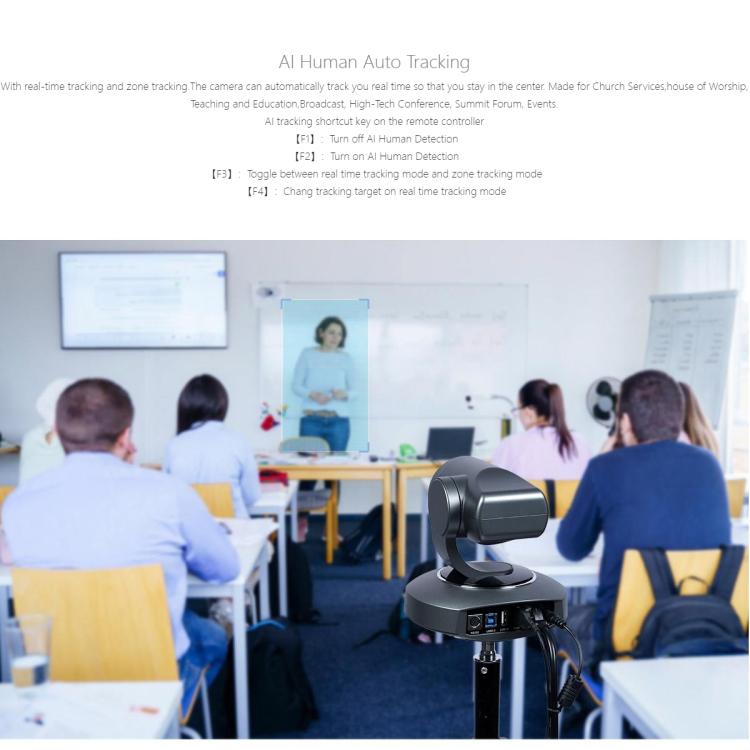

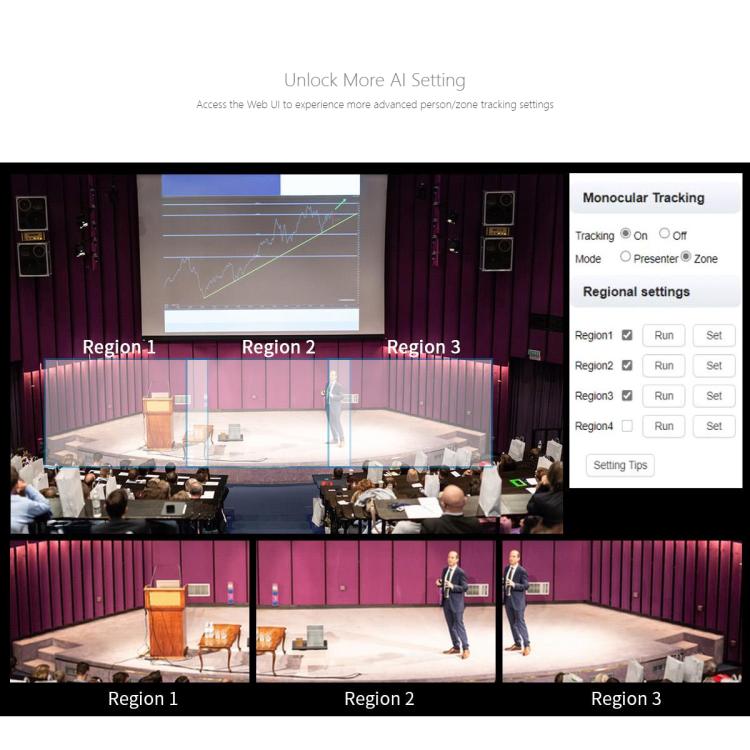

Features: 1. 8.29M megapixel high quality CMOS sensor 2. Up to 4K 30fps , presenting ultra clear and vivid image 3. 10X optical zoom lens and 67.5 degree wide angle lens 4. Simultaneous HDMI-compatible, USB3.0, IP Streaming video out, easily for professional video production 5. PoE(Power over Ethernet) supported 6. Auto focus, smart frame capture everyone 7. Supports H.265/H.264 encoding which makes motion video fluent and clear even with less than ideal bandwidth conditions. 8. Advanced 2D/3D noise reduction technology further reduces the noise while ensuring high image clarity 9. High speed and silent pan/tilt, capture all the actions 10. Multiple control protocol and network protocol 11. Support real-time AI tracking and zone tracking 12. Ideal for online education, live streaming, video conference, Tele-medicine, etc.
Specifications: Camera Parameters 1. Model: 4K10X 2. Sensor: 1/2.8 inch high quality CMOS sensor 3. Effective Pixels: 8.29 megapixel, 16：9 4. View Angle: H：7.6 degree(N)~67.5 degree(W) 5. Iris: F1.76 ~ F3.0+/-5% 6. Digital Zoom: 16X 7. Optical Zoom: 10X 8. Minimum Illumination: 0.5Lux(F1.8, AGC ON) 9. DNR: 2D & 3D 10. White Balance: Auto/Manual/One-push/Specified Color Temperature 11. Focus: Auto/Manual/One-push 12. Exposure: Auto, Manual, Shutter Priority, Iris Priority, Brightness Priority 13. Iris Mode: F1.8 ~ F11, CLOSE 14. Shutter Speed: 1/25~1/20000 15. BLC: On/Off 16. Dynamic Range: Off, 1 ~ 8 17. Video Adjustment: Brightness, Contrast, Saturation, W&B Mode, Horizontal flip, vertical flip, Digital Zoom, Minimum Illumination 18. SNR: Greater than 50dB

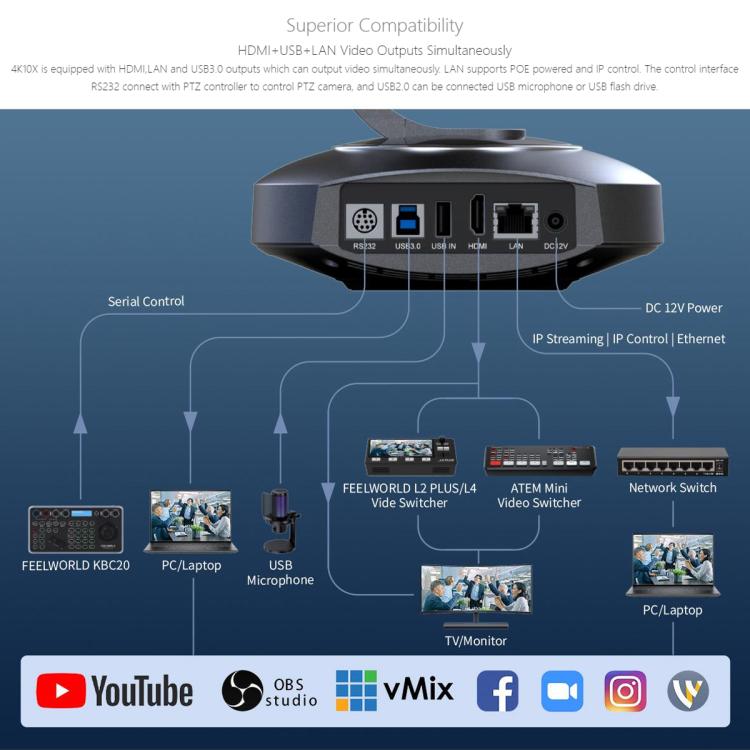

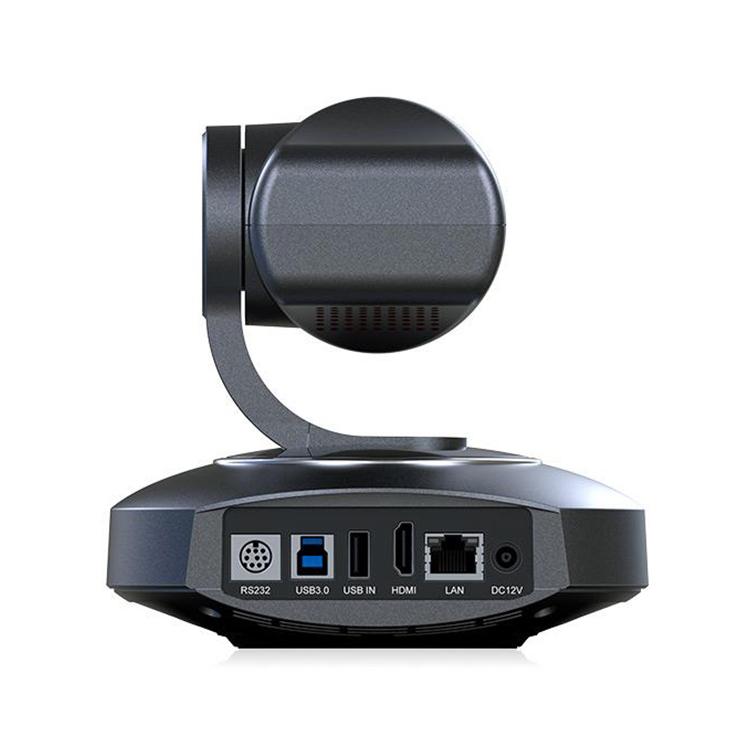

Input/output Interface 1. Interface: HDMI-compatible, LAN(POE), USB3.0, USB2.0, RS232-IN, DC12V Power Supply 2. Video Output: HDMI-compatible, USB3.0, LAN(support PoE) 3. Video Compression Format: LAN: H.264, H.265; USB: MJPG, H264, YUY2, NV12 4. Audio Compression Format: AAC 5. LAN Interface: 100M Ethernet port, support POE power supply, support audio and video output 6. Control Interface: RS232-IN 7. Serial Port Communication Protocols: VISCA/Pelco-D/Pelco-P；Baud Rate 115200/38400/9600/4800/2400 8. USB Communication Protocols: UVC (Video Communication Protocol), UAC (Audio Communication Protocol) 9. Network Protocol: RTSP, RTMP, ONVIF, GB/T28181, VISCA OVER IP, IP VISCA, RTMPS, SRT，support remote upgrade, remote restart, remote reset 10. Power Supply: HEC3800 Power Socket(DC12V)

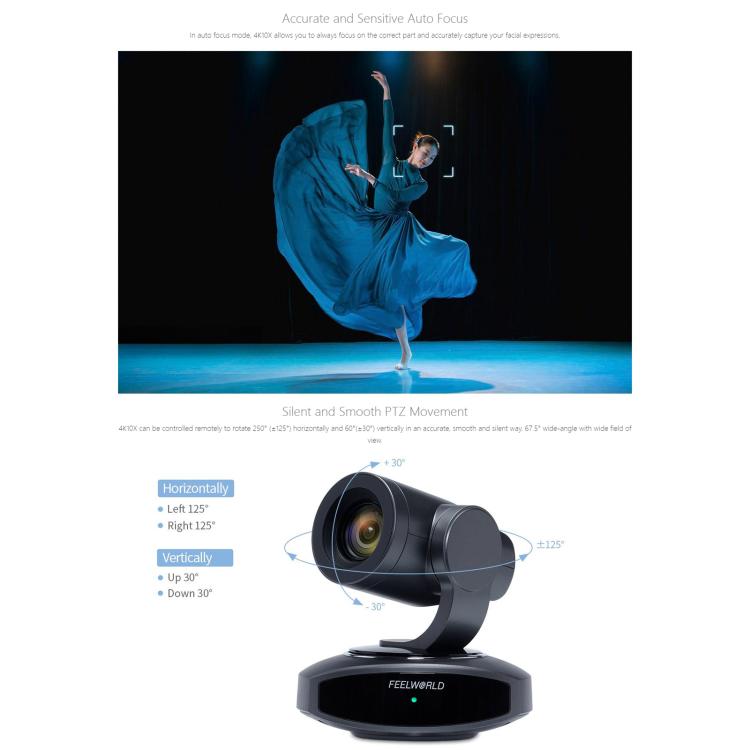

PTZ Parameters 1. Pan Rotation: -125 degree ~+125 degree 2. Tilt Rotation: -30 degree ~+30 degree 3. Pan Control Speed: 0.1 ~65 degree /sec 4. Tilt Control Speed: 0.1~35 degree /sec 5. Preset Speed: Pan: 65 degree /sec, Tilt: 35 degree /sec 6. Preset Number: 255 presets(10 via remote control)
Video Signal 1. HDMI-compatible: 4KP30/25,1080P60/59.94/50/30/29.97/25,720P60/59.94/50 2. LAN Main Stream: 1920x1080/1280x720/640x480 30/25/20/15/10/5 fps; 3. LAN Sub-Stream: 1280x720/640x360/640x480/320x240/320x180 30/25/20/15/10/5fps 4. USB Main Stream: YUY2/NV12:1920x1080/1280x720/1024x576/800x600/800x448/640x360/640x480/480x270/320x180 30/25/20/15/10/5fps; 5. USB Main Stream: MJPG/H264:3840x2160/2560x1440/1920x1080/1600x896/1280x720/1024x576/960x540/800x600/800x448/720x576/720x480/640x360/640x480/480x270/352x288/320x240 30/25/20/15/10/5fps 6. USB Sub-stream: YUY2/NV12:1920x1080/1280x720/1024x576/800x600/800x448/640x360/640x480/480x270/320x180 25/20/15/10/5fps 7. USB Sub-stream: MJPG/H264: 3840x2160/2560x1440/1920x1080/1600x896/1280x720/1024x576/960x540/800x600/800x448/720x576/720x480/640x360/640x480/480x270/352x288/320x240 30/25/20/15/10/5fps
Other Parameters 1. Input Voltage: 12V 2. Input Current: Less than 1.2A 3. Power Consumption: Less than equal to 13.3W 4. Stored Temperature: -10 degree C~+70 degree C 5. Storage Humidity: 20%~95% 6. Working Temperature: -10 degree C~+50 degree C 7. Working Humidity: 20%~80% 8. Dimension (WxHxD): 152x155x126mm 9. Unit Weight: 0.9kg

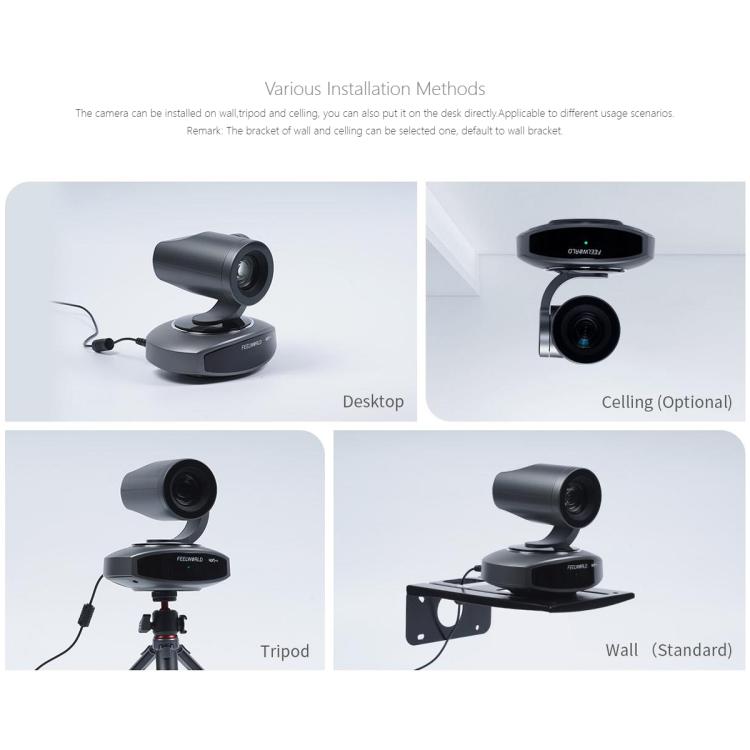

Package List: 1. PTZ Camera x 1 2. Power Adapter x 1 3. Remote Control x 1 4. USB3.0 Cable x 1 5. RS232 Serial Cable x 1 6. Wall Mount Bracket x 1 7. Quick Start Guide x 1
