Electric Mortise Lock(Silver)
Electric Mortise Lock(Silver)
In stock
🔥 Buy any 2 items, get 25% off 3rd item 🔥 Save today!
Couldn't load pickup availability
Shipping Guarantee
Shipping Guarantee
FREE SHIPPING on all UK orders. Fully insured.
Handling time: 1 - 3 business days. (Buy2fix has to process your order and put all your items through its strict quality-control tests.)
Transit time is 5 - 10 business days to the UK. Transit times to other countries are displayed at checkout.
Origin: CN
Return Guarantee
Return Guarantee
For whatever reason, if you are unsatisfied with your order within 30 days, you can return it to us in new condition for a refund minus the shipping charges.
The Right Part Guarantee
The Right Part Guarantee
The Right Part, Guaranteed. If we send the wrong part (not as described), our 30-day return policy has you covered. You get a full refund, including the shipping fees.
Hassle-Free Returns
Hassle-Free Returns
Start Your Return in Seconds with Our Easy Online Return Portal.
* Install and use it:

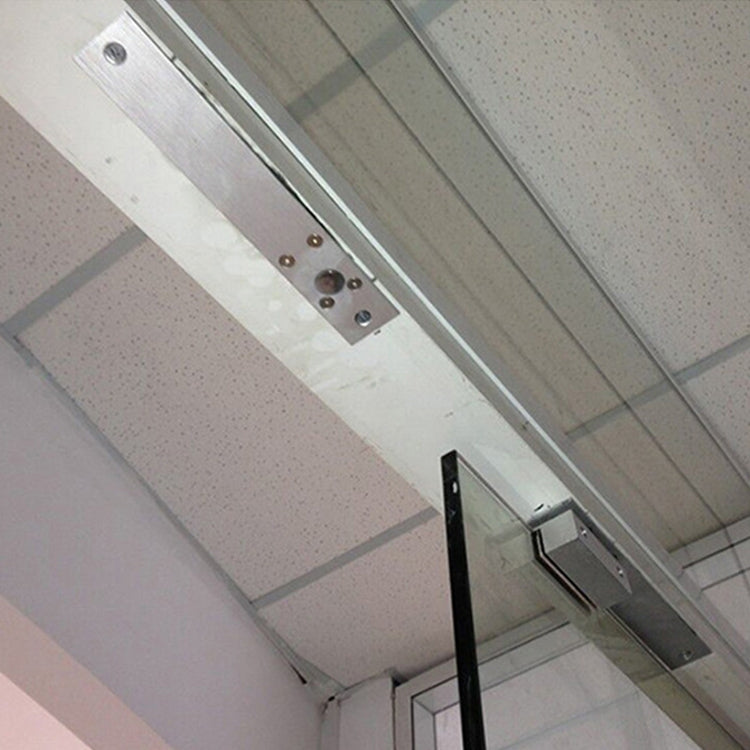

The electrical lock is composed of two parts. One is stainless steel magnet support, the other is the lock body. When you install it, the gap between magnet support and lock body should not over 3mm. The hole on the magnet support should be just be aligned with the bolt. The magnet should be put in the middle.
* Specification:
1) Working Voltage: DC 12V
2) Current: Starting current 0.45A, Working Current 0.45A
3) Coil type: Continuous working
4) Lock cylinder: Diameter 15.5mm stainless steel bolt, popping length: 15mm
5) The size of open hole for installing: 202mm (Length) x 35mm (Width)
6) The depth of the hole inside shouldn’t be less than 43mm
7) Decoration panel size: 210mm (Length) x 42mm (Width) x 0.8mm (Thickness)
8) Panel size: 200mm x 34mm x 3mm
9) Accessories for installing: Stainless steel magnet support one piece, M5x15mm (Length) screws two pieces, M4x11mm (Length) screws four pieces.
