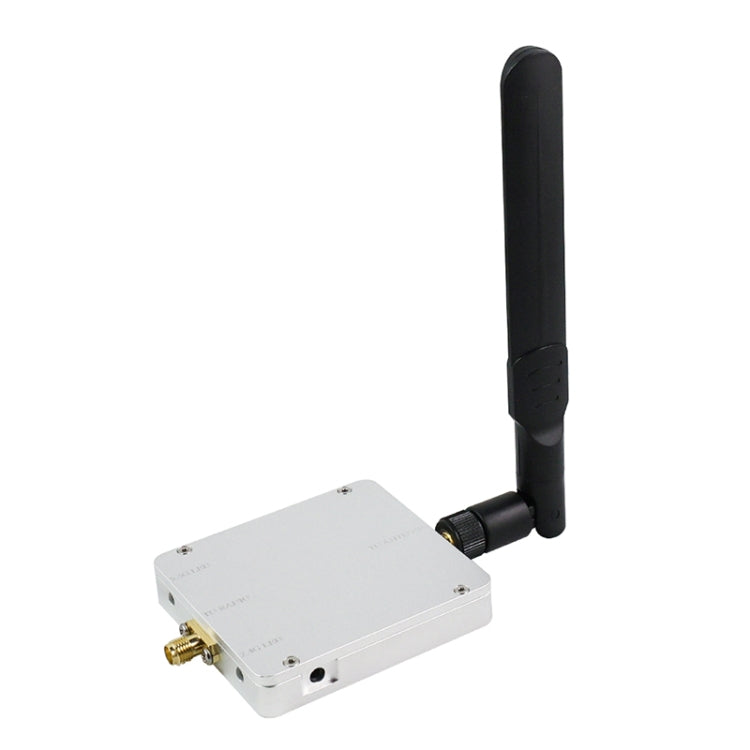

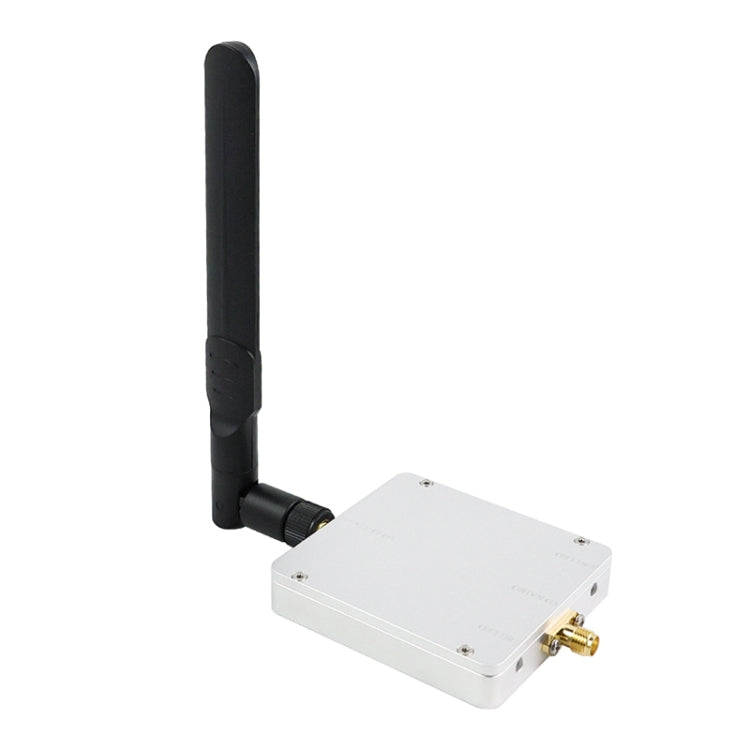

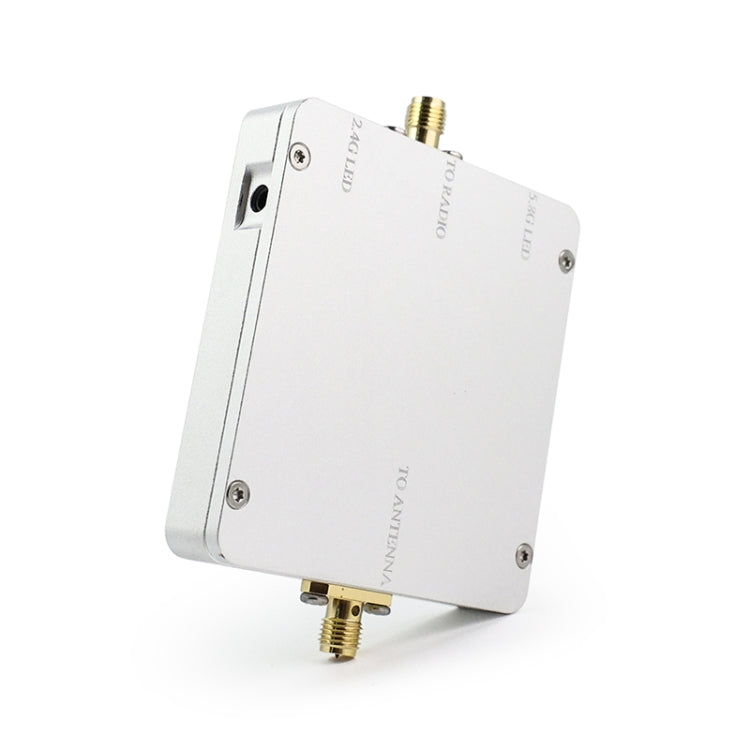

EDUP EP-AB015 4W 2.4GHz/5.8GHz Dual Band Wireless Signal Booster WiFi Amplifier
EDUP EP-AB015 4W 2.4GHz/5.8GHz Dual Band Wireless Signal Booster WiFi Amplifier
In stock
🔥 Buy any 2 items, get 25% off 3rd item 🔥 Save today!
Couldn't load pickup availability
Shipping Guarantee
Shipping Guarantee
FREE SHIPPING on all UK orders. Fully insured.
Handling time: 1 - 3 business days. (Buy2fix has to process your order and put all your items through its strict quality-control tests.)
Transit time is 5 - 10 business days to the UK. Transit times to other countries are displayed at checkout.
Origin: CN
Return Guarantee
Return Guarantee
For whatever reason, if you are unsatisfied with your order within 30 days, you can return it to us in new condition for a refund minus the shipping charges.
The Right Part Guarantee
The Right Part Guarantee
The Right Part, Guaranteed. If we send the wrong part (not as described), our 30-day return policy has you covered. You get a full refund, including the shipping fees.
Hassle-Free Returns
Hassle-Free Returns
Start Your Return in Seconds with Our Easy Online Return Portal.
1.Brand new and high quality.
2. Low-noise receive gain.
3. Signal activity LED indicates
4. High Gain, High Value, High Performance.
5. Maximum output power of 8000mW by the Booster.
6. Plug-and-play, Easy installation, no driver needed.
7. Ideal for increase the 2400-2500 MHz frequency devices.
8. Increase the effective range and coverage area of your Wi-Fi network.
9. Simply attach the booster in between the standard antenna on a wireless router or wireless access point and watch your range grow.
10. The amplified wireless signal may even penetrate complex environments with many walls and obstacles.
11. Ideal for use with 2.4GHz Wireless LANs, Support 802.11b, 802.11g, 802.11n (2.4Ghz mode only).
Features：
1. Operation Range: 2400-2500 MHz.
2. Operation Mode: Bi-directional, half-duplex, Auto-Switching via carrier sensing.
3. Frequency Response: ± 1dB over operation range.
4. Input Power: 3dBm (Min.)-20dBm (Max.).
5. Input Power 5-20 dBm.
Supoort Standard: IEEE 802.11b/g/n
Frequency: 2400-2500Mhz
Working Pattern: TDD
RF Output Power: 39dBm(8W)
Input Trigger Power: Min:3dBm, Max: 20dBm
Transmit Gain: 17dB typical
Receiver Gain: 11dB typical
Switch Time Delay:>1us
Noise Figure: 30dB(typical)
Working Voltage: 6-18VDC,12V/2A
*Distance: 3-5KM
Using Precautions
1.Recommend the input power of RFIN port to between 7dBm and 13dBm.
2.Make sure all power supply to the booster and the AP/Router unit be disconnected before removing or changing antenna.
3.When finishing connecting the booster and the AP/Router, restore power supply first to the booster and then to AP/Router subsequently.
4Waterproof, lightning protection equipment should be attached to outdoor antenna.
5. Keep away from heat and keep ventilated.
6. Please comply with local regulations of electromagnetic radiation.
