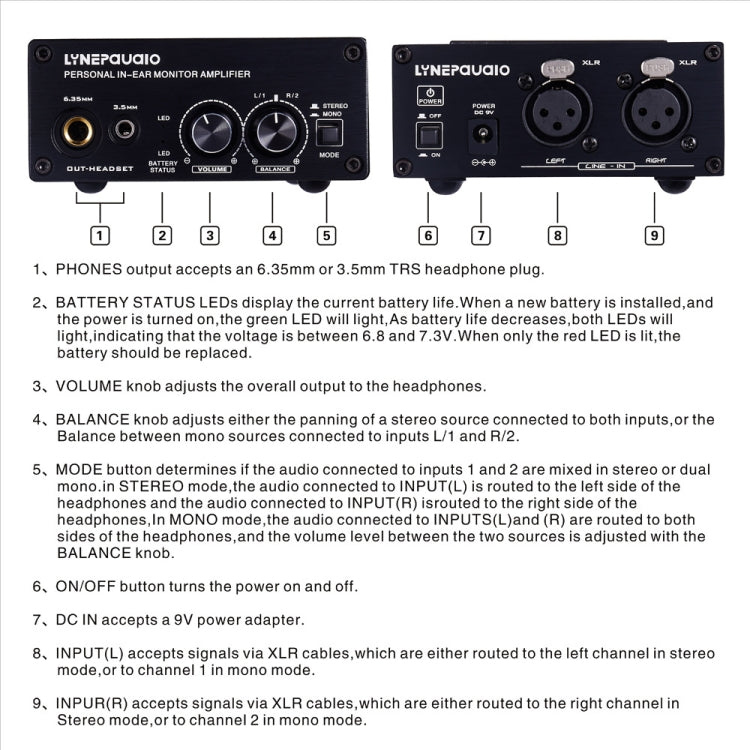

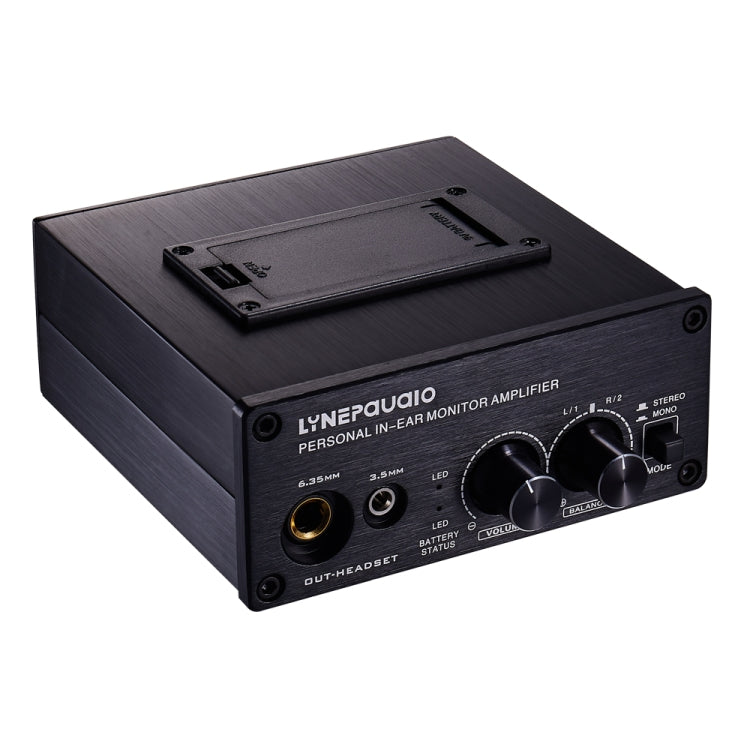

personal in-ear monitor amplifier， in-ear monitor amplifier for personal monitor applications， high power and "drummer proof" headphones output， dual XLR inputs allow for 2-channel mono or stereo operation， switchable stereo/mono operation with mix function， level and balance/mix controls， runs up to 12 hours on a 9V battery(not included)， battery control with dual LED indicators， operates on DC 9V power supply (included)， integrated current limit protects your ears and headphone。
【Product features】
Input：2 X XLR connector,balanced Output：6.35mm and 3.5mm TRS connector Input impedance：20K ohm Output impedance：10K ohm per channel Frequency response：20 Hz-80K Hz(+/-0.5 dB) THD + N：0.01% Signal-to-noise ratio：>90 dB(A-weighted) CMRR：>50 dB Crosstalk：>40dB System Data Normal input level：2 dBu Max input level：6 dBu Limit input level：7 dBu Max output level：9.5 dBu Indicators LEDs：power indicator(green)，battery control indicator(red) Voltage：Green LED lit：voltage>7.3V，Both green and red LED lit：voltage = 6.8-7.3V，Red LED lit：voltage<6.8V Battery：9V block alkaline or 8.4V NIMH rechargeable battery Power adapter：Ext.input power DC 9V (pin = pos，ring = neg) Standby power consumption：300 mW Max operation current：90 mA Max output power into 20 ohm：40 mW per channel Product net weight: 0.32 kg Product weight after packing: 0.48kg Product size: length:105mm X width:103mm X height:43mm Packing size: length:200mm X width:180mm X Height:55mm
【Packing list】
1 X B982 Power amplifier instrument drummer earphone monitor amplifier
