DUOYI

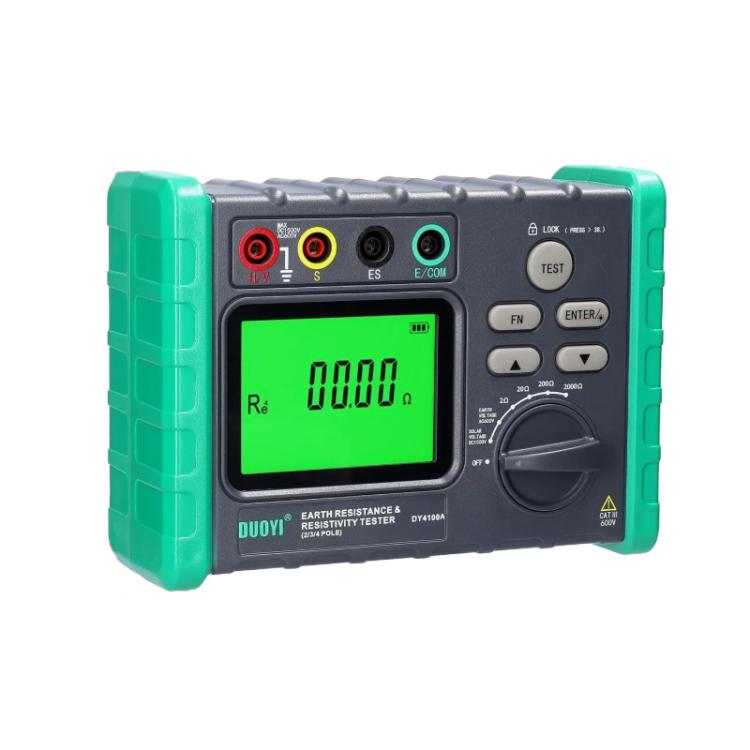

DUOYI Digital Ground Resistance Meter Tester, Model: DY4100A
DUOYI Digital Ground Resistance Meter Tester, Model: DY4100A
In stock
🔥 Buy any 2 items, get 25% off 3rd item 🔥 Save today!
Couldn't load pickup availability
Shipping Guarantee
Shipping Guarantee
FREE SHIPPING on all UK orders. Fully insured.
Handling time: 1 - 3 business days. (Buy2fix has to process your order and put all your items through its strict quality-control tests.)
Transit time is 5 - 10 business days to the UK. Transit times to other countries are displayed at checkout.
Origin: CN
Return Guarantee
Return Guarantee
For whatever reason, if you are unsatisfied with your order within 30 days, you can return it to us in new condition for a refund minus the shipping charges.
The Right Part Guarantee
The Right Part Guarantee
The Right Part, Guaranteed. If we send the wrong part (not as described), our 30-day return policy has you covered. You get a full refund, including the shipping fees.
Hassle-Free Returns
Hassle-Free Returns
Start Your Return in Seconds with Our Easy Online Return Portal.

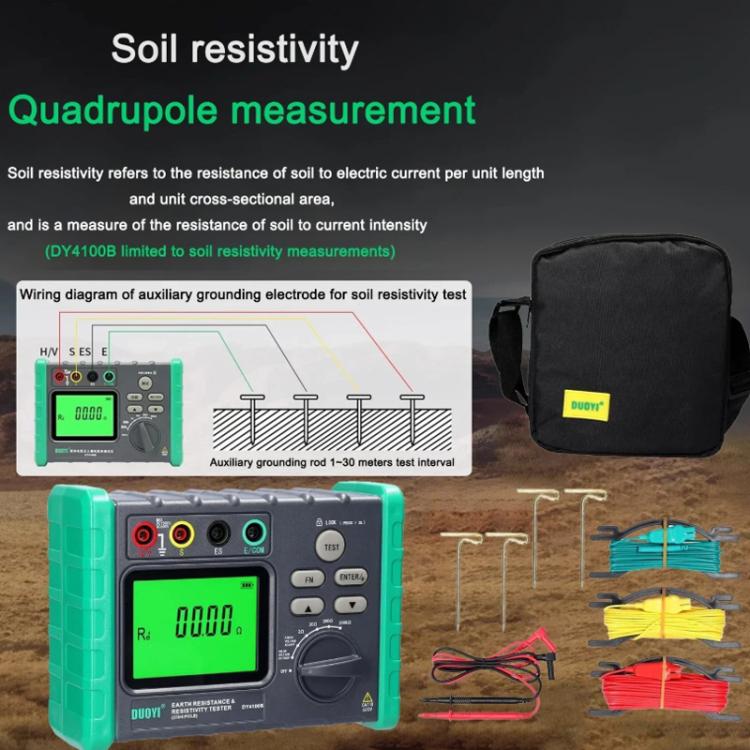

1. Ground resistance Re (Rg when testing soil resistivity p)

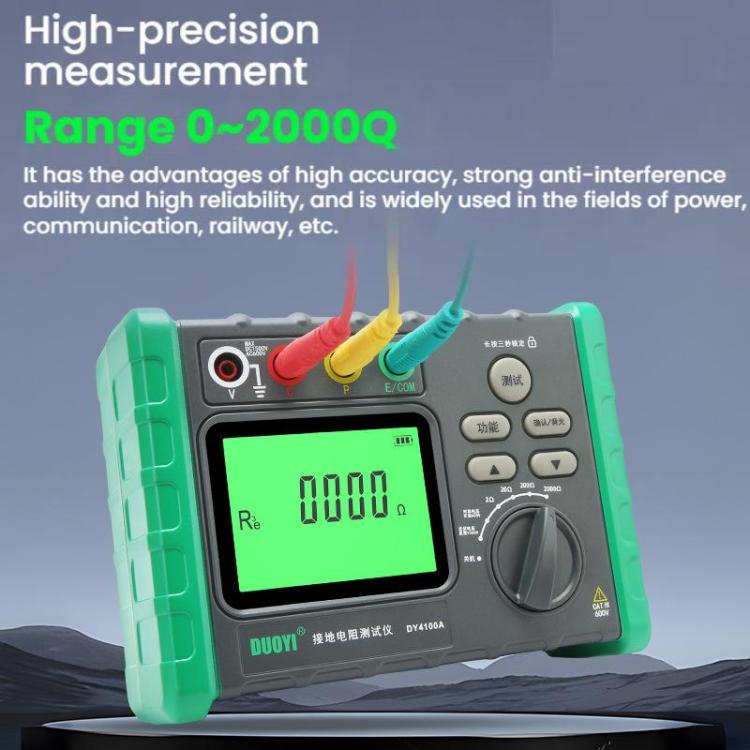

2. Range: 2 ohms/20 ohms/200 ohms/2000 ohms
3. Test range: 0.03~2.000 ohms/0.03~20.00 ohms/0.03~200.0 ohms/0.03~2000 ohms
4. Voltage to ground (AC voltage): 600V Test range 0~600Vac
5. Photovoltaic voltage (DC voltage): 1500V Test range: 0~1500Vac
6. Test method: voltage drop method (applicable to the current and voltage test of the probe)
7. Display: segment LCD display, display backlight
8. Battery voltage warning: Battery logo display
9. Continuous test times: In the 2 ohm range, test once every 30 seconds with a 1 ohm load, and can be repeated more than 400 times
10. Input exceeds display: Display "OL"
11. Automatic shutdown function: If there is no operation for 5 minutes after the key operation, the system will enter the automatic shutdown state
12. Overload protection: AC280V/10 seconds between E-S ports
13. Withstand voltage: AC3540V (50/60Hz)/5 seconds between the electrical circuit and the outer box
14. Insulation resistance: 50 milliohms or more between the electrical circuit and the outer box/DC 1000V
15. Power supply: 6 AA batteries (not included)

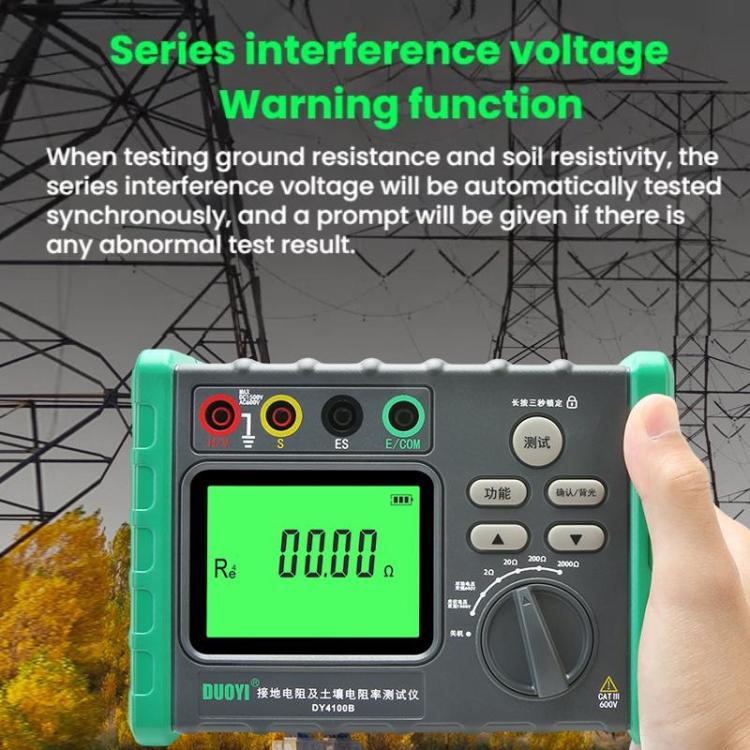

16. When testing the ground resistance and soil resistivity, the series interference voltage will be automatically tested synchronously, and a prompt will be given if there is an abnormal test result

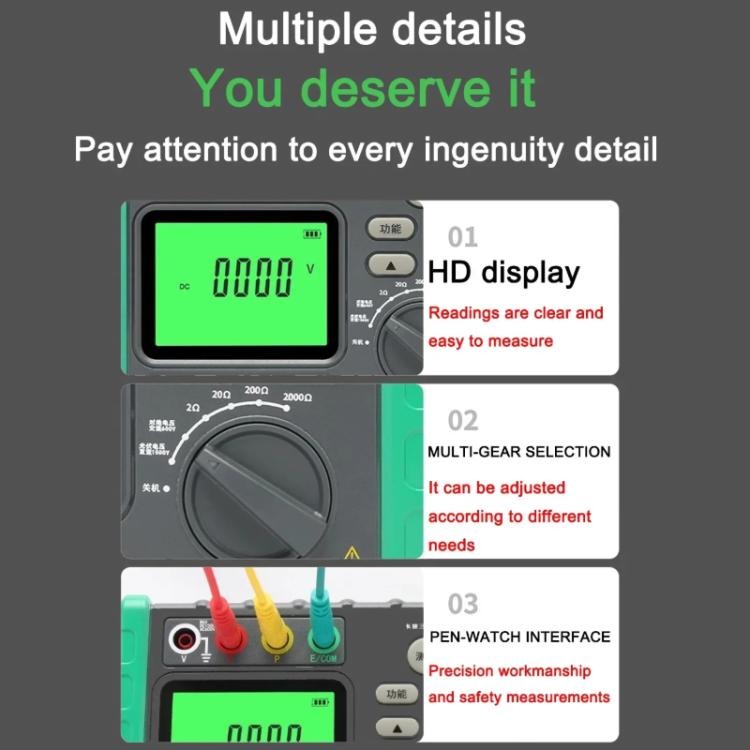

17. High-definition display, clear reading, easy measurement

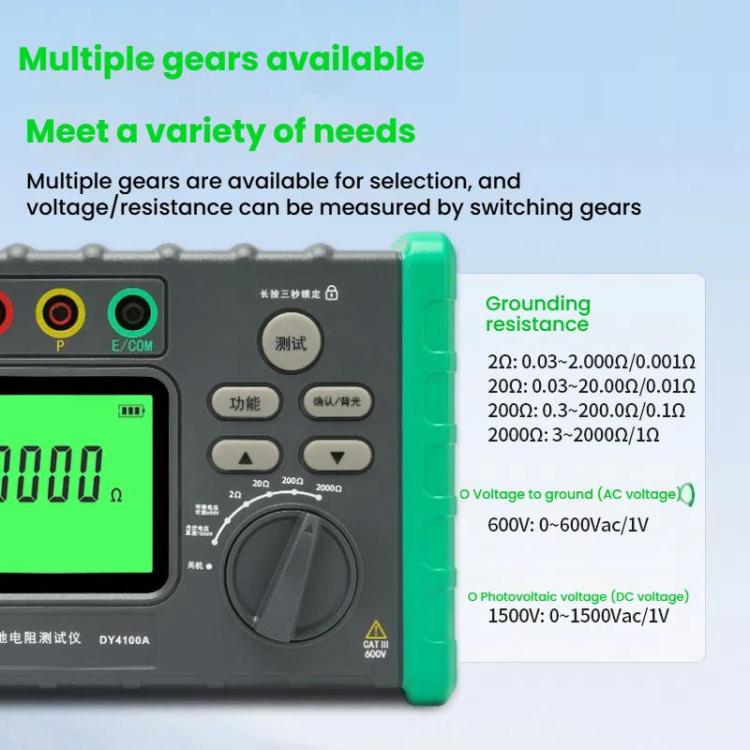

18. Multiple gear selection, can be adjusted according to different needs
19. Applicable to measurement in power, post and telecommunications, railway, petroleum, chemical, communication, mining and other departments
20. Dimensions: 173x125x68mm
Packing list:
- DY4100A instrument x 1
- Cloth bag x 1
- Instruction manual x 1
- Certificate x 1
- Test line x 1 (red 15m/yellow 10m/green 5m)
- Multimeter pen x 1
- Ground rod x 2
