DTECH DT-9005 Without Power Supply RS232 To TTL Serial Port Module, Interface: 5V Module
DTECH DT-9005 Without Power Supply RS232 To TTL Serial Port Module, Interface: 5V Module
In stock
🔥 Buy any 2 items, get 25% off 3rd item 🔥 Save today!
Couldn't load pickup availability
Shipping Guarantee
Shipping Guarantee
FREE SHIPPING on all UK orders. Fully insured.
Handling time: 1 - 3 business days. (Buy2fix has to process your order and put all your items through its strict quality-control tests.)
Transit time is 5 - 10 business days to the UK. Transit times to other countries are displayed at checkout.
Origin: CN
Return Guarantee
Return Guarantee
For whatever reason, if you are unsatisfied with your order within 30 days, you can return it to us in new condition for a refund minus the shipping charges.
The Right Part Guarantee
The Right Part Guarantee
The Right Part, Guaranteed. If we send the wrong part (not as described), our 30-day return policy has you covered. You get a full refund, including the shipping fees.
Hassle-Free Returns
Hassle-Free Returns
Start Your Return in Seconds with Our Easy Online Return Portal.
1. Interface compatible: RS232, TTL
2. Material: ABS
3. Transmission mode: asynchronous, full duplex, full transparency
4. Electrostatic protection: about 15KV ESD
5. Scope of application: PC, terminal equipment, industrial control, digital instrument acquisition, multi-serial port equipment, serial interface of single-chip microcomputer, etc.
6. Transmission rate: 300bps-115.2kbps
7. Transmission medium: twisted pair/shielded wire

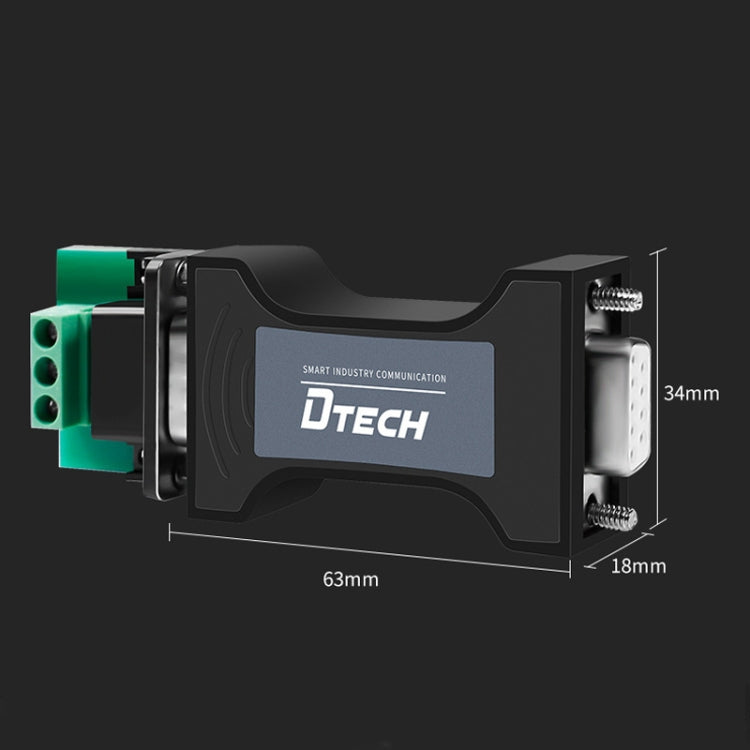

8. Size: about 6.3 x 3.4 x 1.8mm
Features:

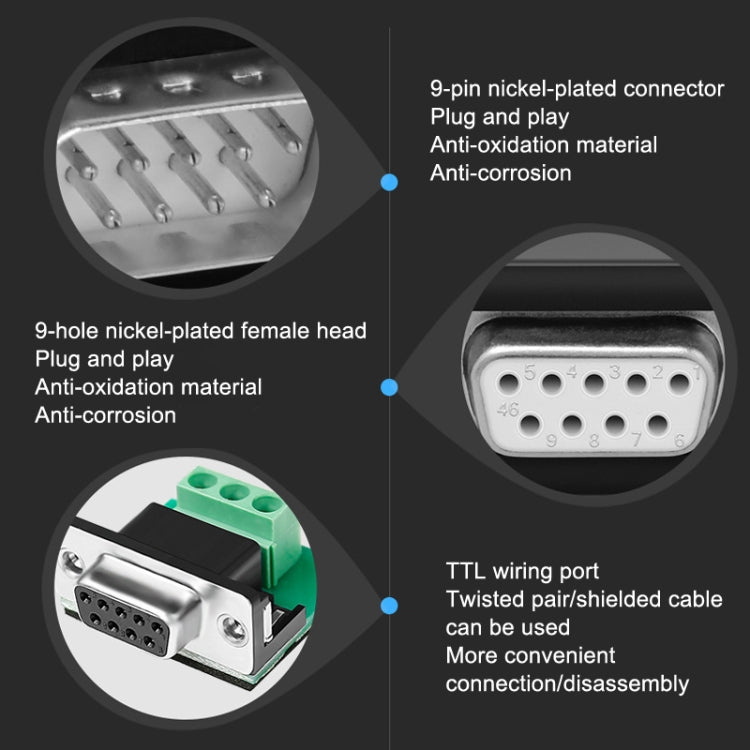

1. 9-pin nickel-plated connector/female, resistant to unplugging, using anti-oxidation material, anti-corrosion
2. TTL wiring port, can use twisted pair/shielded wire, which is more convenient to connect/disassemble
3. Environmental protection material, safe to use
4. Built-in fast transient voltage suppression protector TVS

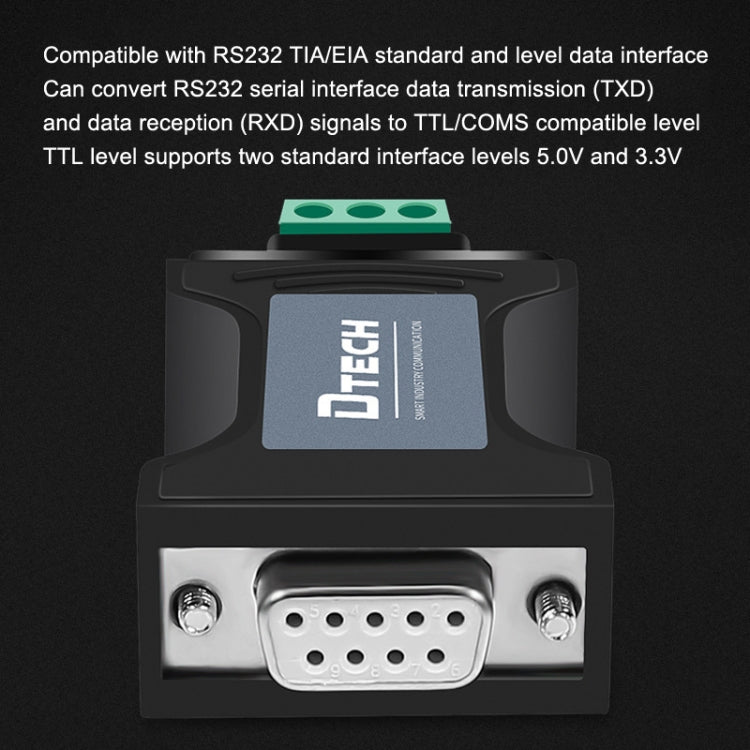

5. Compatible with RS232 TIA/EIA standard and level data interface, can convert RS232 serial interface data transmission (TXD) and data reception (RXD) signals to TTL/COMS compatible level, TTL level supports two standard interfaces Level 5.0V and 3.3V

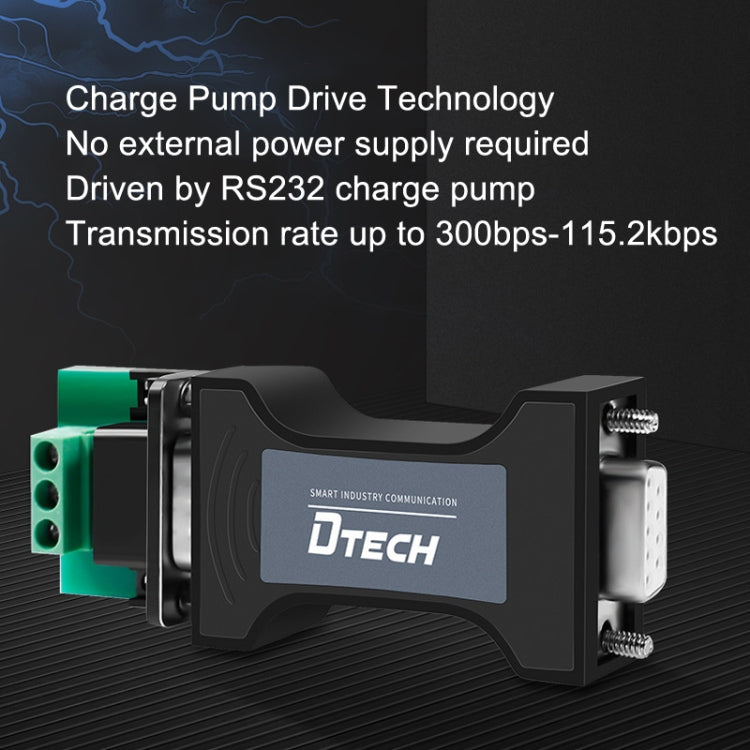

6. Charge pump drive technology, no external power supply required, using RS232 charge pump drive, the transmission rate can reach 300bps-115.2kbps

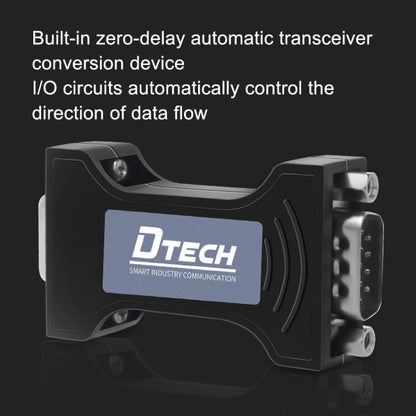

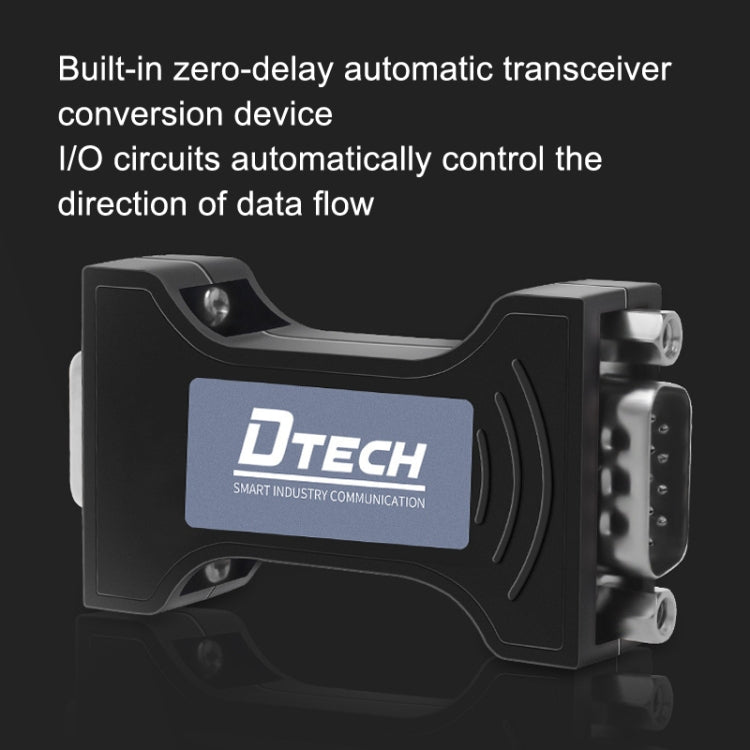

7. Built-in zero-delay automatic transceiver conversion device
8. The I/O circuit automatically controls the direction of data flow
