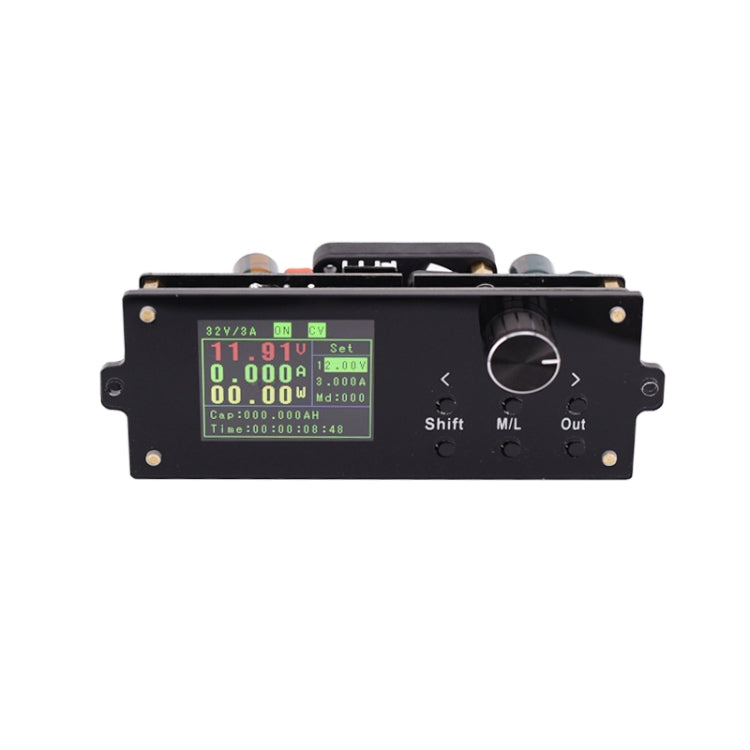

DPX3203 Adjustable Constant Voltage Current Regulator Power Supply Buck Module
DPX3203 Adjustable Constant Voltage Current Regulator Power Supply Buck Module
In stock
🔥 Buy any 2 items, get 25% off 3rd item 🔥 Save today!
Couldn't load pickup availability
Shipping Guarantee
Shipping Guarantee
FREE SHIPPING on all UK orders. Fully insured.
Handling time: 1 - 3 business days. (Buy2fix has to process your order and put all your items through its strict quality-control tests.)
Transit time is 5 - 10 business days to the UK. Transit times to other countries are displayed at checkout.
Origin: CN
Return Guarantee
Return Guarantee
For whatever reason, if you are unsatisfied with your order within 30 days, you can return it to us in new condition for a refund minus the shipping charges.
The Right Part Guarantee
The Right Part Guarantee
The Right Part, Guaranteed. If we send the wrong part (not as described), our 30-day return policy has you covered. You get a full refund, including the shipping fees.
Hassle-Free Returns
Hassle-Free Returns
Start Your Return in Seconds with Our Easy Online Portal.
1. Input voltage range: 6-40V
2. Output voltage adjustment range: 0-32V (input must be greater than output)
3. Output current adjustment range: 0-3A
4. Input protection mode: reverse connection/overvoltage protection
5. Output protection mode: (Ovp) overvoltage, (Ocp) overcurrent, (Opp) overpower
6. Output power: 0-60W
7. Output voltage setting resolution: 10mV
8. Output current setting resolution: 1mA
9. Output ripple: less than 100mVpp (input 35V, output 12V, current 2A)
10. 100Hz fluctuation transmission ratio: less than 1/10000
11. Storage operation: There are 10 groups of parameters stored in M0-M9
12. Cooling method: onboard radiator and cooling fan
13. Cooling fan startup conditions: output current greater than 0.5A or output power greater than 25W
14. Size: about 10.5x4.5x4.3 cm
15. Weight: about 95g
Features:
1. Using a microprocessor, the output voltage and current can be accurately adjusted and displayed

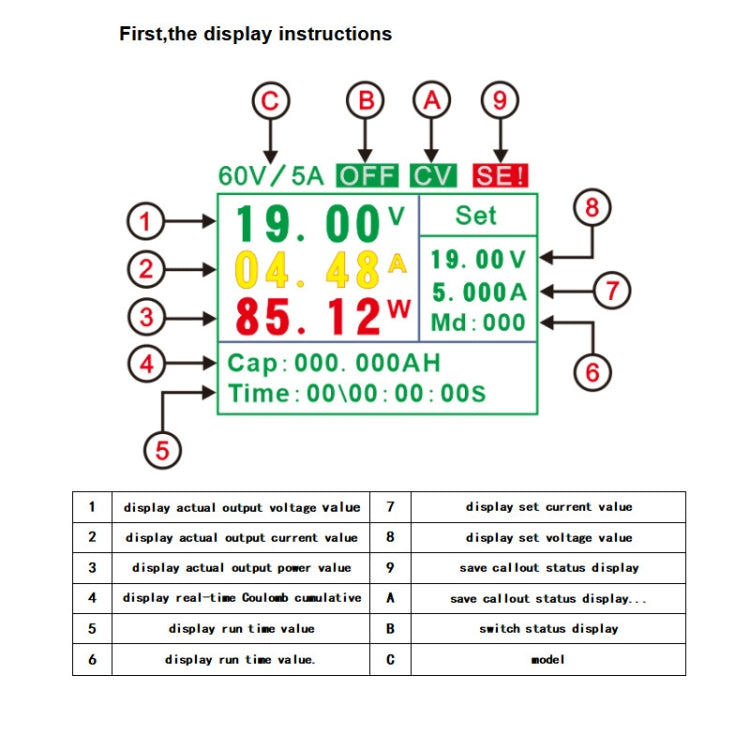

2. Adopt 1.8-inch color LCD display, which can display the working status of voltage, current, capacity, time and power supply in real time
3. It is convenient and quick to adjust and read parameters through buttons and knobs, and it is convenient to save and recall parameters
4. The output overvoltage (Ovp), overcurrent (Ocp), and overpower protection (Opp) can be set, and the output can be turned off when the output exceeds the set value
5. The built-in cooling fan ensures that the power device will not be damaged due to overheating
6. It can output constant voltage and constant current
7. With input reverse connection protection function, it can prevent damage to the power supply due to input reverse connection
