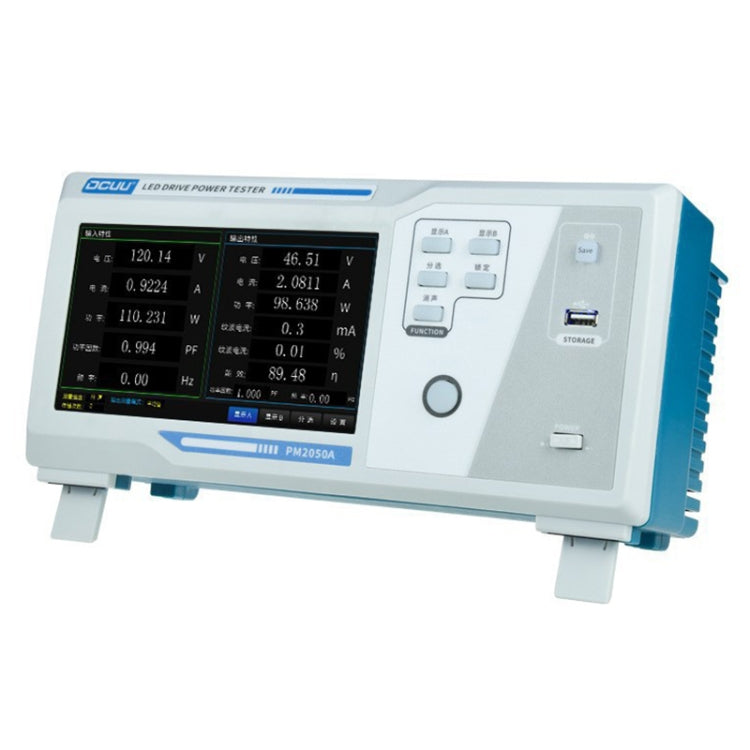

DCUU PM2050A Intelligent Electrical Parameters Measuring Instrument, Input 20A, Output 10A (EU Plug)
DCUU PM2050A Intelligent Electrical Parameters Measuring Instrument, Input 20A, Output 10A (EU Plug)
SKU: PC7780EU
Regular price
$778.00
Regular price
Sale price
$778.00
Duties & Import Tax Information
Duties are only included if shown at checkout. Otherwise, your local government may apply customs fees, which your courier will collect directly from you before delivery.
In Stock
CHN
This item is shipped from China.
Processed in 0–3 days
Quantity
Couldn't load pickup availability
Shipping info
To find all available shipping methods and exact delivery times, add the product to your cart and check using our shipping calculator.
30-day returns
Fast refunds: Once we receive and check your item, we aim to process your refund within 48 hours.
Return postage: Just changed your mind? You'll need to cover the return postage. If the item arrived faulty, we'll cover the cost to get it back to us.
Your details are safe
We treat your data the way we'd want ours treated. Your payment details are locked down with bank-level encryption. We never actually see your credit card numbers, and we will absolutely never sell your personal information.
Product Details
Type:
Current & Voltage Tester
Features

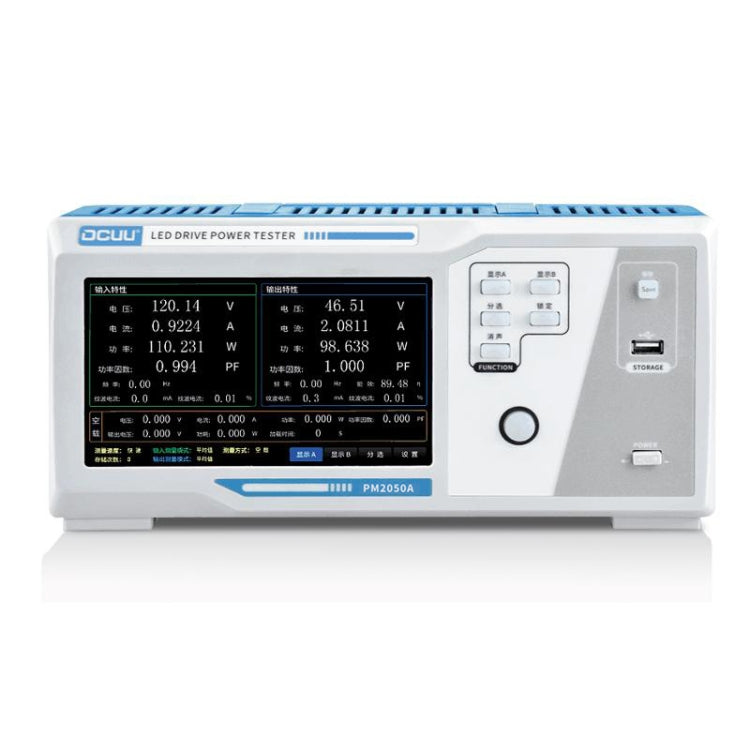

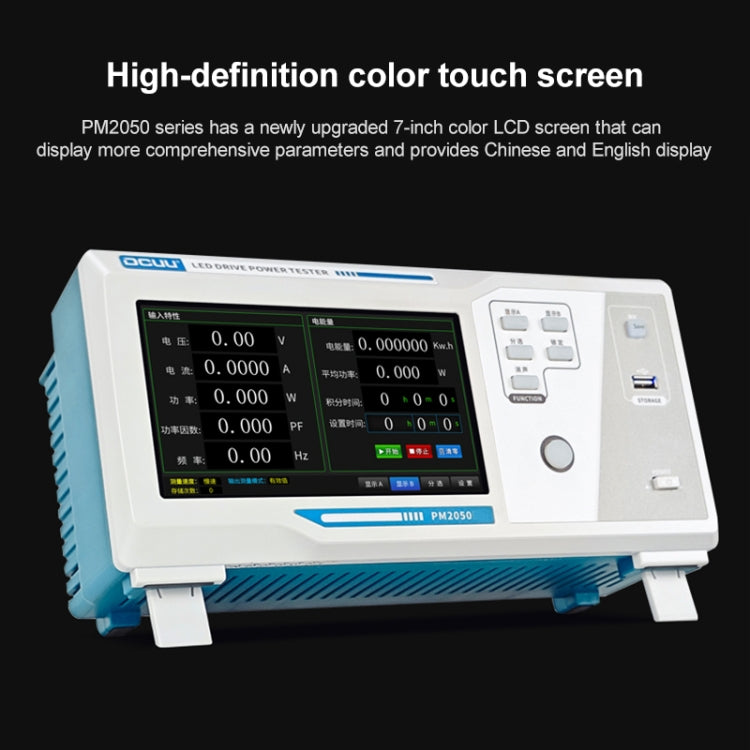

1. The instrument uses a 7-inch color LCD to simultaneously display the parameters of input characteristics and output characteristics (it can also be used as a dual-channel electrical parameter measuring instrument). The readings are intuitive, easy to analyze and compare, and very suitable for technology development and production site testing.
2. The instrument supports AC and DC input and output (PM2050A input is single AC)
3. The instrument can test the input parameters of two products at the same time
4. The test speed can be selected as fast (5 times/second) and slow (1 time/second)

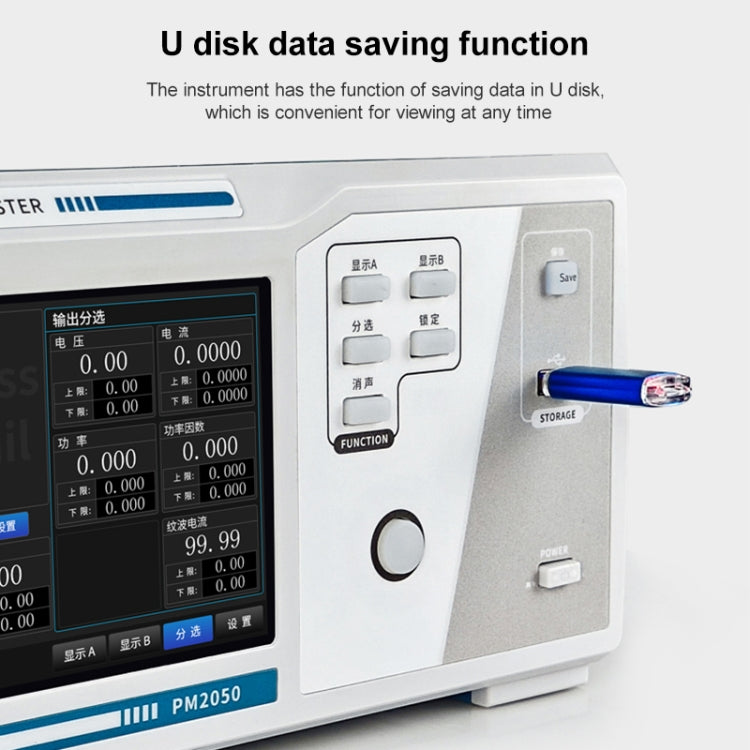

5. The instrument has the function of saving data in a USB flash drive
6. It has a USB communication function (optional when ordered), and can use the dedicated software provided by the host computer to remotely operate, control and read the corresponding data of the instrument, and can display all measurement data on the PC + beautiful interface, simple operation, and high degree of intelligence of the instrument.
Input characteristics (AC)
1. Measurement parameters: voltage, current, power, power factor, frequency string, electric energy
2. Voltage measurement range: 5V~300V
3. Current measurement range: 6mA~20A
4. Basic accuracy: 0.2 level (+/- reading 0.1% + range 0.1%)
5. Power factor: 0.000~+/-1.000
6. Frequency range: AC 45Hz~65Hz
7. Measurement speed: fast (5 times/second), slow (1 time/second)
8. Sorting measurement: voltage, current, power, power factor upper and lower limit setting
Output characteristics (AC/DC)
1. Measurement parameters: voltage, current, power, power factor, frequency string, ripple current, energy efficiency
2. Measurement parameters: voltage, current, power, power factor, frequency string, electric energy
3. Voltage measurement range: 1V~600V
4. Current measurement range: 2mA~10A
5. Basic accuracy: 0.2 level (+/-0.1% of reading + 0.1% of range)
6. Power factor: 0.000~+/-1.000
7. Frequency range: AC 45Hz~65Hz
8. Energy efficiency coefficient: 0%~100%
9. Ripple current: 0.0000A~1A
10. Measurement speed: fast (5 times/second), slow (1 time/second)
11. Sorting measurement: voltage, current, power, power factor, ripple current, upper and lower limit setting of energy efficiency coefficient
Package List
1. Host x 1
2. Power cord x 1
3. Product manual x 1
4. Product certificate x 1
