DC 6-28V 3A PWM Speed Adjustable Reversible Switch DC Motor Driver Reversing
DC 6-28V 3A PWM Speed Adjustable Reversible Switch DC Motor Driver Reversing
In stock
🔥 Buy any 2 items, get 25% off 3rd item 🔥 Save today!
Couldn't load pickup availability
Shipping Guarantee
Shipping Guarantee
FREE SHIPPING on all UK orders. Fully insured.
Handling time: 1 - 3 business days. (Buy2fix has to process your order and put all your items through its strict quality-control tests.)
Transit time is 5 - 10 business days to the UK. Transit times to other countries are displayed at checkout.
Origin: CN
Return Guarantee
Return Guarantee
For whatever reason, if you are unsatisfied with your order within 30 days, you can return it to us in new condition for a refund minus the shipping charges.
The Right Part Guarantee
The Right Part Guarantee
The Right Part, Guaranteed. If we send the wrong part (not as described), our 30-day return policy has you covered. You get a full refund, including the shipping fees.
Hassle-Free Returns
Hassle-Free Returns
Start Your Return in Seconds with Our Easy Online Portal.

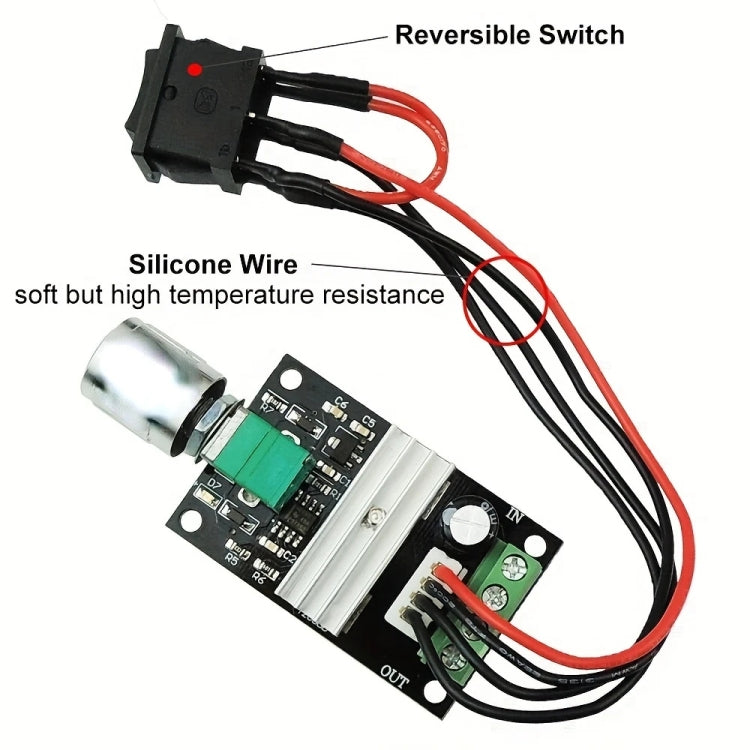

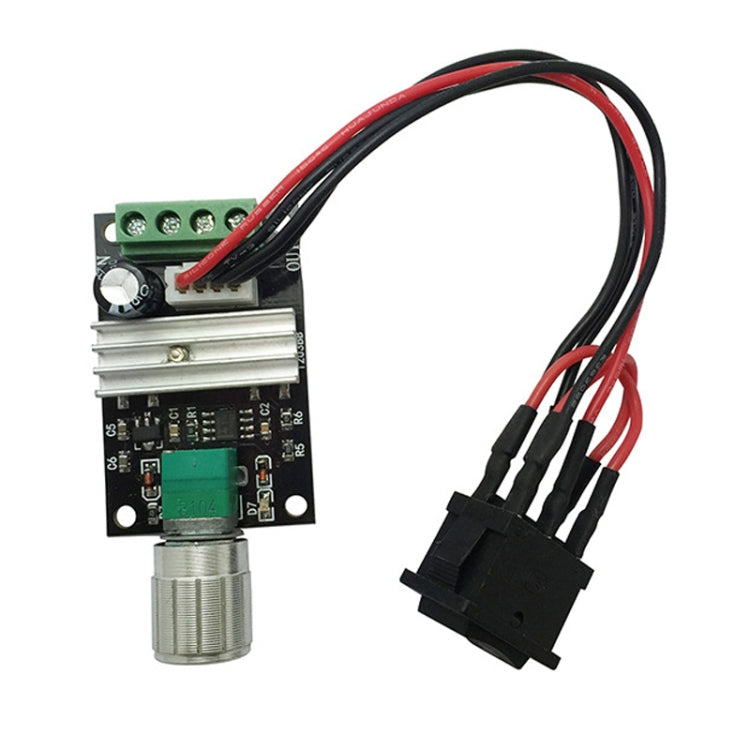

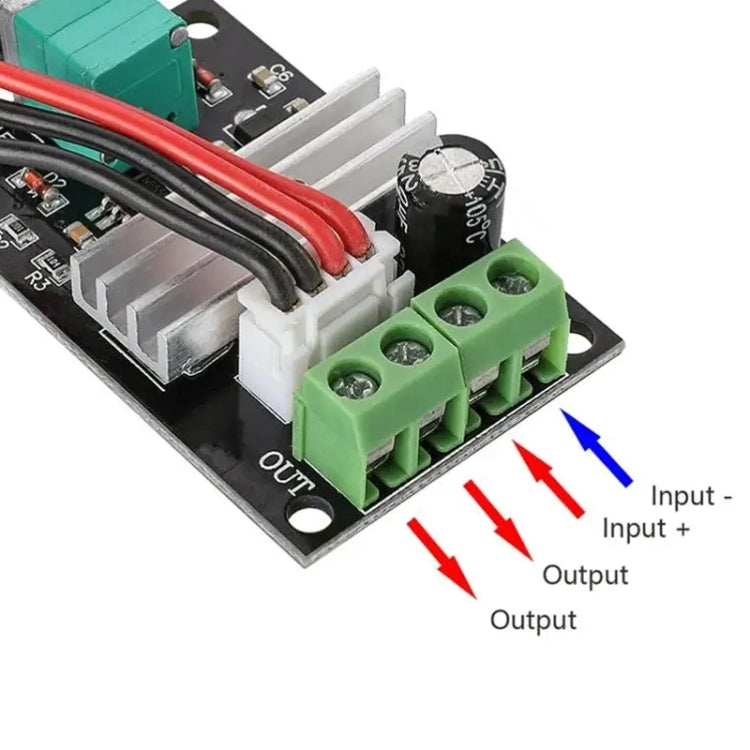

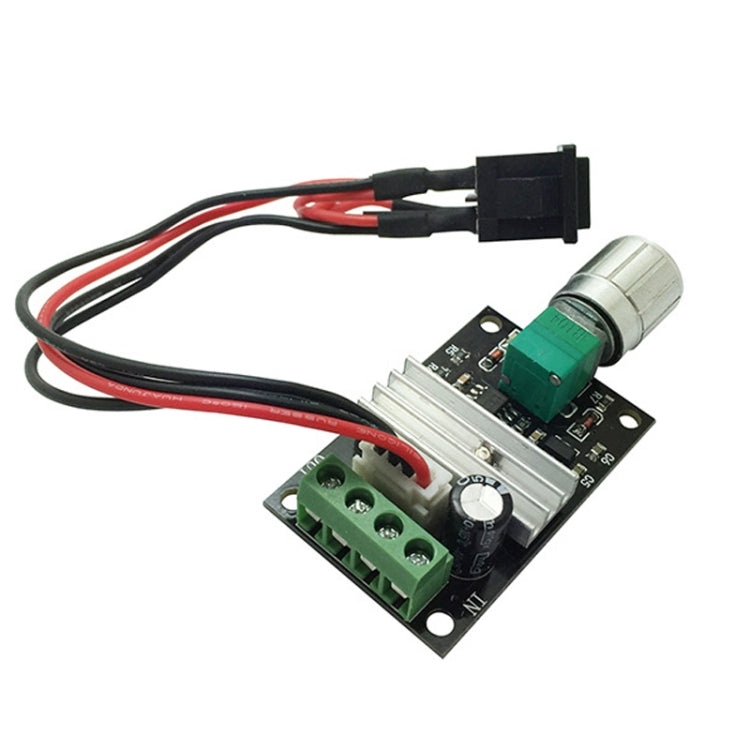

1. The 1203BB DC motor speed regulator controls the speed of the DC motor by adjusting pulse width modulation (PWM). It provides 3A of continuous current to your DC motor or other DC load.
2. The circuit contains a 3A fuse for reverse power supply, and controls the forward, reverse, and stop of the DC motor through a switch.
3. Material: metal
4. Input voltage: DC 6-28V
5. Dimensions: 5 x 3.2 x 1.5cm
6. Weight: 30g
Instructions:
Make sure the power is off before trying to connect the controller.

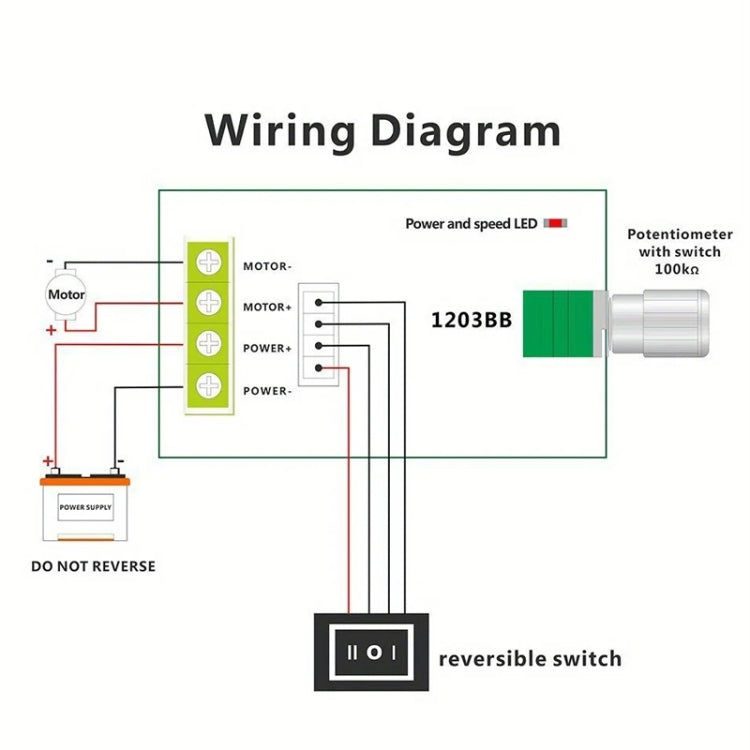

1. Connect the wires according to the wiring diagram.
2. Turn on the power and adjust the potentiometer.
3. LED indicates power on and motor speed.
Warning: Do not connect the positive and negative power supplies reversely. This will damage the controller!
