DC 5V/12V/24V USB Body Infrared PIR Motion Sensor Switch Human Motion Sensor Detector Switch For LED Light Strip(White)
DC 5V/12V/24V USB Body Infrared PIR Motion Sensor Switch Human Motion Sensor Detector Switch For LED Light Strip(White)
In stock
🔥 Buy any 2 items, get 25% off 3rd item 🔥 Save today!
Couldn't load pickup availability
Shipping Guarantee
Shipping Guarantee
FREE SHIPPING on all UK orders. Fully insured.
Handling time: 1 - 3 business days. (Buy2fix has to process your order and put all your items through its strict quality-control tests.)
Transit time is 5 - 10 business days to the UK. Transit times to other countries are displayed at checkout.
Origin: CN
Return Guarantee
Return Guarantee
For whatever reason, if you are unsatisfied with your order within 30 days, you can return it to us in new condition for a refund minus the shipping charges.
The Right Part Guarantee
The Right Part Guarantee
The Right Part, Guaranteed. If we send the wrong part (not as described), our 30-day return policy has you covered. You get a full refund, including the shipping fees.
Hassle-Free Returns
Hassle-Free Returns
Start Your Return in Seconds with Our Easy Online Return Portal.

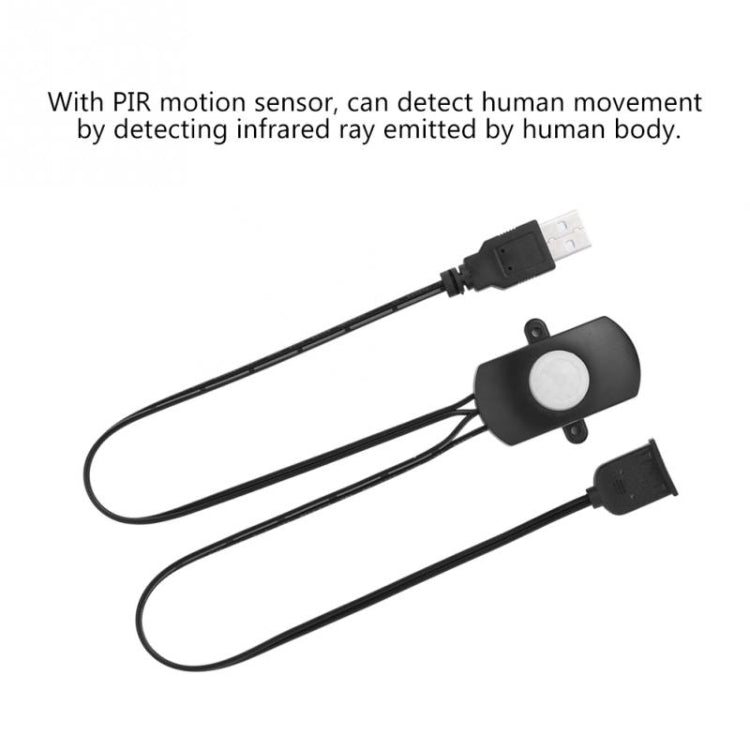

1.With PIR motion sensor, it can detect human movement by detecting infrared ray emitted by human body.

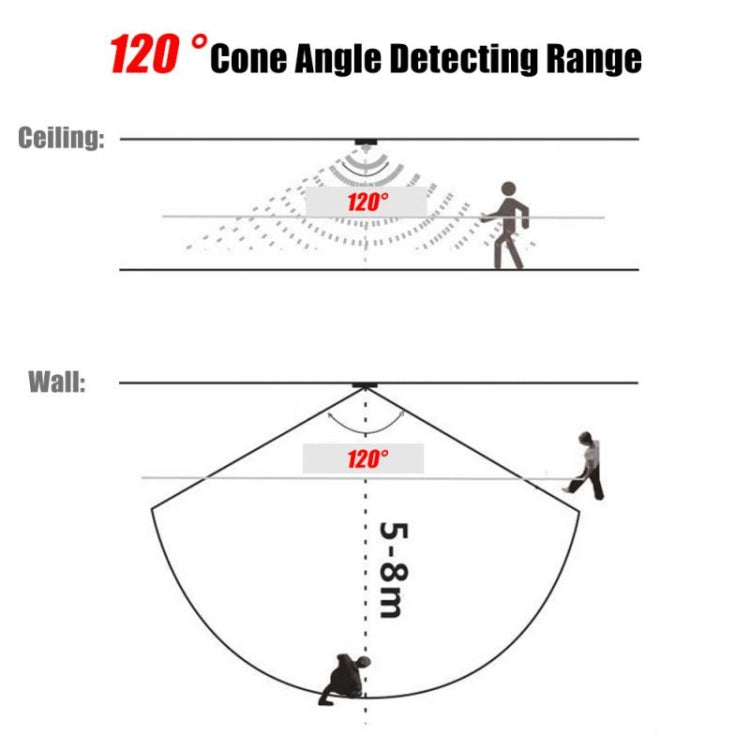

2.120 degrees cone angle detecting range. High and stable sensitivity, effectively save energy and improve efficiency.
3.Intelligent sensing, it will automatically delay to shut down after the person leaves.

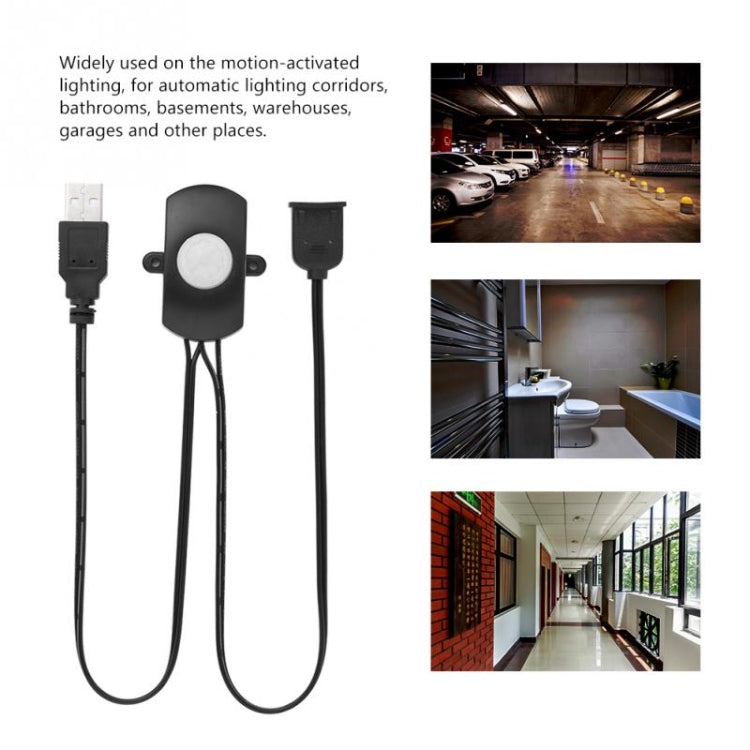

4.Widely used on the motion-activated lighting, for automatic lighting corridors, bathrooms, basements, warehouses,garages and other places.

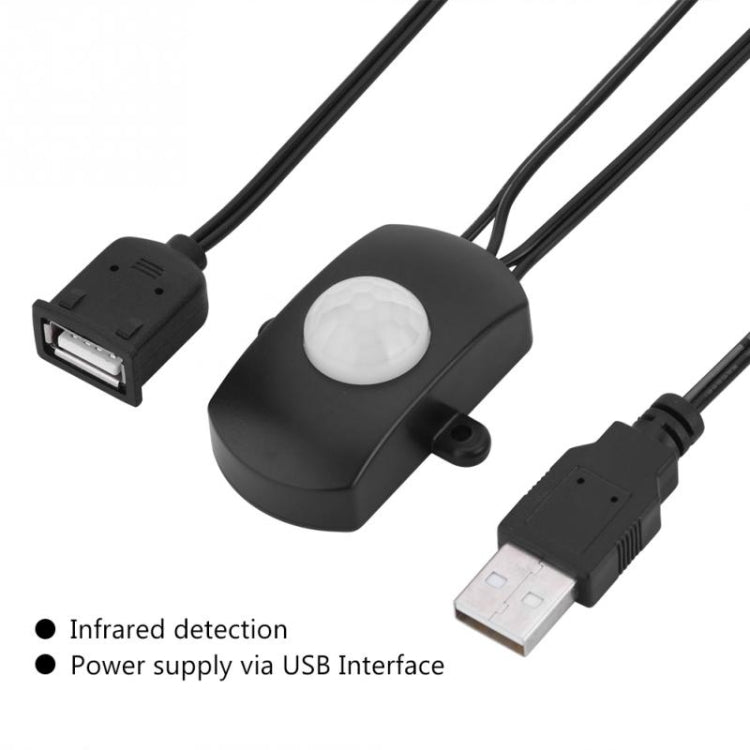

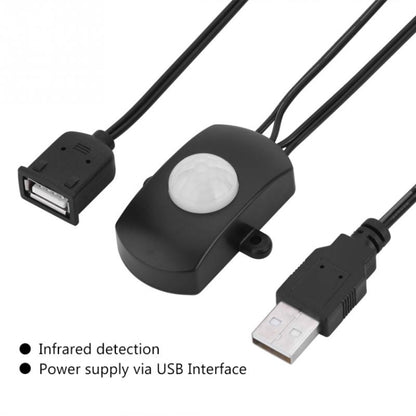

5.USB port make it convenient and simple to standby. Power supply via mobile phone, charging bank or other devices with USB port, Output voltage is equal to input voltage, low power consumption.
6.Built-in temperature compensation chip, reducing the impact sensing distance by the temperature.
Specifications:
1.Operating voltage: 5V-24 DC
2.Output current: 5A
3.Working temperature: -15~38 Celsius
4.Function: Infrared human body sensor switch
5.Quiescent current: <50uA
6.Trigger mode: Continuous trigger
7.Output Mode: Inductive Output
8.Sensing distance: 5-7m
9.Sensing angle: 120 degrees
10.Induction mode: Passive
11.Time Range: Default setting 15s, Adjustable
