CZI GL60 Plus Gimbal Searchlight For DJI M200V2, M300RTK And Other Series Of Drones
CZI GL60 Plus Gimbal Searchlight For DJI M200V2, M300RTK And Other Series Of Drones
Exclusive Deals End Soon!
Save 5% on 2+ Items • Save 10% 3+ Items • Save 15% on 10+ Items
Applies automatically in cart & checkout • No code needed
Estimated delivery:
Couldn't load pickup availability
Shipping Information
Shipping Information
FREE SHIPPING to UK & 40+ countries. Fully insured.
Delivery: Estimated times shown at checkout based on your location (typically 6-13 days total including 1-3 days handling)
No hidden fees on orders under £135 (orders over £135 may have import duties)
Ships from China via tracked DDP service. Order by 12 AM London time for next-day dispatch.
30-Day Money-Back Guarantee
30-Day Money-Back Guarantee
Return unused items within 30 days (you pay return shipping). Faulty items covered at no cost to you.
Right Part Guarantee
Right Part Guarantee
Get exactly what you ordered or your money back, including shipping. 30 days, no questions asked.
Hassle-Free Returns
Hassle-Free Returns
Start your return online in seconds. No forms, no hassle.
Trusted by 80,000+ DIY & repair professionals

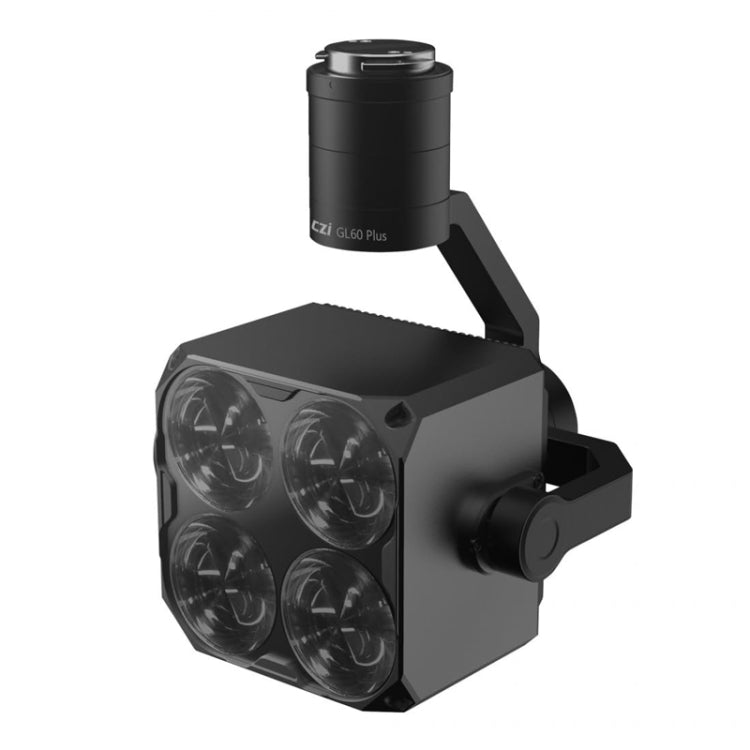

1. The GL60 Plus gimbal lamp uses 4 sets of optical imaging components, each of which is composed of 4 lenses, emitting a sharp beam of light with an angle of only 15 degrees, with consistent color and uniform brightness. At 120w, the central illumination value of the light spot at 100m is as high as 24lux; at an illumination height of 150m, the effective illumination area is as high as 1225 square meters, which brings the aerial illumination effect of drone night operations to a new height.

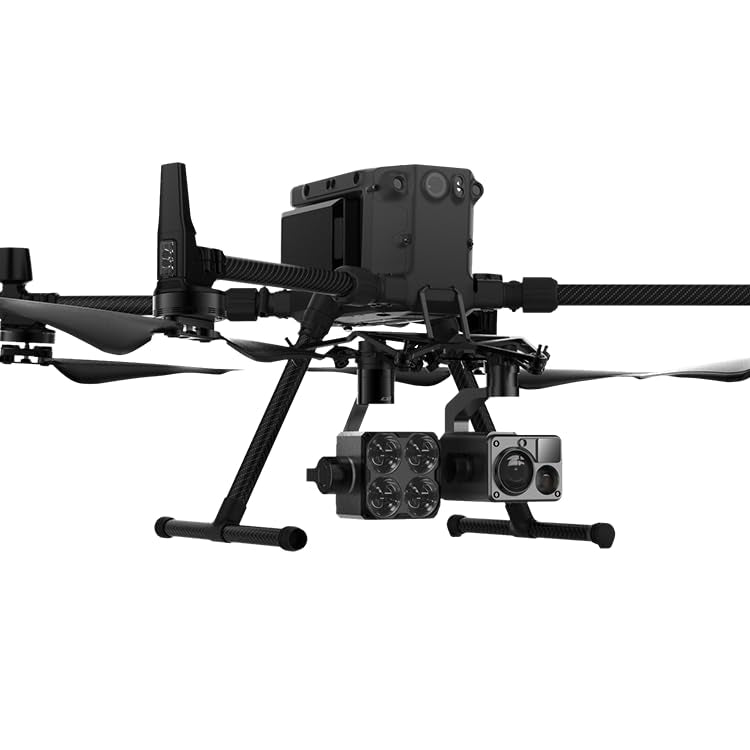

2. The overall ultra-lightweight design weighs only 750 grams, with a rated power of up to 120W. Through the DJI SkyPort V2.0 interface, it is compatible with DJI M200 V2, M300 RTK, and other series of drones, and can meet the needs of night inspections, warnings and expulsions, direction indications, power line inspections, search and rescue, and other night operations.
Parameters:
1. Electrical interface: DJI SkyPort V2.0
2. Weight: 750g
3. Size: 126x131x167mm
4. FOV: 15 degrees
5. Power supply voltage: PSDK 17V+OSDK 24V
PSDK 17V
6. Total power: 128W, 68W
7. LED power: 120W, 60W
8. Color temperature: 5000~6000K
9. Luminous flux:
--13400lm+/-3% (power: 120W)
--8000lm+/-3% (power: 60W)
10. Light efficiency:
--111.67lm/W (power: 120W)
--133.33lm/W (power: 60W)
11. Spot diameter:
--13.2m (distance: 50m, 120W)
--26.4m (distance: 100m, 120W)
--39.5m (distance: 50m, 120W)
--13.2m (distance: 50m, 60W)
--26.4m (distance: 100m, 60W)
--39.5m (distance: 150m, 60W)
12. Searchlight area:
--136 square meters (distance: 50m, 120W)
--544 square meters (distance: 100m, 120W)
--1225 square meters (distance: 150m, 120W)
--136 square meters (distance: 50m, 60W)
--544 square meters (distance: 100m, 60W)
--1225 square meters (distance: 150m, 60W)
13. Center illumination:
--85Lux (power: 120W; distance: 50m)
--23Lux (power: 120W; distance: 100m)
--11Lux (power: 120W; distance: 150m)
--45Lux (power: 60W; distance: 50m)
--12Lux (power: 60W; distance: 100m)
--6Lux (power: 60W; distance: 150m)
14. Function mode:
--Constant light: 120W, 60W
--Flash: 120W, 60W
--Gimbal angle adjustment
--Auto follow
--Brightness adjustment
15. Gimbal rotation range:
--Pitch: -99~+23 degrees
--Horizontal: +/-99 degrees
16. Gimbal design range:
--Pitch: -100~+24 degrees
--Horizontal: +/-100 degrees
--Roll: -90~+60 degrees
17. Working temperature: -20~+50 degrees Celsius
Guaranteed fit for your device. Wrong part? Full refund including shipping.
