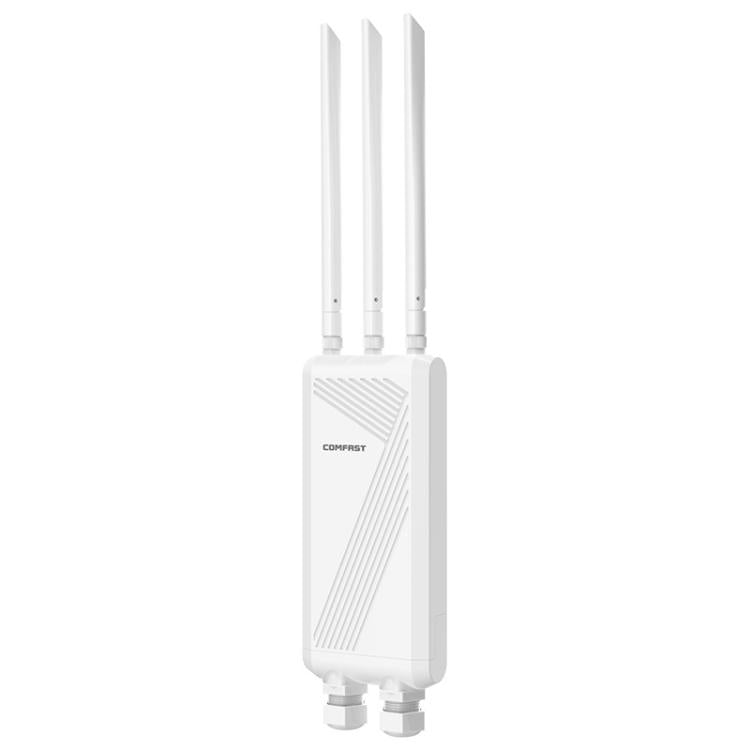

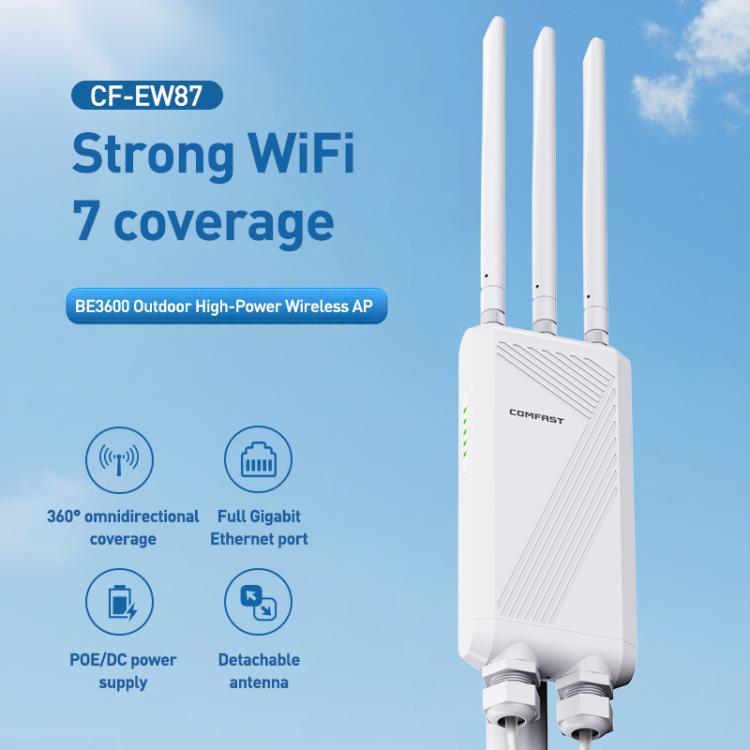

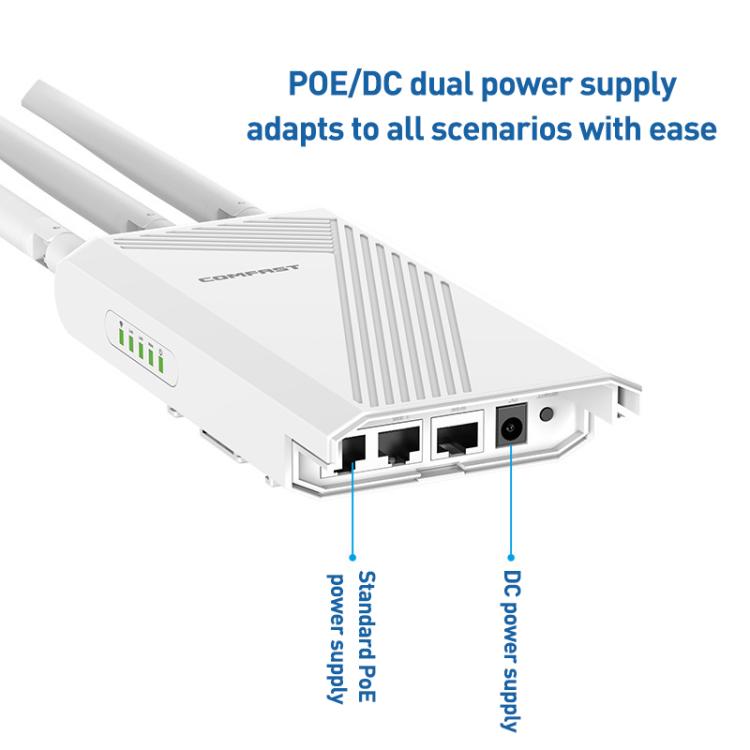

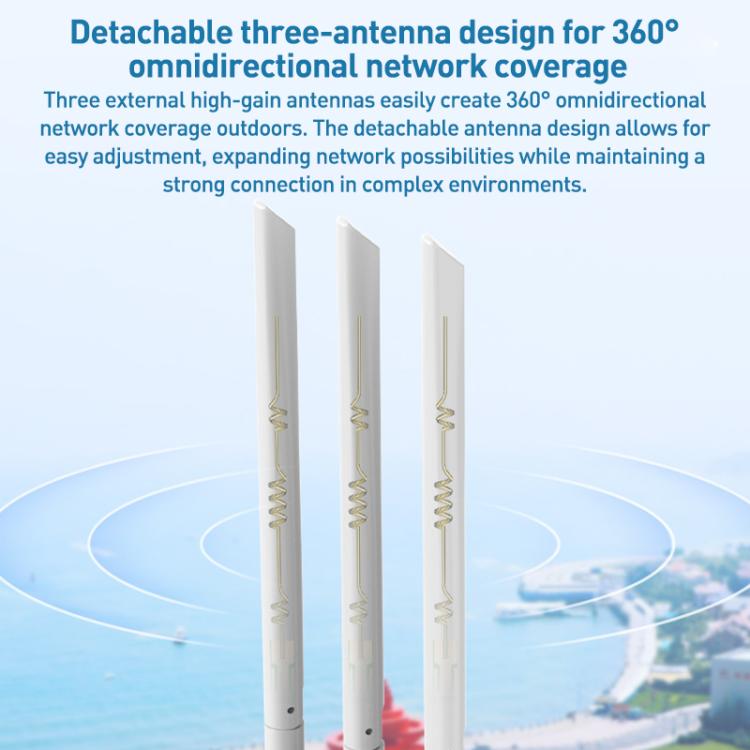

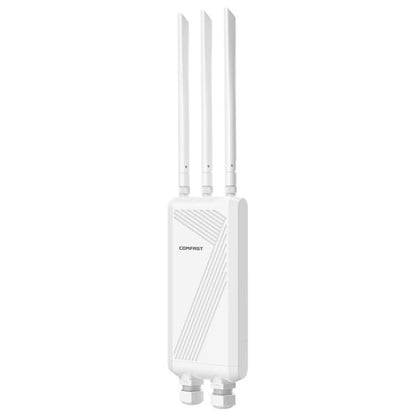

Feature 1. Wi-Fi 7 3600 Mbps high-power omnidirectional outdoor AP, with a coverage radius of 240-600 meters, supporting over 200 high-bandwidth devices, 66 2.4 GHz devices, and approximately 134 5.8 GHz devices. 2. IPQ5312+QCN6412+QCA8337 chipset solution for stable performance. 3. 3600 Mbps wireless speed, high-speed transmission, and an enhanced internet experience. 4. Concurrent 2.4 GHz and 5.8 GHz dual-band operation for a more stable signal and effective interference rejection. 5. Supports IEEE 802.11a/b/g/n/ac/ax/be protocols. 6. Dual-mode POE/DC power supply, high-gain detachable antenna. 7. Tightly designed outdoor enclosure, waterproof, lightning-proof, moisture-proof, and frost-resistant. 8. Can be used as an outdoor Wi-Fi base station. 9. Suitable for outdoor locations such as plazas, resorts, and scenic spots

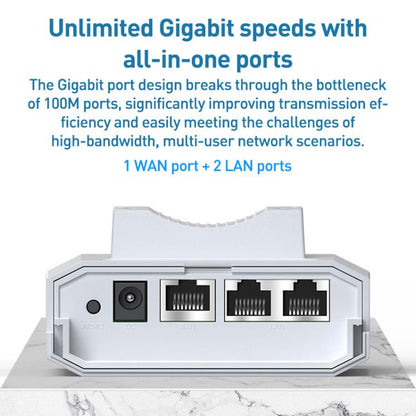

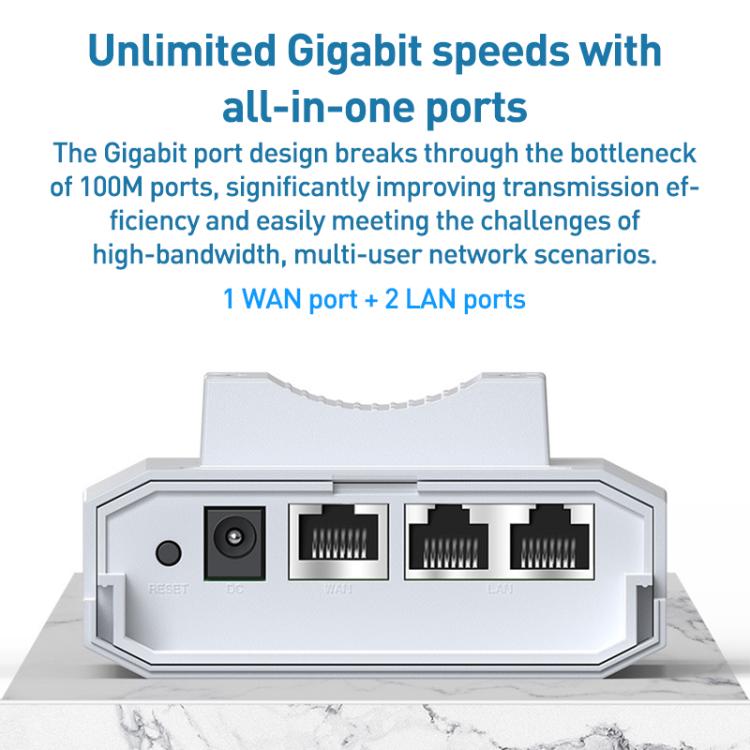

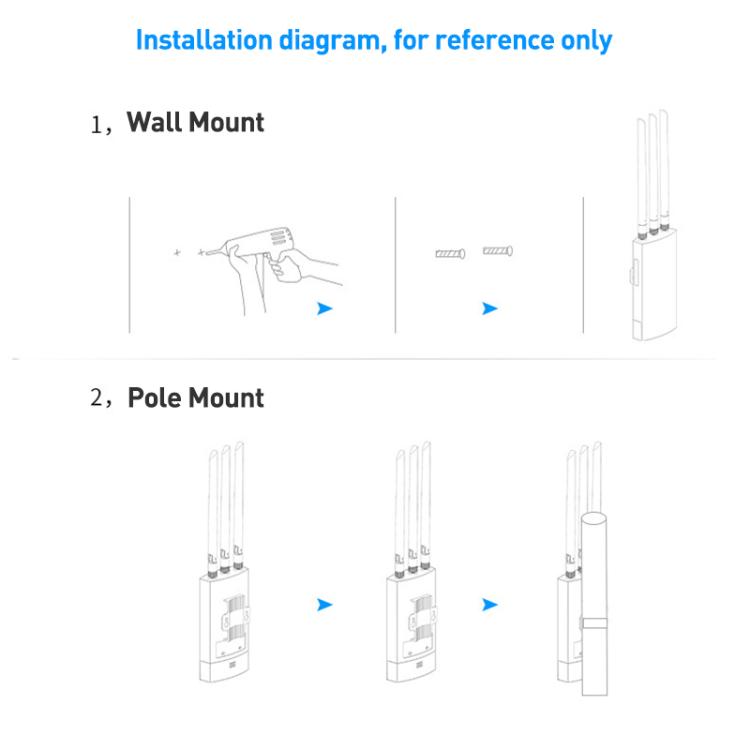

Specifications 1. Solution: IPQ5312 + QCN6412 + QCA8337 Chipset 2. Memory: 512MB, Flash: 128MB 3. Antennas: 3 x 5dBi external omnidirectional antennas 4. Wireless Rate: 2.4GHz: 688Mbps, 5.8GHz: 2882Mbps 5. Physical Interfaces: 1 10/100/1000Mbps WAN RJ45 port, 2 10/100/1000Mbps LAN RJ45 ports, 1 RESET button, 1 DC connector 6. Power Supply: POE 48V/0.32A, DC 12V 1.5A 7. Power Consumption: Less than 18W 8. Protection Rating: IP66 9. Mounting: Wall-mount or pole 12. Dimensions: 90x388mm (excluding antennas), Antenna: 188mm 13. Operating Temperature: -10°C to 55°C 14. Storage Temperature: -40°C to 70°C 15. Operating Humidity: 10% to 90% RH (non-condensing) 16. Storage Humidity: 5% to 90% RH (non-condensing)
RF Parameters: 1. Maximum Transmit Power: 26dBm (400mW) 2. Minimum Receive Sensitivity: -96dBm 3. Operating Frequency: 802.11ac/a: 5.180GHz to 5.825GHz, 802.11b/g/n: 2.412GHz to 2.472GHz
