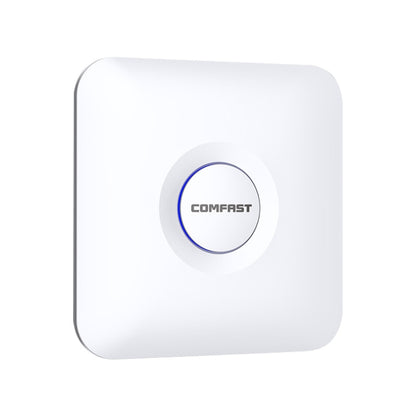

Features 1. Qualcomm three chips, stable performance 2. 1300Mbps dual-band, Gigabit Ethernet port 3. 48V standard POE power supply, remote power supply 4. Support users 160+ max 5. Memory 128M, flash memory 16M 6. Transmit power 500mW (27dBm) max
Specification 1. Hardware Specifications: Qualcomm, QCA9563+QCA8337+QCA9886 chip solution Memory: 128MB Flash: 16MB Power amplifier chip: 2.4G SKY85330, 5.8G SKY85735-11 Configure the watchdog chip 2. Antenna Specifications: Built-in hardware smart antenna system, 5 x 3dBi 3. Wireless speed: 2.4GHz: 450Mbps/5GHz: 867Mbps 4. RF parameters: Transmit power: 200mW (23dBm) Receive sensitivity: -96dBm Operating frequency: 5.8GHz: 5.18-5.825GHz, 2.4GHz: 2.412GHz-2.472GHz 5. Modulation technology: DSSS: DBPSK@1Mbps, DQPSK@2Mbps, CCK@5.5/11Mbps OFDM: DBPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps MIMO-OFDM(11n): MCS 0-23 MIMO-OFDM(11ac): MCS 0-29 6. Physical interface: 1 10/100/1000Mbps WAN RJ45 port, support POE power supply 1 10/100/1000Mbps LAN RJ45 port, support POE power supply 1 RESET reset button 7. Indicator light: 1 tri-color indicator light 8. Power supply: Power supply mode: POE power supply, support 802.3af/802.3at standard Power adapter: 48V 0.32A POE power adapter 9. Power consumption: less than 13W 10. Shell material: ABS 11. Dimensions: 220 x 220 x 35mm 12. Weight: 0.38kg
