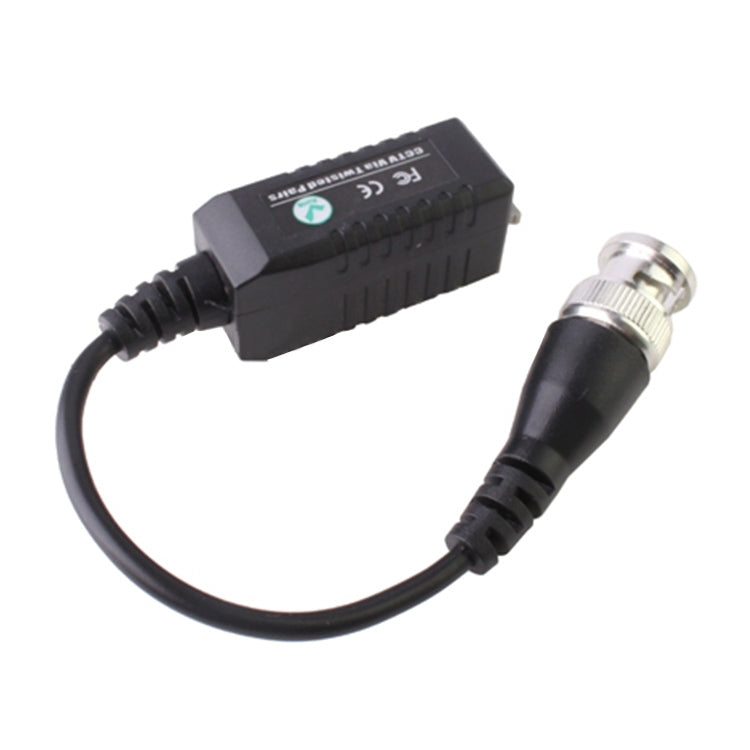

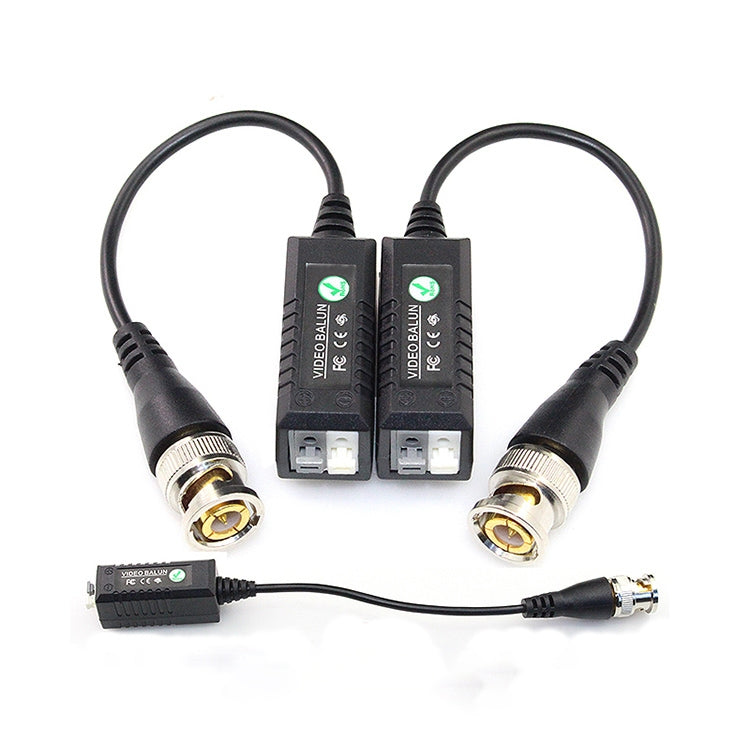

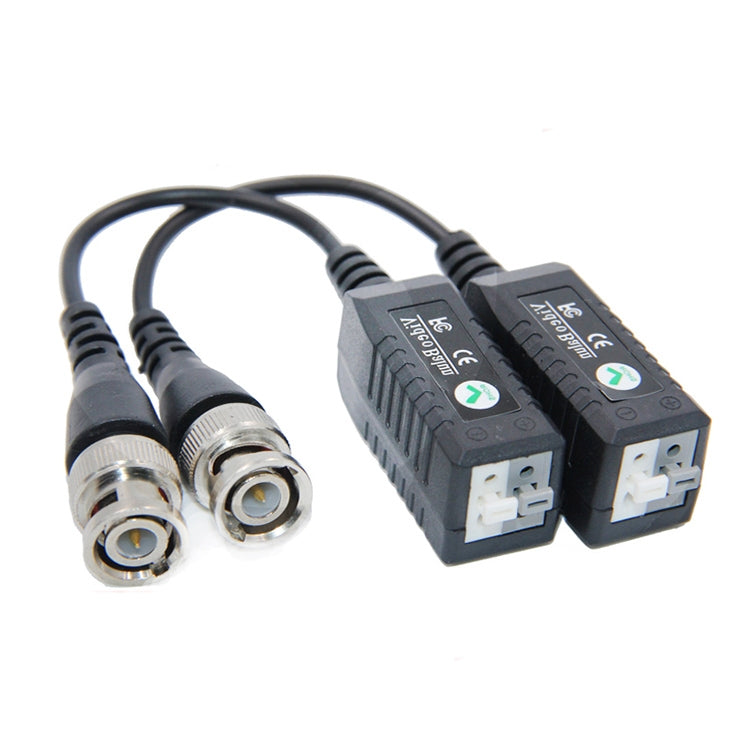

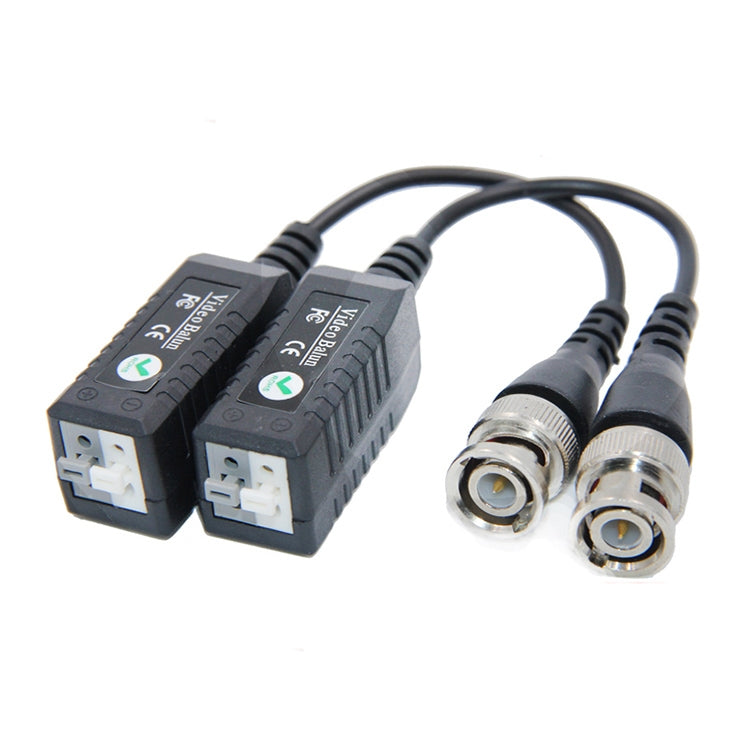

CCTV Via Twisted Pairs Passive UTP Video Transceiver(Black)
CCTV Via Twisted Pairs Passive UTP Video Transceiver(Black)
In stock
🔥 Buy any 2 items, get 25% off 3rd item 🔥 Save today!
Couldn't load pickup availability
Shipping Guarantee
Shipping Guarantee
FREE SHIPPING on all UK orders. Fully insured.
Handling time: 1 - 3 business days. (Buy2fix has to process your order and put all your items through its strict quality-control tests.)
Transit time is 5 - 10 business days to the UK. Transit times to other countries are displayed at checkout.
Origin: CN
Return Guarantee
Return Guarantee
For whatever reason, if you are unsatisfied with your order within 30 days, you can return it to us in new condition for a refund minus the shipping charges.
The Right Part Guarantee
The Right Part Guarantee
The Right Part, Guaranteed. If we send the wrong part (not as described), our 30-day return policy has you covered. You get a full refund, including the shipping fees.
Hassle-Free Returns
Hassle-Free Returns
Start Your Return in Seconds with Our Easy Online Return Portal.
1. Fulll-motion CCTV video at distances up to 330m when used with any passive transceiver
2. Up to 1500m with any active UTP Video receiver

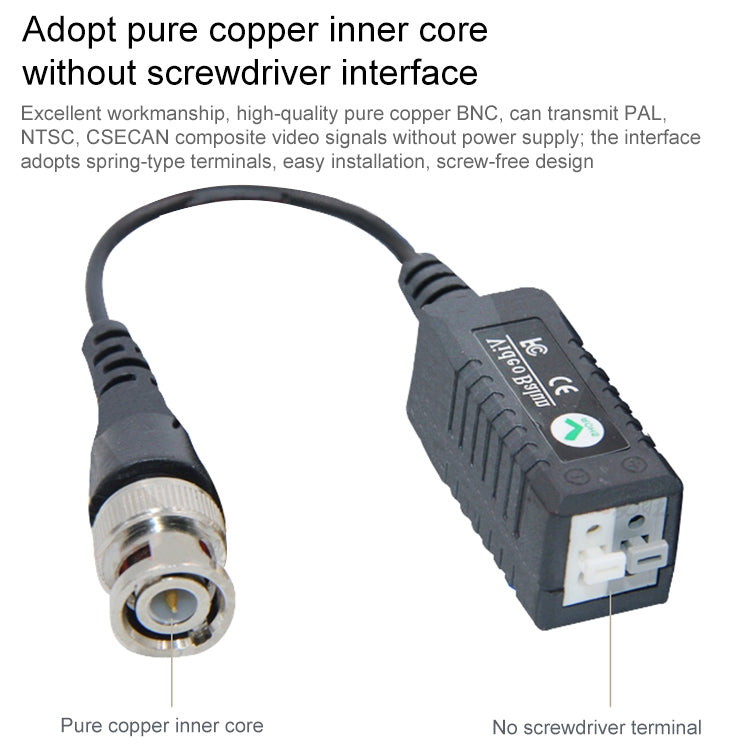

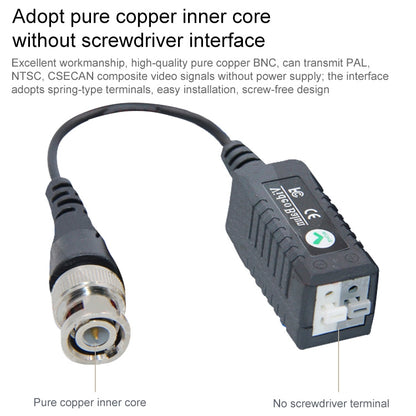

3. "Press-Fit" terminal block
4. NTSC, PAL, and SECAM video formats
5. No power required
6. 60dB crosstalk and noise immunity
7. Compact size and easy installation
Technical Specifications:
1. Frequency response: DC to 8MHZ
2. Attenuation: 0.5dB typ
3. Impedance: BNC:75 ohms, CMRR: 60dB; Terminal: 100 ohms
4. Working Temperature: -10 degree C to + 70 degree C
5. Storage Temperature: -30 degree C to + 70 degree C
6. Humidity: 0 to 95%
7. Dimension: 39mm x 16mm x 19mm
