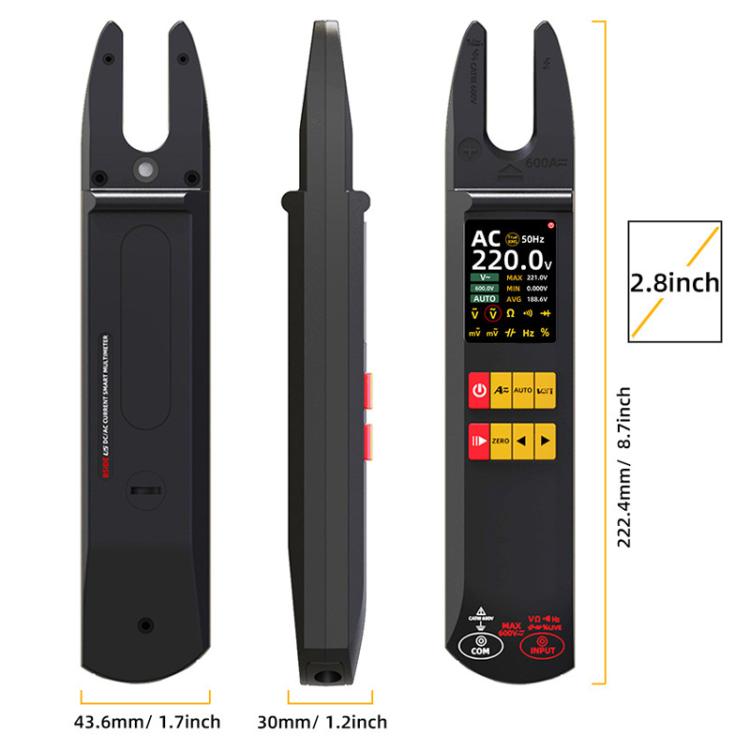

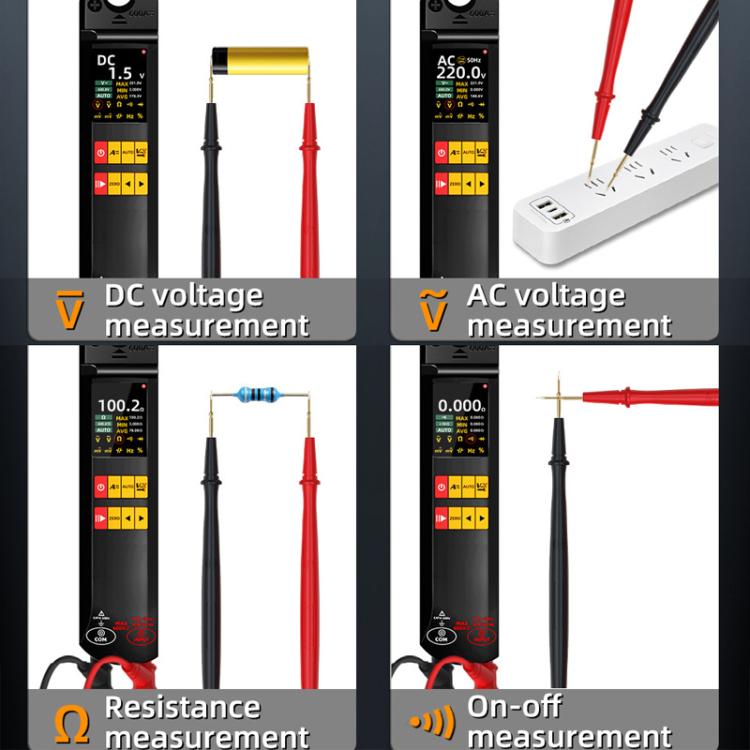

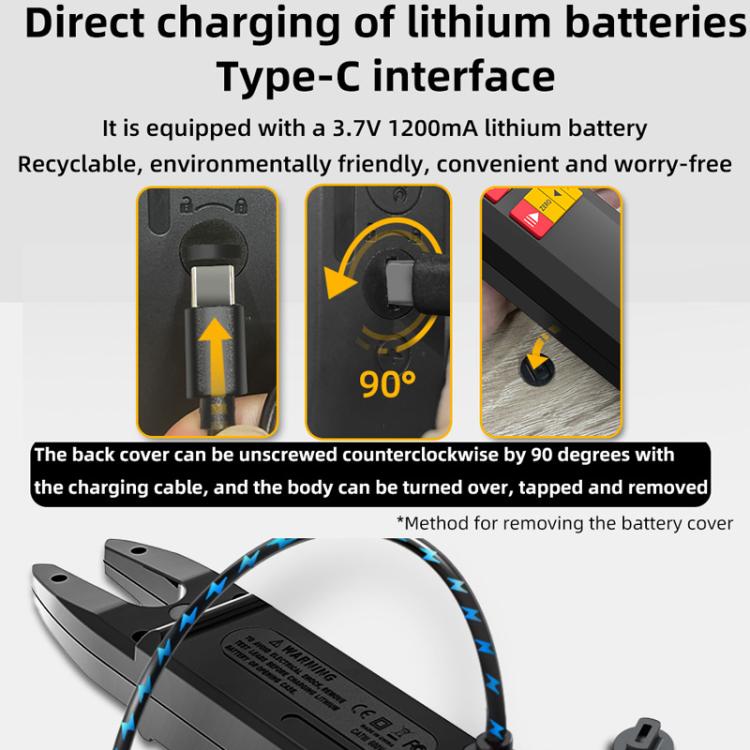

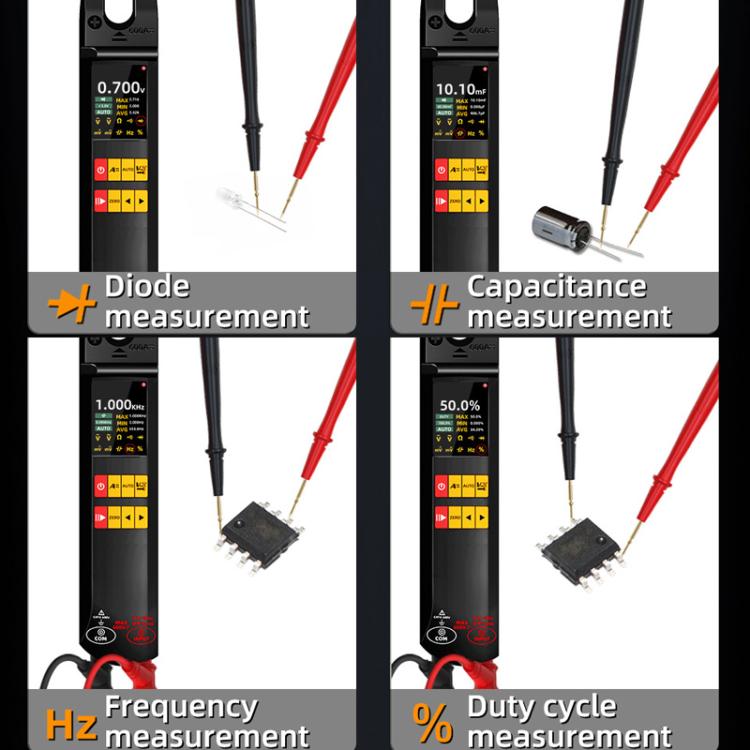

1. DC/AC voltage (V) range/resolution: 6.000V/0.001V, 610V/1V 2. DC/AC voltage (mV) range/resolution: 60.00mV/0.01mV, 600.0mV/0.1mV 3. DC current range/resolution: 1.0-600.0A/0.1A 4. AC current range/resolution: 1-600.0A (40-999Hz)/0.1A 5. Capacitance range/resolution: 0.010-599.9uF/0.1uF, 0.600-60.0mF/0.01mF 6. Resistance range/resolution: 0.0-599.9 ohm/0.1 ohm, 0.600-599.9 kilohm/0.1 kilohm, 0.600-5.999 megohm/0.001 megohm, 6.00-60.00 megohm/0.01 megohm 7. Frequency range/resolution: 1.000-999.9Hz/0.001-0.1Hz, 1.000-999.9kHZ/0.001-0.1kHz, 1.000-9.999ΜΗz/0.001MHz 8. Duty cycle range/resolution: 10.0%-95.0%/0.1% 9. Other functions: diode, on/off, LIVE, automatic shutdown 10. Battery capacity: 1200mAh 11. Charging port: Type-C 12. Size: about 22.24 x 4.36 x 3cm 13. Weight: about 146.5g

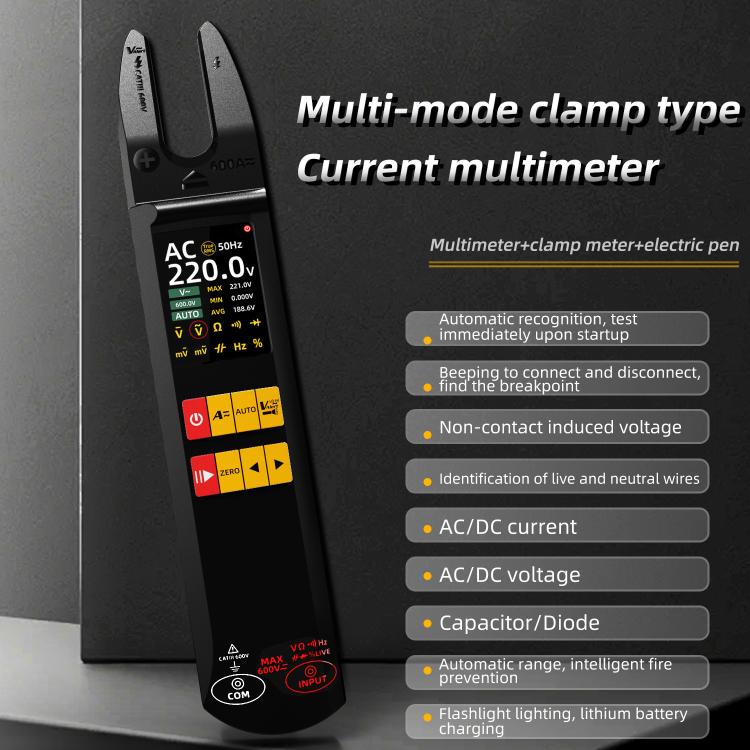

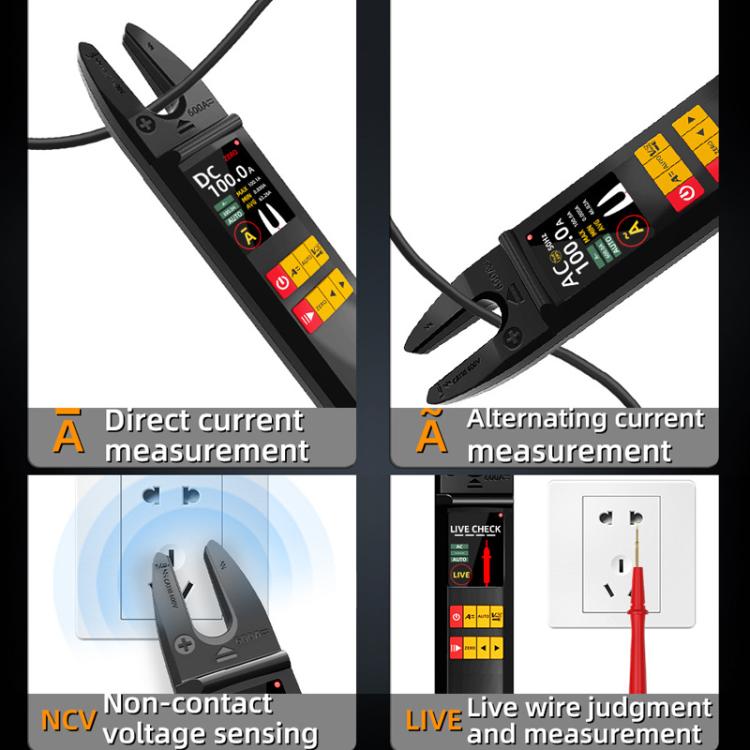

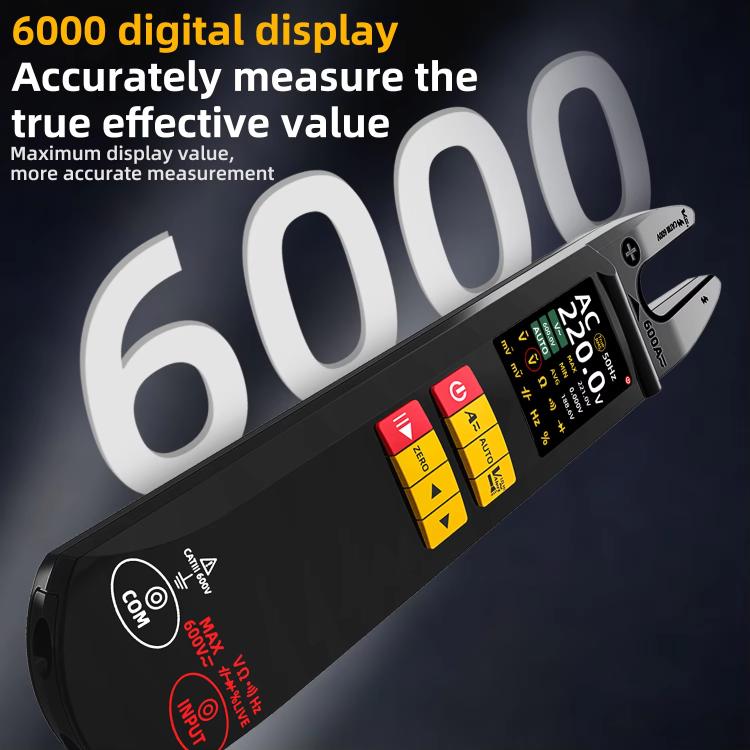

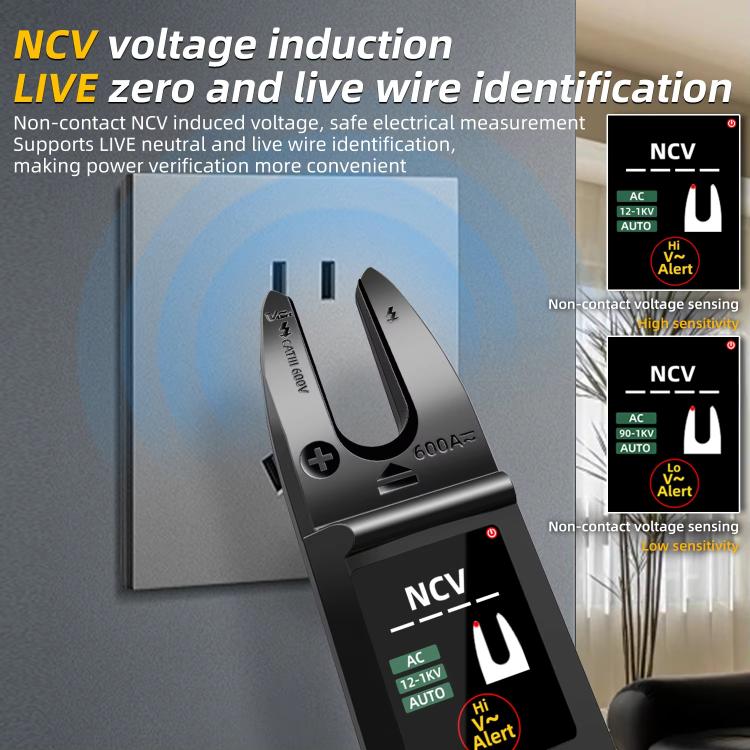

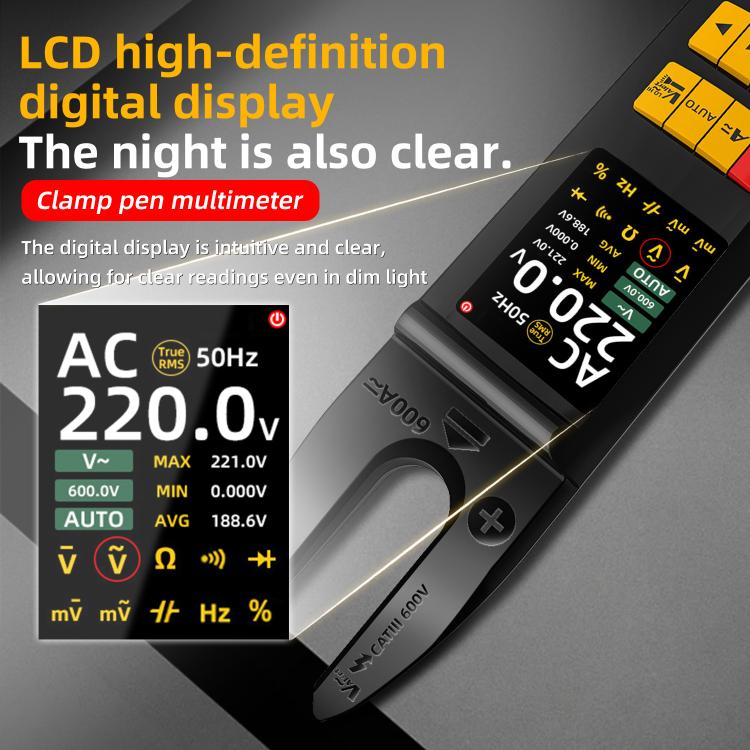

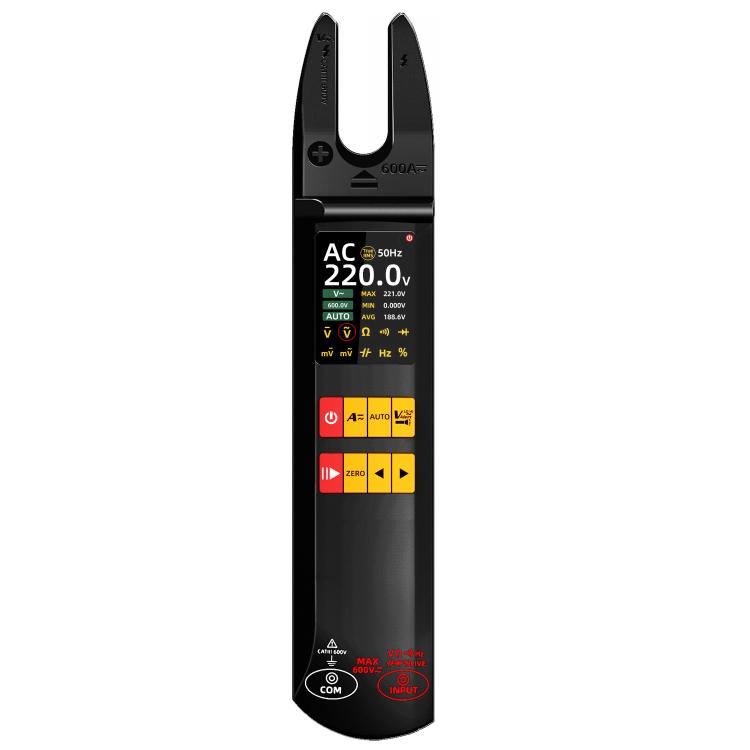

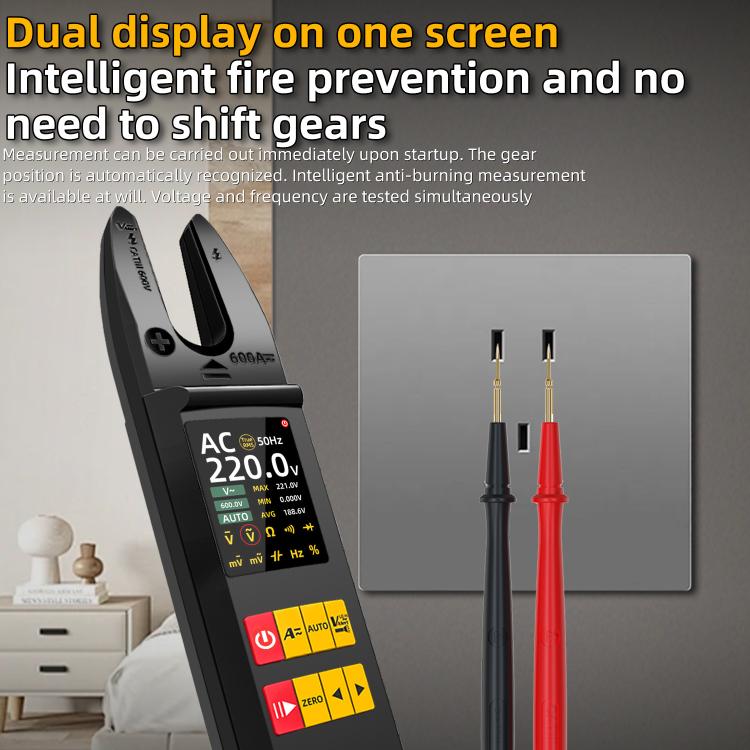

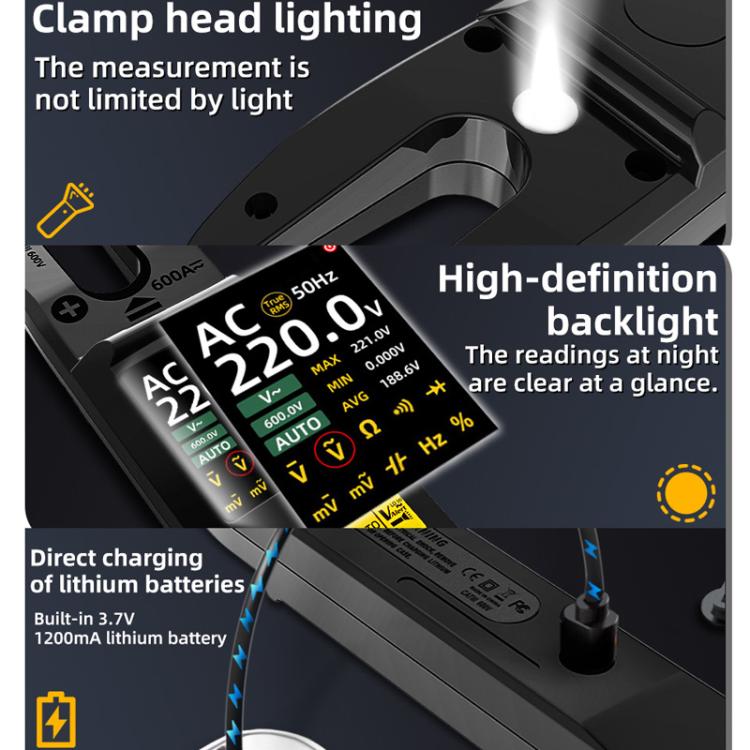

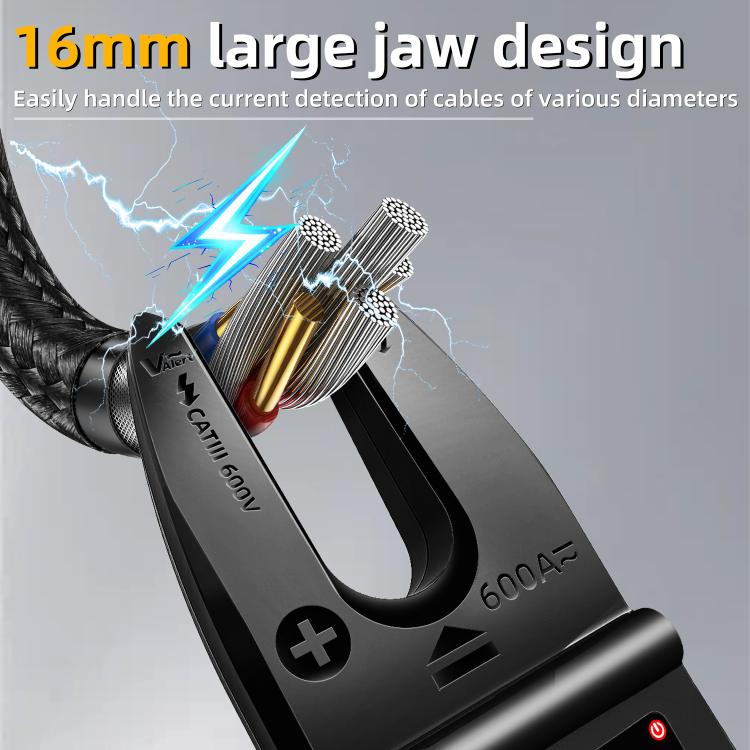

Features: 1. LCD high-definition digital display, intuitive and clear, can read clearly even in dim light 2. Turn on the power to measure, automatic gear recognition, intelligent anti-burning measurement, voltage and frequency synchronization test 3. 16mm large jaw design, easy to deal with current detection of cables of various diameters 4. 6000 digital display precision measurement, true effective value, maximum display value, more accurate measurement 5. Non-contact NCV induction voltage, safe electricity measurement, support LIVE zero and live wire identification, more convenient electricity testing 6. Built-in 3.7V 1200mAh lithium battery, recyclable, environmentally friendly, convenient and worry-free 7. Clamp head lighting, measurement is not limited by light

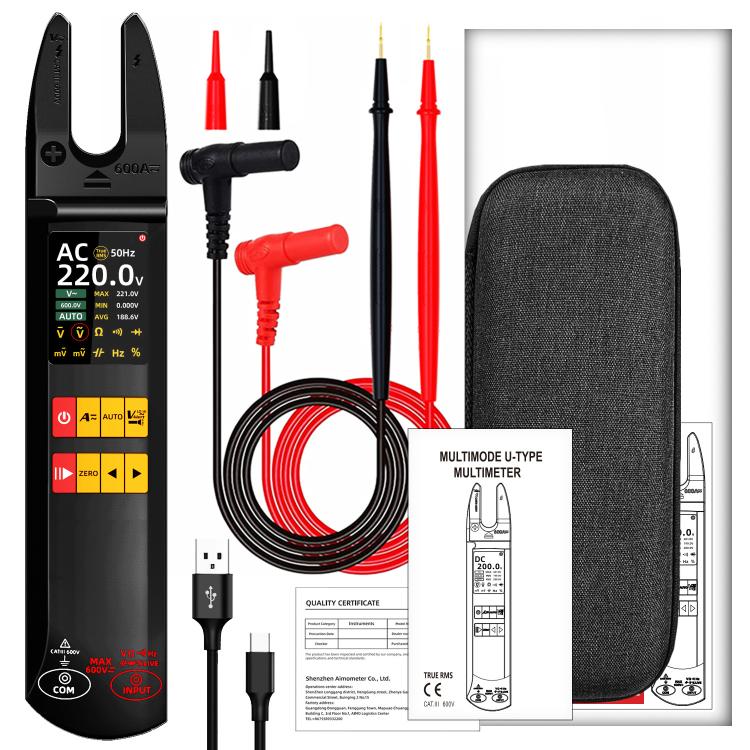

Packing list: - Clamp meter x 1 - Data cable x 1 - Manual x 1 - Storage bag x 1 - Test pen x 1
