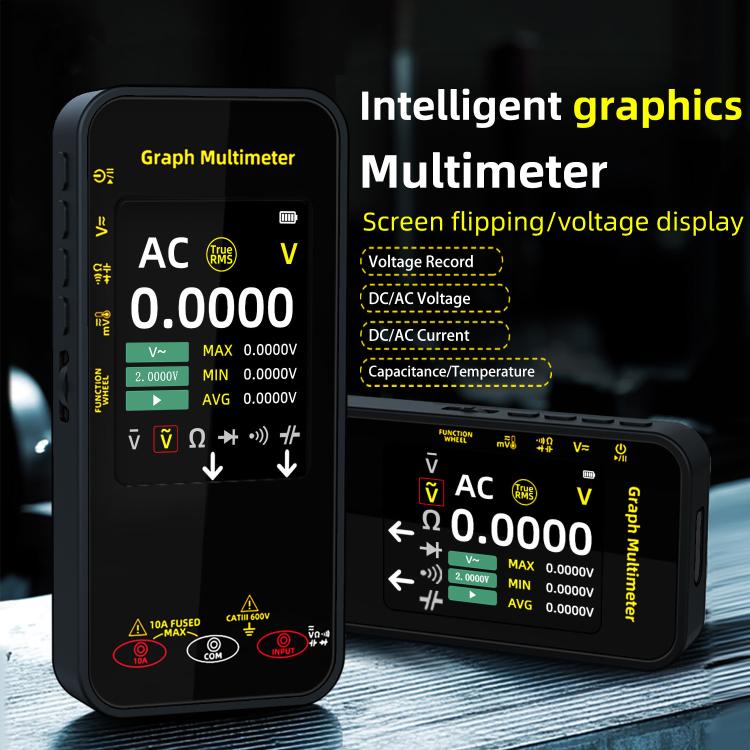

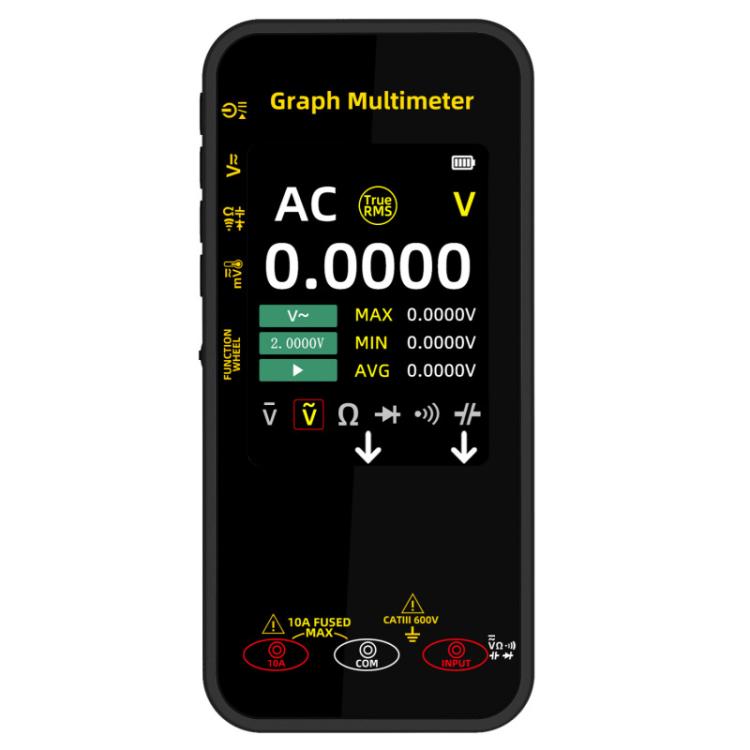

BSIDE S500 High-Precision Digital Graphic Recording Multimeter Color Screen 20000-Character Multimeter

Name: BSIDE S500 High-Precision Digital Graphic Recording Multimeter Color Screen 20000-Character Multimeter
Brand: BSIDE
SKU: TBD0606126101
Availability: InStock

$81.00

Sale Sold out

In Stock - Ships in 1-3 Days

Estimated delivery:

Free Shipping

30-Day Returns

1-Year Warranty

Shipping Information

FREE SHIPPING to UK & 40+ countries. Fully insured.

Delivery: Estimated times shown at checkout based on your location (typically 6-13 days total including 1-3 days handling)

No hidden fees on orders under £135 (orders over £135 may have import duties)

Ships from China via tracked DDP service. Order by 12 AM London time for next-day dispatch.

Full shipping policy →

30-Day Money-Back Guarantee

Return unused items within 30 days (you pay return shipping). Faulty items covered at no cost to you.

Full policy →

Right Part Guarantee

Get exactly what you ordered or your money back, including shipping. 30 days, no questions asked.

Hassle-Free Returns

Start your return online in seconds. No forms, no hassle.

Return portal →.

Trusted by 80,000+ DIY & repair professionals

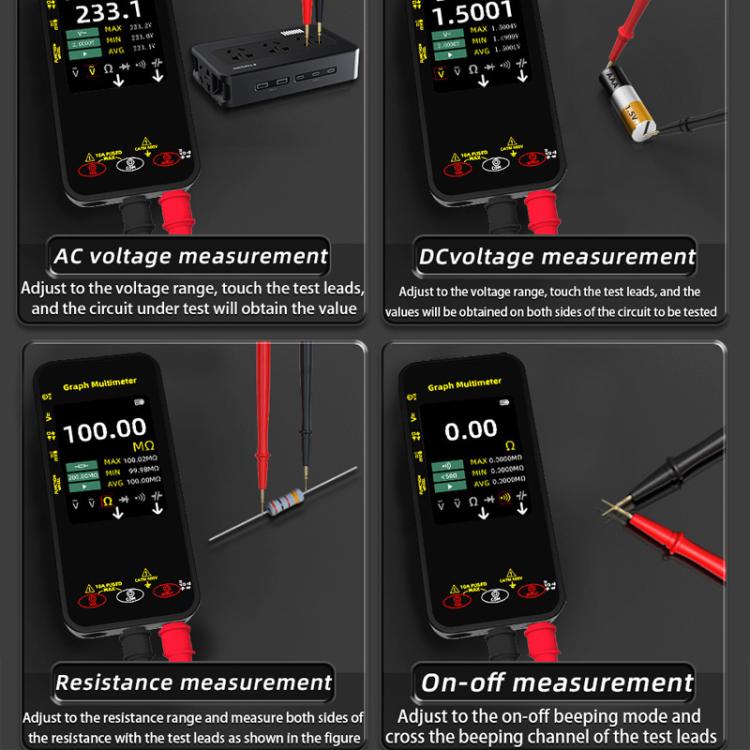

1. DC voltage (V) range/resolution: 2.0000V-1000V/0.0001-0.1V

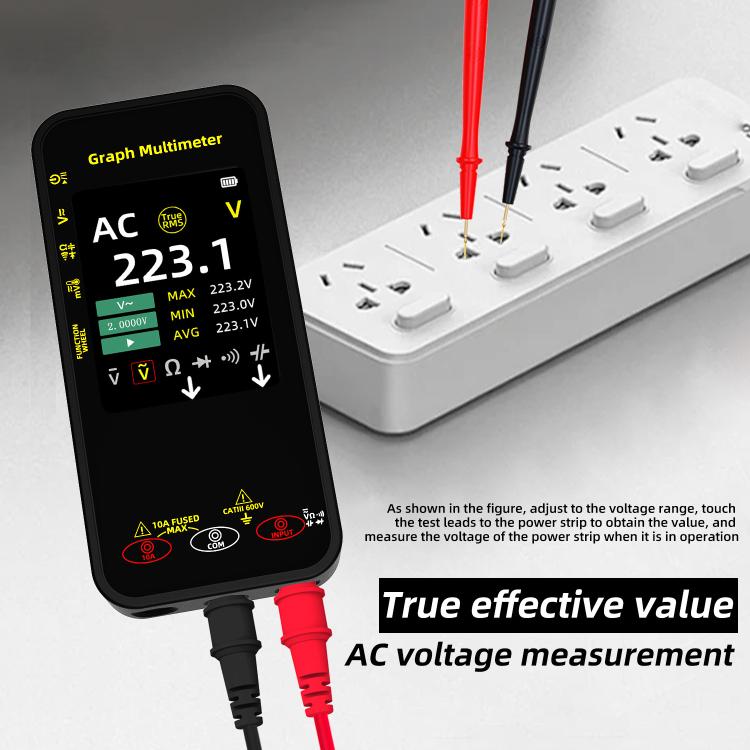

2. AC voltage (V) range/resolution: 2.0000V-750V/0.0001-0.1V
3. DC/AC voltage (mV) range/resolution: 20.000-200.00mV/0.001-0.01mV
4. Resistance range/resolution: 200.00 ohm/0.01 ohm, 2.0000-200.00 kilohm/0.0001-0.01 kilohm, 2.0000-200.00 megohm/0.0001-0.01 megohm
5. Capacitance range/resolution: 999.99nF/0.01nF, 9.999-999.99uF/0.001-0.01uF, 99.999mF/0.001mF
6. DC/AC current range/resolution: 2.0000-10.000A/0.0001-0.001A
7. AC current frequency response: 40Hz - 1kHZ
8. Temperature range/resolution: -20 - 1300 degrees Celsius/1 degree Celsius, -4 - 2372 degrees Fahrenheit/1 degree Fahrenheit

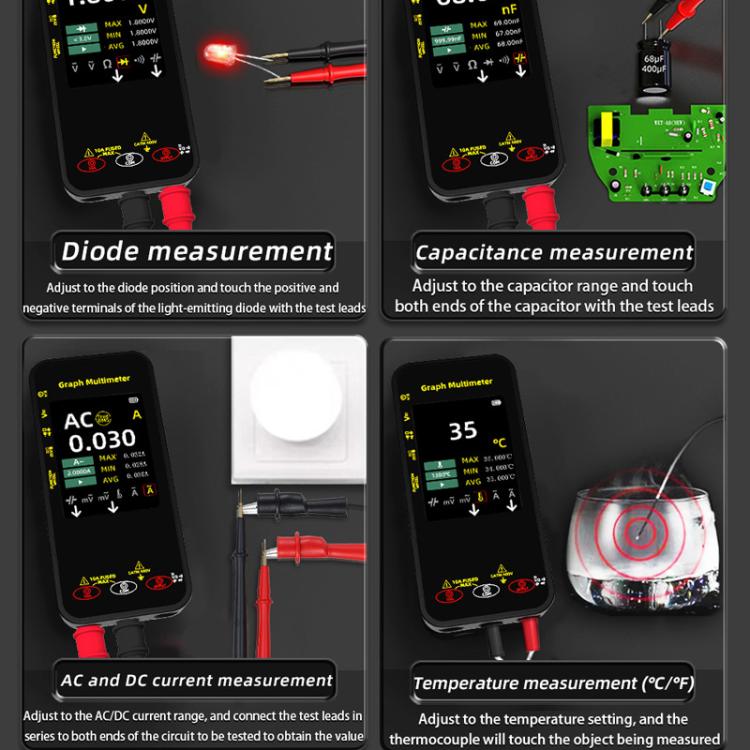

9. Function: diode, on/off, adjustable backlight brightness, low battery prompt, automatic shutdown
10. Display: 3.98-inch TFT capacitive touch screen
11. Display resolution: 320 x 480

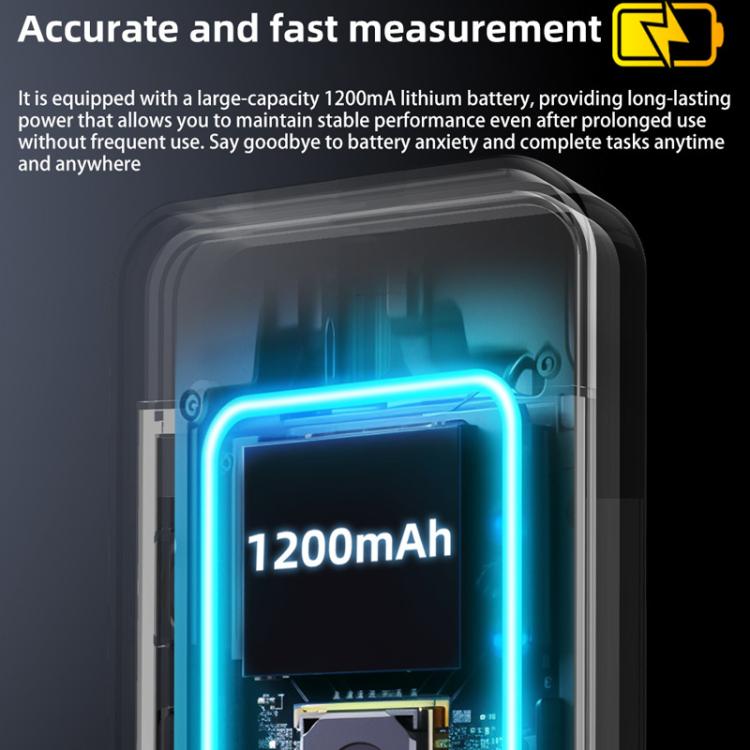

12. Battery capacity: 1200mAh
13. Working temperature: 0 - 40 degrees Celsius
14. Storage temperature: -20 - 60 degrees Celsius
15. Storage humidity: less than 80%RH
16. Working humidity: less than 75%RH

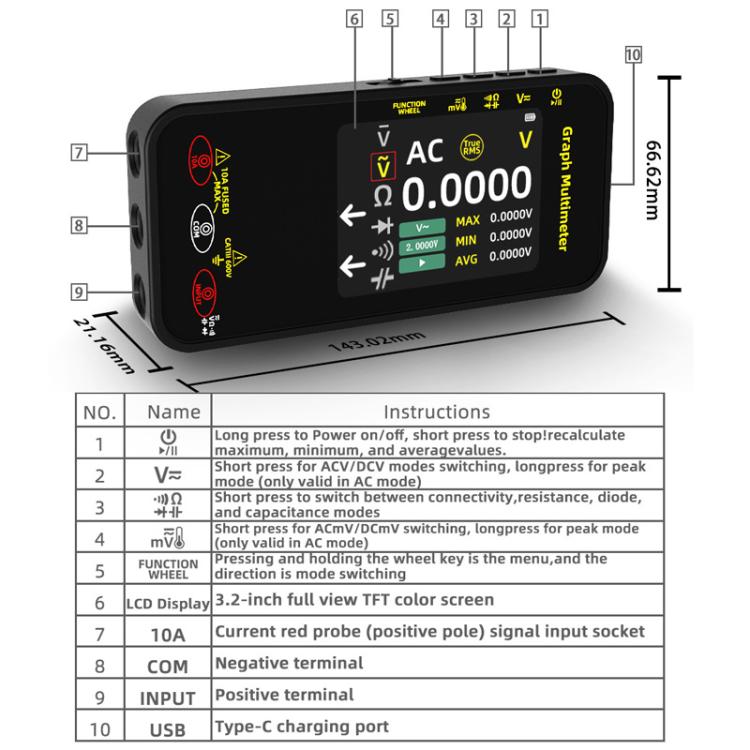

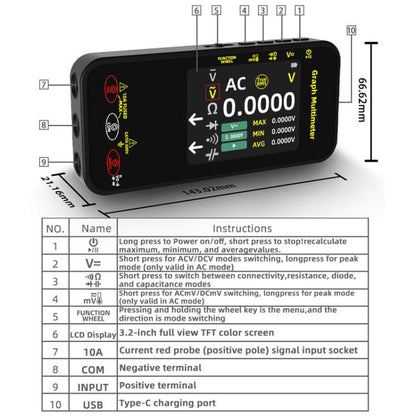

17. Size: about 14.3 x 6.66 x 2.12cm
18. Weight: about 159.5g

Features:

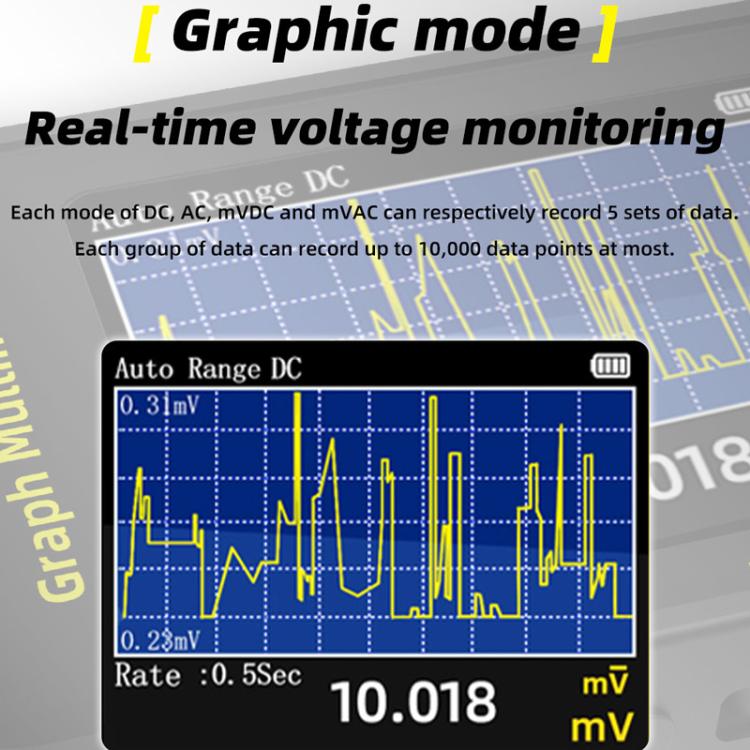

1. Graphic mode, real-time voltage monitoring, DC, AV, mVDC, mVAC each mode can record 5 sets of data, 0.31 each set of data can record up to 10,000 data
2. Smart chip, accurate and fast measurement

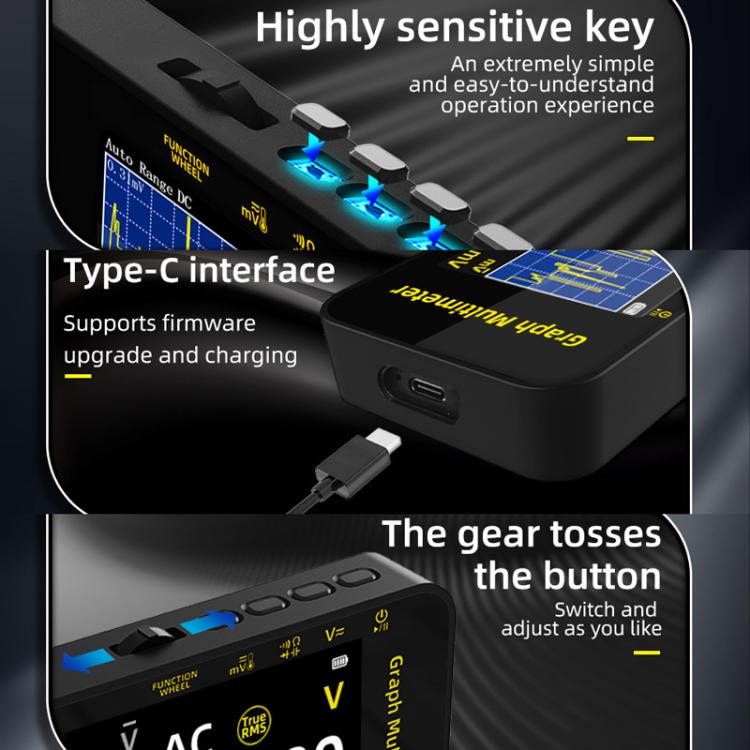

3. Highly sensitive buttons, super simple and easy to understand operation experience
4. Type-C interface, support firmware upgrade and charging
5. Gear toggle button, switch and adjust at will

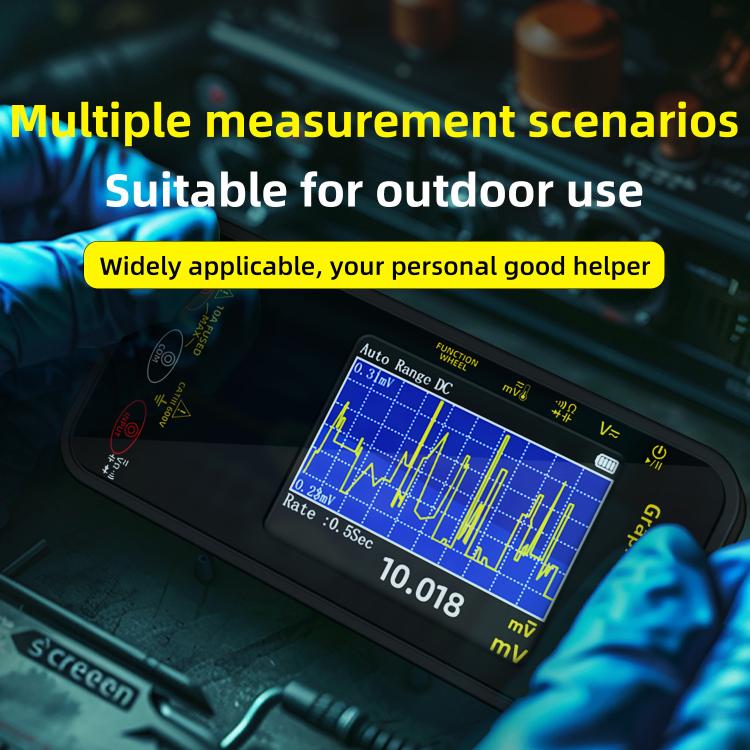

6. Multiple measurement scenarios, suitable for outdoor use

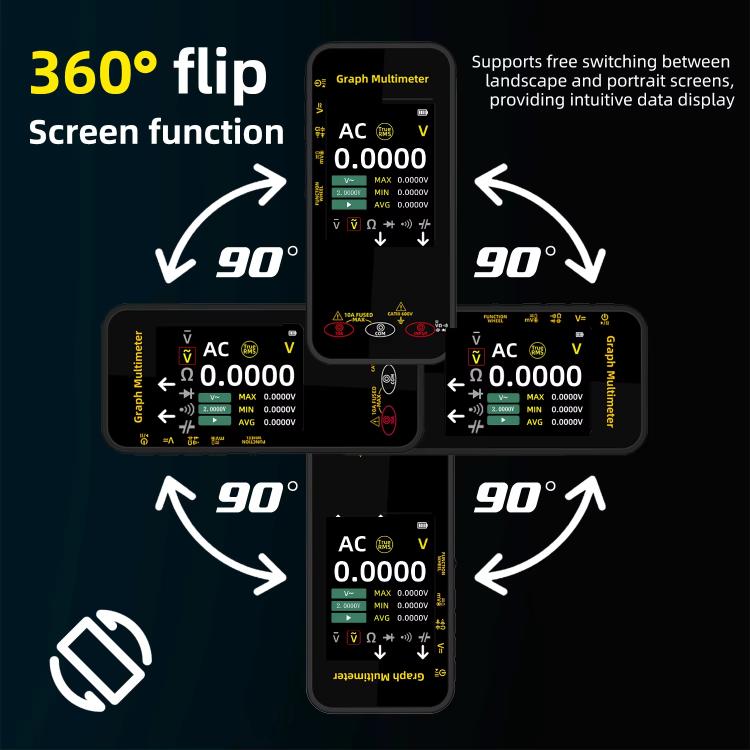

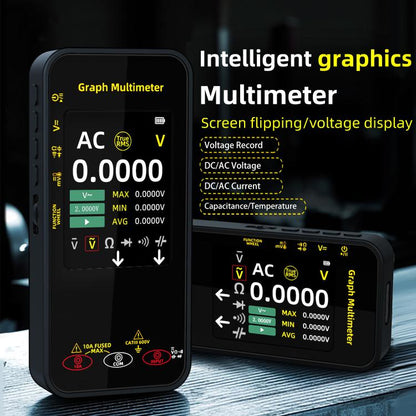

7. Support free switching between horizontal and vertical screens, intuitive data display

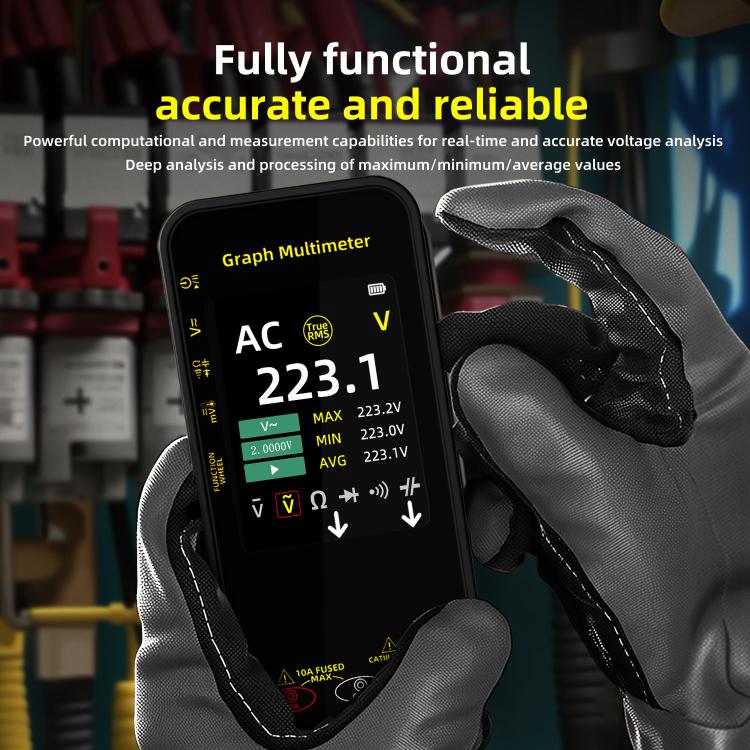

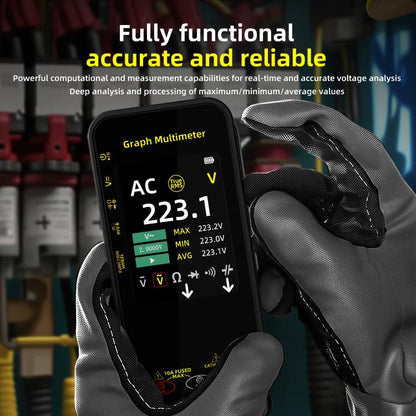

8. Powerful computing and measuring capabilities, capable of real-time and accurate voltage analysis, in-depth analysis and processing of maximum/minimum/average values

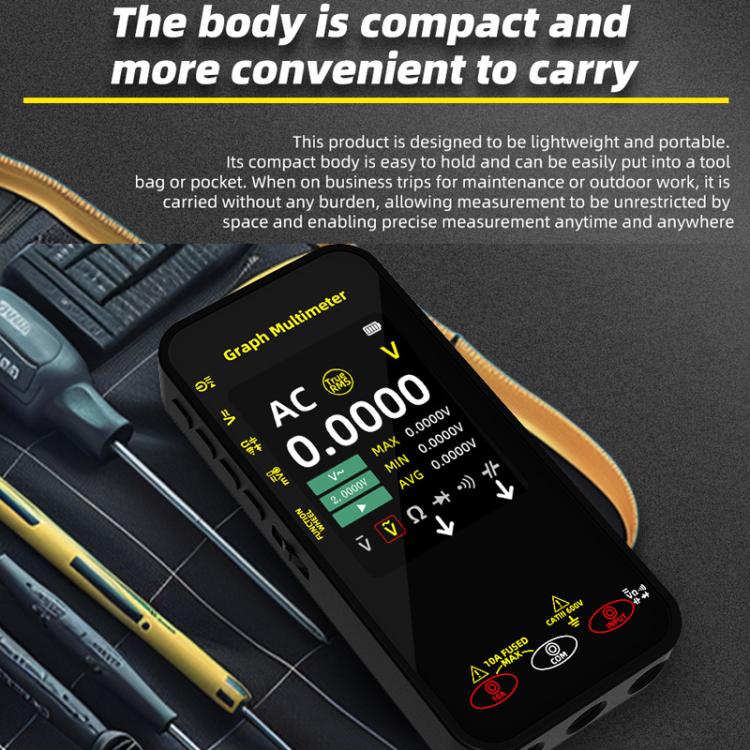

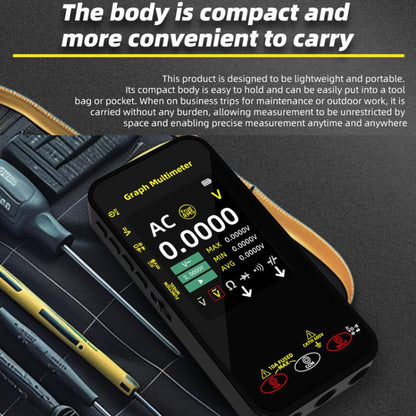

9. Compact body, more convenient to carry

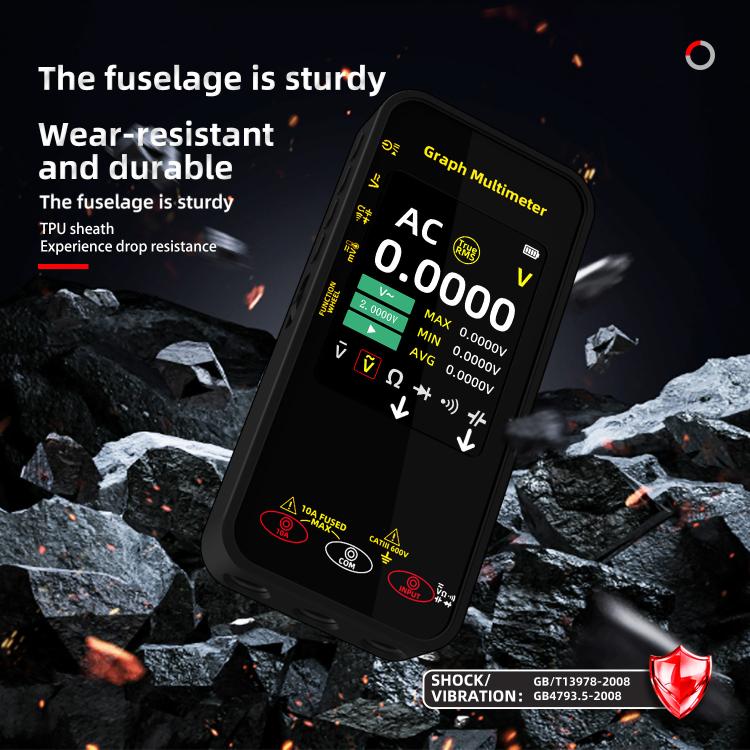

10. Strong body, wear-resistant and durable

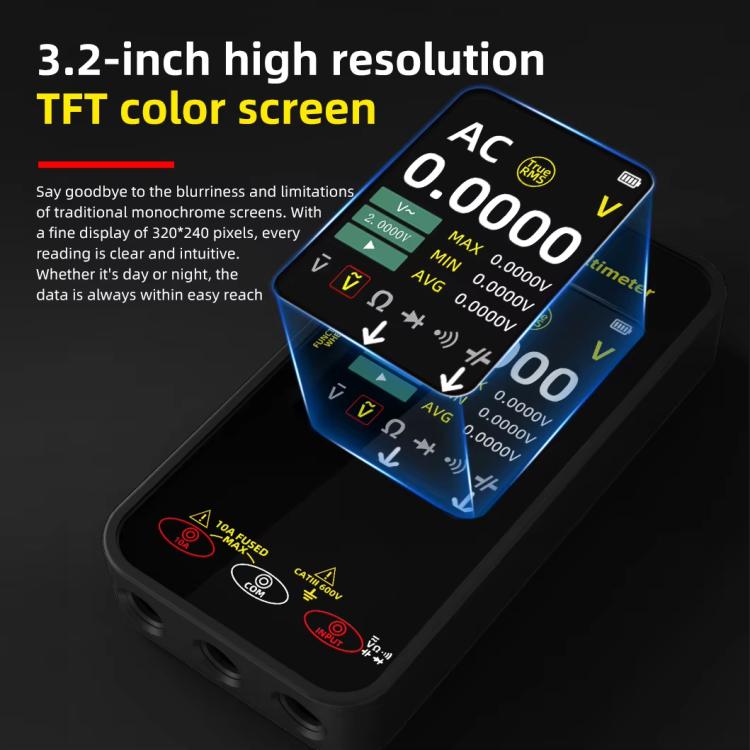

11. 3.2 inch high-resolution TFT color screen

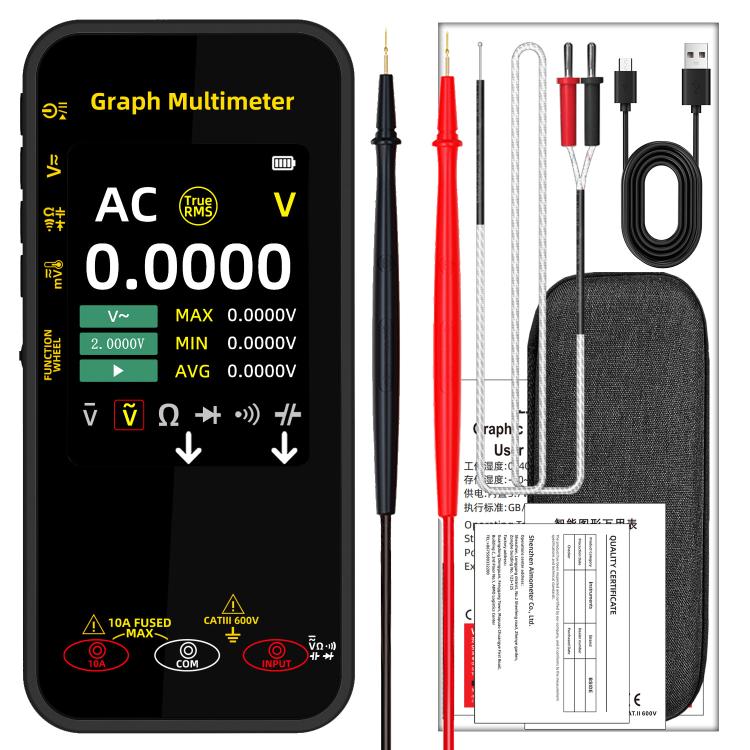

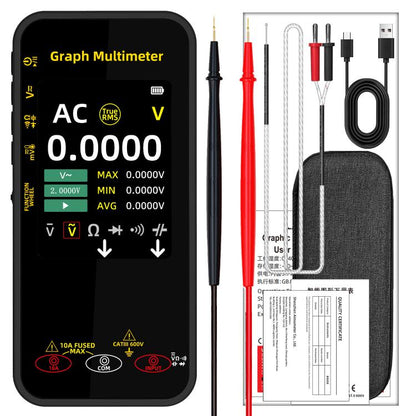

Packaging list:
- Multimeter x 1
- Data cable x 1
- Manual x 1
- Thermocouple x 1
- Storage bag x 1
- Special tip test pen x 1
