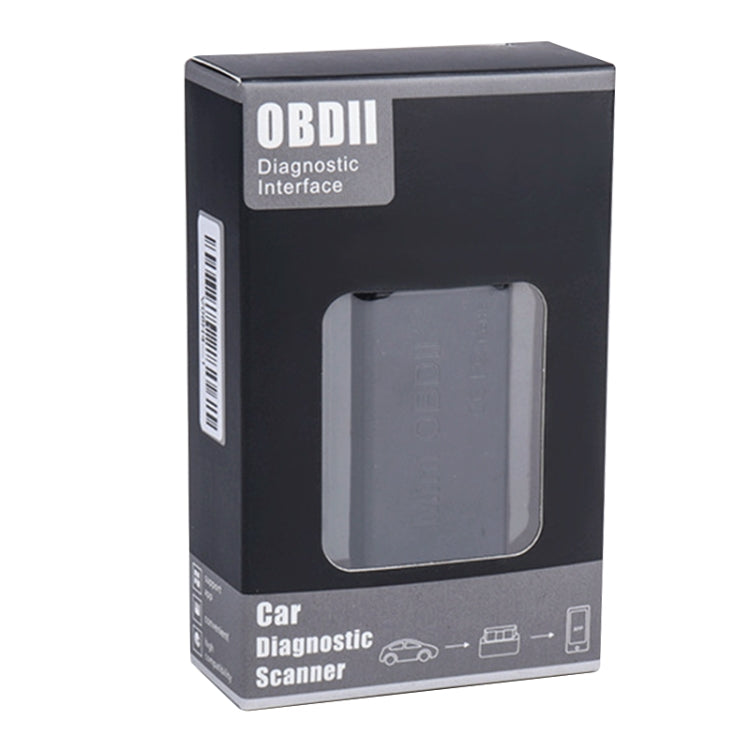

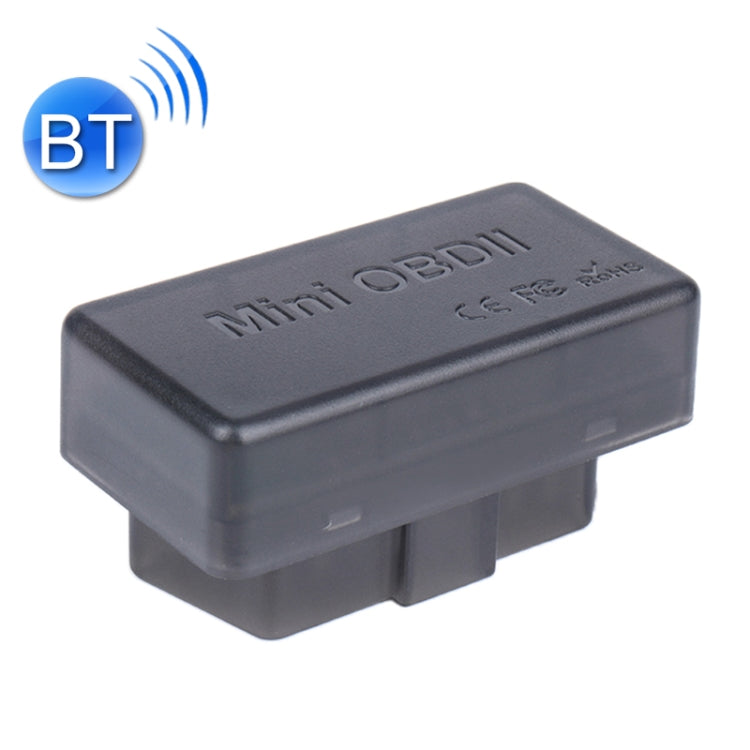

Bluetooth 4.0 Dual Mode Mini Scanner Car Code Readers Diagnostic Tool OBD 2 OBDII ELM327 Protocols
Bluetooth 4.0 Dual Mode Mini Scanner Car Code Readers Diagnostic Tool OBD 2 OBDII ELM327 Protocols
In stock
🔥 Buy any 2 items, get 25% off 3rd item 🔥 Save today!
Couldn't load pickup availability
Shipping Guarantee
Shipping Guarantee
FREE SHIPPING on all UK orders. Fully insured.
Handling time: 1 - 3 business days. (Buy2fix has to process your order and put all your items through its strict quality-control tests.)
Transit time is 5 - 10 business days to the UK. Transit times to other countries are displayed at checkout.
Origin: CN
Return Guarantee
Return Guarantee
For whatever reason, if you are unsatisfied with your order within 30 days, you can return it to us in new condition for a refund minus the shipping charges.
The Right Part Guarantee
The Right Part Guarantee
The Right Part, Guaranteed. If we send the wrong part (not as described), our 30-day return policy has you covered. You get a full refund, including the shipping fees.
Hassle-Free Returns
Hassle-Free Returns
Start Your Return in Seconds with Our Easy Online Portal.
2. Hardware Version: V1.5
3. Works with all OBD-II compliant vehicles
4. Wireless (Bluetooth)
5. Support Four operating platforms (IOS, Android, Symbian, Windows)
6. Supported protocols:
(1). SAE J1850 PWM (41.6Kbaud)
(2). SAE J1850 VPW (10.4Kbaud)
(3). ISO9141-2 (5 baud init, 10.4 Kbaud)
(4). ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
(5). ISO14230-4 KWP (fast init, 10.4 Kbaud)
(6). ISO15765-4 CAN (11bit ID, 500 Kbaud)
(7). ISO15765-4 CAN (29bit ID, 500 Kbaud)
(8). ISO15765-4 CAN (11bit ID, 250 Kbaud)
(9). ISO15765-4 CAN (29bit ID, 250 Kbaud)
7. Functions:
(1). Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
(2). Clear trouble codes and turn off the MIL (Check Engine light)
(3). Display current sensor data, including:
(4). Engine RPM
(5). Calculated Load Value
(6). Coolant Temperature
(7). Fuel System Status
(8). Vehicle Speed
(9). Short Term Fuel Trim
(10). Long Term Fuel Trim
(11). Intake Manifold Pressure
(12). Timing Advance
(13). Intake Air Temperature
(14). Air Flow Rate
(15). Absolute Throttle Position
(16). Oxygen sensor voltages / associated short term fuel trims
(17). Fuel System status
(18). Fuel Pressure
8. Specifications:
Communication: Bluetooth 4.0
Master Chip: ST
Support System: IOS, Android, Symbian, Windows
Working Voltage: 9V-16V
Working Current: 35mA
Standby Current: 25mA
Operating temperature: -40~85 degree Celsius
Working Humidity: less than 60%
Size: 43mm x 25mm x 30mm
