BHT-009GALW Water Heating WiFi Smart Home LED Thermostat(White)

Features:

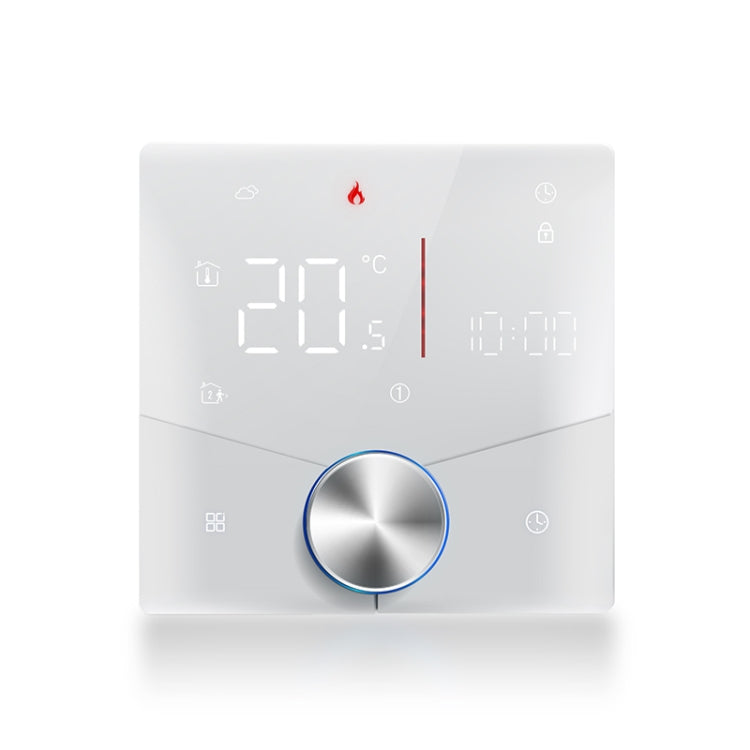

1. LED display, more friendly interface;. LED matrix light, simple display, energy saving, protect your eyes.
2. Touch buttons to make simple operation.
3. The ultra-thin embedded panel perfectly fits all kinds of walls; The visiable thickenss above the wall is only 12.4mm.
4. Frameless acrylic panel design, simple and elegant;
5. Classic black/white color scheme, seamlessly integrated.
6. Compatible with standard 86mm square cassettes and 60mm European cassettes to meet all installation environments;

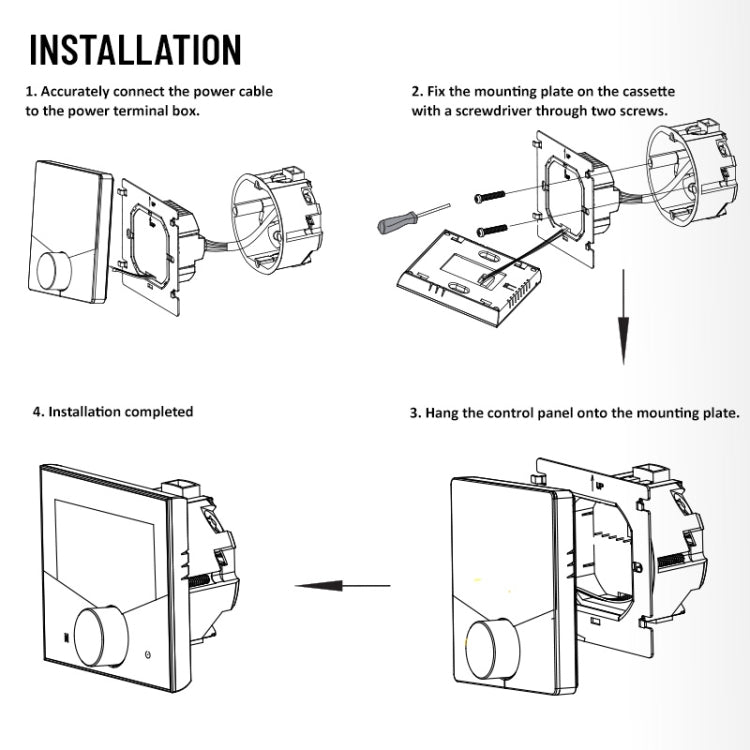

7. Interlock to connect gives you easy installation.

Function:
1. Rich function options, Modbus, WIFI, keycard, etc, to meet all your needs;
2. Strict temperature control accuracy (+/- 1 degree C) to provide the warmth you want;
3. Power off protection, save all your settings safely;
4. Preset adjustment of 5+1+1 mode in a week, programmable setting of 6 time periods a day, green energy saving, Less cost, more intelligent and environmental protection;
5. Support the creation of product local groups/shares to achieve unlimited centralized control of the number of products/ multi-terminal control;
6. Perfect access: Tmall G

Specification:
1. Current Load: 5A (water heating, waterlgas boiler), 16A (electric heating)
2. Sensor: NTC3950, 10K
3. Accuracy: +/-1 degree C
4. Set Temp. Range: 5-35degree C
5. Room Temp. Range: 5-99 degree C
6. Display Temp. Range: 5 ~ 99 degree C
7. Ambient Temp.: 0~ 45 degree C
8. Ambient Humidity: 5 ~ 95 % RH (Non Condensing)
9. Storage Temp.: -5~ 45 degree C
10. Power Consumption: Less than 1. 5W
11. Timing Error: Less than 1%
12. Shell Material: PC +ABS ( Fireproof)
13. Installation Box: 86 x 86mm Square or European 60mm Round Box
14. Wire Terminals: Wire 2 x 1.5 mm2 or 1 x 2.5 mm2
15. Protection Class: IP20
16. Buttons: Capacitive Touch Buttons
