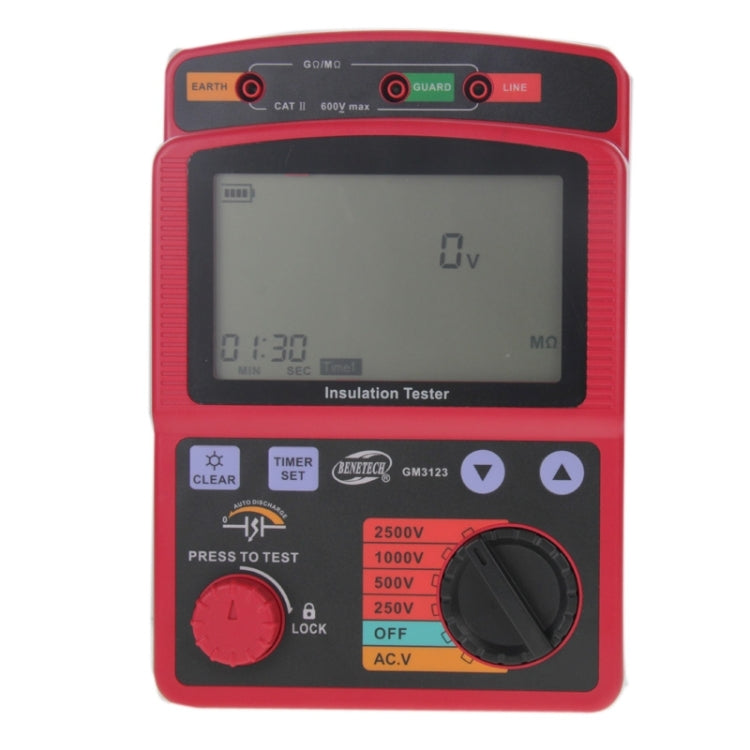

BENETECH GM3123 High Voltage Insulation Tester
BENETECH GM3123 High Voltage Insulation Tester
In stock
🔥 Buy any 2 items, get 25% off 3rd item 🔥 Save today!
Couldn't load pickup availability
Shipping Guarantee
Shipping Guarantee
FREE SHIPPING on all UK orders. Fully insured.
Handling time: 1 - 3 business days. (Buy2fix has to process your order and put all your items through its strict quality-control tests.)
Transit time is 5 - 10 business days to the UK. Transit times to other countries are displayed at checkout.
Origin: CN
Return Guarantee
Return Guarantee
For whatever reason, if you are unsatisfied with your order within 30 days, you can return it to us in new condition for a refund minus the shipping charges.
The Right Part Guarantee
The Right Part Guarantee
The Right Part, Guaranteed. If we send the wrong part (not as described), our 30-day return policy has you covered. You get a full refund, including the shipping fees.
Hassle-Free Returns
Hassle-Free Returns
Start Your Return in Seconds with Our Easy Online Return Portal.
1. Auto discharge function to make the operation safe
2. LCD backlight
3. Digital readout display
4. Live circuit warning symbols with audio sounds
5. Anto power off function (in 10 minutes without operation)
6. Timer measurement function
7. Low battery indication

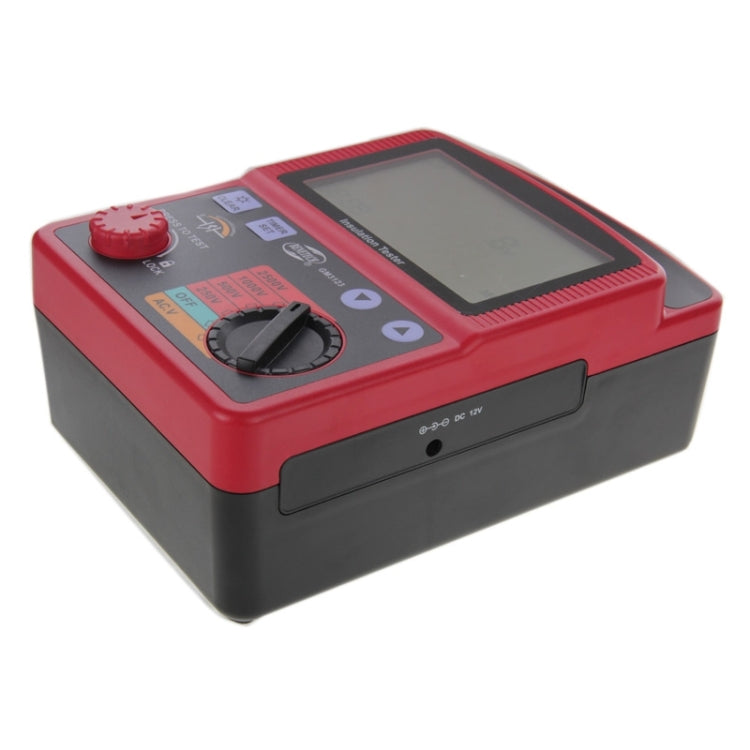

8. Suitable for 12V DC adapter (12V / 1A)
Specifications
1. Display: Max. 999 counts LCD display (1000 counts only at 1T is displayed) Bar graph / max. 36 points.
2. Over range indication: OL mark appears on insulation resistance range. LO mark appears on voltage range
3. Auto-ranging: Range shifts to upper range: 1000 counts. Range shifts to lower range: 95 counts (merely on the insulation resistance range)
4. Sample rate: 0.5-10 times / sec
5. Operable altitude: Less than 2000m (Indoor use)
6. Operation circumstance: Temperature 0-40 Celsius Degree, humidity: <=85%
7. Storage circumstance: Temperature -20-60 Celsius Degree, humidity: <=90%
8. Overload protection: Insulation resistance: AC 1200V / 10s, Voltage: AC 720V / 10s
9. Voltage resistance: AC8320 (50/60Hz)/5 seconds (between electrical circuit and enclosure)
10. Insulation resistance: 1000M of more / DC 1000V (between electrical circuit and enclosure)

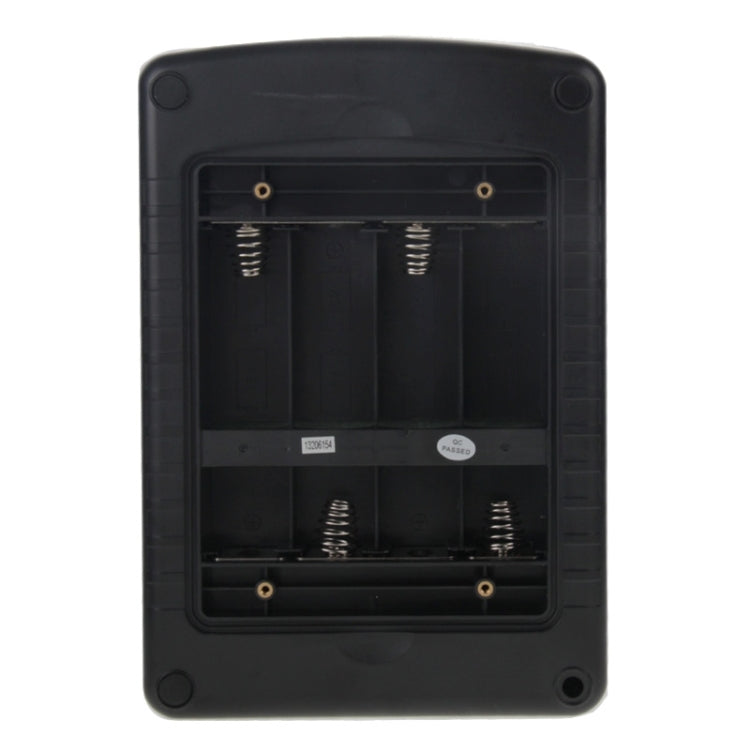

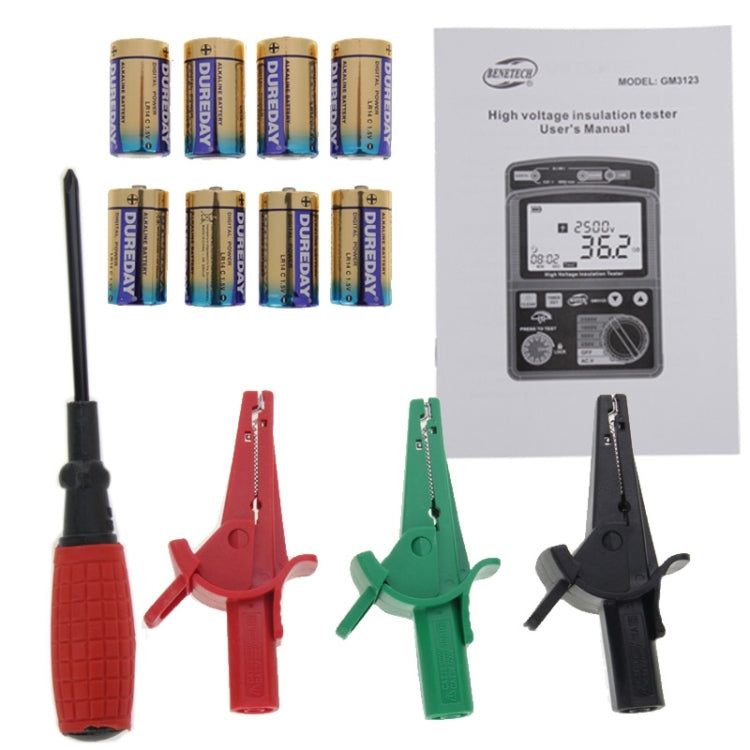

11. Power Supply: DC 12V (8 x 1.5V LR14 batteries) (included)
12. Size: 153mm x 96mm x 220mm
13. Weight: 1032g (without batteries and test wires)
