Battery Internal Resistance Tester Lead-Acid Alkaline Lithium Battery Tester, Model: IR502
Battery Internal Resistance Tester Lead-Acid Alkaline Lithium Battery Tester, Model: IR502
In stock
🔥 Buy any 2 items, get 25% off 3rd item 🔥 Save today!
Couldn't load pickup availability
Shipping Guarantee
Shipping Guarantee
FREE SHIPPING on all UK orders. Fully insured.
Handling time: 1 - 3 business days. (Buy2fix has to process your order and put all your items through its strict quality-control tests.)
Transit time is 5 - 10 business days to the UK. Transit times to other countries are displayed at checkout.
Origin: CN
Return Guarantee
Return Guarantee
For whatever reason, if you are unsatisfied with your order within 30 days, you can return it to us in new condition for a refund minus the shipping charges.
The Right Part Guarantee
The Right Part Guarantee
The Right Part, Guaranteed. If we send the wrong part (not as described), our 30-day return policy has you covered. You get a full refund, including the shipping fees.
Hassle-Free Returns
Hassle-Free Returns
Start Your Return in Seconds with Our Easy Online Return Portal.
1. Voltage: 0.00V~120V
2. Internal resistance measurement: 0.000mΩ~500Ω
3. Input voltage: DC 120V (regardless of polarity), AC input is not allowed
4. Measurement current: 50mA~50uAAC
5. Measurement speed: 3 times/second
6. Measurement signal frequency: 1KHz

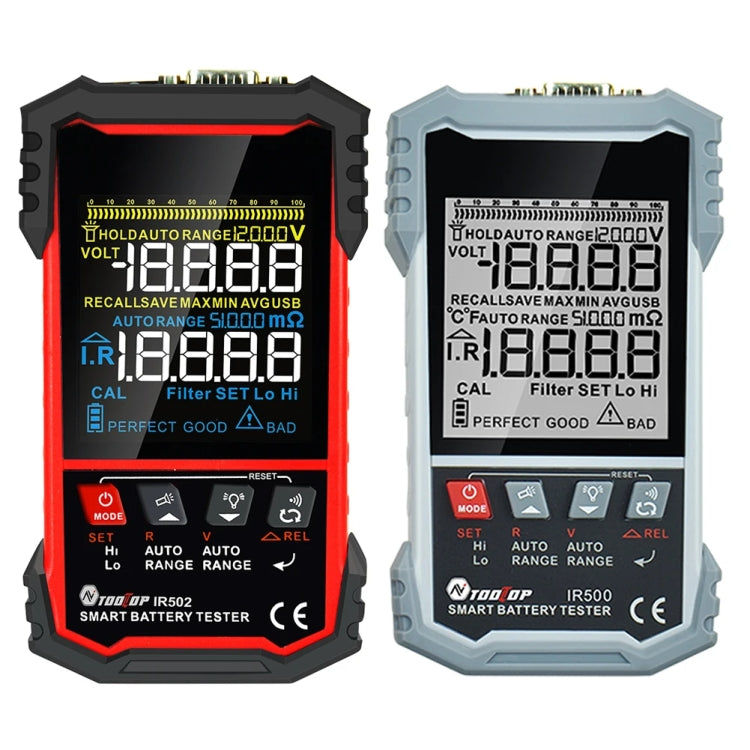

7. Screen and size: IR500 55x57mmTN black and white screen; IR 502 55x57mmTN color screen
8. Power supply: 3.7V 1200mAh lithium battery

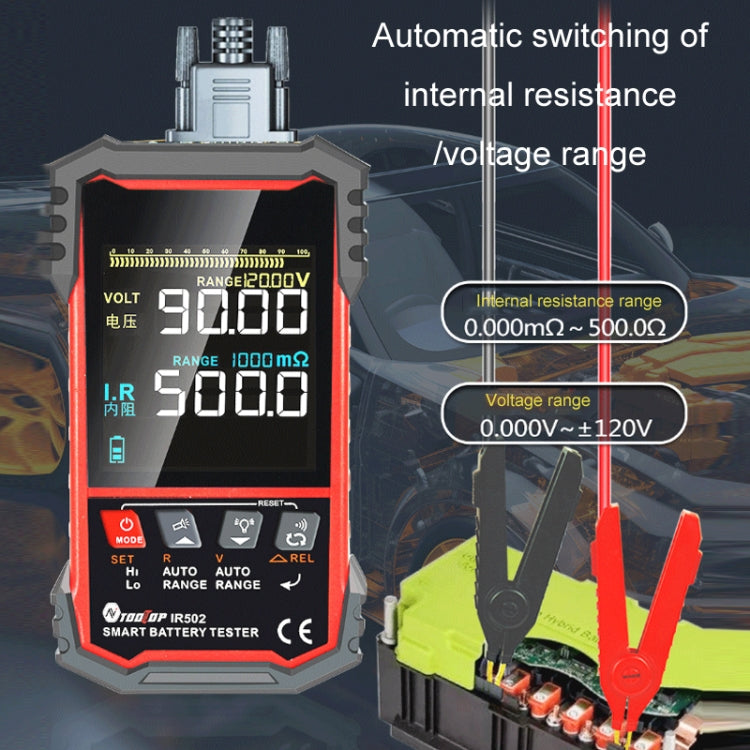

9. Automatic switching of internal resistance/voltage range
10. Can be used for various battery detection such as lithium battery, lead-acid battery, carbon battery, alkaline battery, button battery, etc.

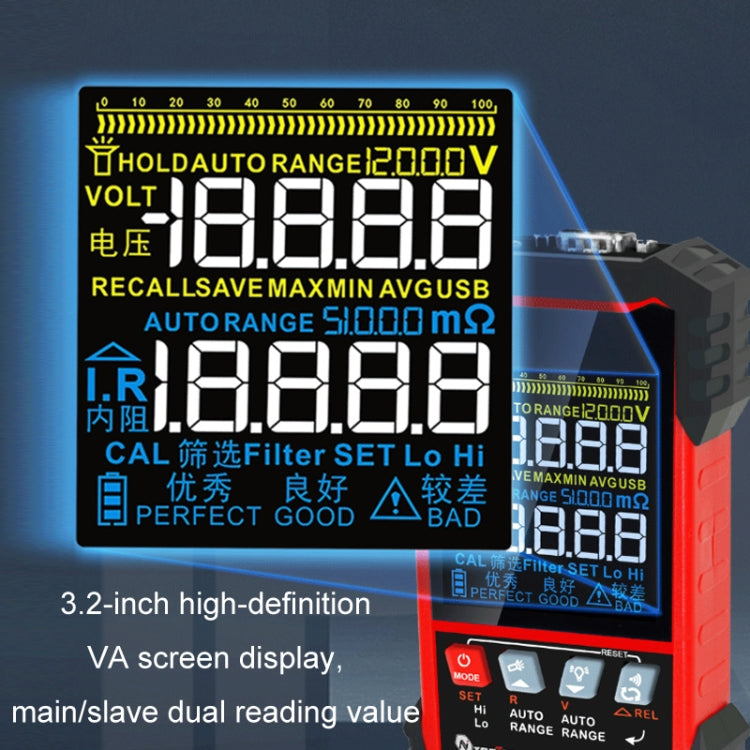

11. 3.2-inch high-definition VA screen display, main/slave dual reading value

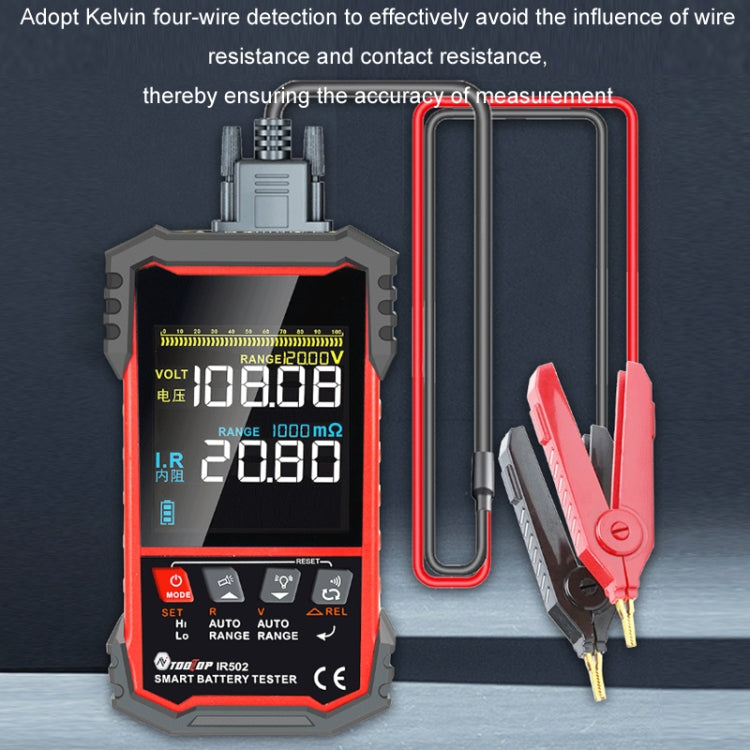

12. Kelvin four-wire detection is used to effectively avoid the influence of wire resistance and contact resistance, thereby ensuring the accuracy of measurement

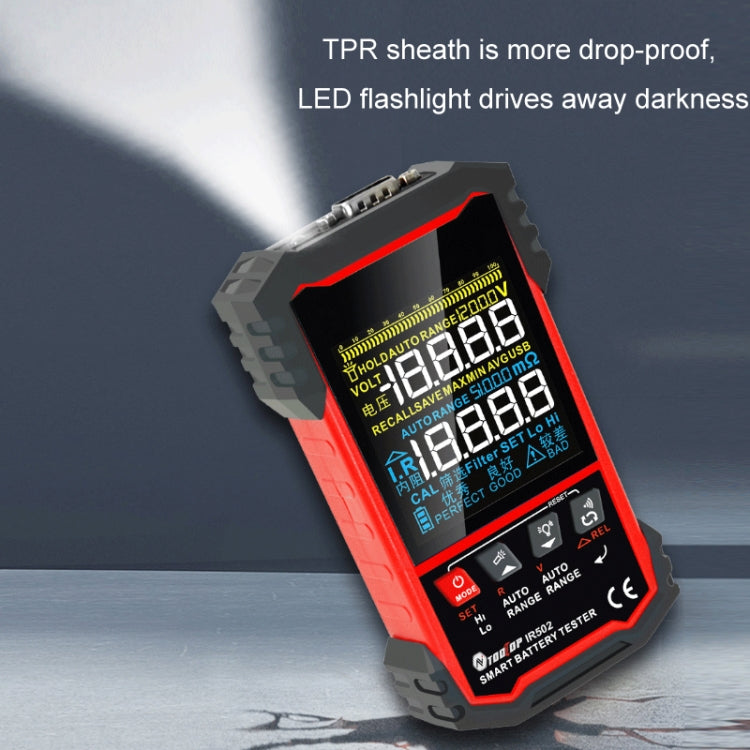

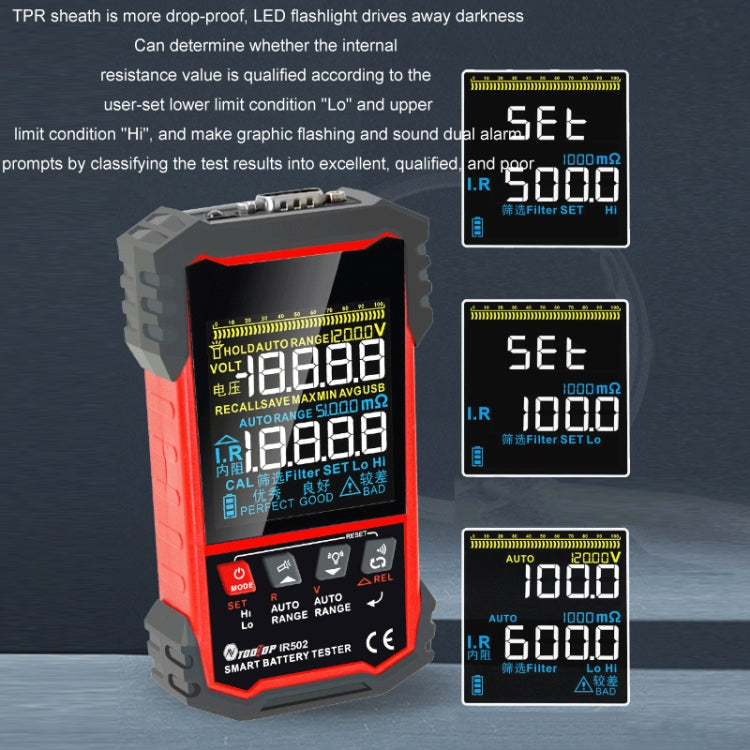

13. TPR sheath is more shatterproof, and LED flashlight drives away darkness
14. The internal resistance value can be determined based on the lower limit condition "Lo" and the upper limit condition "Hi" set by the user, and the test results are classified into excellent, qualified, and poor to make a double alarm prompt with flashing graphics and sound

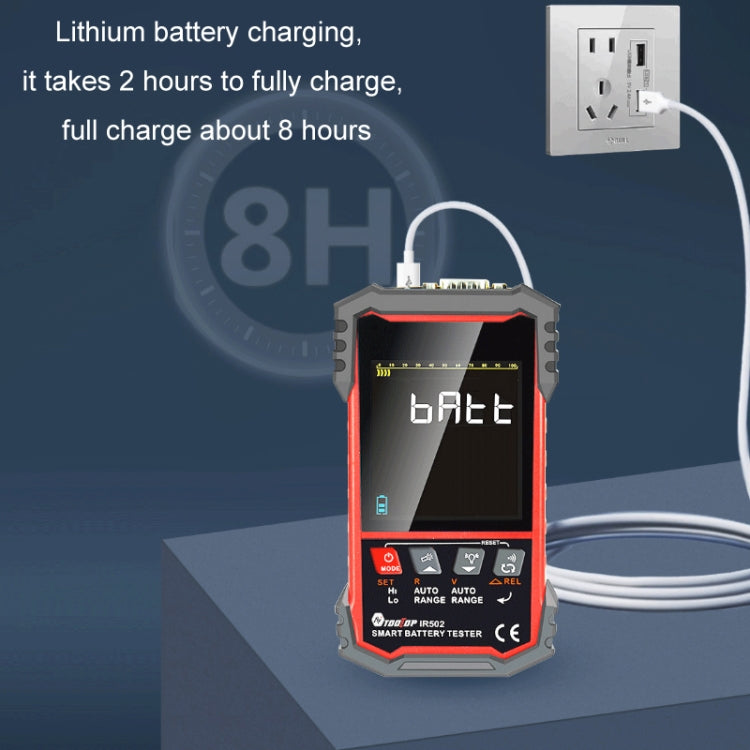

15. The lithium battery needs 2 hours to be fully charged, and a full charge works for about 8 hours
16. The instrument automatically shuts down if there is no button operation within 20 minutes

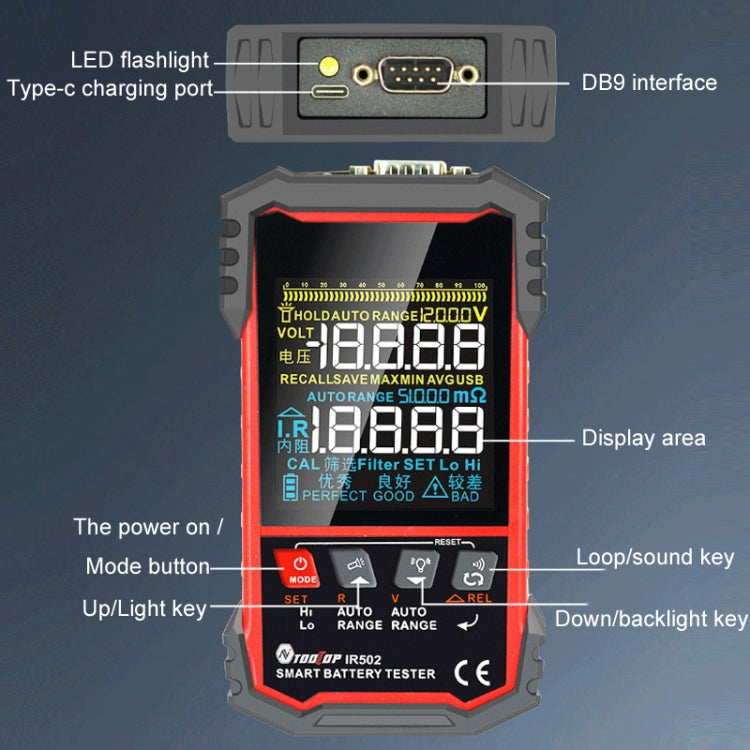

17. The host and the test clip are connected through the DB9 interface, where pin 1 is empty, pins 2, 6 and 5, 9 correspond to the red line and white line connected to the two sides of the red clip; pins 4, 8 and 3, 7 correspond to the yellow line and black line connected to the two sides of the black clip
