Automotive Delay Switch Module High Power MOS Control Automatic Timing(PCB)
Automotive Delay Switch Module High Power MOS Control Automatic Timing(PCB)
Exclusive Deals End Soon!
Save 5% on 2+ Items • Save 10% 3+ Items • Save 15% on 10+ Items
Applies automatically in cart & checkout • No code needed
Estimated delivery:
Couldn't load pickup availability
Shipping Information
Shipping Information
FREE SHIPPING to UK & 40+ countries. Fully insured.
Delivery: Estimated times shown at checkout based on your location (typically 6-13 days total including 1-3 days handling)
No hidden fees on orders under £135 (orders over £135 may have import duties)
Ships from China via tracked DDP service. Order by 12 AM London time for next-day dispatch.
30-Day Money-Back Guarantee
30-Day Money-Back Guarantee
Return unused items within 30 days (you pay return shipping). Faulty items covered at no cost to you.
Right Part Guarantee
Right Part Guarantee
Get exactly what you ordered or your money back, including shipping. 30 days, no questions asked.
Hassle-Free Returns
Hassle-Free Returns
Start your return online in seconds. No forms, no hassle.
Trusted by 80,000+ DIY & repair professionals

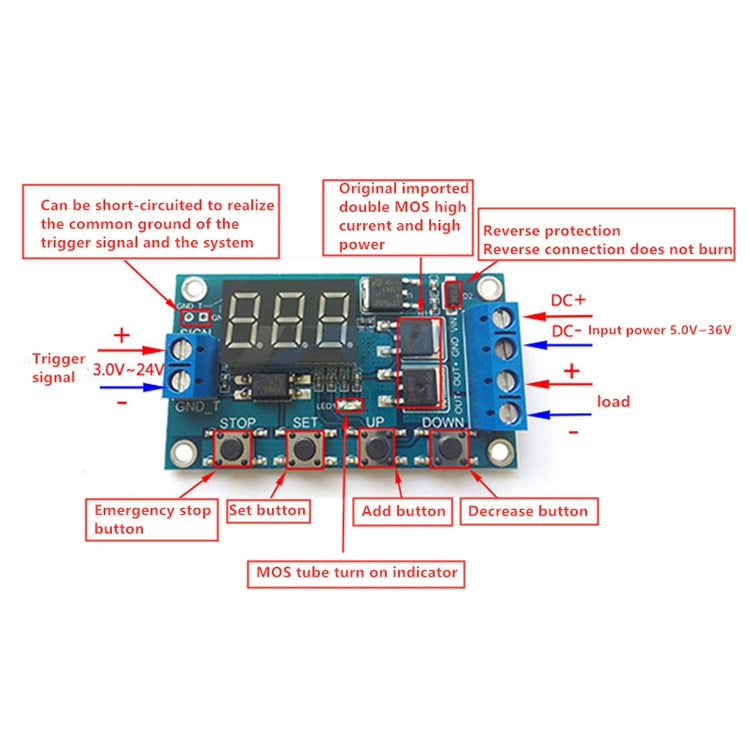

1. Working voltage: DC 5-36V
2. Trigger signal source: high-level trigger (DC 3.0V-24V) signal ground and system ground are not common to improve the anti-interference ability of the system (you can also short-circuit the common ground by yourself)
3. Output capacity: DC 5V--36V, continuous current 15A at room temperature, power 400W, under auxiliary cooling conditions, the current can reach 30A
4. Quiescent current: 15mA
5. With optocoupler isolation, enhance anti-interference ability, industrial-grade circuit board, set parameters will be remembered forever after power off
6. Size: about 6x3.4x1.2cm
7. Note: The module is an active live output, the voltage of the output terminal (load terminal) is equal to the input terminal voltage (DC 5V--36V)
Features:
1. Realize high-frequency, fast and frequent on-off of the circuit
2. The on-off process will not produce noise, no electrical sparks, and no electromagnetic interference.
3. Adopt dual MOS parallel active output, lower internal resistance, higher current, strong power, 15A, 400W at room temperature, which meets the use of most equipment
4. It is used to control motors, light bulbs, LED strips, DC motors, micro water pumps, solenoid valves, etc. Through this module, these devices can be easily controlled, which is very convenient
5. Wide voltage operation (5-36V), most devices can be used, very convenient
6. The interface is clear and simple, powerful and easy to operate
7. One-key emergency stop function (STOP key), with reverse connection protection, reverse connection will not burn
8. Added sleep mode, after enabling, if there is no operation within 5 minutes, the display will be automatically turned off, and any key will wake up
9. Different OP, CL, LOP parameters can be set, these parameters are independent of each other and saved separately
10. All setting parameters are automatically saved after power off
