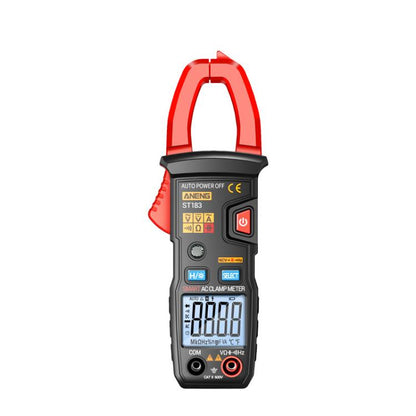

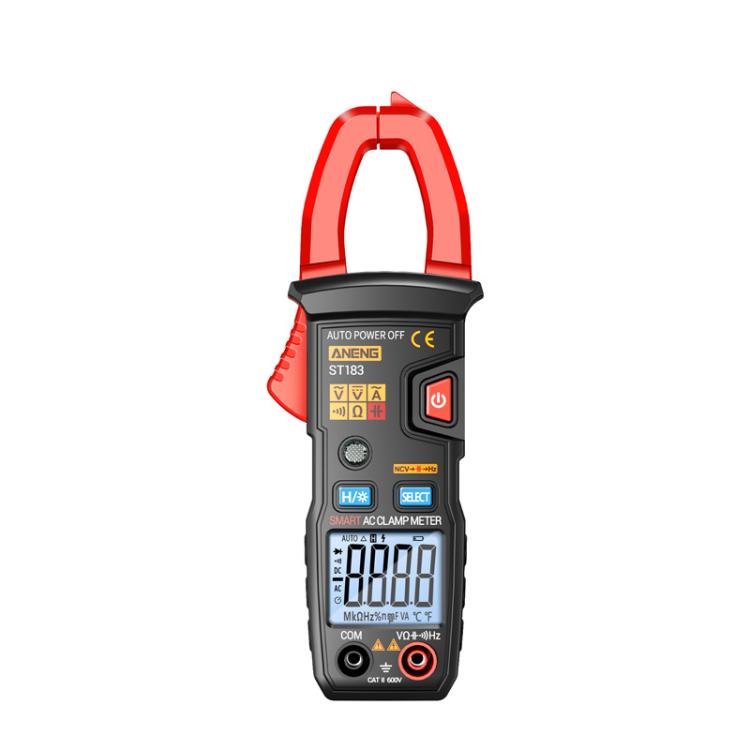

ANENG ST183 600A Digital Clamp Meter With NCV, 4000 Counts, Tests Continuity/Resistance/Capacitance/Diode, Audible & Visual Alarm(Black)
ANENG ST183 600A Digital Clamp Meter With NCV, 4000 Counts, Tests Continuity/Resistance/Capacitance/Diode, Audible & Visual Alarm(Black)
In stock
🔥 Buy any 2 items, get 25% off 3rd item 🔥 Save today!
Couldn't load pickup availability
Shipping Guarantee
Shipping Guarantee
FREE SHIPPING on all UK orders. Fully insured.
Handling time: 1 - 3 business days. (Buy2fix has to process your order and put all your items through its strict quality-control tests.)
Transit time is 5 - 10 business days to the UK. Transit times to other countries are displayed at checkout.
Origin: CN
Return Guarantee
Return Guarantee
For whatever reason, if you are unsatisfied with your order within 30 days, you can return it to us in new condition for a refund minus the shipping charges.
The Right Part Guarantee
The Right Part Guarantee
The Right Part, Guaranteed. If we send the wrong part (not as described), our 30-day return policy has you covered. You get a full refund, including the shipping fees.
Hassle-Free Returns
Hassle-Free Returns
Start Your Return in Seconds with Our Easy Online Return Portal.

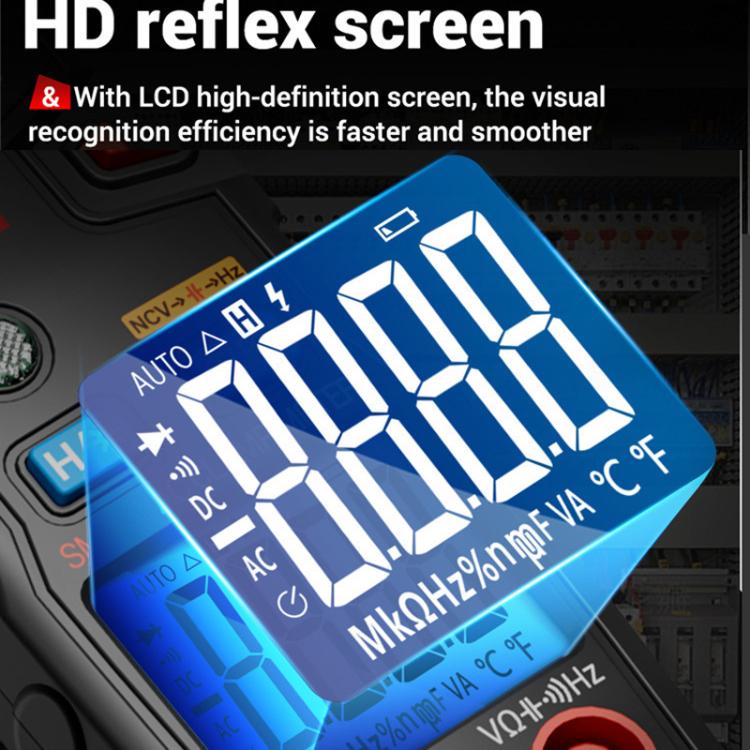

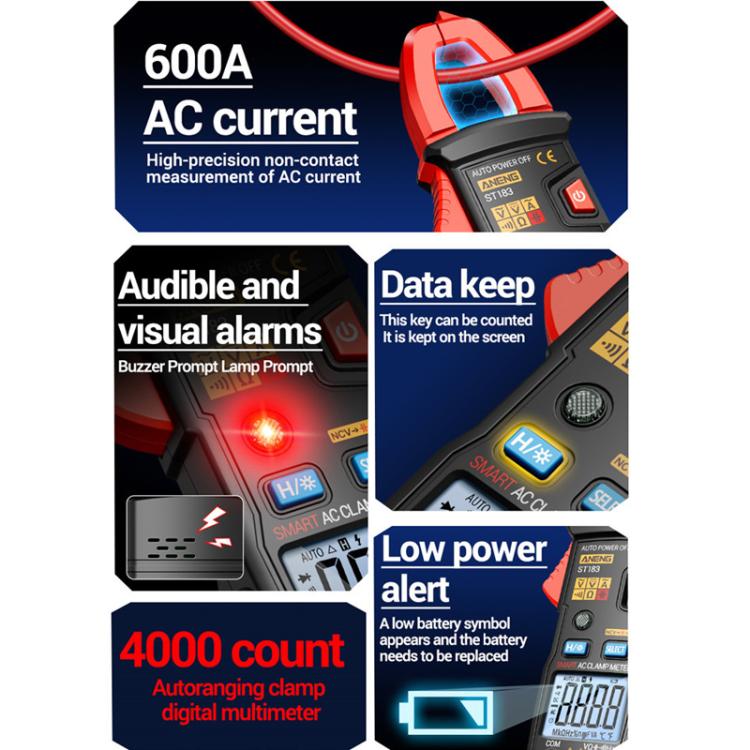

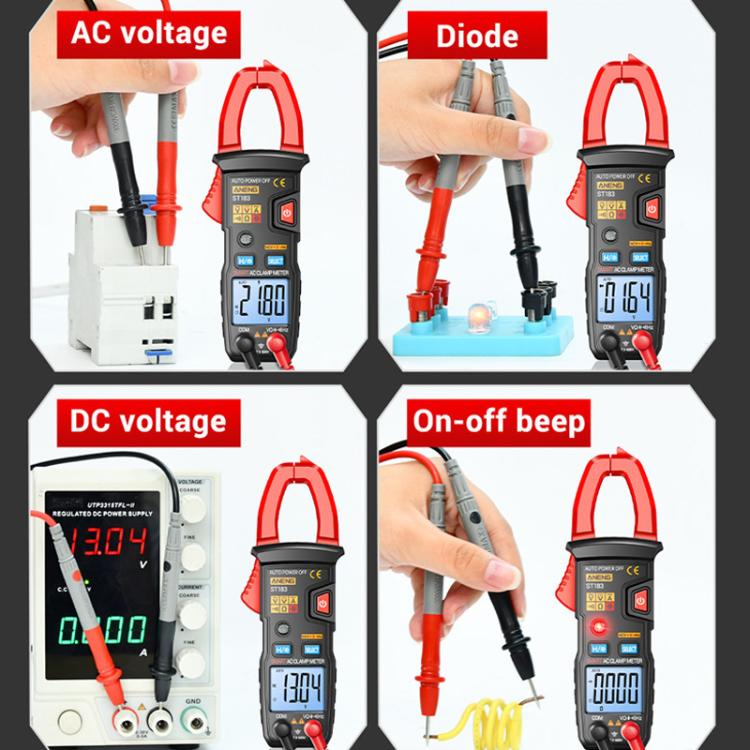

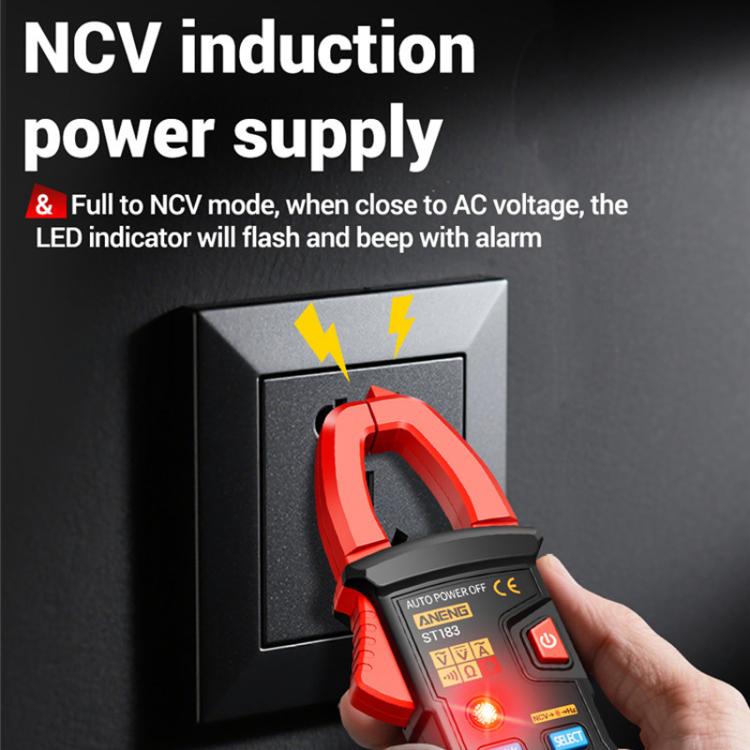

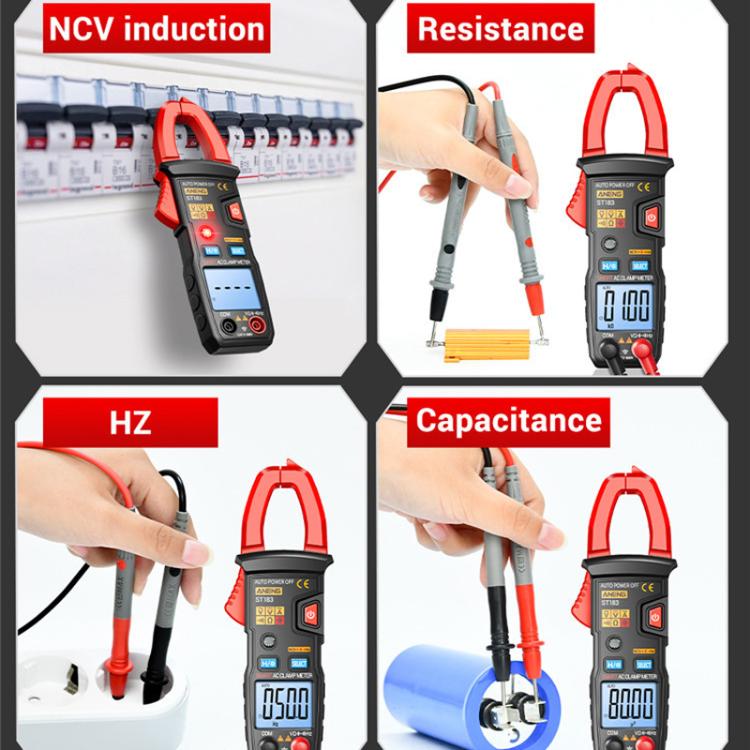

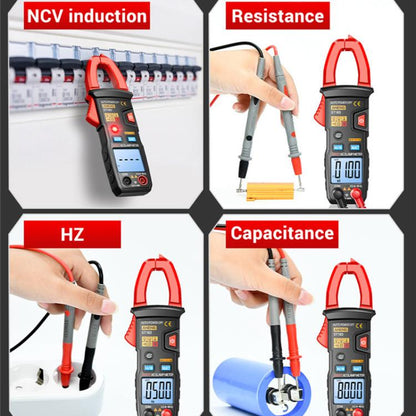

1. Main Functions: AC Voltage Measurement / Diode Test / DC Voltage Measurement / Continuity Buzzer / NCV Voltage Detection / Resistance Measurement / Hz Measurement / Capacitance Measurement / AC Current Measurement / Auto-Ranging / Screen Backlight / Audible and Visual Alarms / Auto Power Off / Data Hold / Low Battery Indication
2. Material: ABS
3. Weight: 122g
4. Power Supply: 1.5V AA Batteries (not included)
5. Maximum Count: 4000 counts

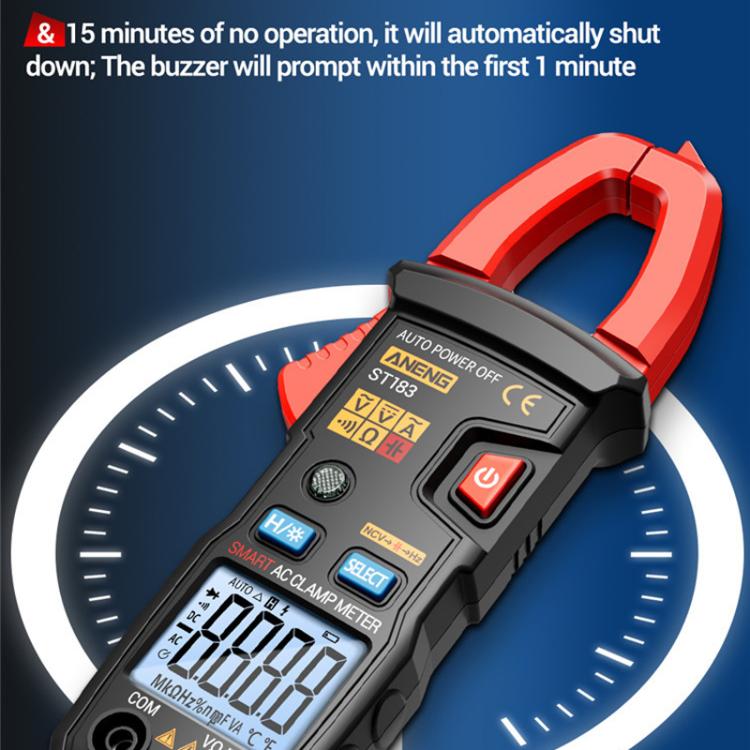

6. Auto Power Off: Automatically shuts down after 15 minutes of no operation

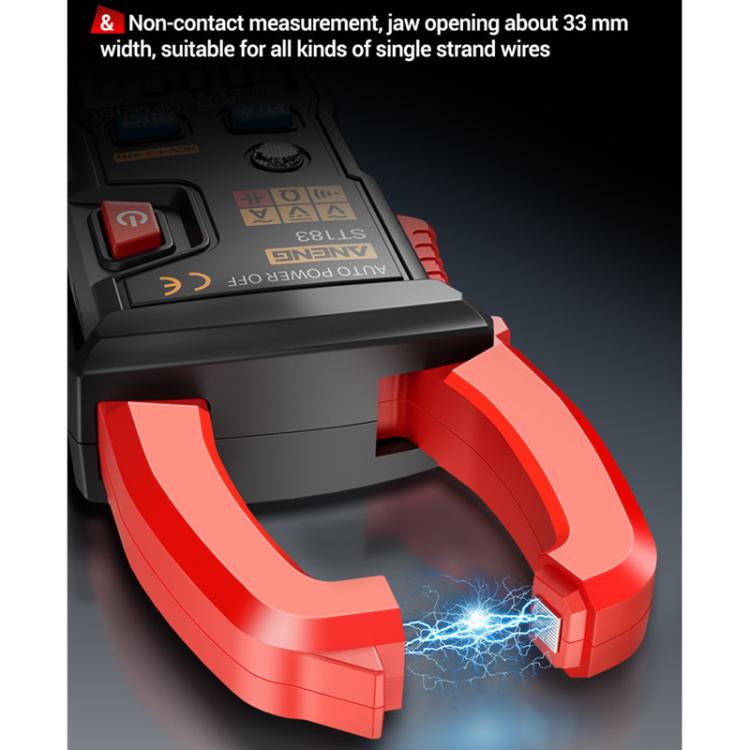

7. Clamp Jaw Opening: Approx. 33mm
Technical Specifications (Range/Resolution/Accuracy):
1. AC Voltage:
- Range: 0V–600V
- Resolution: 0.001V–1V
- Accuracy: ±(1.5% + 8 digits)
2. DC Voltage:
- Range: 0V–600V
- Resolution: 0.001V–1V
- Accuracy: ±(1.2% + 5 digits)

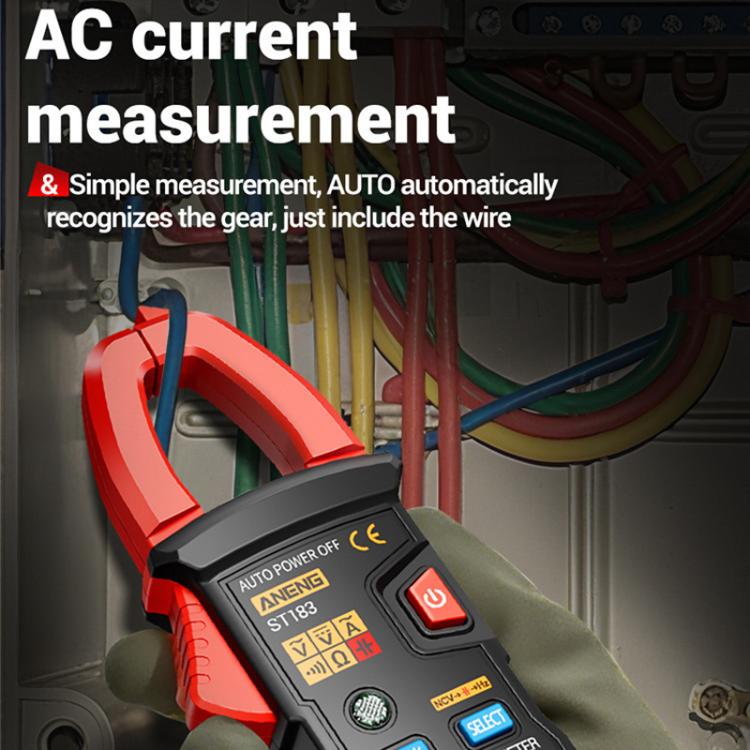

3. AC Current:
- Range: 0A–600A
- Resolution: 0.01A–1A
- Accuracy: ±(3.5% + 8 digits)
4. Resistance:
- Range: 0Ω–40.00MΩ
- Resolution: 0.1Ω–10kΩ
- Accuracy: ±(1.5% + 5 digits)
5. Frequency (Hz):
- Range: 0Hz–20MHz
- Resolution: 0.1Hz–10kHz
- Accuracy: ±(4.0% + 10 digits)
6. Capacitance:
- Range: 0nF–60.00mF
- Resolution: 1pF–10μF
- Accuracy: ±(10% + 8 digits)
