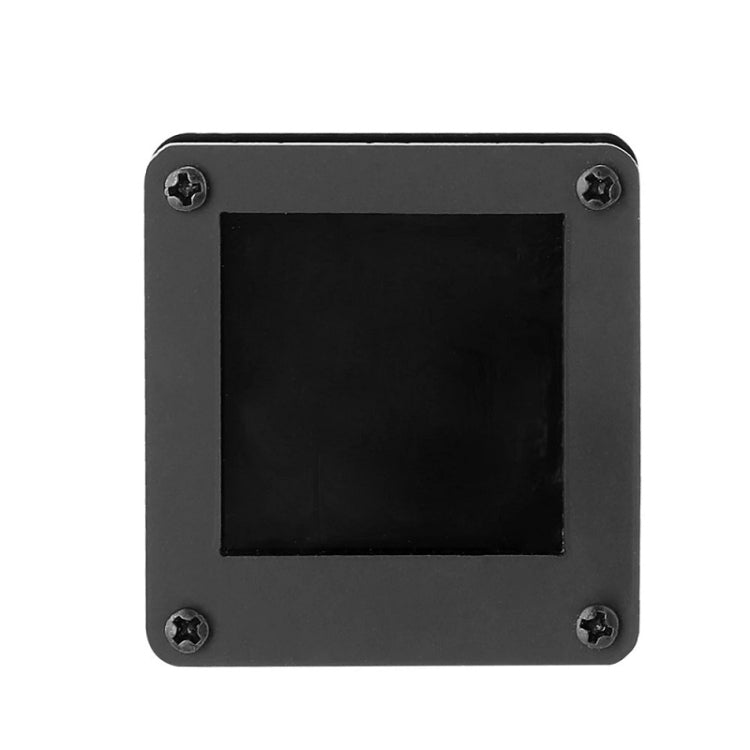

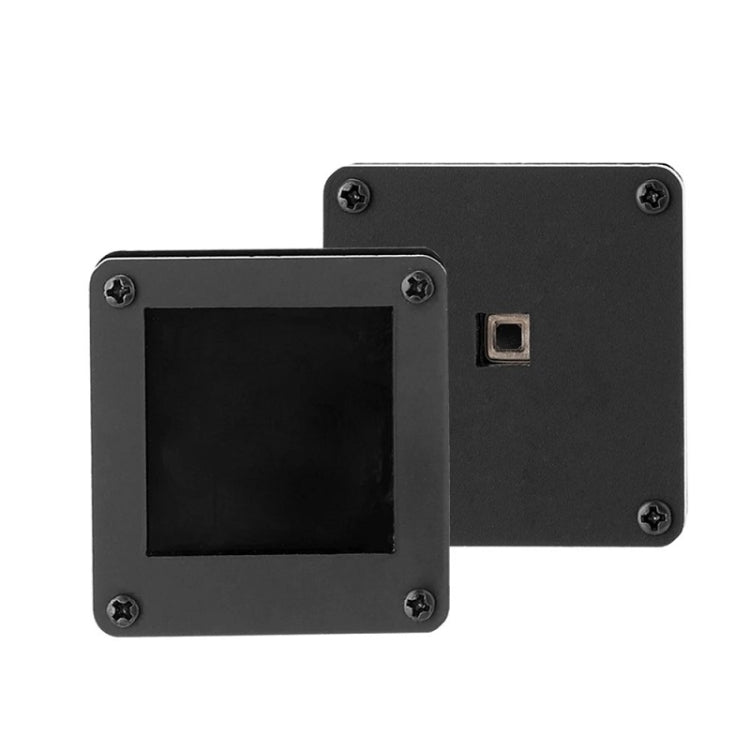

AMG8833 Array Temperature Measurement Infrared Thermal Imager
AMG8833 Array Temperature Measurement Infrared Thermal Imager
In stock
🔥 Buy any 2 items, get 25% off 3rd item 🔥 Save today!
Couldn't load pickup availability
Shipping Guarantee
Shipping Guarantee
FREE SHIPPING on all UK orders. Fully insured.
Handling time: 1 - 3 business days. (Buy2fix has to process your order and put all your items through its strict quality-control tests.)
Transit time is 5 - 10 business days to the UK. Transit times to other countries are displayed at checkout.
Origin: CN
Return Guarantee
Return Guarantee
For whatever reason, if you are unsatisfied with your order within 30 days, you can return it to us in new condition for a refund minus the shipping charges.
The Right Part Guarantee
The Right Part Guarantee
The Right Part, Guaranteed. If we send the wrong part (not as described), our 30-day return policy has you covered. You get a full refund, including the shipping fees.
Hassle-Free Returns
Hassle-Free Returns
Start Your Return in Seconds with Our Easy Online Return Portal.
1. Material: PCB

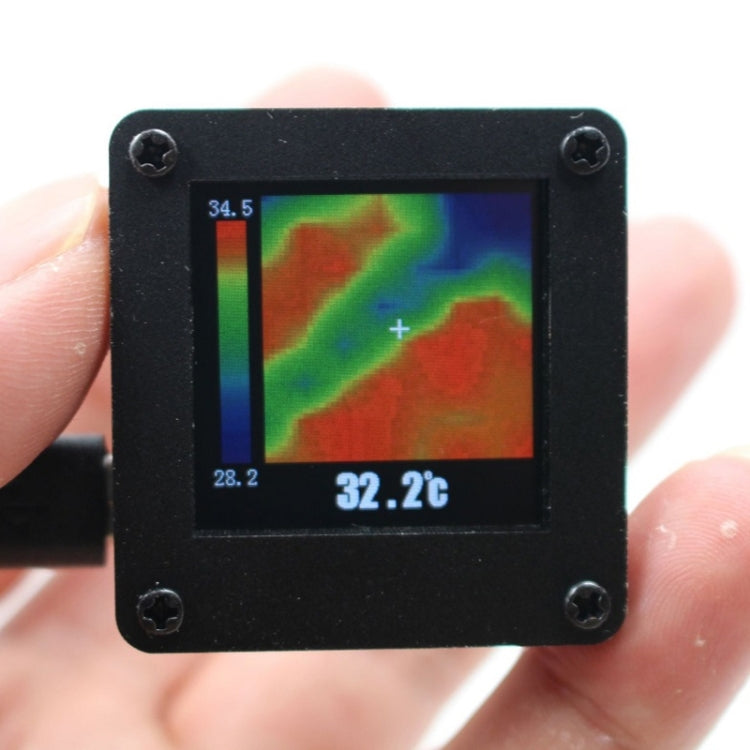

2. The module can be directly powered by USB 5V to generate infrared images

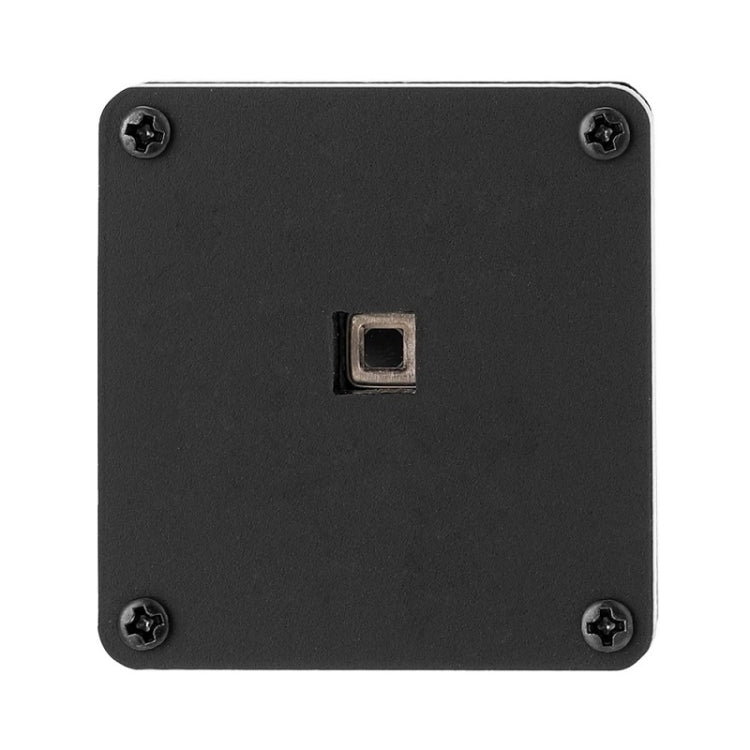

3. Use the amg8833 infrared heat sensor
4. The resolution is 8x8
5. Sensing distance: 7 meters
6. Can be used to check electronic products
7. Portable and compact, high performance, easy to use
8. High Performance High Gain: Typical 2.5 Typical 4.5 degrees Fahrenheit
9. High Performance Low Gain: Typical 3.0 Typical 5.4 degrees Fahrenheit
10. Human sensing distance: 7 meters or less (reference value) 22,966 feet
11. Measuring temperature: 0-80 degrees Celsius
12. Viewing angle: typical 60 degrees
13. Current Consumption: 4.5ma typical (normal mode); 0.2m typical (sleep mode); 0.8m typical (sleep mode)
14. Setup time: typical 50ms (time to enable communication after installation); typical 15s (time to stabilize output after installation)
15. Number of pixels: 64 (vertical array 8x horizontal 8)
16. External interface: 1 cc (quick mode)
17. Frame rate: typically 10 frames/second or 1 frame/second
18. Operation Mode: Normal, Sleep, Standby (10s or 60s flash)
19. Output mode: temperature output
20. Calculation method: no moving average or double moving average
21. Temperature output resolution: 0.25 degrees Celsius/32.45 degrees Fahrenheit
22. Number of sensor addresses: 2 (1 address c slave address)
23. Output thermistor temperature range: -20 80 80 80 80 (-4 176 degrees Fahrenheit)
24. Thermistor output resolution: 0.0625 degrees Fahrenheit / 32.1125 degrees Fahrenheit Item

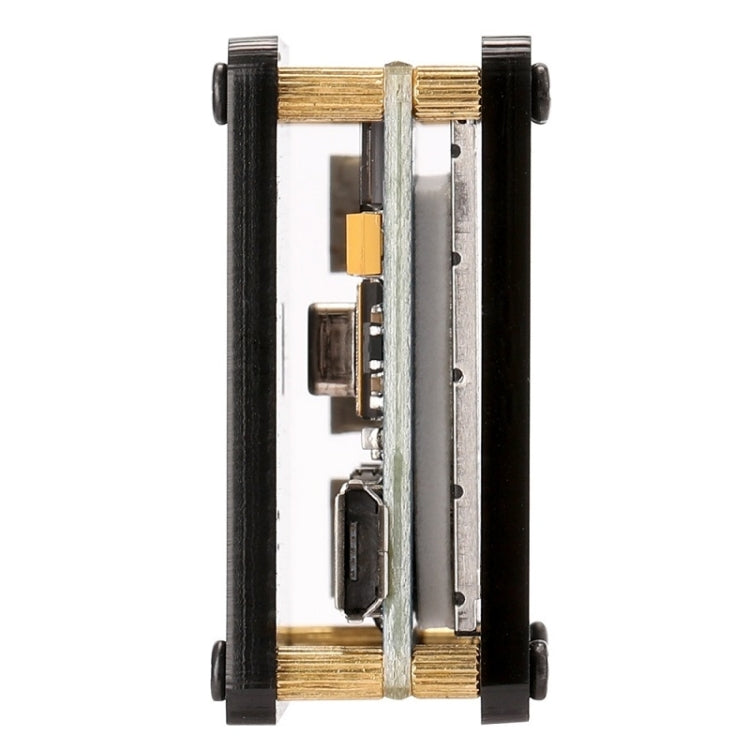

25. Dimensions: 38x36x17mm
26. Weight: 17 grams
