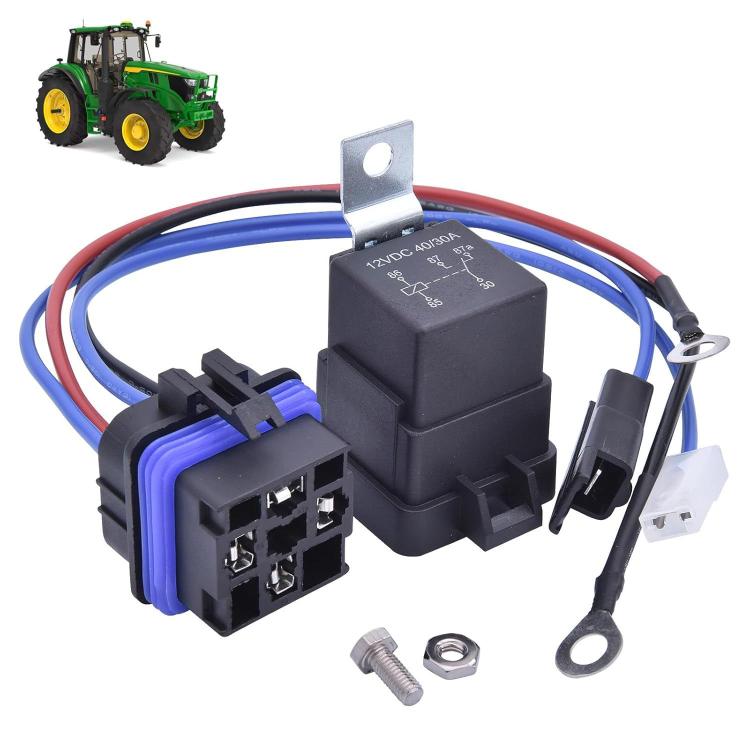

AM107421 Switch Starter Relay Kit for John Deere(40A/30A 12VDC)
AM107421 Switch Starter Relay Kit for John Deere(40A/30A 12VDC)
In stock
🔥 Buy any 2 items, get 25% off 3rd item 🔥 Save today!
Couldn't load pickup availability
Shipping Guarantee
Shipping Guarantee
FREE SHIPPING on all UK orders. Fully insured.
Handling time: 1 - 3 business days. (Buy2fix has to process your order and put all your items through its strict quality-control tests.)
Transit time is 5 - 10 business days to the UK. Transit times to other countries are displayed at checkout.
Origin: CN
Return Guarantee
Return Guarantee
For whatever reason, if you are unsatisfied with your order within 30 days, you can return it to us in new condition for a refund minus the shipping charges.
The Right Part Guarantee
The Right Part Guarantee
The Right Part, Guaranteed. If we send the wrong part (not as described), our 30-day return policy has you covered. You get a full refund, including the shipping fees.
Hassle-Free Returns
Hassle-Free Returns
Start Your Return in Seconds with Our Easy Online Return Portal.
2. Coil latch type: single coil latching
3. Switching voltage: 14VDC (max)
4. Switching current: 40A/30A (max)
5. Contact opening time: 5ms
6. Termination style: Pin
7. Contact configuration: 1-Pair changeover
8. Load voltage: 80A/60A 12V5P (max)
9. Load current: 80/60A (max)

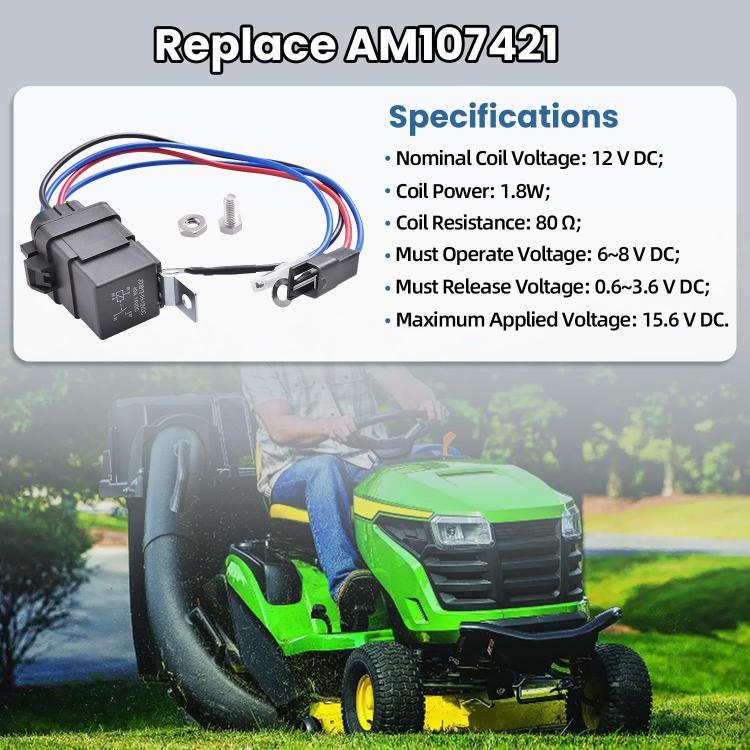

10. Coil power: 1.8W
11. Features: the AM107421 Improved Starter Relay Kit is designed to eliminate the voltage between the battery and the starter solenoid, resolving the issue of only hearing a "click" when starting the machine.
12. Replacement part Number: AM107421
13. The relay kit features insulated material, a high-strand copper core, ultra-low impedance, high efficiency, and rigorous testing to ensure reliability and durability.

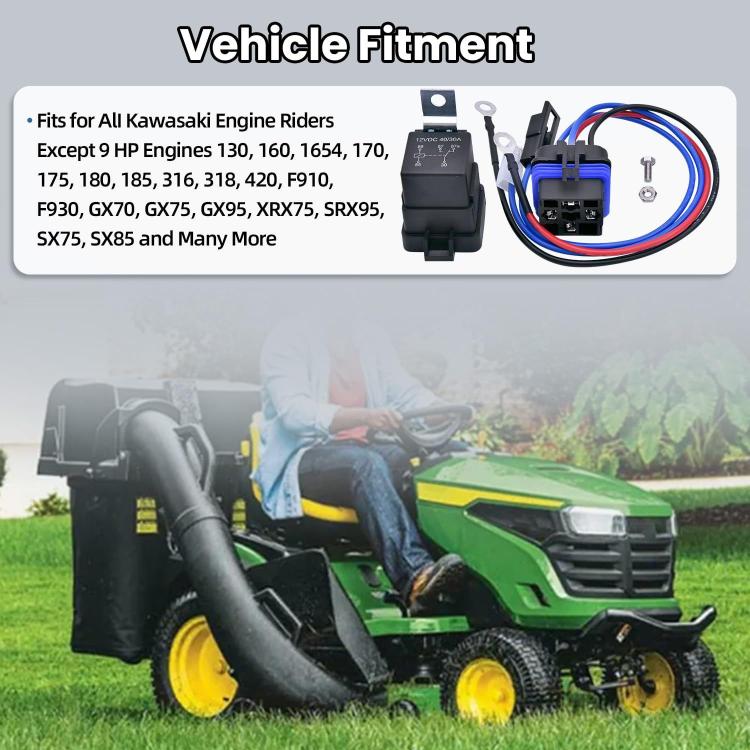

14. This accessory is compatible with all riding lawn mowers powered by Kawasaki engines. However, it does not fit models with 9-horsepower engines.
15. For John Deere models: 130, 160, 165, 170, 175, 180, 185, 240, 245, 260, 265, 285, 316, 318, 320, 325, 335, 345, 420, F510, F525, F910, F930, GX70, GX75, GX95, SX75, SX95, SRX75, SRX95, STX30, STX38, STX46, RX63, RX73, RX75, GT242, GT262, GT275, HD45X, HD75, LX172, LX173, LX176, LX178, LX186, LX188, GS25, GS30, GS45, GS75
