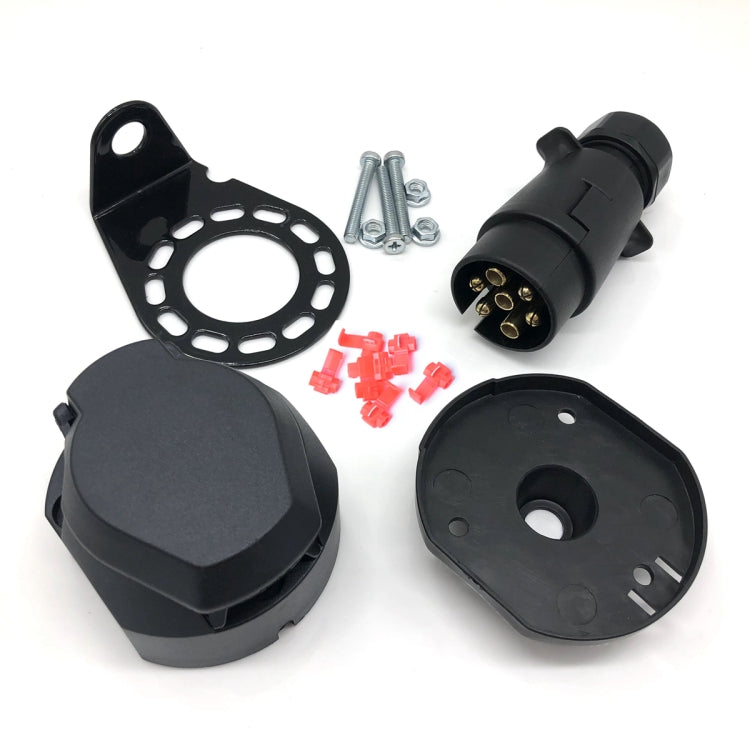

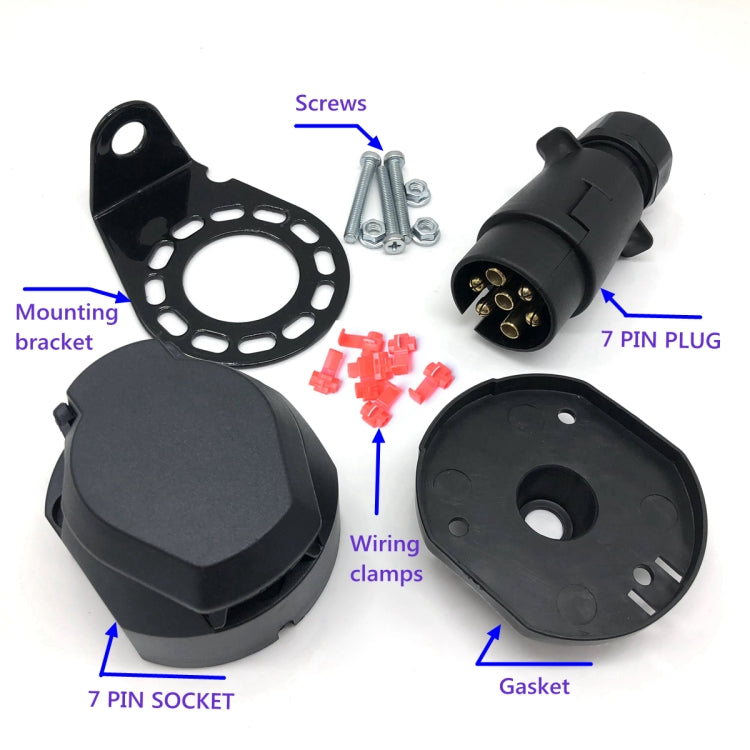

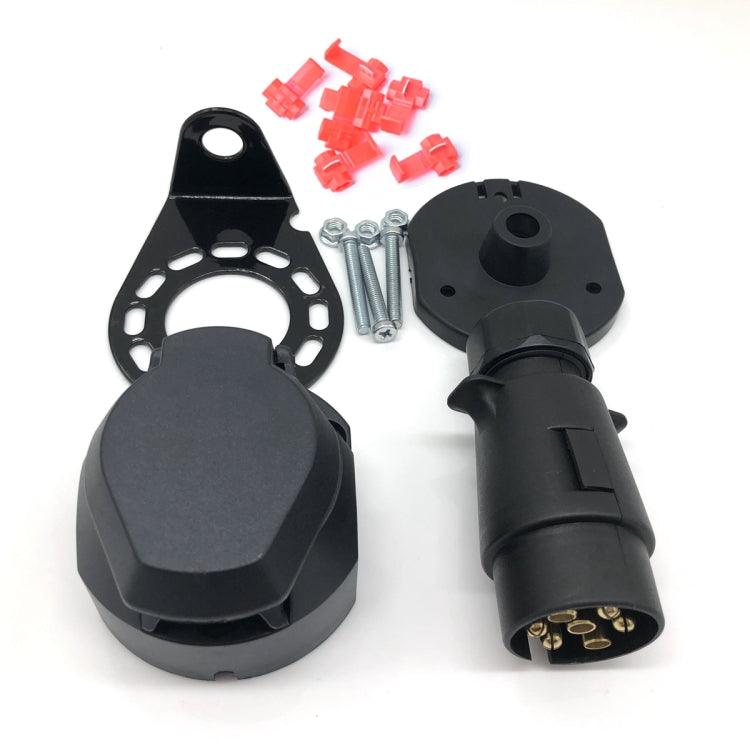

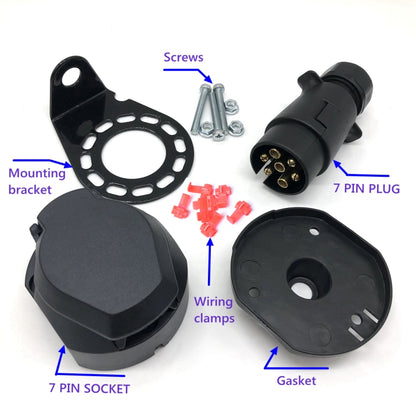

A0364 7 Pins 12N Electrics Converter Trailer Caravan Plug and Socket Adapter Connector

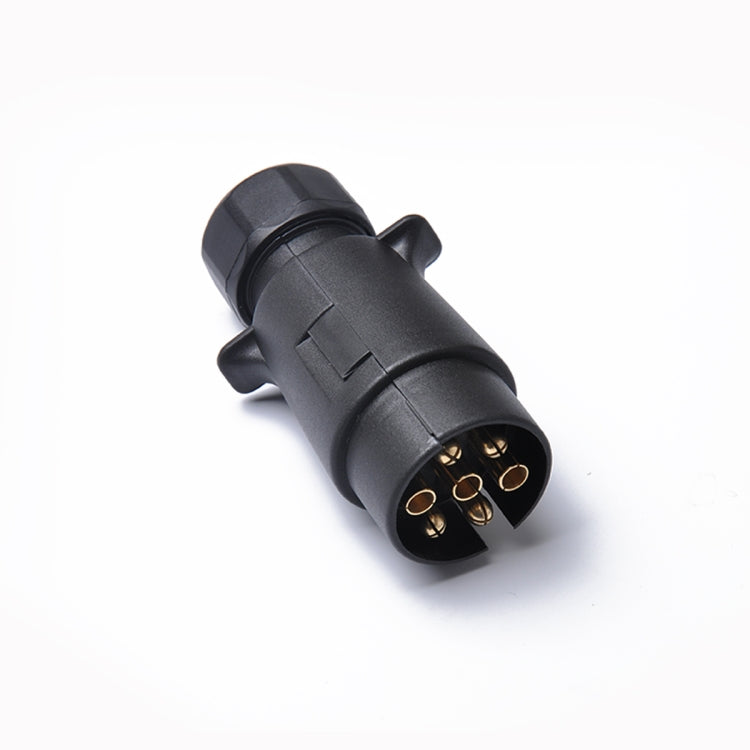

1. 7-pole trailer plug pendant connector easy to use
2. Towing & Hauling accessories
3. Non-corroding, shock-resistant design.
4. Material: plastic & metal
5. Operating voltage: 12V

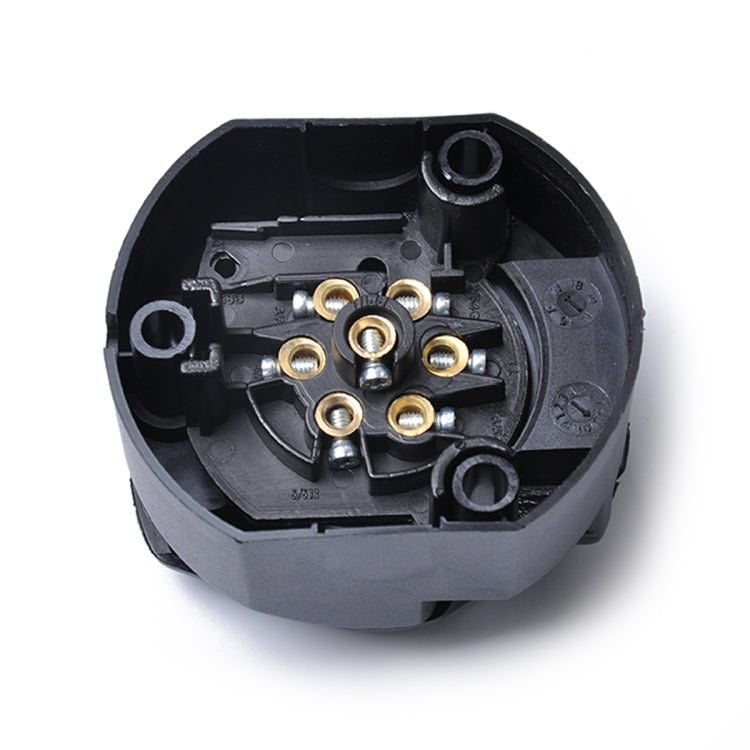

6. Type of connection: Screw contacts

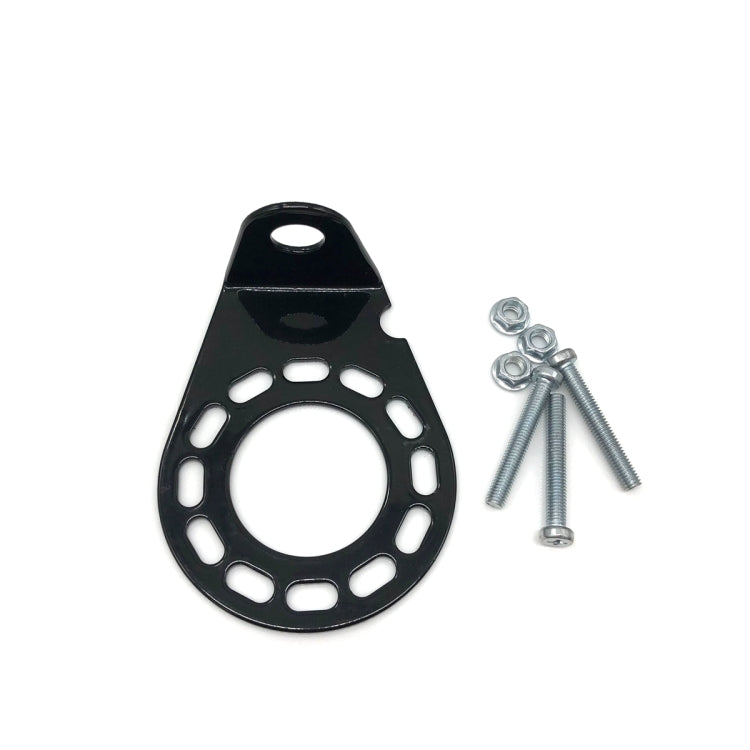

7. Mounting hole diameter: 6mm
8. 7 Pin lighting connections-12 N black cable function
PIN 1 - Yellow Wire (Left/H Direction Indicator)
PIN 2 - Blue Wire ( Rear Fog Lamps )
PIN 3 - White Wire ( Earth Return )
PIN 4 - Green Wire (Right/H Direction Indicator)
PIN 5 - Brown Wire (Right/H Tail & No. Plate Lamp )
PIN 6 - Red Wire (Brake lights)
PIN 7 - Black Wire (Left/H Tail & No. Plate Lamp )
